A construction site may look stable at the surface while hiding soft clay, fractured bedrock, buried fill, or shallow groundwater. These conditions can influence foundation performance, excavation stability, drainage, and construction costs.
Site investigation techniques help geologists and geotechnical engineers understand what lies beneath a proposed project. By combining geological mapping, boreholes, field tests, laboratory analysis, and groundwater monitoring, investigators build a reliable picture of the ground before major construction decisions are made.
But different methods answer different questions. A borehole reveals soil and rock layers, a cone penetration test measures resistance continuously with depth, and an infiltration test examines how quickly water enters the ground.
This guide explains the principal site investigation methods, when they are used, what their results mean, and how field observations become useful engineering information.
What Is a Geotechnical Site Investigation?

A geotechnical site investigation is a systematic assessment of soil, rock, groundwater, and geological conditions at a proposed development or infrastructure site.
Its purpose is not simply to identify the materials underground. It is to understand their distribution, engineering behavior, variability, and potential impact on the project.
A typical investigation seeks to answer several questions:
- What soil and rock layers occur beneath the site?
- How deep is competent bedrock?
- Are weak or compressible materials present?
- Where is groundwater, and how might its level change?
- Are there geological hazards such as cavities, faults, or unstable slopes?
- Which additional tests are needed to support engineering design?
The investigation program depends on the structure, geological setting, project stage, and consequences of uncertainty.
Main Site Investigation Techniques
The following table summarizes commonly used methods.
| Method | Main Purpose | Typical Output |
|---|---|---|
| Desk study | Review existing geological and historical information | Preliminary geological model |
| Site reconnaissance | Identify visible ground conditions and hazards | Field observations and mapping |
| Trial pits | Examine shallow soil layers directly | Soil profiles and samples |
| Borehole drilling | Investigate deeper soil and rock | Borehole logs and samples |
| SPT | Measure soil penetration resistance | SPT N-values |
| CPT/CPTu | Profile soil resistance continuously | Cone resistance, friction and pore pressure |
| Pressuremeter | Examine in-situ ground deformation response | Pressuremeter modulus and limit pressure |
| Geophysical surveys | Investigate subsurface contrasts between test locations | Interpreted subsurface models |
| Laboratory testing | Measure material properties | Strength, index and deformation parameters |
| Groundwater monitoring | Observe groundwater conditions | Water levels and pressure changes |
| Infiltration testing | Measure water entry into soil | Field infiltration rates |
No single method provides a complete understanding of a site. Reliable interpretation usually requires combining several techniques.
1. Desk Study and Preliminary Geological Assessment
Before drilling begins, investigators review existing information about the site.
This preliminary stage can reveal geological hazards, reduce unnecessary fieldwork, and help determine where boreholes and test pits should be located.
Geological and Topographic Maps
Geological maps provide information about bedrock formations, superficial deposits, faults, and geological structures.
Topographic maps and digital elevation models help identify slopes, valleys, drainage patterns, and terrain changes.
For example, a site located on an old river terrace may contain alternating gravel, sand, and fine-grained sediments. Such variability can influence groundwater flow and settlement behavior.
Historical Records and Previous Investigations
Previous borehole logs, construction records, aerial photographs, and historical maps may reveal:
- Former industrial activities or landfills.
- Areas of artificial fill.
- Previous excavation or mining.
- Changes in drainage systems.
- Nearby geological investigations.
- Historical landslides or ground movement.
Existing information should be checked for reliability, age, and relevance to the proposed project.
Developing a Preliminary Ground Model
The collected information is used to develop an initial interpretation of subsurface conditions.
This conceptual ground model identifies expected geological units, groundwater conditions, potential hazards, and uncertainties.
The model is then tested and refined during field investigations.
2. Site Reconnaissance and Geological Mapping
Site reconnaissance involves visiting the proposed construction area to examine visible geological and environmental conditions.
Field observations may include:
- Soil exposures and rock outcrops.
- Bedding, joints, faults, and fractures.
- Weathering and erosion.
- Surface water and seepage.
- Evidence of landslides or settlement.
- Existing retaining structures.
- Signs of artificial fill or previous excavation.
On a sloping site, an engineering geologist may measure the orientation of rock discontinuities to assess whether they could contribute to sliding or toppling.
In urban areas, reconnaissance also considers adjacent structures, utilities, access limitations, and environmental constraints.
These observations help establish a practical field investigation plan.
3. Borehole Drilling and Soil Sampling
Borehole drilling is one of the most widely used techniques in geotechnical investigation.
A borehole provides direct information about the ground at a specific location and allows samples or in-situ measurements to be obtained at different depths.
Common Drilling Methods
Auger drilling uses a rotating helical tool to advance through suitable soils. It is often used for relatively shallow investigations, although sample disturbance and ground conditions can limit its usefulness.
Rotary drilling uses a rotating drill bit and may employ drilling fluid or air circulation. It can advance through various soil and rock formations.

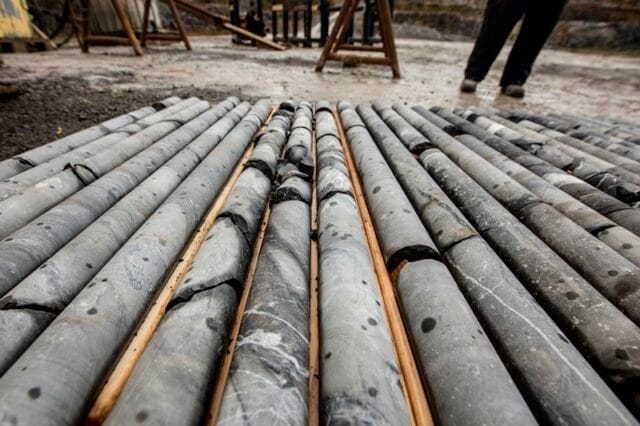

Core drilling uses specialized core barrels to recover cylindrical rock samples. These samples provide valuable information about lithology, weathering, fractures, and rock quality.
Drilling methods must be selected according to the ground, sampling requirements, investigation depth, and intended tests.
What Is Recorded in a Borehole Log?
A geological or geotechnical borehole log typically records:
- Borehole identification and location.
- Ground elevation and drilled depth.
- Depth and thickness of geological layers.
- Soil descriptions, including grading and consistency.
- Rock type, weathering, and discontinuities.
- Sample type, depth, and recovery.
- In-situ test observations.
- Groundwater observations and drilling conditions.
The log creates a permanent record of the conditions encountered.
However, an individual borehole only describes a small part of the subsurface. Geological interpretation is needed to estimate what may exist between investigation points.
Rock Core Logging and RQD

Recovered rock cores can be examined for intact rock characteristics and discontinuities.
A commonly used index is Rock Quality Designation (RQD).
RQD is calculated from the total length of qualifying sound core pieces at least 100 mm long, divided by the core run length, following the relevant logging procedure.
A low RQD may indicate highly fractured rock or poor core recovery conditions, but it should not be interpreted without considering drilling effects, weathering, and the orientation of natural discontinuities.
4. Trial Pits and Shallow Ground Investigation

Trial pits are excavations that expose shallow soil layers directly.
They allow investigators to observe variations in soil texture, color, structure, moisture, and the presence of artificial fill or buried materials.
Trial pits are particularly useful for:
- Shallow foundation investigations.
- Identifying fill and disturbed ground.
- Examining shallow geological boundaries.
- Locating buried structures.
- Collecting bulk soil samples.
- Conducting selected shallow infiltration tests.
A major advantage is that the investigator can view a larger exposed soil profile than is available from a narrow borehole.
However, trial pits cannot replace deeper investigations when substantial loads or complex geological conditions are involved.
Safety is essential: Test pits and trenches can collapse. Entry, excavation support, underground service clearance, and groundwater control must follow appropriate safety procedures.
5. Standard Penetration Test (SPT)
The Standard Penetration Test, or SPT, is a widely used in-situ test performed within a borehole.
A split-spoon sampler is driven into the ground using a standardized hammer system.
Under the commonly used procedure, the sampler is driven through three 150 mm increments. The blows required for the final 300 mm are added to obtain the SPT N-value.
What Does an SPT N-Value Tell Us?
The N-value provides an indication of penetration resistance.
It can be used in empirical correlations relating to soil density, strength, and other geotechnical characteristics.
For example, loose sand generally produces lower penetration resistance than dense sand under comparable testing conditions.
However, SPT results are influenced by hammer energy, equipment, drilling procedures, effective stress, and soil type.
An SPT N-value is not a direct measurement of bearing capacity.
Appropriate corrections and correlations are required before using results in engineering analysis.
6. Cone Penetration Testing (CPT and CPTu)

Cone Penetration Testing provides a near-continuous profile of ground resistance with depth.
A standardized cone is pushed into the ground at a controlled rate while sensors measure resistance.
What Does CPT Measure?
A conventional electronic CPT typically records:
- Cone resistance (qc): Resistance at the cone tip.
- Sleeve friction (fs): Friction measured along the sleeve.
A piezocone test, or CPTu, also measures pore-water pressure at a designated filter location.
These measurements help identify changes in soil behavior and provide information for geotechnical correlations.
Advantages and Limitations
CPT can be particularly valuable for investigating variable sedimentary sequences because it provides closely spaced measurements with depth.
Unlike a conventional borehole, however, CPT does not normally recover a soil sample.
It can also encounter refusal in very dense gravel, cemented layers, or rock.
For reliable interpretation, CPT data should be compared with borehole logs and other geological information.
7. Pressuremeter Testing

A pressuremeter test investigates the mechanical response of soil or rock to the expansion of a cylindrical probe.
In conventional borehole pressuremeter testing, the probe is placed at the required depth, then expanded while pressure and deformation-related measurements are recorded.
The resulting pressure–volume relationship provides information about in-situ ground behavior.
Pressuremeter Modulus and Limit Pressure
Two commonly interpreted parameters are:
- Pressuremeter modulus (EM): A parameter describing ground deformation response under the specified test and interpretation procedure.
- Limit pressure (pL): A parameter related to the limiting pressuremeter response of the ground.
These parameters are widely used in geotechnical engineering, particularly in foundation assessment under suitable design methods.
Pressuremeter results are sensitive to the quality of the test pocket, installation procedure, ground disturbance, and interpretation method.
They are not interchangeable with laboratory Young’s modulus without considering the differences between tests.
8. Geophysical Site Investigation Methods
Geophysical surveys investigate variations in the physical properties of the subsurface.
They can help estimate geological boundaries, locate anomalous zones, and extend information between boreholes.
Seismic Refraction and MASW
Seismic methods analyze how elastic waves travel through the ground.
Seismic refraction can help identify velocity contrasts associated with different layers or weathering conditions.
Multichannel Analysis of Surface Waves (MASW) is commonly used to estimate shear-wave velocity profiles, which provide information about small-strain ground stiffness.
Electrical Resistivity Tomography (ERT)

ERT measures electrical potential differences produced by controlled electrical current through the ground.
The resulting resistivity model can help identify contrasts associated with lithology, moisture, groundwater salinity, and other properties.
However, similar resistivity values may correspond to different geological materials. Borehole or other ground-truth information is often needed to support interpretation.
Ground-Penetrating Radar (GPR)

GPR uses electromagnetic pulses to detect contrasts beneath the surface.
It may help locate shallow buried objects, interfaces, utilities, and some cavities.
Its effectiveness depends strongly on ground conductivity, moisture, investigation depth, and target characteristics.
Highly conductive or clay-rich ground can substantially reduce penetration.
Geophysical interpretations are indirect: An anomaly is not automatically proof of a fault, cavity, or particular rock type.
9. Groundwater Investigation and Monitoring
Groundwater conditions are a major part of many site investigations.
Water can influence effective stress, excavation stability, seepage, uplift, and the performance of underground structures.
Monitoring Wells and Piezometers

Monitoring installations allow groundwater levels or hydraulic pressures to be observed over time.
Repeated readings can help identify seasonal changes or responses to rainfall, nearby pumping, and construction activities.
An important distinction is that a water level noted during drilling may not represent an equilibrated groundwater level.
A reliable assessment may therefore require properly installed monitoring points and observations over an appropriate period.
Permeability and Hydraulic Testing
Depending on the ground conditions, investigators may use:
- Pumping tests.
- Slug tests.
- Falling-head or constant-head methods.
- Borehole permeability tests.
- Packer tests in rock.
These methods investigate groundwater flow behavior, but they operate at different scales and under different boundary conditions.
Results should be interpreted in relation to the hydrogeological model.
10. Infiltration Testing for Stormwater Management
Not every site investigation focuses exclusively on buildings or foundations.
New developments often include roofs, roads, and paved surfaces that increase stormwater runoff.
Where local conditions permit, infiltration systems may be considered to manage rainwater near the location where it falls.
Before such systems are designed, investigators may need to assess the ability of the ground to absorb water.
Double-Ring Infiltrometer Test

A double-ring infiltrometer uses two concentric rings inserted into the soil.
Water is maintained within the rings, and the infiltration behavior of the inner ring is measured.
The outer ring helps reduce lateral flow effects near the central measurement area.
Measurements are repeated over time to examine how the infiltration rate develops under the test conditions.
The method can be useful for characterizing water entry into near-surface soils.
However, an infiltration rate measured using this test is not automatically equivalent to the soil’s saturated hydraulic conductivity.
Infiltration Tests in Trial Pits
Depending on the project and applicable guidance, infiltration testing may also be performed in excavated pits or at the proposed elevation of an infiltration facility.
The investigation should consider:
- Soil layering and permeability variation.
- Groundwater depth and seasonal fluctuations.
- Potential clogging or disturbance.
- Nearby foundations and underground structures.
- Contamination and groundwater protection.
- The required design method and safety factors.
A single infiltration measurement should not be assumed to represent the entire development site.
11. Laboratory Testing of Soil and Rock
Field investigations are commonly supplemented by laboratory tests.
Laboratory testing helps characterize materials under controlled conditions and supports the interpretation of field measurements.
Soil Index and Classification Tests

Common tests include:
- Grain-size distribution.
- Natural water content.
- Atterberg limits.
- Particle density and bulk density.
- Compaction characteristics.
These tests help classify soil and assess its general engineering behavior.
Strength and Compressibility Tests

Additional tests may include:
- Direct shear testing.
- Triaxial compression testing.
- Oedometer consolidation testing.
- Unconfined compression testing, where appropriate.
The selection of tests depends on the engineering questions and the quality of the recovered samples.
Rock Laboratory Tests
Rock testing may include uniaxial compressive strength, point-load strength index, density, and durability testing.
Results from intact rock specimens must be distinguished from the behavior of the full rock mass, which may be controlled by fractures, faults, and weathered zones.
12. Environmental and Contamination Investigations
Some sites require investigation of possible contamination from previous industrial, agricultural, or commercial activities.
Soil, groundwater, and soil-gas testing may be needed to evaluate potential risks.
The investigation should be based on a conceptual model identifying contamination sources, possible pathways, and receptors.
Sampling locations, depths, preservation methods, laboratory analyses, and quality control procedures must suit the contaminants and applicable regulatory requirements.
A general geotechnical investigation does not automatically provide a complete contaminated-land assessment.
13. From Field Results to a Geological Ground Model
The principal goal of a site investigation is to transform observations and measurements into a coherent understanding of the ground.
Consider the following hypothetical building site.
Example: Initial Investigation Results
| Depth | Observed Ground Condition |
|---|---|
| 0–1.5 m | Variable artificial fill |
| 1.5–5.0 m | Soft to firm silty clay |
| 5.0–9.0 m | Sand and gravel |
| Below 9.0 m | Weathered bedrock |
Additional observations include groundwater encountered at approximately 3.2 m and variable penetration resistance in the clay and granular layers.
These figures are illustrative, not data from an actual project.
What Do These Results Mean?
The investigation raises several engineering questions.
Artificial fill: Is the material sufficiently uniform and documented, or could it contribute to differential settlement?
Silty clay: How compressible is it, and what settlement may develop under loading?
Sand and gravel: How does its permeability influence groundwater movement and excavation conditions?
Weathered bedrock: How variable are its depth, weathering, and mechanical properties?
The investigation may need additional boreholes, testing, or monitoring to reduce uncertainty before the final design is completed.
This illustrates an essential principle: Site investigation results are not simply recorded; they must be interpreted in relation to the proposed structure.
14. What Should a Site Investigation Report Include?
A useful site investigation report presents both the factual information collected and a clear interpretation appropriate to its scope.
Typical components include:
- Project description and investigation objectives.
- Location plan and site conditions.
- Desk study and geological setting.
- Investigation methods and locations.
- Borehole and trial pit logs.
- Field and laboratory test results.
- Groundwater observations.
- Geological cross-sections and ground models.
- Potential hazards and uncertainties.
- Conclusions and recommendations for further work.
Factual investigation records should remain distinguishable from interpretations, assumptions, and engineering recommendations.
A report should also identify limitations, especially where geological conditions may vary between exploration points.
15. Common Site Investigation Mistakes
Even a technically advanced investigation can produce unreliable conclusions if its limitations are ignored.
Common problems include:
- Using too few investigation points for a variable site.
- Selecting tests without a clear engineering objective.
- Assuming groundwater levels remain constant throughout the year.
- Treating indirect geophysical models as confirmed geology.
- Using disturbed soil samples for tests requiring high-quality specimens.
- Applying empirical correlations outside their valid conditions.
- Ignoring potential contamination or buried services.
- Failing to update the ground model when construction reveals different conditions.
A good investigation reduces uncertainty but cannot eliminate it completely.
Frequently Asked Questions
What is the purpose of a site investigation?
A site investigation determines subsurface geological, geotechnical, and groundwater conditions so that engineers can assess ground-related risks and make informed design and construction decisions.
What is the difference between a borehole and a trial pit?
A borehole investigates ground conditions through a relatively narrow opening and can reach substantial depths. A trial pit exposes a wider area of shallow ground, allowing direct observation of soil layers and shallow features.
What is the difference between SPT and CPT?
SPT measures penetration resistance at selected depths using a driven sampler, while CPT measures resistance continuously or near-continuously as a cone is pushed into the ground. The methods provide different information and are often complementary.
Why are pressuremeter tests used?
Pressuremeter tests measure ground response to the expansion of a probe. Their results can provide deformation and resistance parameters used in appropriate geotechnical assessment and design methods.
Can geophysical surveys replace boreholes?
Not generally. Geophysical methods measure physical-property contrasts and require interpretation. Boreholes, samples, and field observations often provide essential confirmation of the geological model.
What is the difference between infiltration rate and permeability?
Infiltration rate describes how quickly water enters the ground under specified field conditions. Hydraulic conductivity describes the ease with which water moves through a material under a hydraulic gradient. They are related but are not interchangeable measurements.
How deep should a site investigation borehole be?
There is no universal depth suitable for every project. Borehole depth depends on the proposed structure, loading, geological conditions, potential failure mechanisms, and the extent of ground that may influence engineering performance.
Conclusion
Site investigation combines geological knowledge with field measurements, laboratory testing, and engineering interpretation.
Boreholes reveal the ground directly, penetration and pressuremeter tests help assess its mechanical behavior, geophysical surveys extend the investigation between sampling points, and groundwater measurements reveal important hydraulic conditions.
The most effective investigations do not simply collect more data. They select appropriate methods, identify uncertainty, and develop a ground model that answers the project’s most important engineering questions.
