Slope stability refers to the ability of a slope or hillside to resist the downward movement or collapse of soil and rock materials. Landslides are a common form of slope failure, which can result in significant damage to property and infrastructure, loss of life, and environmental impacts. Slope stability and landslides are important considerations in engineering geology and geotechnical engineering, particularly in the planning, design, and construction of infrastructure projects such as roads, bridges, and buildings.
Several factors can contribute to slope instability and landslides, including the type of geological materials present, the slope gradient and aspect, the presence of groundwater, and the effects of natural and human-induced erosion. Some common causes of slope instability include earthquakes, heavy rainfall or snowmelt, changes in soil moisture content, and the removal of support at the base of a slope due to excavation or construction activities.
In order to assess the potential for slope instability and landslides, geologists and engineers use a variety of techniques, including field mapping and observation, geophysical surveys, drilling and sampling, and in-situ testing such as the Standard Penetration Test (SPT) and Cone Penetration Test (CPT). Computer modeling and simulation can also be used to predict the behavior of slopes and potential failure mechanisms under different conditions.
Some common methods for mitigating the risk of slope instability and landslides include improving drainage and vegetation cover, constructing retaining walls or stabilization structures, and altering the slope geometry through grading or excavation. In some cases, it may be necessary to relocate infrastructure or residential areas away from high-risk areas.
Overall, the study of slope stability and landslides is an important aspect of geotechnical engineering and can help to ensure the safety and sustainability of infrastructure projects and human communities in areas prone to natural hazards.
Causes of Slope Failure
Slope failure can occur due to various natural and human-induced factors. Some of the common causes of slope failure are:
- Geology and Soil Properties: The type and properties of soil and rock underlying the slope can contribute to instability. For example, slopes with weak or weathered rock, clay soils, or soils with a high water content are more prone to failure.
- Hydrological Conditions: Water is a significant factor in slope instability, and its presence can contribute to slope failure. Excessive rainfall, flooding, or changes in groundwater level can cause landslides and slope failure.
- Slope Geometry: The angle of the slope and its height can contribute to instability. The steeper the slope, the greater the potential for failure.
- Seismic Activity: Earthquakes and other seismic activities can trigger landslides by altering the stability of slopes.
- Human Activities: Human activities like excavation, construction, mining, or logging can alter the stability of slopes and lead to instability and failure.

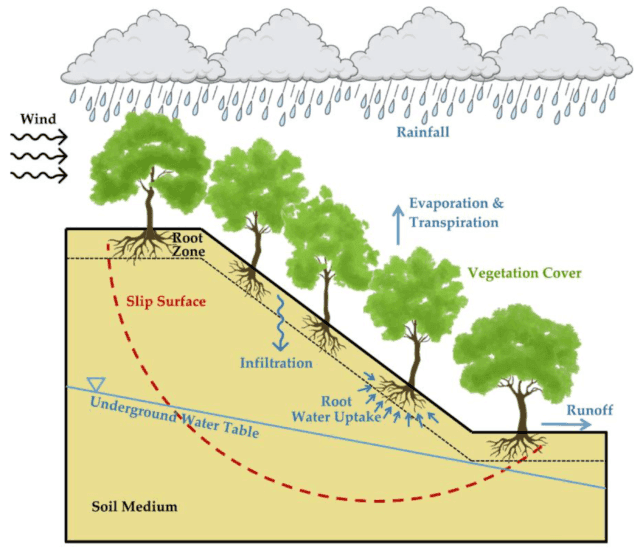

- Vegetation: Removal of vegetation can cause instability and contribute to slope failure by reducing soil cohesion and increasing water flow.
- Climate Change: Climate change-induced phenomena like heavy rainfall, droughts, and changes in temperature can contribute to slope failure.
- Other Factors: Other factors that can contribute to slope failure include erosion, freeze-thaw cycles, and natural slope movement over time.
Types of Landslides
There are several types of landslides, which are classified based on the type of material involved and the way they move. Some of the common types of landslides are:
- Rockfall: This occurs when rocks or boulders detach from a steep slope and fall to the ground.
- Rockslide: This occurs when a large block of rock slides downhill along a plane of weakness, such as a fault or joint.
- Debris flow: This occurs when a large volume of soil, rock, and water flows downhill, usually in a channel.
- Mudflow: This is similar to debris flow, but the material is mostly fine-grained soil and water.
- Earthflow: This occurs when saturated soil moves downhill in a slow, viscous flow.
- Creep: This is a slow, continuous movement of soil or rock downhill, usually caused by expansion and contraction of the material due to seasonal changes in temperature and moisture.
- Slump: This occurs when a mass of soil or rock moves downhill along a curved surface, leaving a crescent-shaped scar on the slope.
- Complex landslide: This is a combination of two or more types of landslides, such as a rockslide that triggers a debris flow.
Slope Stability Analysis Techniques
There are several techniques used for slope stability analysis, including:
- Limit equilibrium analysis: This method assumes that the slope fails along a failure plane, and the factor of safety is the ratio of the resisting forces to the driving forces along that plane. Different methods can be used for this type of analysis, such as the Bishop’s method, Janbu’s method, and Spencer’s method.
- Finite element analysis: This method involves dividing the slope into a large number of small elements and analyzing the behavior of each element. This allows for the consideration of more complex geometries, soil behaviors, and load conditions.
- Shear strength reduction analysis: This method is used to assess the stability of a slope under different loading conditions. The shear strength of the soil is reduced incrementally until the slope fails, and the factor of safety is calculated.
- Probabilistic analysis: This method involves the use of statistical models to assess the probability of slope failure based on the variability of input parameters, such as soil properties and loading conditions.
- Empirical methods: These methods are based on experience and observation and are often used for preliminary analysis. Examples include the stability number method and the Swedish circle method.
Each of these techniques has its advantages and limitations and is appropriate for different types of slopes and soil conditions. The selection of the appropriate technique depends on factors such as the nature of the slope, the available data, and the level of accuracy required.
Limit equilibrium analysis
Limit equilibrium analysis is a common technique used to evaluate the stability of slopes. It is based on the principle of equilibrium, which states that a stable slope is one in which the forces acting on the slope are in balance. The analysis involves dividing the slope into a number of sections and considering the stability of each section separately.
In limit equilibrium analysis, the factor of safety (FS) is used as a measure of the stability of a slope. The factor of safety is the ratio of the resisting forces to the driving forces acting on the slope. If the factor of safety is greater than one, the slope is considered stable; if it is less than one, the slope is considered unstable.
There are various methods of limit equilibrium analysis, including:
- Bishop’s method: This is a widely used method for analyzing slopes. It assumes that the shear strength of the soil increases linearly with depth, and that the forces acting on the slope can be resolved into two perpendicular directions.
- Janbu’s method: This method is similar to Bishop’s method, but it considers the possibility of circular failure surfaces.
- Spencer’s method: This method is used for analyzing complex slopes with irregular geometries. It considers the distribution of forces along the slope, and uses a graphical approach to determine the factor of safety.
- Morgenstern-Price method: This method is based on the assumption that the shear strength of the soil varies along the failure surface, and uses numerical techniques to calculate the factor of safety.
Limit equilibrium analysis is a widely used technique for evaluating the stability of slopes, but it has some limitations. It assumes that the soil properties are homogeneous and isotropic, which may not be the case in some situations. It also does not consider the effects of pore water pressure, which can significantly affect the stability of slopes. As such, other analysis techniques such as finite element analysis (FEA) or finite difference method (FDM) may be used to complement the results obtained from limit equilibrium analysis.
Bishop’s method is a slope stability analysis technique used to determine the factor of safety (FoS) of slopes under various loading conditions. The method was developed by W. W. Bishop in the 1950s and is widely used in geotechnical engineering practice.
Bishop’s method assumes that the failure surface in a slope is circular or part-circular. The analysis involves dividing the slope into a number of slices, each of which is assumed to be a rigid block. The forces acting on each slice are then resolved into their vertical and horizontal components, and the stability of each slice is analyzed using a force equilibrium equation. The factor of safety for the slope is defined as the ratio of the total available resisting force to the total driving force.
Bishop’s method takes into account the shear strength of the soil, the weight of the soil, and the pore water pressure within the soil. The analysis can be performed using either the total stress method or the effective stress method, depending on the conditions of the slope and the soil properties. The method is widely used in practice due to its simplicity and ease of use, although it has some limitations and assumptions that should be considered when applying it to real-world slope stability problems.
Janbu’s method is a slope stability analysis method that is commonly used in geotechnical engineering. It is a limit equilibrium method that uses circular failure surfaces to analyze the stability of slopes. The method assumes that the shear strength of the soil is governed by Mohr-Coulomb failure criterion.
The Janbu’s method divides the slope into a number of vertical slices, and the forces acting on each slice are analyzed using the principles of statics. The method takes into account the variation in the soil properties with depth and the effect of pore water pressure on the stability of the slope.
The analysis involves the calculation of the factor of safety, which is the ratio of the resisting forces to the driving forces. A factor of safety greater than 1 indicates a stable slope, while a factor of safety less than 1 indicates an unstable slope.
Janbu’s method is widely used because it is relatively simple and can be applied to a wide range of slope geometries and soil conditions. However, it has some limitations, such as the assumption of circular failure surfaces and the neglect of the effects of strain-softening and strain-hardening on the shear strength of the soil.
Spencer’s method is a type of limit equilibrium analysis used to determine the stability of slopes. It is named after its creator, Edmund H. Spencer. The method uses the concept of “wedges” to evaluate the forces acting on a slope and determine its stability.
In Spencer’s method, the slope is divided into a series of potential failure wedges, each of which is evaluated for stability. The method considers both the weight of the wedge and the forces acting on it, such as the weight of the soil above the wedge, the pore pressure within the soil, and any external forces acting on the slope. The stability of each wedge is determined using a series of equations that take into account the forces acting on the wedge, as well as the shear strength of the soil.
Spencer’s method is particularly useful for analyzing complex slopes, where there may be multiple failure surfaces. It can also be used to evaluate the stability of slopes with irregular geometry or variable soil properties. However, like other limit equilibrium methods, it has some limitations, such as the assumption of a two-dimensional failure surface and the assumption that soil properties are constant along the failure surface.
The Morgenstern-Price method is a slope stability analysis method that takes into account the pore water pressure generated in the slope due to the infiltration of water. This method was developed in the 1960s by Canadian geotechnical engineers Zdeněk Morgenstern and William Allen Price.
The method is based on the assumption that a slope can be divided into a series of slices, with each slice having a different factor of safety against failure. The method involves calculating the effective stresses in each slice, which are the stresses acting on the soil particles after subtracting the pore water pressure from the total stress. The factor of safety against failure for each slice is then calculated by comparing the shear strength of the soil to the shear stress acting on the slice.
The Morgenstern-Price method can be used to analyze slopes of any shape, including slopes with complex geometries and soil profiles. It is widely used in practice and has been incorporated into many slope stability analysis software packages. However, the method has some limitations, including the fact that it assumes the soil properties and pore water pressure are constant throughout the slope, which may not always be the case in practice.
Finite element analysis
Finite element analysis (FEA) is a computational method used to analyze and predict the behavior of complex engineering systems. It involves breaking down a system into smaller, simpler parts, called finite elements, and then applying mathematical equations and numerical methods to model the behavior of each element. The equations are solved simultaneously for all the elements to obtain a solution for the entire system.
In geotechnical engineering, FEA is often used to model the behavior of soil and rock masses, especially in complex geological conditions. FEA can be used to analyze slope stability, foundation behavior, tunneling, and excavation problems, among other applications.
FEA requires a detailed understanding of the geometry, boundary conditions, material properties, and loading conditions of the system being analyzed. The accuracy of the results depends on the accuracy of the input parameters and the complexity of the model. FEA is a powerful tool, but it also requires significant computational resources and specialized software, as well as expertise in numerical methods and computer programming.
Shear strength reduction analysis
Shear strength reduction analysis (SSRA) is a numerical method used to evaluate the stability of slopes and embankments. It is also known as the stability reduction method, shear strength reduction method, or c-method.
In SSRA, the factor of safety (FoS) of a slope is calculated by successively reducing the shear strength of the soil until failure occurs. The method is based on the assumption that the failure of a slope occurs when the maximum shear stress at any point within the slope reaches the shear strength of the soil.
The SSRA method is particularly useful when the soil properties and/or geometry of the slope are complex, making it difficult to use traditional methods such as limit equilibrium analysis. However, SSRA is a computationally intensive method, requiring the use of advanced software and powerful computers to run the necessary simulations.
SSRA has been widely used in geotechnical engineering to analyze slope stability in a range of applications, including open-pit mining, dams, and highways. It has also been used to investigate the effects of environmental factors such as rainfall, earthquakes, and climate change on slope stability.
Probabilistic analysis is a technique used in slope stability analysis to assess the probability of slope failure occurring. It involves assigning probabilities to different factors that can influence the stability of the slope, such as the strength of the soil, the geometry of the slope, and the intensity and duration of the loading.
In probabilistic analysis, a range of values is assigned to each factor, rather than a single deterministic value. This allows for a more realistic assessment of the stability of the slope, as it takes into account the inherent variability and uncertainty that is present in real-world conditions.
Monte Carlo simulation is a commonly used technique in probabilistic analysis. It involves running a large number of simulations, each with a different set of input values randomly selected from the assigned probability distributions. The results of the simulations can then be used to calculate the probability of slope failure occurring, and to identify the most critical factors influencing the stability of the slope.
Empirical methods are slope stability analysis techniques that are based on the observed behavior of slopes in the past. They do not require any mathematical models, but rather rely on empirical relationships derived from case histories of slope failures. These methods are useful in situations where there is limited data available, or where the geotechnical conditions are complex and difficult to model.
One example of an empirical method is the “Stability Number” method, which is used to analyze slopes with planar failure surfaces. The Stability Number is calculated based on the slope angle, the soil unit weight, the cohesion and the friction angle of the soil. The method is based on the observation that slopes with a Stability Number greater than 1.0 are generally considered stable, while slopes with a Stability Number less than 1.0 are considered unstable.
Another example is the “Swedish method,” which is a semi-empirical method that is commonly used in Scandinavia. This method involves analyzing the pore pressure distribution within the slope, and then comparing this with the shear strength of the soil. If the pore pressure exceeds the shear strength, then the slope is considered unstable.
Empirical methods are often used in conjunction with other analysis techniques to provide additional insight into the stability of a slope. They are most commonly used in situations where the geotechnical conditions are complex and difficult to model, or where there is limited data available.
