Liddicoatite is a fascinating mineral that belongs to the extensive tourmaline group. This gemstone is chemically classified as a calcium-rich lithium aluminum borosilicate. The characteristic that distinguishes liddicoatite from other tourmalines is its unique trigonal crystal system and its complex, multi-colored zoning patterns, often visible in cross-sections of the crystals. These zones appear as concentric rings or angular sectors, showcasing an array of colors due to variations in chemical composition during crystal growth.

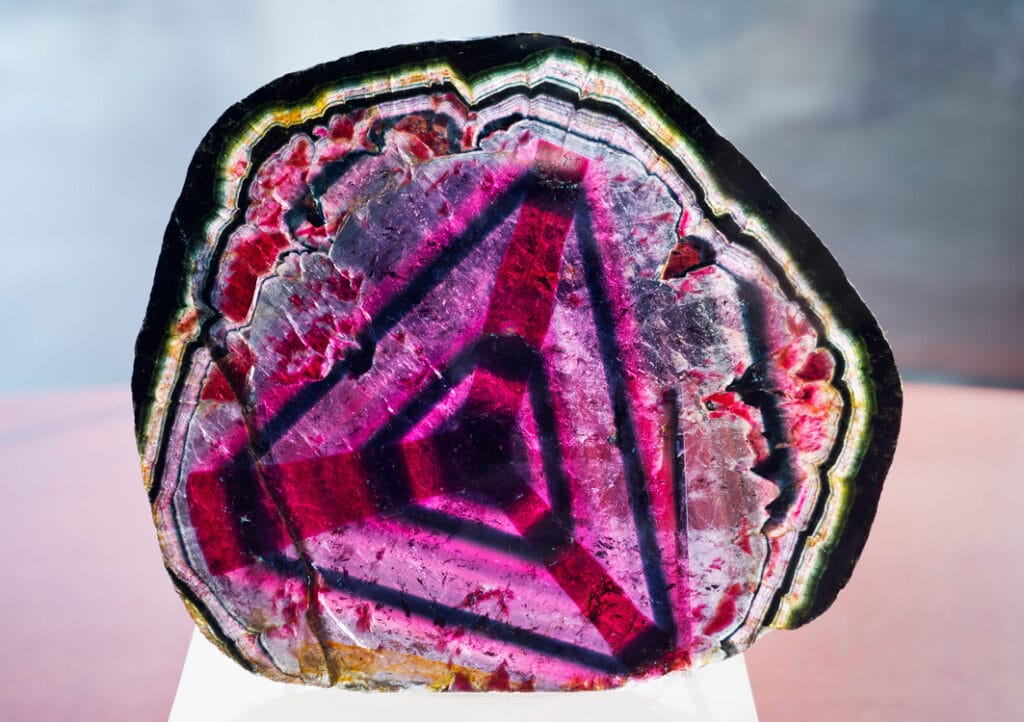

Liddicoatite
Liddicoatite Gem Guide and Properties Chart (gemstones.com)

In terms of its placement within the tourmaline group, liddicoatite is noted for its high lithium content, which is a significant marker in its identification. It is also closely related to elbaite, another lithium-rich tourmaline, but the two can be differentiated by their calcium content, with liddicoatite having a higher concentration.

The discovery and naming of liddicoatite have a rich historical context. It was first recognized as a distinct mineral species in the 1970s, although the material itself had been known and occasionally misidentified as elbaite before this time. The mineral was named in honor of Richard T. Liddicoat, a revered gemologist and long-time president of the Gemological Institute of America (GIA). Liddicoat’s contributions to the field of gemology were immense, and naming this unique tourmaline after him acknowledged his impact on the study and classification of gemstones. The formal recognition and naming of liddicoatite brought greater clarity to the taxonomy of the tourmaline group, highlighting the diversity and complexity of this mineral family.

Physical and Chemical Properties

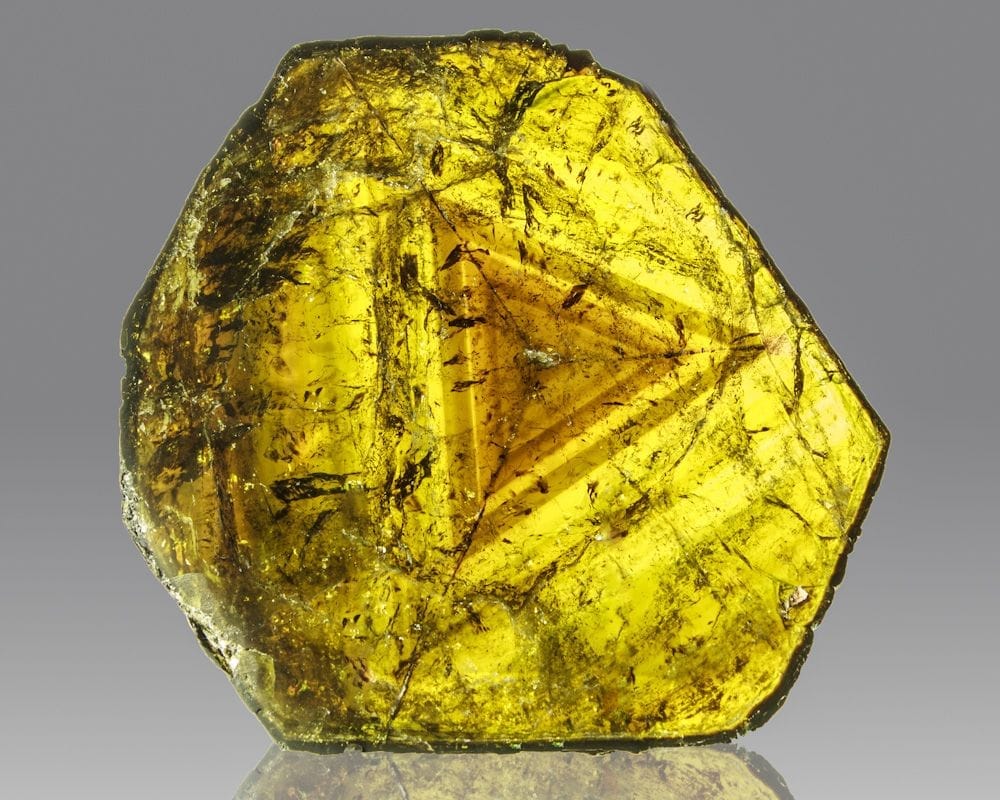

Liddicoatite
Liddicoatite: Vibrant Gem Honors Father of Modern Gemology (gia.edu)

Chemical Composition and Formula

Liddicoatite has a complex chemical formula, typically represented as Ca(Li, Al)_3(Al, Mg, Mn)_6(BO_3)_3Si_6O_{18}(OH)_3(OH)F. This formula reflects its rich composition, which includes essential elements like calcium, lithium, aluminum, boron, silicon, and sometimes magnesium and manganese. The presence of these elements contributes to its unique properties and distinguishes it from other minerals in the tourmaline group.

Physical Characteristics

Color: Liddicoatite is renowned for its striking color variability. It can display a wide range of colors including pink, red, green, blue, and brown. The colors can appear in dramatic zoning patterns, where different colors are layered or segmented within a single crystal, often seen in sharp contrasts.

Crystal Structure: Like other tourmalines, liddicoatite crystallizes in the trigonal system. Its crystals are typically elongated and prismatic, with striations along the length of the crystal. These crystals can sometimes form in complex, radial structures which are particularly appealing to collectors.

Hardness: Liddicoatite ranks between 7 and 7.5 on the Mohs scale of mineral hardness, making it relatively hard and suitable for various types of jewelry, though care must be taken due to possible cleavage planes that can make it susceptible to breaking under stress.

Unique Optical Properties and Typical Forms

Optical Properties: Liddicoatite exhibits pleochroism, an optical effect where the stone appears to change colors when viewed from different angles. This characteristic is particularly pronounced due to its varying chemical composition across different zones of the crystal. It can also show a strong vitreous luster when cut and polished, adding to its appeal as a gemstone.

Typical Forms: The most common form of liddicoatite in nature is as elongated prismatic crystals that can be either singly terminated or doubly terminated. These crystals often show the distinctive color zoning that can be concentric, following the crystal’s growth rings, or sectoral, differing in wedge-shaped sectors of the crystal. In rare cases, liddicoatite can form radial aggregates, where multiple crystals grow outward from a central point, creating a starburst-like effect.

Due to its unique and visually striking characteristics, liddicoatite is highly valued both as a collector’s mineral and as a gemstone in the jewelry market.

Geological Formation of Liddicoatite

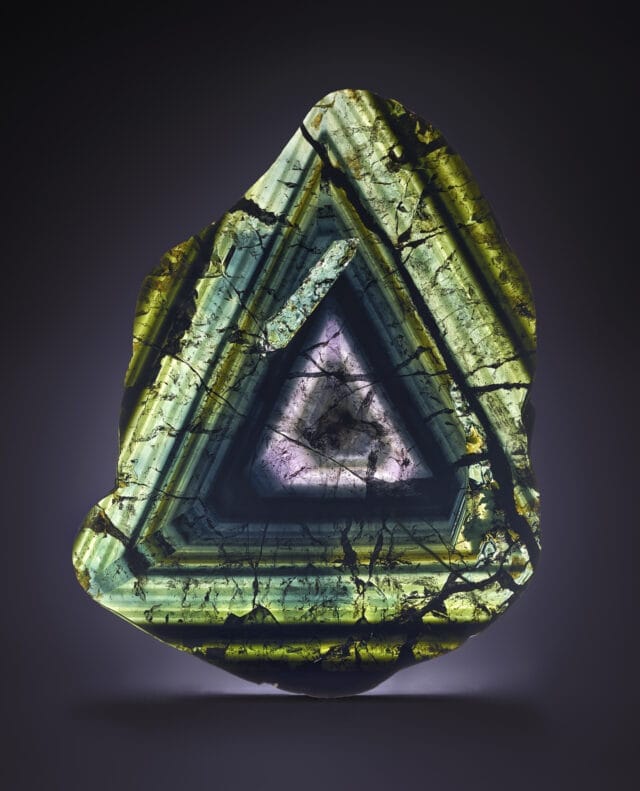

Liddicoatite

Liddicoatite, like other tourmalines, forms in a variety of geological environments, primarily through igneous and metamorphic processes. These environments provide the unique conditions necessary for the crystallization of its complex chemical structure.

Types of Geological Environments

  1. Pegmatites: Liddicoatite is most commonly found in lithium-rich pegmatites. These are igneous rocks that form during the final stages of magma crystallization, where the residual melt becomes enriched with volatile elements like lithium, boron, and water. The high concentration of these elements allows for the growth of rare and unusual minerals, including liddicoatite.
  2. Metamorphic Rocks: Some liddicoatite crystals can form in high-grade metamorphic rocks as a result of the metamorphism of boron-rich sediments. In these settings, existing minerals and rock materials are chemically transformed by high pressure and temperature, allowing liddicoatite to crystallize.
  3. Hydrothermal Veins: Occasionally, liddicoatite can also form in hydrothermal veins, where mineral-laden hot water or fluids percolate through fractures in the rock. The sudden changes in pressure and temperature can precipitate liddicoatite along with other minerals.

Common Locations and Notable Mines

  • Madagascar: Madagascar is renowned for its gem-quality liddicoatite, with several significant deposits, particularly in the Sahatany Valley. These mines produce crystals known for their size, clarity, and stunning color zoning.
  • Brazil: Brazil is another important source of liddicoatite, especially in the Minas Gerais region, where it occurs alongside other gem-quality tourmalines in pegmatites.
  • California, USA: In the United States, San Diego County in California has produced liddicoatite, albeit less frequently than other tourmaline varieties like elbaite.

Association with Other Minerals and Rocks

Liddicoatite is often found in association with other minerals that form under similar conditions. Commonly associated minerals include:

  • Quartz: Often occurs alongside liddicoatite in pegmatites and hydrothermal veins.
  • Feldspar: A major component of pegmatites, providing the matrix in which liddicoatite crystals can grow.
  • Mica: Common in both pegmatites and metamorphic rocks, mica may be associated with liddicoatite, particularly in layered complex formations.
  • Other tourmaline species: Such as elbaite and schorl, which can also crystallize in the same environments and share similar growth habits and conditions.

Liddicoatite’s formation and association with these diverse geological environments make it a subject of interest not only for gem collectors and jewelers but also for geologists studying the processes that form complex silicate minerals.

Varieties and Colors of Liddicoatite

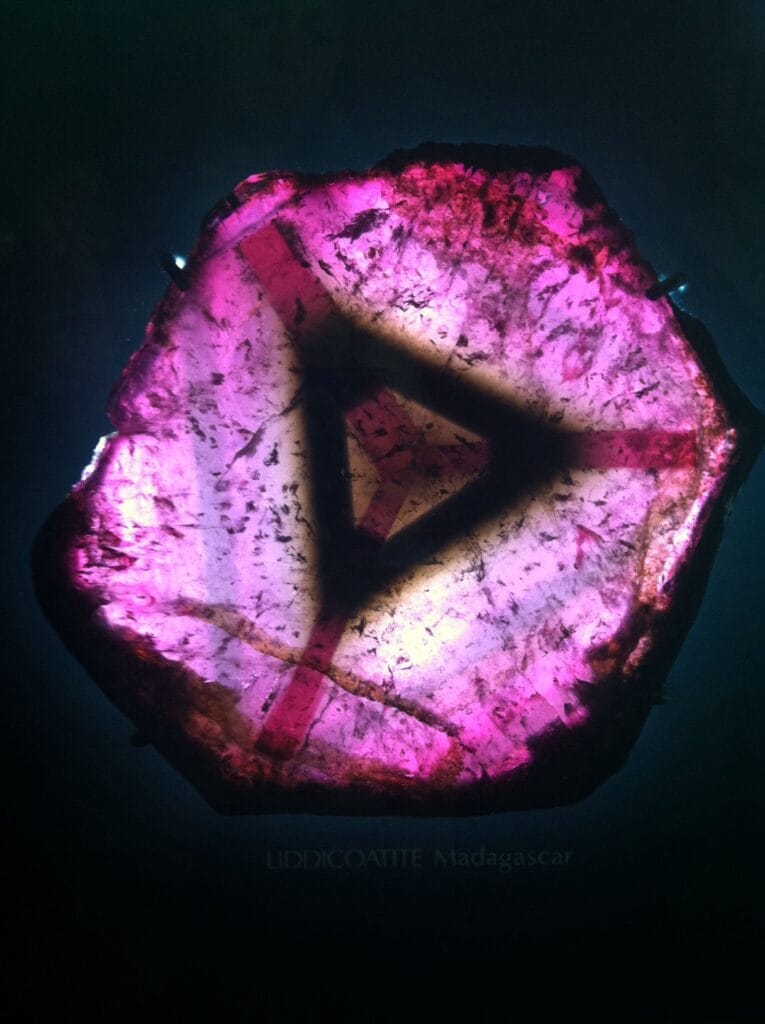

Liddicoatite
Dramatic Tourmaline var. Liddicoatite (Sliced) | iRocks Fine Minerals

Liddicoatite is known for its exceptional range of colors, which can include almost every hue found in other types of tourmaline, such as pink, red, green, blue, yellow, and brown. The variety and intensity of these colors depend significantly on its chemical composition, specifically the trace elements present within the crystal structure.

Causes for Color Variations

The color variations in liddicoatite are primarily due to the presence of trace elements that act as chromophores, influencing the color of the crystals:

  • Manganese (Mn): Often responsible for pink and red colors in the crystal.
  • Iron (Fe): Can cause green or blue colors depending on its oxidation state and concentration.
  • Chromium (Cr) and Vanadium (V): Can contribute to intense green and sometimes blue colors.
  • Lithium (Li): While not a colorant itself, the presence of lithium affects the overall chemical environment, which can influence the color indirectly.

Zoning Patterns in Crystals

One of the most striking features of liddicoatite is its color zoning, which refers to the presence of different colors or shades within a single crystal. These zoning patterns can be incredibly complex and are a direct result of fluctuations in the chemical composition during crystal growth. The patterns are not random but correlate with changes in the environmental conditions at the time of formation. Common zoning patterns include:

  • Concentric zoning: Appears as rings of different colors around the core of the crystal, similar to the growth rings of a tree. Each ring represents a phase of growth under slightly different chemical conditions.
  • Sector zoning: Involves different sectors of the crystal having distinct colors. This occurs when different faces of the crystal grow under varying conditions, leading to a pie-sliced appearance of contrasting hues.

These zoning patterns not only make liddicoatite particularly attractive but also provide valuable insights into the geological history of the environment where the crystal grew, reflecting changes in temperature, pressure, and chemical composition over time.

Conclusion

The variety of colors and intricate zoning patterns make liddicoatite a captivating subject for both scientific study and gemological appreciation. Each crystal can tell a story of its formative conditions, making liddicoatite not just a beautiful gem but also a geological archive.

Applications and Uses

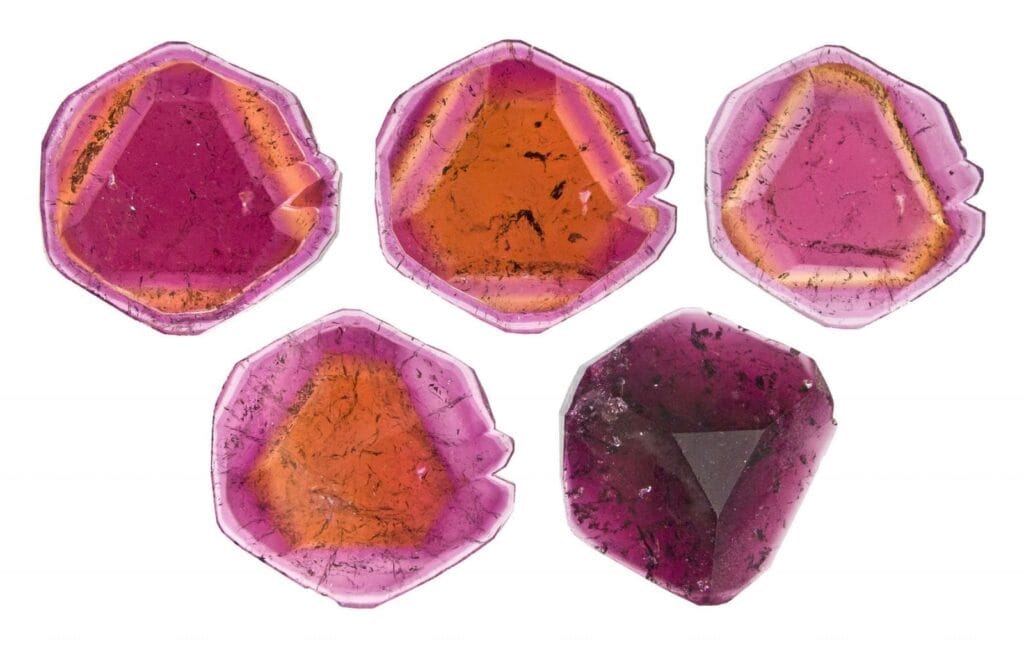

Liddicoatite

Liddicoatite, with its striking appearance and unique properties, is used in several ways, primarily within the fields of gemology and mineral collecting, but also for metaphysical purposes. Here’s an exploration of the primary applications and uses of this fascinating mineral:

1. Jewelry Making

Due to its hardness, which ranges from 7 to 7.5 on the Mohs scale, liddicoatite is suitable for various types of jewelry. While it’s not as hard as diamonds or sapphires, it’s still durable enough for earrings, pendants, and brooches. The rich coloration and zoning patterns make it particularly appealing for unique, high-end designer jewelry pieces that highlight its natural beauty. Care must be taken when setting liddicoatite in rings or other types of jewelry that may be subject to hard knocks, due to potential cleavage planes.

2. Collectible Mineral Specimens

Among mineral collectors, liddicoatite is highly prized for its color variety and intricate zoning patterns. Well-formed crystals, especially those that display clear zoning or are exceptionally large, can be quite valuable. Collectors often seek out specimens from renowned locations like Madagascar or Brazil, where the most vividly colored and well-formed crystals are found.

3. Metaphysical and Healing Properties

In the realm of metaphysical belief, liddicoatite is valued for its purported healing properties. Adherents believe that it can help in balancing the mind and body, and in harmonizing the chakras. Different colors of liddicoatite are said to have specific attributes; for example, pink liddicoatite is often associated with emotional healing, while green may be used for physical healing.

4. Scientific and Educational Uses

In geological and gemological studies, liddicoatite is an important subject due to its complex chemical composition and the insights it provides into pegmatitic and metamorphic processes. Its variety of formation environments makes it an excellent case study in courses related to mineralogy and petrology. Researchers also study liddicoatite to better understand the conditions under which similar minerals might form, which has broader implications for understanding geological processes on Earth.

5. Art and Decoration

Due to its aesthetic appeal, liddicoatite is sometimes used in art and decorative objects. Large, strikingly zoned crystals may be displayed in museums, galleries, or private collections as examples of natural art. Smaller pieces might be incorporated into ornamental objects or luxury home décor items.

Conclusion

The uses of liddicoatite span from the practical to the ornamental and metaphysical, driven largely by its physical beauty and the intrigue of its formation. Whether set in jewelry, displayed in a collection, or studied for scientific purposes, liddicoatite continues to be a gemstone that captures attention and admiration.

Mining Areas for Liddicoatite

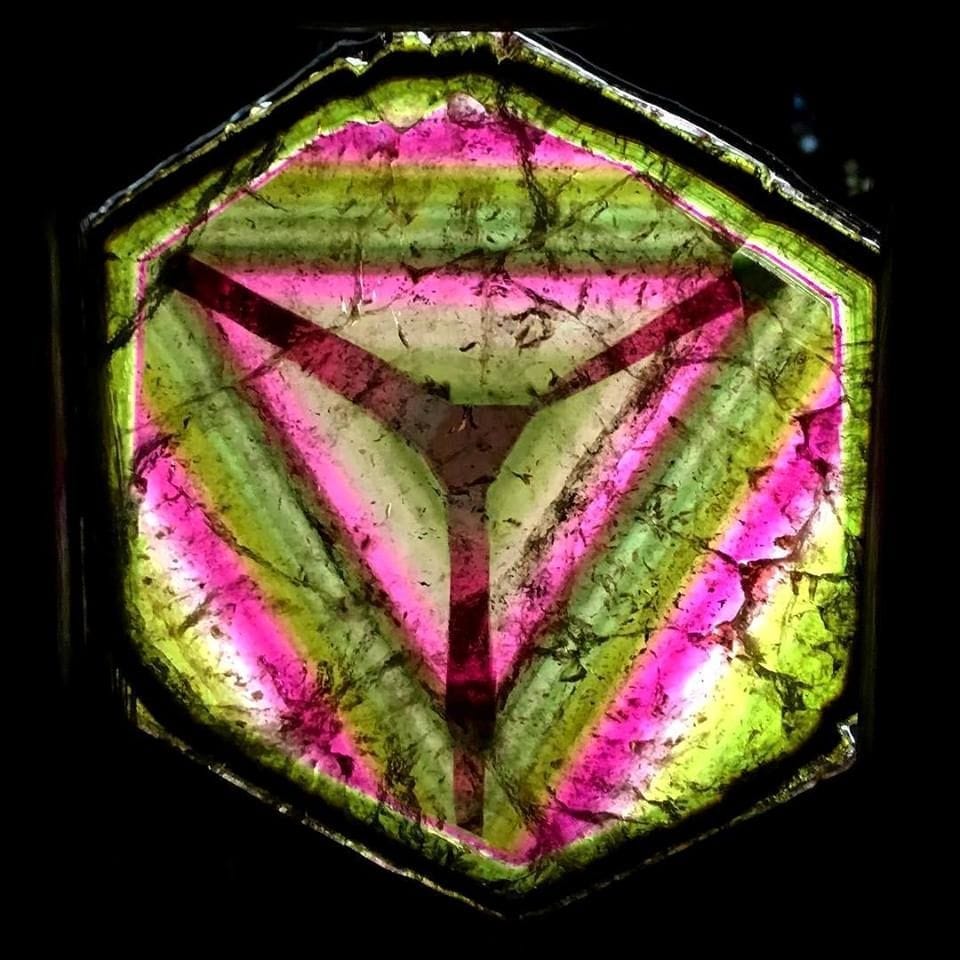

Liddicoatite

Liddicoatite is predominantly mined in specific regions known for their rich deposits of gem-quality tourmalines, with Madagascar and Brazil being the most notable.

  1. Madagascar: This island is one of the primary sources of high-quality liddicoatite, particularly the Sahatany Valley. The pegmatites here are renowned for producing crystals that exhibit striking color zoning and clarity, making them highly sought after in the gemstone market.
  2. Brazil: The state of Minas Gerais in Brazil is another significant source of liddicoatite. The region’s complex geology provides ideal conditions for the formation of diverse gem minerals, including various types of tourmaline. Brazilian liddicoatite is prized for its range of colors and large crystal sizes.

Other regions, such as parts of the United States (California), also yield liddicoatite, but in smaller quantities compared to Madagascar and Brazil.

Economic Impact

The mining of liddicoatite has several economic implications for the local communities and economies where it is found:

  1. Job Creation: The extraction and processing of liddicoatite create jobs for local residents. Mining operations, from small-scale artisanal mines to larger commercial enterprises, employ people for excavation, sorting, cutting, and polishing of gemstones. This employment is crucial in rural areas where alternative job opportunities may be scarce.
  2. Revenue Generation: High-quality specimens of liddicoatite can fetch significant prices on the international gemstone market. The revenue generated from these sales can contribute substantially to local economies, particularly in developing countries like Madagascar. This revenue supports not only the miners but also the local businesses and services that cater to the mining industry and its workers.
  3. Tourism Attraction: In some regions, mines that produce notable minerals like liddicoatite become tourist attractions. Visitors may come to see the mines, purchase gemstones directly from the source, and learn about the local geology and gemology. This tourism can provide an additional revenue stream for the community.
  4. Skills Development: The gemstone industry requires skilled labor for tasks such as cutting and polishing stones. Workers in liddicoatite-producing regions have the opportunity to develop these valuable skills, which can raise their income levels and quality of life.

Challenges and Sustainability

Despite the economic benefits, mining for liddicoatite can also pose challenges:

  • Environmental Impact: Mining activities, particularly in ecologically sensitive areas, can lead to deforestation, soil erosion, and contamination of water sources. Ensuring that mining practices are sustainable and environmentally friendly is crucial to minimize these impacts.
  • Market Fluctuations: The gemstone market is subject to fluctuations based on fashion trends, economic conditions, and geopolitical factors. Dependency on a single industry, such as gemstone mining, can make local economies vulnerable to these fluctuations.
  • Regulation and Fair Trade: Ensuring that mining operations are regulated to protect workers’ rights and that the benefits of mining activities are fairly distributed among all stakeholders is a significant challenge. Initiatives aimed at promoting fair trade and ethical sourcing in the gemstone industry can help address these issues.

In summary, while the mining of liddicoatite has the potential to significantly benefit local communities economically, it also brings challenges that require careful management to ensure sustainable and equitable outcomes.
