Stress and Strain

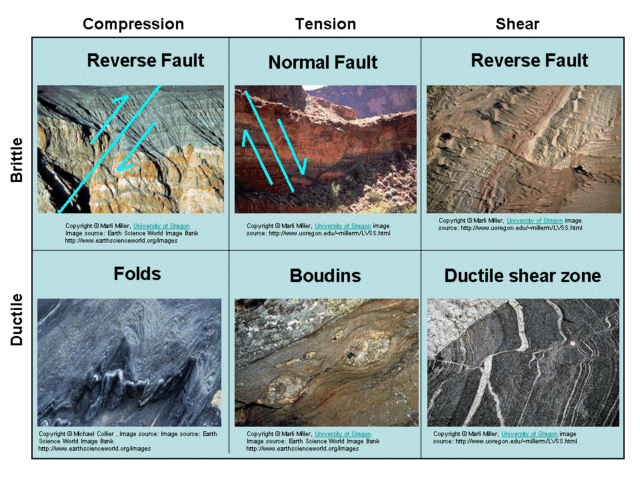

Stress and strain are fundamental concepts in structural geology that describe how rocks respond to tectonic forces and other forms of deformation. Stress refers to the force per unit area acting on a rock, while strain refers to the resulting deformation or change in shape of the rock.

Stress can be classified into three types: compressional stress, tensional stress, and shear stress. Compressional stress occurs when rocks are squeezed or pushed together, while tensional stress occurs when rocks are pulled apart or stretched. Shear stress occurs when rocks are subjected to forces that cause them to slide past each other in opposite directions.

Strain can be classified into two types: elastic strain and plastic strain. Elastic strain occurs when a rock deforms in response to stress, but then returns to its original shape when the stress is removed. Plastic strain occurs when a rock deforms in response to stress and does not return to its original shape when the stress is removed. Instead, the rock remains permanently deformed.

Stress and strain are important concepts in structural geology because they provide a framework for understanding how rocks behave under different types of tectonic and geological processes. By studying stress and strain, geoscientists can gain insights into the geological history of a region, as well as the potential for geological hazards such as earthquakes and landslides. Furthermore, understanding stress and strain is essential for resource exploration and extraction, as well as for the development of new technologies and materials. Overall, stress and strain are fundamental concepts in structural geology and are essential for understanding the processes that shape the Earth’s crust.

Types of stress

Compressional stress

Compressional stress is a type of stress that occurs when rocks are squeezed or pushed together. This type of stress is typically associated with tectonic processes such as plate convergence, where two plates are colliding and pushing against each other.

Under compressional stress, rocks can undergo a range of deformation processes, depending on their strength and the amount of stress applied. In weaker rocks, such as sedimentary rocks, compressional stress can result in folding or faulting, where the rock layers are compressed and deformed. In stronger rocks, such as metamorphic or igneous rocks, compressional stress can result in fracturing or crushing.

Compressional stress can also have important implications for the formation of geological structures, such as mountain ranges. When two plates converge, the rocks between them are subjected to compressional stress, which can cause them to deform and uplift. Over time, this process can lead to the formation of mountains.

Overall, compressional stress is an important type of stress in structural geology, with significant implications for the deformation and formation of rocks and geological structures. By studying compressional stress and its effects, geoscientists can gain insights into the tectonic processes that shape the Earth’s crust.

Tensional stress

Tensional stress is a type of stress that occurs when rocks are pulled apart or stretched. This type of stress is typically associated with tectonic processes such as divergent plate boundaries, where two plates are moving away from each other.

Under tensional stress, rocks can undergo a range of deformation processes, depending on their strength and the amount of stress applied. In weaker rocks, such as sedimentary rocks, tensional stress can result in the formation of joints or fractures, where the rock layers are pulled apart. In stronger rocks, such as igneous or metamorphic rocks, tensional stress can result in stretching or thinning of the rock.

Tensional stress can also have important implications for the formation of geological structures, such as rift valleys. When two plates diverge, the rocks between them are subjected to tensional stress, which can cause them to stretch and thin. Over time, this process can lead to the formation of a rift valley.

Overall, tensional stress is an important type of stress in structural geology, with significant implications for the deformation and formation of rocks and geological structures. By studying tensional stress and its effects, geoscientists can gain insights into the tectonic processes that shape the Earth’s crust.

Shear stress

Shear stress is a type of stress that occurs when rocks are subjected to forces that cause them to slide past each other in opposite directions. This type of stress is typically associated with tectonic processes such as transform plate boundaries, where two plates are sliding past each other.

Under shear stress, rocks can undergo a range of deformation processes, depending on their strength and the amount of stress applied. In weaker rocks, such as sedimentary rocks, shear stress can result in the formation of faults, where the rocks slide past each other along a plane of weakness. In stronger rocks, such as igneous or metamorphic rocks, shear stress can result in ductile deformation, where the rock layers are bent or folded.

Shear stress can also have important implications for the formation of geological structures, such as fault zones. When rocks are subjected to shear stress, they can develop zones of weakness along which they are more likely to deform in the future. Over time, these zones can become fault zones, which can have important implications for resource exploration, as well as for geological hazards such as earthquakes.

Overall, shear stress is an important type of stress in structural geology, with significant implications for the deformation and formation of rocks and geological structures. By studying shear stress and its effects, geoscientists can gain insights into the tectonic processes that shape the Earth’s crust.

Examples of each type of stress

Here are some examples of each type of stress:

1. Compressional stress:

• Collision of two continental plates, leading to the formation of mountain ranges such as the Himalayas.
• Compaction of sedimentary rocks, leading to the formation of folds and thrust faults.
• Impact events, such as meteorite impacts, can cause compressional stress and lead to the formation of deformation structures.

2. Tensional stress:

• Divergence of two tectonic plates, leading to the formation of rift valleys such as the East African Rift Valley.
• Stretching and thinning of the Earth’s crust, leading to the formation of normal faults and grabens.
• Cooling and solidification of magma, leading to the formation of columnar jointing.

3. Shear stress:

• Transform plate boundaries, such as the San Andreas Fault in California, where two tectonic plates slide past each other.
• Ductile deformation of rocks due to shear stress, leading to the formation of folds and cleavage.
• Movement of glaciers, causing shear stress and leading to the formation of glacial striations and other landforms.

These are just a few examples, and there are many other geological processes and structures that can result from different types of stress.

Types of strain

Elastic strain

Elastic strain is a type of deformation that occurs in a material when it is subjected to stress but is able to return to its original shape and size once the stress is removed. This is because the material is behaving elastically, like a spring, under the applied stress.

When a material is subjected to stress, the bonds between the atoms in the material are stretched or compressed. In an elastic material, these bonds can temporarily stretch or compress, but then return to their original length once the stress is removed. This means that the material does not undergo permanent deformation or damage.

The amount of elastic strain that a material can undergo depends on its elasticity or stiffness. More elastic or stiffer materials, such as some types of metals, can undergo larger amounts of elastic strain before reaching their limit of elasticity, or yield point. Once the yield point is exceeded, the material may undergo plastic deformation, where it permanently deforms and does not return to its original shape when the stress is removed.

Elastic strain is an important concept in structural geology, as it helps to explain the behavior of rocks under stress and how they deform over time. By studying the elastic properties of rocks, geoscientists can better understand how rocks respond to different types of stress and how they contribute to the formation of geological structures such as faults, folds, and other deformation features.

Plastic strain

Plastic strain is a type of deformation that occurs in a material when it is subjected to stress beyond its elastic limit. Unlike elastic strain, plastic strain is permanent and irreversible, meaning that the material does not return to its original shape and size once the stress is removed.

When a material is subjected to stress beyond its elastic limit, the bonds between the atoms in the material begin to break and rearrange. This leads to permanent deformation in the material, as the bonds are unable to return to their original state once the stress is removed.

The amount of plastic strain that a material can undergo depends on its composition, structure, and the type and amount of stress applied. Some materials, such as metals and some types of rocks, are able to undergo significant amounts of plastic strain without fracturing or breaking, while others may fracture more easily.

In structural geology, plastic strain is an important concept because it is responsible for the permanent deformation and formation of many geological structures, such as folds, faults, and shear zones. By studying the plastic properties of rocks, geoscientists can better understand how rocks deform under different types and amounts of stress and how geological structures evolve over time.

Relationship between stress and strain

Stress and strain are closely related concepts in structural geology, as stress is the force applied to a material, while strain is the resulting deformation of the material under that force. The relationship between stress and strain can be described using the concept of elasticity.

Elasticity is the ability of a material to deform when subjected to stress, and then return to its original shape and size when the stress is removed. In an elastic material, the relationship between stress and strain is linear, meaning that the amount of deformation is directly proportional to the applied stress.

This relationship can be described by a mathematical equation known as Hooke’s Law: σ = Eε, where σ is the stress, E is the elastic modulus (a measure of the material’s stiffness), and ε is the strain. Hooke’s Law states that the stress in a material is proportional to the strain, with the constant of proportionality being the elastic modulus.

However, this linear relationship between stress and strain only holds up to a certain point, known as the yield point. Beyond the yield point, the material begins to undergo plastic deformation, and the relationship between stress and strain becomes non-linear. The amount of plastic deformation that occurs depends on the type and amount of stress applied, as well as the material’s composition and structure.

In summary, the relationship between stress and strain is linear in elastic materials, with the amount of deformation directly proportional to the applied stress. Beyond the yield point, the material undergoes plastic deformation, and the relationship becomes non-linear. Understanding this relationship is important for understanding how rocks deform and how geological structures such as faults and folds form.

Deformation mechanisms

Deformation mechanisms are the processes that lead to the deformation of a material under stress. In structural geology, understanding these mechanisms is important for understanding how rocks deform and how geological structures such as folds, faults, and shear zones form.

There are several deformation mechanisms that can occur in different materials and under different types and amounts of stress. Some of the most common mechanisms include:

1. Dislocation: This is the movement of atoms within a crystal lattice in response to stress. Dislocations can occur along a plane within the lattice, causing the material to deform.
2. Twinning: This is a deformation mechanism that occurs in certain types of crystals, where a portion of the crystal lattice mirrors another portion, resulting in a change in shape.
3. Grain boundary sliding: This occurs in polycrystalline materials, where grains slide past each other along their boundaries in response to stress.
4. Fracture: This is the breaking of a material due to stress, which can occur in brittle materials such as rocks.
5. Ductile flow: This is a deformation mechanism that occurs in materials that can undergo plastic deformation, such as metals or some types of rocks. Ductile flow involves the permanent deformation of the material under stress, without fracturing.

The specific deformation mechanism that occurs in a material depends on a variety of factors, including the type and amount of stress applied, the composition and structure of the material, and the temperature and pressure conditions. By understanding these mechanisms, geoscientists can better understand how rocks deform under different types of stress and how geological structures form over time.

Brittle deformation

Brittle deformation is a type of deformation that occurs in rocks and other materials when they are subjected to high stresses over a relatively short period of time. This type of deformation is characterized by the formation of fractures or faults, which occur when the material breaks in response to the applied stress.

Brittle deformation typically occurs in rocks that are near the Earth’s surface, where they are subjected to relatively low temperatures and pressures. It can also occur in rocks that are subjected to sudden and rapid changes in stress, such as those associated with earthquakes or other seismic events.

When a rock is subjected to a high enough stress, it can break along a plane of weakness, forming a fracture or fault. Fractures are breaks in the rock that do not involve significant displacement of the rock on either side of the break, while faults involve significant displacement of the rock on either side of the break.

In addition to earthquakes, brittle deformation can also occur in response to other types of stress, such as those associated with mining or quarrying activities, or the excavation of tunnels or other underground structures. Understanding brittle deformation is important for predicting and mitigating the potential impacts of these activities on the surrounding geology and environment.

Ductile deformation

Ductile deformation is a type of deformation that occurs in rocks and other materials when they are subjected to high stresses over a long period of time. This type of deformation is characterized by the permanent bending, flowing, or stretching of the material without fracturing.

Ductile deformation typically occurs in rocks that are subjected to high pressures and temperatures, such as those found at depth within the Earth’s crust. It can also occur in rocks that are subjected to slow and steady changes in stress over long periods of time.

When a rock undergoes ductile deformation, it may develop features such as folds, cleavage planes, or lineations. These features are the result of the permanent deformation of the rock under stress.

In contrast to brittle deformation, ductile deformation involves the permanent rearrangement of the atoms or molecules within the material, rather than the breaking of bonds between them. This rearrangement can occur through processes such as dislocation, twinning, or grain boundary sliding, as mentioned earlier.

Understanding ductile deformation is important for interpreting the geological history of a region and for predicting how rocks may behave under different types of stress. It is also important for many applications in engineering and materials science, as it provides insights into the behavior of materials under high stresses and over long periods of time.

Factors that influence deformation mechanisms

Deformation mechanisms are influenced by a variety of factors, including:

1. Temperature: Temperature has a significant impact on deformation mechanisms. At low temperatures, deformation is typically brittle, while at high temperatures, deformation is typically ductile.
2. Pressure: Pressure also plays a role in deformation mechanisms. High pressure tends to favor ductile deformation, while low pressure favors brittle deformation.
3. Strain rate: The rate at which a material is deformed can also affect the deformation mechanism. Fast deformation rates tend to favor brittle deformation, while slow deformation rates tend to favor ductile deformation.
4. Composition: The composition of the material being deformed can also influence the deformation mechanism. Materials with high amounts of brittle minerals, such as quartz, tend to exhibit brittle deformation, while materials with high amounts of ductile minerals, such as mica or feldspar, tend to exhibit ductile deformation.
5. Grain size: The grain size of a material can also affect the deformation mechanism. Smaller grain sizes tend to favor ductile deformation, while larger grain sizes tend to favor brittle deformation.
6. Fluids: The presence of fluids, such as water, can also influence deformation mechanisms. Fluids can lubricate grain boundaries, making it easier for them to move and deform, and can also facilitate chemical reactions that can alter the properties of the material being deformed.
7. Time: The duration of the stress also plays a role in deformation mechanisms. Slow, sustained stress tends to favor ductile deformation, while rapid, short-term stress tends to favor brittle deformation.

All of these factors can interact with one another in complex ways, making it difficult to predict which deformation mechanism will occur in a given situation. However, by understanding the factors that influence deformation mechanisms, geologists and engineers can make more informed predictions about how rocks and other materials will behave under different types of stress.

Stress and strain in rocks

Stress and strain are important concepts in understanding the behavior of rocks under deformation. Rocks are subject to stresses from a variety of sources, including tectonic forces, gravity, and changes in temperature and pressure. When rocks are subjected to stress, they may undergo deformation, resulting in a change in shape or volume. The relationship between the stress and resulting strain is an important factor in understanding the behavior of rocks.

In rocks, stress can be classified into three types: compressional, tensional, and shear. Compressional stress occurs when rocks are squeezed together, such as when two tectonic plates collide. Tensional stress occurs when rocks are stretched apart, such as when two tectonic plates move away from each other. Shear stress occurs when rocks are pushed in opposite directions, causing them to slide past each other.

When rocks are subjected to stress, they may undergo elastic deformation, plastic deformation, or fracture. Elastic deformation occurs when the rock deforms under stress but returns to its original shape when the stress is removed. Plastic deformation occurs when the rock deforms permanently under stress, without fracturing. Fracture occurs when the stress on the rock exceeds its strength, resulting in the rock breaking apart.

The relationship between stress and strain in rocks is typically described by a stress-strain curve. This curve shows how the rock responds to increasing stress, and can help predict the point at which the rock will undergo plastic deformation or fracture. The stress-strain curve for rocks typically has three regions: elastic deformation, plastic deformation, and fracture.

Understanding stress and strain in rocks is important in a variety of fields, including geology, engineering, and materials science. By understanding how rocks behave under different types and levels of stress, scientists and engineers can better predict how structures and materials will perform in a variety of conditions, and can develop strategies for mitigating damage and preventing failure.

Summary of key points

Here is a summary of the key points related to stress and strain in structural geology:

• Stress is the force applied to a material per unit area, while strain is the resulting deformation or change in shape.
• There are three types of stress: compressional stress, tensional stress, and shear stress.
• Stress can be applied to rocks through various tectonic processes such as plate movement, and can result in deformation and geological structures.
• There are two types of strain: elastic strain and plastic strain. Elastic strain is reversible and the rock returns to its original shape after the stress is removed. Plastic strain is irreversible and causes permanent deformation in the rock.
• Deformation mechanisms such as brittle and ductile deformation can occur depending on the type of stress, the rate of deformation, and other factors.
• Stress and strain analysis is used to understand geological structures, resource exploration, geotechnical engineering, natural hazards, and plate tectonics.

Overall, stress and strain are fundamental concepts in structural geology that allow us to understand the behavior of rocks under stress and how geological structures are formed and evolve over time.
