Ground-Penetrating Radar (GPR) is a geophysical method that uses radar pulses to image the subsurface. It is a non-destructive technique that allows the visualization of structures and features beneath the ground surface without the need for excavation. GPR systems typically consist of a transmitter and a receiver antenna, with the transmitter emitting short pulses of electromagnetic waves into the ground, and the receiver detecting the reflected signals.

Purpose: The primary purpose of GPR is to investigate and map subsurface features and structures. It is widely used in various fields, including archaeology, geology, environmental science, civil engineering, and utility mapping. Some common applications of GPR include:

  1. Archaeology: GPR helps archaeologists discover buried artifacts, structures, and archaeological features without disturbing the soil.
  2. Geology: GPR is used to study the composition of the subsurface, locate bedrock, and identify geological formations.
  3. Environmental Science: GPR is employed in environmental studies to detect and monitor groundwater levels, map soil conditions, and identify contaminant plumes.
  4. Civil Engineering: GPR is utilized for assessing the condition of roads and pavements, locating underground utilities, and determining soil compaction.
  5. Utility Mapping: GPR is an essential tool for mapping the location of buried pipes, cables, and other utilities to prevent damage during construction projects.
  6. Search and Rescue: GPR is used in search and rescue operations to locate buried victims in disasters such as earthquakes, landslides, or avalanches.

Historical Background: The development of ground-penetrating radar can be traced back to the early 20th century. The concept of using radar for subsurface exploration emerged during World War II when military researchers sought ways to detect buried objects, including mines. After the war, the technology found applications in civilian domains.

In the 1950s and 1960s, significant advancements in radar technology, particularly the development of high-frequency antennas and improved signal processing techniques, paved the way for more effective GPR systems. The 1970s and 1980s saw increased adoption of GPR in fields like archaeology and geophysics. Over time, the technology has continued to evolve with advancements in antenna design, signal processing algorithms, and the integration of GPR with other geophysical methods.

Today, GPR is a versatile and widely used tool, offering valuable insights into the subsurface for a range of scientific, engineering, and environmental applications.

Basic Principles of GPR

  1. Electromagnetic Waves:
    • GPR relies on the principles of electromagnetic wave propagation. The system generates high-frequency electromagnetic pulses (usually in the microwave range) and directs them into the subsurface.
    • These pulses travel through the materials beneath the surface, and when they encounter boundaries between different materials or objects, some of the energy is reflected back to the surface.
  2. Dielectric Properties of Materials:
    • Dielectric properties of materials play a crucial role in GPR. The dielectric constant (or permittivity) of a material indicates its ability to support the transmission of electromagnetic waves.
    • Different materials have different dielectric constants. For example, air and water have low and high dielectric constants, respectively. This contrast in dielectric properties between subsurface materials contributes to the reflection of GPR signals.
    • GPR is sensitive to changes in the dielectric properties of the subsurface, allowing it to detect variations in material composition, moisture content, and other factors.
  3. Reflection and Refraction:
    • When an electromagnetic pulse encounters a boundary between materials with different dielectric constants, a portion of the energy is reflected back towards the surface. The time delay and amplitude of the reflected signal provide information about the depth and nature of subsurface features.
    • Refraction occurs when electromagnetic waves pass through materials with varying dielectric constants at an angle, causing a change in the direction of propagation. GPR systems can utilize refraction to study subsurface layering and identify geological interfaces.
  4. Antenna Design and Frequency:
    • GPR systems use antennas to transmit and receive electromagnetic signals. The choice of antenna design and frequency is crucial and depends on the specific application and the depth of investigation.
    • Higher frequencies provide better resolution for shallow depths, making them suitable for applications like archaeological surveys. Lower frequencies, on the other hand, penetrate deeper but with reduced resolution, making them suitable for tasks such as geological mapping or utility detection.
  5. Data Interpretation:
    • The collected GPR data is processed and interpreted to create subsurface images. Signal processing techniques, such as time-slice analysis and depth-slice imaging, are employed to visualize subsurface features and anomalies.
    • The interpretation of GPR data requires an understanding of the geological context, the dielectric properties of the materials being investigated, and the potential presence of subsurface structures.

Understanding these basic principles helps researchers and practitioners effectively use GPR for various applications, enabling them to analyze the subsurface and make informed decisions in fields such as archaeology, geophysics, engineering, and environmental science.

Components of a GPR System

A Ground-Penetrating Radar (GPR) system consists of several essential components that work together to generate, transmit, receive, and process electromagnetic signals for subsurface investigation. The key components of a typical GPR system include:

  1. Control Unit:
    • The control unit serves as the central processing hub of the GPR system. It typically includes the user interface, display, and controls for setting up the survey parameters, initiating data collection, and adjusting system settings.
  2. Antenna:
    • The antenna is a crucial component responsible for transmitting and receiving electromagnetic waves. GPR systems can have one or more antennas depending on the application and the desired characteristics of the signals.
    • Antennas are designed to operate at specific frequencies, and their design influences the system’s depth of penetration and resolution.
  3. Transmitter:
    • The transmitter is responsible for generating short bursts of electromagnetic pulses. These pulses are sent into the subsurface through the antenna. The transmitter’s characteristics, such as power and pulse duration, affect the system’s performance.
  4. Receiver:
    • The receiver is designed to detect the signals that are reflected back from the subsurface. It captures the returning electromagnetic waves and converts them into electrical signals.
    • The receiver’s sensitivity and bandwidth are critical factors in capturing and processing weak signals for accurate subsurface imaging.
  5. Data Acquisition System:
    • The data acquisition system digitizes and records the signals received by the antenna. It typically includes analog-to-digital converters (ADCs) to convert the analog signals into digital data that can be processed and analyzed.
  6. GPR Software:
    • Specialized software is used for processing and interpreting the collected GPR data. This software helps visualize the subsurface features, conduct data analysis, and generate images or depth profiles.
    • Some GPR software also includes tools for filtering, stacking, and migrating data to enhance the quality of subsurface images.
  7. Power Supply:
    • GPR systems require a power source to operate. Depending on the application, GPR systems may be powered by batteries for field use or connected to external power sources for extended surveys.
  8. Positioning System:
    • To accurately map and locate subsurface features, GPR systems often integrate a positioning system, such as a GPS (Global Positioning System). This allows for the precise recording of the location of data points during the survey.
  9. Data Storage:
    • GPR systems incorporate data storage devices to save the collected information. This can include internal memory or external storage devices like hard drives or memory cards.
  10. Display and Output:
    • The GPR system provides a display for real-time monitoring of data collection and may include outputs for visualizing processed data. Some systems also allow for the export of data in various formats for further analysis or reporting.

These components work in tandem to enable effective subsurface investigation across a range of applications, from archaeology and geophysics to civil engineering and environmental studies. The specific design and features of a GPR system may vary based on the intended use and the manufacturer.

GPR Data Interpretation

Ground-Penetrating Radar (GPR) data interpretation involves analyzing the collected electromagnetic signals to create meaningful subsurface images. The process requires a combination of expertise in the field of study, an understanding of the geological context, and familiarity with the characteristics of GPR signals. Here is a general guide to GPR data interpretation:

  1. Data Preprocessing:
    • Before interpretation, raw GPR data often undergoes preprocessing. This may include corrections for system-specific artifacts, filtering to remove noise, and adjustments for survey geometry. Preprocessing enhances the quality of the data and improves the accuracy of subsequent interpretations.
  2. Velocity Analysis:
    • GPR signals travel at a certain velocity depending on the dielectric properties of the subsurface materials. Velocity analysis involves estimating the propagation velocity of the electromagnetic waves in the surveyed area. This information is crucial for accurately converting travel times into depth.
  3. Depth Calibration:
    • GPR data is collected in terms of travel times, and converting these times to depth requires knowledge of the electromagnetic wave velocity in the subsurface. Depth calibration involves establishing a relationship between travel times and depths based on the estimated velocity.

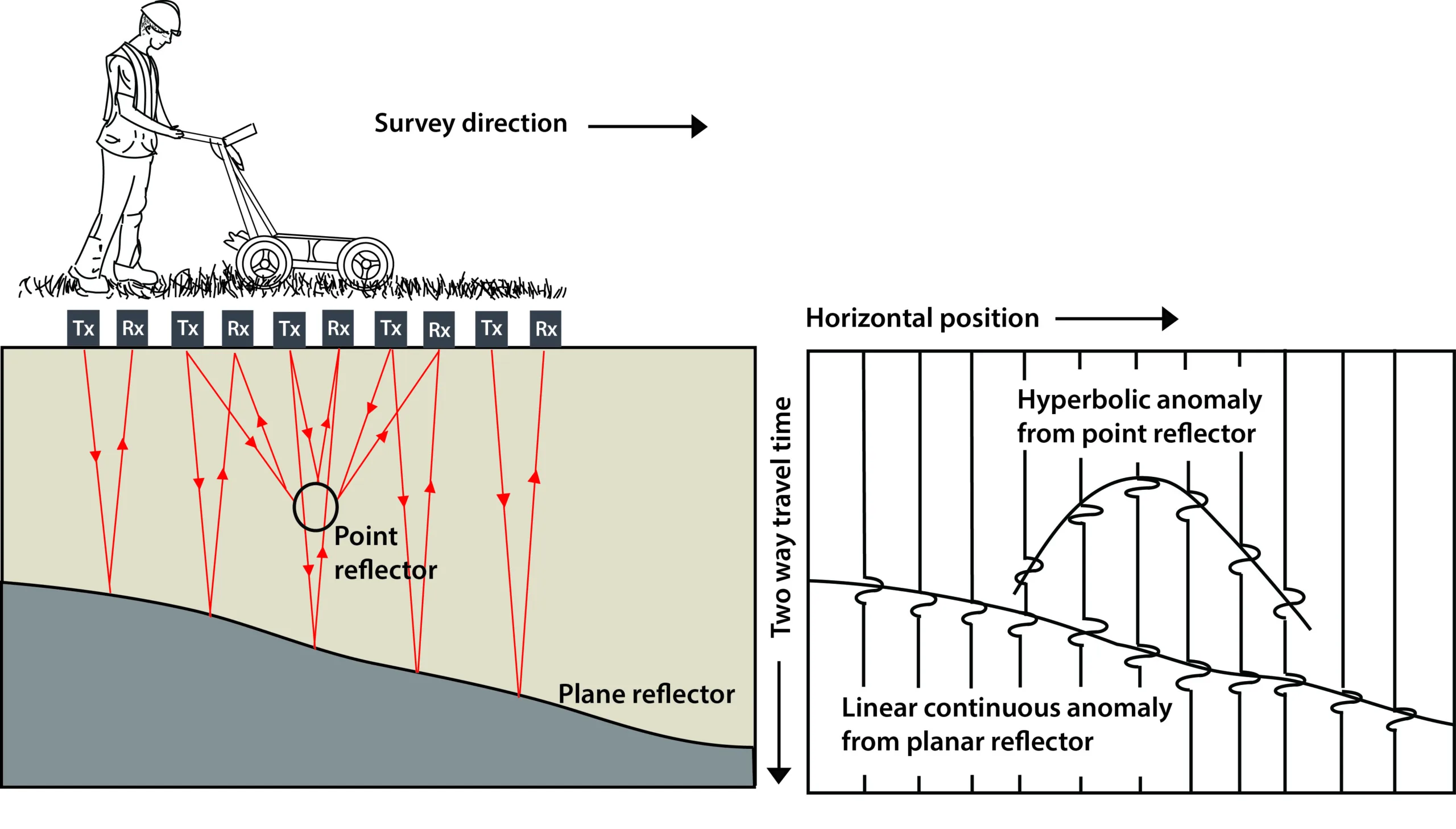

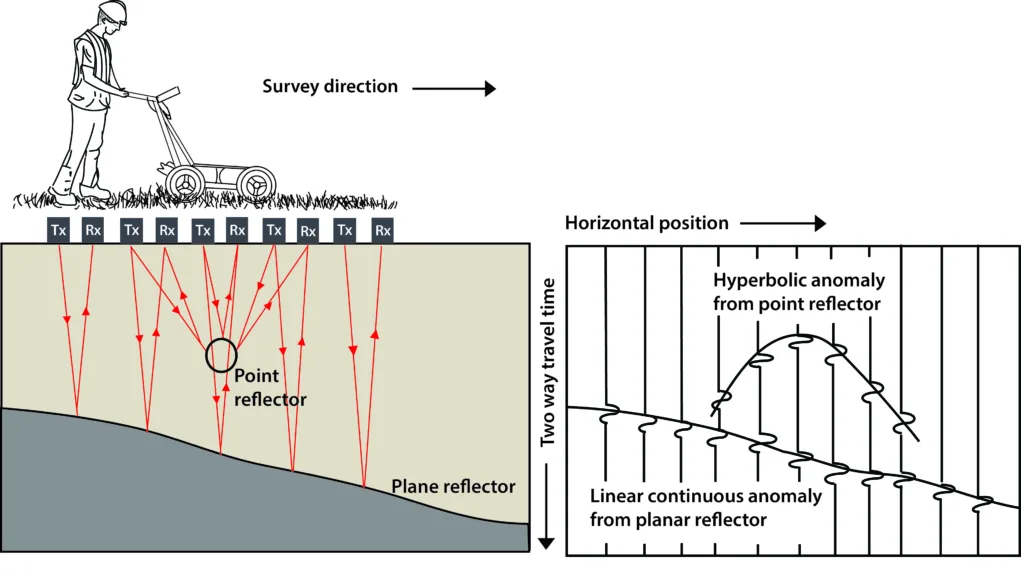

  4. Identification of Hyperbolic Reflections:
    • The most common feature in GPR data is hyperbolic reflections, which represent echoes from subsurface interfaces. Hyperbolas are formed due to the travel time differences between direct waves and reflected waves.
    • Analysts identify and interpret these hyperbolic reflections to determine the depth and nature of subsurface features.
  5. Layer Identification:
    • GPR data often reveals distinct layers in the subsurface. Analysts interpret these layers based on their characteristics, such as amplitude, continuity, and reflection patterns. Layers may correspond to soil horizons, geological strata, or man-made structures.
  6. Anomaly Detection:
    • Anomalies in GPR data may indicate the presence of buried objects, voids, or other irregularities. Analysts look for deviations from expected patterns and investigate anomalies to understand their nature and significance.
  7. Mapping Subsurface Features:
    • Interpretation involves creating subsurface maps or profiles that represent the distribution of materials and features. This may include mapping the boundaries of archaeological structures, identifying utility lines, or characterizing geological formations.
  8. Integration with Other Data:
    • GPR data interpretation is often more robust when integrated with other geophysical data or information from other sources. Combining GPR results with geological maps, borehole data, or satellite imagery can provide a more comprehensive understanding of the subsurface.
  9. Visualization and Reporting:
    • Interpretation results are typically visualized through depth slices, time slices, or 3D reconstructions. Analysts may generate reports that include interpretations, annotated images, and explanations of subsurface features.
  10. Continuous Iteration:
    • Data interpretation is an iterative process. Analysts may need to revisit and refine their interpretations based on additional data, ground truth information, or insights gained during the analysis.

Interpreting GPR data requires a combination of technical expertise, field knowledge, and a deep understanding of the specific application. Collaboration between GPR experts, geologists, archaeologists, and other relevant professionals is often essential for accurate and meaningful interpretations.

GPR Applications

Ground-Penetrating Radar (GPR) finds diverse applications across various fields due to its ability to non-invasively image and investigate subsurface structures. Here are some key applications of GPR:

  1. Archaeology:
    • GPR is extensively used in archaeology to discover and map buried structures, artifacts, and archaeological features. It helps archaeologists plan excavations without disturbing the sites.
  2. Geology:
    • GPR aids in geological investigations by mapping subsurface stratigraphy, identifying bedrock, and studying geological formations. It is valuable for understanding the composition and structure of the Earth’s subsurface.
  3. Civil Engineering:
    • GPR is used in civil engineering for assessing the condition of roads, bridges, and pavements. It helps identify subsurface anomalies, locate rebar and other reinforcements, and assess the integrity of structures.
  4. Utility Mapping:
    • GPR is a crucial tool for mapping underground utilities such as pipes, cables, and conduits. It helps prevent damage to utilities during construction projects and assists in urban planning.
  5. Environmental Studies:
    • GPR is employed in environmental science for mapping soil conditions, detecting groundwater levels, and identifying contaminant plumes. It assists in environmental site assessments and monitoring.
  6. Forensics:
    • GPR is used in forensic investigations to locate buried objects or remains. It aids in crime scene analysis by identifying disturbed soil and hidden objects.
  7. Search and Rescue:
    • GPR is valuable in search and rescue operations for locating buried victims in natural disasters, such as earthquakes, landslides, or avalanches. It helps responders identify areas with trapped individuals.
  8. Geotechnical Investigations:
    • GPR is applied in geotechnical engineering to study soil composition, detect subsurface voids, and assess the stability of the ground. It aids in site characterization for construction projects.
  9. Infrastructure Assessment:
    • GPR is used to evaluate the condition of infrastructure, including assessing the thickness of pavements, identifying voids beneath structures, and detecting potential issues in foundations.
  10. Mining Exploration:
    • In mining, GPR is employed for exploring subsurface mineral deposits and mapping geological structures. It assists in determining the composition and characteristics of the subsurface in mining operations.
  11. Pipeline and Tank Inspection:
    • GPR is utilized for inspecting underground pipelines and storage tanks. It helps detect corrosion, locate leaks, and assess the structural integrity of buried infrastructure.
  12. Tunnel and Cavity Detection:
    • GPR is effective in detecting subsurface tunnels, caves, or other cavities. It aids in understanding the stability of the ground and potential risks associated with underground voids.
  13. Concrete Inspection:
    • GPR is used to assess the condition of concrete structures, including bridges and buildings. It helps identify rebar placement, detect voids, and assess the overall integrity of concrete.

These applications highlight the versatility of GPR in providing valuable subsurface information for a wide range of disciplines and industries. The non-destructive nature of GPR makes it a preferred method for investigating the subsurface without causing disturbance to the environment or structures.
