Electromagnetic (EM) Methods

Electromagnetic methods in geophysics involve the use of electromagnetic fields to study the subsurface properties of the Earth. These methods exploit the interaction between electromagnetic waves and the electrical conductivity, permittivity, and magnetic susceptibility of subsurface materials. The basic principles include:

1. Electromagnetic Induction: When an electromagnetic field is applied to the Earth, it induces electrical currents in conductive materials. The strength and distribution of these induced currents provide information about the subsurface properties.
2. Electromagnetic Wave Propagation: Electromagnetic waves, typically in the form of alternating currents, are transmitted into the Earth. The response of the subsurface, in terms of induced currents and secondary electromagnetic fields, is then measured to infer properties of the subsurface.
3. Dielectric Permittivity and Magnetic Susceptibility: The electrical properties of materials, characterized by dielectric permittivity and magnetic susceptibility, influence how electromagnetic waves interact with the subsurface. Materials with higher conductivity or permeability exhibit different responses.

Overview of Applications in Geophysics:

Electromagnetic methods find diverse applications in geophysics, providing valuable information about the Earth’s subsurface structure. Some common applications include:

1. Mineral Exploration: Electromagnetic methods are widely used in mineral exploration to detect and map conductive ore bodies. Different minerals exhibit distinct electromagnetic signatures, aiding in the identification of subsurface deposits.
2. Groundwater Exploration: The mapping of subsurface water content and freshwater aquifers is crucial for managing water resources. Electromagnetic methods help in identifying variations in subsurface conductivity associated with different water types.
3. Environmental Studies: Electromagnetic surveys are employed for environmental investigations, including mapping contaminated sites and monitoring groundwater pollution. The method can identify the extent and nature of subsurface contaminants.
4. Oil and Gas Exploration: In the search for hydrocarbons, electromagnetic methods are used to detect variations in subsurface conductivity associated with different rock formations. This helps in delineating potential oil and gas reservoirs.
5. Engineering and Infrastructure Assessment: Electromagnetic methods are utilized for assessing the subsurface conditions before construction projects. This includes identifying potential hazards, mapping bedrock, and evaluating soil properties.
6. Archaeological Investigations: Archaeologists use electromagnetic methods to locate buried structures and artifacts. The method can help delineate archaeological features without the need for extensive excavation.
7. Volcano Monitoring: Electromagnetic methods are employed to monitor volcanic activity by detecting changes in subsurface conductivity. This aids in understanding magma movement and eruption dynamics.

In summary, electromagnetic methods in geophysics play a crucial role in non-invasively investigating the Earth’s subsurface. The ability to map variations in electrical and magnetic properties provides valuable information across various fields, contributing to resource exploration, environmental monitoring, and infrastructure development.

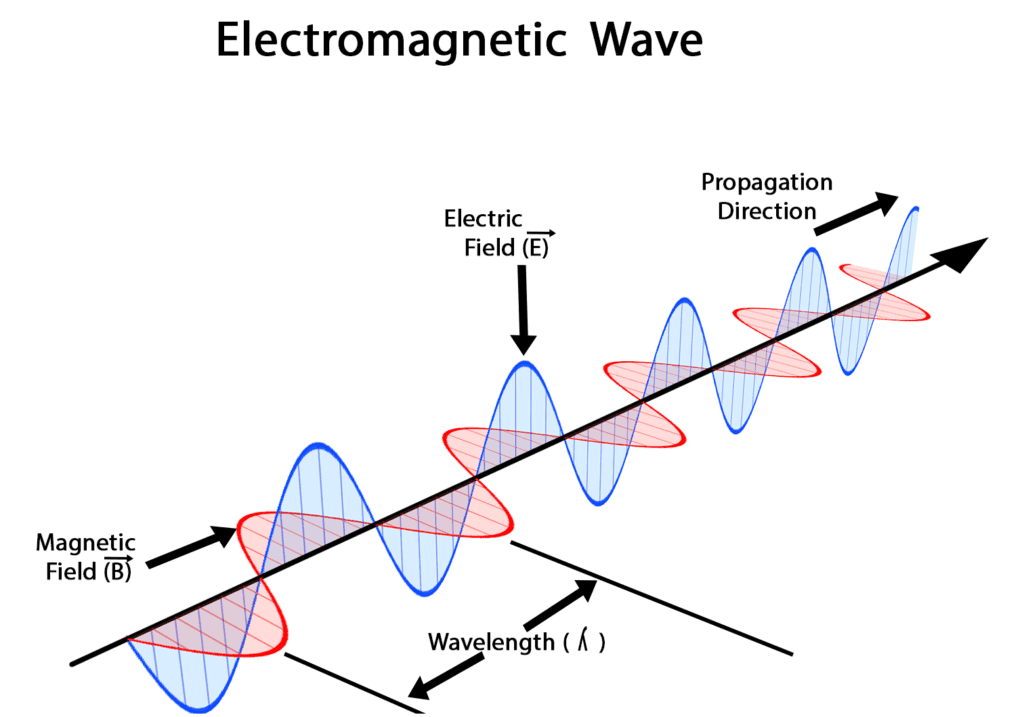

Electromagnetic Fields and Wave Propagation

1. Fundamental Concepts of Electromagnetic Fields:

• Maxwell’s Equations: James Clerk Maxwell formulated a set of four fundamental equations that describe the behavior of electric and magnetic fields. These equations are Gauss’s Law, Gauss’s Law for Magnetism, Faraday’s Law of Induction, and Ampère’s Law with Maxwell’s Addition.
• Electric Field (E) and Magnetic Field (B): These are vector fields that represent the forces experienced by charged particles in an electromagnetic field. The electric field arises from charged particles, while the magnetic field results from moving charges.
• Electromagnetic Waves: Changes in electric and magnetic fields propagate through space as electromagnetic waves. These waves can travel through a vacuum and have a speed equal to the speed of light, denoted by ‘c’ (approximately 3 × 10^8 meters per second).

2. Wave Equations and Their Solutions:

3. Dispersion and Attenuation of Electromagnetic Waves:

• Dispersion: Dispersion refers to the dependence of the speed of electromagnetic waves on their frequency. Different materials exhibit different dispersive behaviors. In dispersive media, the refractive index is frequency-dependent, causing different frequencies to propagate at different speeds.
• Attenuation: Attenuation refers to the decrease in the amplitude of electromagnetic waves as they propagate through a medium. It is often due to absorption and scattering processes within the material. The rate of attenuation is frequency-dependent and is characterized by the material’s attenuation coefficient.
• Skin Effect: The skin effect describes the tendency of electromagnetic waves to be concentrated near the surface of a conductor at higher frequencies. This effect results in increased attenuation as the frequency of the wave increases.

Understanding the fundamental concepts of electromagnetic fields, wave equations, and the dispersion and attenuation of electromagnetic waves is crucial for various applications, including telecommunications, radar systems, and the interpretation of geophysical survey data.

Types of Electromagnetic Methods

There are several types of electromagnetic methods used in geophysics for subsurface exploration. These methods rely on the interaction between electromagnetic fields and the Earth’s subsurface materials. Here are some common types:

1. Time Domain Electromagnetic Method (TDEM):
   • Principle: In TDEM, a transient electromagnetic field is generated, and the decay of the induced electromagnetic response is measured.
   • Applications: TDEM is widely used in mineral exploration, groundwater studies, and environmental investigations.
2. Frequency Domain Electromagnetic Method (FDEM):
   • Principle: FDEM involves the measurement of the Earth’s response to a continuous electromagnetic signal at various frequencies.
   • Applications: It is used in similar applications as TDEM, such as mineral exploration, groundwater studies, and environmental surveys.
3. Magnetotellurics (MT):
   • Principle: MT measures naturally occurring variations in the Earth’s electromagnetic field caused by solar-induced currents in the ionosphere and magnetosphere.
   • Applications: MT is used for deep crustal and upper mantle studies, including mapping structures associated with mineral resources and tectonic features.
4. Ground Penetrating Radar (GPR):
   • Principle: GPR uses high-frequency radar pulses to image the subsurface based on the reflection of electromagnetic waves at material boundaries.
   • Applications: GPR is commonly used for archaeological investigations, infrastructure assessments, and shallow subsurface mapping.
5. Electromagnetic Induction (EMI):
   • Principle: EMI involves the measurement of the electromagnetic response to induced currents in the subsurface materials.
   • Applications: EMI is used in various applications, including metal detection, environmental studies, and mapping soil properties.
6. Transient Electromagnetic (TEM):
   • Principle: TEM involves the transmission of a transient electromagnetic pulse, and the response is measured to infer subsurface properties.
   • Applications: TEM is commonly used in mineral exploration and environmental studies, particularly for mapping conductive structures.
7. Airborne Electromagnetic (AEM):
   • Principle: AEM involves the deployment of electromagnetic sensors on aircraft to measure the Earth’s response to electromagnetic fields.
   • Applications: AEM is used for large-scale geological mapping, mineral exploration, and environmental surveys over extensive areas.
8. Borehole Electromagnetic Methods:
   • Principle: Electromagnetic sensors are lowered into boreholes to measure the subsurface electromagnetic properties at depth.
   • Applications: Borehole electromagnetic methods are employed in mineral exploration, groundwater studies, and oil and gas reservoir characterization.

Each type of electromagnetic method has its advantages and limitations, and the choice of method depends on the specific goals of the geophysical investigation and the characteristics of the subsurface materials being studied. Integrating multiple electromagnetic methods or combining them with other geophysical techniques often provides a more comprehensive understanding of subsurface structures and properties.

Instrumentation and Measurement Techniques

The instrumentation and measurement techniques used in electromagnetic geophysics play a crucial role in acquiring accurate and meaningful data about the Earth’s subsurface. Here’s an overview of common instruments and techniques employed in electromagnetic surveys:

1. Electromagnetic Induction Instruments:
   • Inductive Coil Systems: These instruments typically consist of transmitter and receiver coils. The transmitter coil induces currents in the subsurface, and the receiver coil measures the secondary electromagnetic response.
   • Slingram Systems: Slingram instruments use a moving transmitter-receiver coil configuration to detect variations in subsurface conductivity. The coil orientation and separation influence the sensitivity to different depths.
2. Time Domain Electromagnetic (TDEM) Instruments:
   • Transmitter Units: TDEM instruments employ powerful pulse transmitters that generate transient electromagnetic fields. The time decay of the induced electromagnetic response is measured.
   • Receivers: Sensitive receivers capture the electromagnetic response over time. Data is recorded for various time intervals to analyze the subsurface at different depths.
3. Frequency Domain Electromagnetic (FDEM) Instruments:
   • Transmitters and Receivers: FDEM instruments use alternating current at different frequencies to study the frequency-dependent response of the subsurface. Transmitters generate the signal, and receivers measure the amplitude and phase of the response.
   • Multi-frequency Systems: Modern FDEM instruments often use multiple frequencies simultaneously to obtain a broader range of subsurface information.
4. Ground Penetrating Radar (GPR):
   • Antennas: GPR instruments use antennas to transmit and receive radar pulses. The choice of antenna frequency influences the depth and resolution of the survey.
   • Control Unit: GPR systems include a control unit that manages data acquisition, signal processing, and display of subsurface images.
5. Magnetotelluric (MT) Instruments:
   • Magnetic Field Sensors: MT instruments include magnetometers to measure the variations in the Earth’s magnetic field caused by induced currents.
   • Electric Field Sensors: Electric field sensors are used to measure the electric potential differences arising from subsurface conductivity variations.
6. Airborne Electromagnetic (AEM) Systems:
   • Coils or Antennas: AEM instruments installed on aircraft often use transmitter coils or antennas to generate electromagnetic fields, and receiver coils or antennas to measure the Earth’s response.
   • GPS and Navigation Systems: Accurate positioning systems, such as GPS, are integrated to ensure precise spatial information during airborne surveys.
7. Borehole Electromagnetic Instruments:
   • Probe or Sonde: Instruments for borehole electromagnetic surveys consist of a probe or sonde lowered into a borehole. The probe typically contains transmitter and receiver coils to measure subsurface electromagnetic properties at depth.
8. Data Processing and Inversion Techniques:
   • Computational Software: Powerful computational software is used for processing raw data, modeling subsurface properties, and inverting the data to generate subsurface models.
   • Inverse Modeling: Inverse modeling techniques are employed to interpret the measured data and infer subsurface properties, such as conductivity and permittivity.

The integration of advanced sensors, GPS technology, and computational methods has significantly improved the efficiency and accuracy of electromagnetic geophysical surveys. Researchers and geophysicists often customize instrumentation based on the specific goals and challenges of the survey area. Additionally, advancements in data processing techniques contribute to better interpretation and modeling of subsurface structures.

Basic Principles of Electromagnetic Induction

Electromagnetic induction is a fundamental principle in physics, discovered by Michael Faraday in the early 19th century. It describes the process by which a changing magnetic field induces an electromotive force (EMF) or voltage in a conductor. The basic principles of electromagnetic induction are encapsulated in Faraday’s law and Lenz’s law:

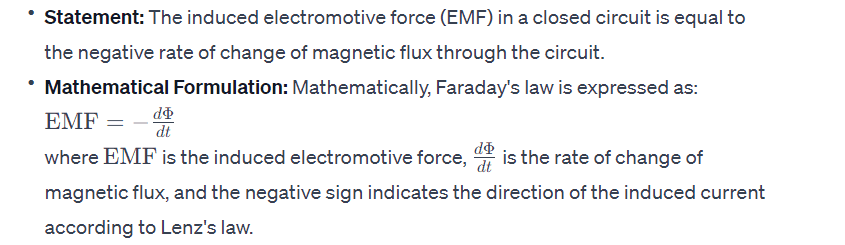

• Faraday’s Law of Electromagnetic Induction:

• Lenz’s Law:
  • Statement: The direction of the induced current is such that it opposes the change in magnetic flux that produced it.
  • Explanation: Lenz’s law ensures that the induced current creates a magnetic field opposing the original change in magnetic flux. This conservation principle prevents perpetual motion machines and ensures energy conservation.

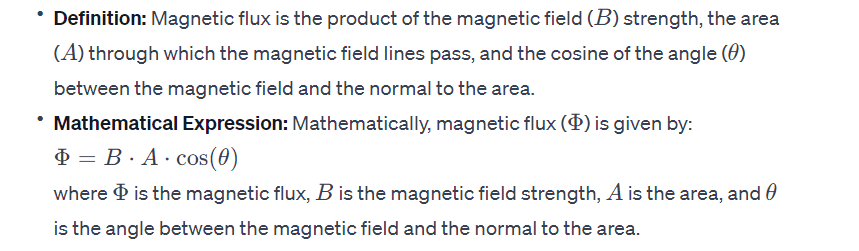

• Magnetic Flux (ΦΦ):

• Induced EMF and Current:
  • Direction of Induced EMF: The direction of the induced EMF is determined by the direction of the change in magnetic flux.
  • Direction of Induced Current: According to Lenz’s law, the induced current flows in a direction that opposes the change in magnetic flux.
• Mutual Induction:
  • Definition: Mutual induction occurs when the change in current in one coil induces an EMF in an adjacent coil.
  • Application: Mutual induction is the principle behind the operation of transformers, where changing current in one coil induces a voltage in a nearby coil.
• Self-Induction:
  • Definition: Self-induction is the phenomenon where a changing current in a coil induces an EMF in the same coil.
  • Application: Self-induction is important in the operation of inductors in electrical circuits.

In summary, electromagnetic induction is a fundamental process that explains how a changing magnetic field can induce an electromotive force and subsequently an electric current in a conductor. These principles are central to the functioning of many electrical devices, including generators, transformers, and inductors.

Applications in Mineral Exploration

Electromagnetic methods have proven to be valuable tools in mineral exploration, providing essential information about the subsurface composition and geological structures. Here are several applications of electromagnetic methods in mineral exploration:

1. Identification of Conductive Ore Bodies:
   • Electromagnetic surveys are particularly effective in identifying conductive minerals or ore bodies. Conductive materials, such as sulfides, exhibit distinct electromagnetic responses that can be detected and mapped.
2. Mapping Geological Structures:
   • Electromagnetic methods help in mapping subsurface geological structures, faults, and fractures. Variations in conductivity and resistivity provide insights into the distribution of different rock types and structures.
3. Depth Profiling of Ore Deposits:
   • Time-domain electromagnetic (TDEM) and frequency-domain electromagnetic (FDEM) surveys can be used for depth profiling of ore deposits. By analyzing the response at different depths, geophysicists can estimate the depth and geometry of the mineralization.
4. Exploration for Base Metals and Precious Metals:
   • Electromagnetic methods are commonly employed in the search for base metals (e.g., copper, zinc) and precious metals (e.g., gold, silver). Conductive sulfide minerals associated with these deposits exhibit detectable electromagnetic signatures.
5. Delineation of Massive Sulfide Deposits:
   • Massive sulfide deposits often contain high concentrations of conductive minerals. Electromagnetic surveys, especially those using airborne or ground-based systems, help delineate the extent and geometry of these deposits.
6. Detection of Buried Mineralization:
   • Electromagnetic methods are useful for detecting buried mineralization that may not be apparent at the surface. The ability to penetrate cover materials makes these methods valuable in areas with significant overburden.
7. Mapping Alteration Zones:
   • Alteration zones associated with mineral deposits often exhibit changes in electrical properties. Electromagnetic surveys can help map these alteration zones, providing additional information for mineral exploration.
8. Integrated Geophysical Surveys:
   • Electromagnetic methods are often integrated with other geophysical techniques, such as gravity, magnetic, and seismic surveys, to obtain a more comprehensive understanding of the subsurface geology and potential mineral deposits.
9. Mineral Resource Assessment:
   • By combining electromagnetic data with geological and geochemical information, mineral resource assessments can be more accurate. This aids in estimating the size, grade, and economic viability of potential mineral deposits.
10. Monitoring Changes in Ore Bodies:
    • Electromagnetic surveys can be used for monitoring changes in ore bodies over time. This is particularly valuable in operational mining scenarios where ongoing exploration and characterization of mineral deposits are essential.

The versatility of electromagnetic methods in mineral exploration lies in their ability to detect subtle variations in subsurface conductivity associated with different minerals. The non-invasive nature of these surveys allows for efficient and cost-effective exploration over large areas, contributing to the successful identification and evaluation of mineral resources.

Environmental and Engineering Applications

Electromagnetic methods find diverse applications in environmental and engineering studies, contributing valuable information about subsurface properties and conditions. Here are some key applications in these domains:

Environmental Applications:

1. Contaminant Plume Mapping:
   • Electromagnetic surveys help in mapping the extent and distribution of subsurface contaminant plumes. Variations in soil conductivity can indicate the presence of pollutants, facilitating environmental remediation efforts.
2. Groundwater Exploration and Monitoring:
   • Electromagnetic methods are widely used to explore and monitor groundwater resources. Changes in subsurface conductivity can indicate variations in water content, helping to identify aquifers and track changes in water quality.
3. Landfill Characterization:
   • Electromagnetic surveys are employed to characterize landfill sites, identifying the distribution of waste materials and potential leachate pathways. This information is crucial for assessing environmental risks and planning remediation strategies.
4. Infrastructure Leak Detection:
   • Electromagnetic methods can be used to detect leaks in buried infrastructure such as pipelines. Variations in soil conductivity caused by moisture changes resulting from leaks can be identified, aiding in preventive maintenance.
5. Soil Moisture Monitoring:
   • Electromagnetic surveys provide a non-invasive means of monitoring soil moisture content. This information is valuable for agriculture, land management, and understanding hydrological processes.
6. Identification of Underground Storage Tanks (USTs):
   • Electromagnetic methods are employed to locate and assess underground storage tanks, including their size, shape, and potential leakage. This is important for environmental risk assessment and regulatory compliance.
7. Mapping Karst Features:
   • Electromagnetic surveys can help in mapping subsurface features, such as caves and voids in karst landscapes. Understanding the geometry of these features is essential for managing water resources and infrastructure.
8. Assessment of Coastal and Marine Environments:
   • Airborne and marine electromagnetic surveys are used to study the subsurface in coastal and marine environments. These surveys can provide information about sediment thickness, salinity variations, and potential pollution.

Engineering Applications:

1. Site Characterization for Construction:
   • Electromagnetic methods are employed for site characterization before construction projects. This includes mapping subsurface soil properties, identifying potential hazards, and assessing foundation conditions.
2. Tunnel and Underground Cavity Detection:
   • Electromagnetic surveys can be used to detect and map underground tunnels and cavities. This information is crucial for infrastructure projects and can prevent potential hazards during construction.
3. Monitoring Structural Health:
   • Electromagnetic techniques are used to monitor the structural health of infrastructure such as bridges and dams. Changes in material properties, including conductivity, can indicate potential issues or deterioration.
4. Mapping Bedrock and Subsurface Geology:
   • Electromagnetic surveys contribute to mapping the subsurface geology and identifying bedrock structures. This information is essential for infrastructure projects, including tunneling and foundation design.
5. Utility Mapping and Detection:
   • Electromagnetic surveys help in mapping and detecting buried utilities such as pipes and cables. This is crucial for preventing damage during excavation and construction activities.
6. Geotechnical Investigations:
   • Electromagnetic methods are used for geotechnical investigations to assess soil properties, moisture content, and variations in subsurface conditions. This information is vital for engineering design and construction planning.

The non-invasive and cost-effective nature of electromagnetic methods makes them valuable tools in environmental and engineering applications, providing critical insights into subsurface conditions and facilitating informed decision-making.

Field Data Collection and Processing

Field data collection and processing are critical components of any geophysical survey, including electromagnetic surveys. Properly conducted fieldwork ensures the acquisition of accurate and reliable data, while effective processing techniques allow geophysicists to interpret and analyze the collected information. Here is an overview of the field data collection and processing steps in electromagnetic surveys:

Field Data Collection:

1. Survey Design:
   • Objective Definition: Clearly define the objectives of the survey, such as mineral exploration, environmental assessment, or engineering investigations.
   • Survey Area Selection: Choose the survey area based on geological considerations, project goals, and logistical constraints.
2. Instrument Deployment:
   • Select Appropriate Instruments: Choose electromagnetic instruments based on the survey objectives, depth of investigation, and the conductivity contrast expected in the subsurface.
   • Calibration: Calibrate instruments to ensure accurate measurements. This includes adjusting for variations in sensor response and environmental conditions.
3. Survey Configuration:
   • Grid Design: Lay out a grid or line configuration for systematic coverage of the survey area.
   • Station Spacing: Determine the spacing between survey stations based on the desired resolution and the expected subsurface features.
4. Data Acquisition:
   • Transmitter and Receiver Configuration: Configure transmitter and receiver systems based on the chosen electromagnetic method (TDEM, FDEM, etc.).
   • Data Recording: Record measurements systematically at each station, capturing relevant information such as transmitter-receiver separation, timing, and amplitude of the electromagnetic response.
5. Quality Control:
   • Real-time Monitoring: Implement real-time quality control checks during data acquisition to identify and rectify issues promptly.
   • Field Checks: Perform periodic field checks to ensure proper functioning of instruments and data consistency.
6. Environmental Corrections:
   • Temperature and Pressure Corrections: Account for variations in temperature and atmospheric pressure that can influence electromagnetic measurements.
   • Instrument Drift: Correct for any instrument drift that may occur during the survey.

Field Data Processing:

1. Data Pre-processing:
   • Noise Removal: Apply filters or algorithms to remove noise from the acquired data.
   • Baseline Correction: Correct for baseline shifts or trends in the data.
2. Data Quality Assessment:
   • Quality Control Checks: Review data for anomalies or irregularities. Address any issues related to outliers or instrument malfunctions.
   • Data Normalization: Normalize data to ensure consistent comparisons across the survey area.
3. Inversion and Modeling:
   • Inversion Algorithms: Apply inversion algorithms to convert field data into subsurface models. This involves solving mathematical equations to estimate the distribution of subsurface properties.
   • Model Validation: Validate the obtained models against known geological information or other independent data sources.
4. Integration with Other Data:
   • Multi-Method Integration: Integrate electromagnetic data with data from other geophysical methods or geological information to enhance the overall interpretation.
   • Geospatial Integration: Combine electromagnetic results with geographic information systems (GIS) for spatial analysis.
5. Visualization and Interpretation:
   • Data Visualization: Create visual representations of the processed data, such as contour maps, cross-sections, and 3D models.
   • Interpretation: Interpret the processed data to derive insights into subsurface properties, geological structures, or environmental conditions.
6. Reporting:
   • Document Findings: Prepare a comprehensive report detailing the survey design, data acquisition, processing steps, and interpretation results.
   • Recommendations: Provide recommendations based on the interpreted data, addressing the objectives of the survey.

Both field data collection and processing require a combination of technical expertise, careful planning, and attention to detail. The integration of advanced software tools and computational techniques has significantly enhanced the efficiency and accuracy of data processing in electromagnetic geophysics. Additionally, iterative approaches, including sensitivity analysis and model refinement, are often employed to improve the reliability of the final interpretations.

Interpretation and Reporting

Interpretation and reporting are crucial stages in the electromagnetic geophysics workflow, where the processed data are analyzed to derive meaningful insights about the subsurface. Here are key steps and considerations in the interpretation and reporting process:

Interpretation:

1. Review Processed Data:
   • Visual Inspection: Carefully examine visual representations of the processed data, such as contour maps, cross-sections, and 3D models.
   • Identify Anomalies: Look for anomalies or variations in the data that may indicate changes in subsurface properties.
2. Cross-Validation with Other Data:
   • Integration with Geology: Compare the electromagnetic results with existing geological information to cross-validate interpretations.
   • Cross-Method Comparison: If available, integrate electromagnetic data with results from other geophysical methods to enhance the understanding of subsurface features.
3. Inversion Model Interpretation:
   • Identify Conductive/Resistive Zones: Interpret regions of high or low conductivity or resistivity and relate them to geological or hydrogeological features.
   • Depth Estimation: Utilize inversion models to estimate the depth and lateral extent of subsurface structures.
4. Geological and Hydrogeological Correlation:
   • Correlate with Known Geology: Compare electromagnetic results with known geological features to identify correlations and potential mineralization zones.
   • Hydrogeological Implications: Assess the implications of electromagnetic data on groundwater flow, aquifer boundaries, and potential contaminant pathways.
5. Structural Interpretation:
   • Faults and Fractures: Identify potential faults, fractures, or other structural features indicated by electromagnetic anomalies.
   • Delineate Boundaries: Use electromagnetic data to delineate boundaries between different geological units.
6. Quantitative Analysis:
   • Quantitative Parameters: Extract quantitative parameters, such as conductivity or resistivity values, from the interpretation for further analysis.
   • Statistical Analysis: Perform statistical analyses to identify trends or patterns in the data.

Reporting:

1. Document Interpretation Results:
   • Summary of Findings: Provide a concise summary of the key interpretation results and significant findings.
   • Visual Representations: Include visual representations, such as maps and cross-sections, to illustrate the interpreted data.
2. Methodology and Data Processing:
   • Detailed Methodology: Describe the survey design, data acquisition, and processing steps in detail.
   • Quality Control Measures: Highlight any quality control measures implemented during data collection and processing.
3. Limitations and Uncertainties:
   • Uncertainty Assessment: Discuss uncertainties associated with the interpretation, including factors such as data resolution, inversion model assumptions, and noise levels.
   • Limitations of the Method: Clearly state the limitations of electromagnetic methods in the specific context of the study.
4. Recommendations:
   • Further Investigations: Suggest areas where additional investigations, such as follow-up surveys or drilling, may be warranted.
   • Data Integration: Recommend integrating electromagnetic results with other available data for a more comprehensive understanding.
5. Conclusions:
   • Key Takeaways: Summarize the main conclusions drawn from the interpretation.
   • Implications: Discuss the implications of the findings on the project goals or objectives.
6. Appendices:
   • Data Tables and Figures: Include detailed data tables, inversion models, and additional figures in the appendices for reference.
   • Supporting Documentation: Attach any supporting documentation, such as raw data logs or instrument calibration reports.
7. Presentation and Communication:
   • Client or Stakeholder Meetings: Schedule meetings to present the interpretation results and discuss findings with clients or stakeholders.
   • Clear Communication: Communicate the results in a clear and understandable manner, avoiding unnecessary technical jargon.

The interpretation and reporting phase is a critical component of the overall geophysical survey process. Clear and transparent communication of results, along with thorough documentation of methodologies and uncertainties, is essential for facilitating informed decision-making by stakeholders and project teams.
