Zircon

Zircon, scientifically known as zirconium silicate (ZrSiO4), is a mineral prized for its versatility and wide-ranging applications. With its remarkable resistance to heat, corrosion, and chemical alteration, zircon finds use in diverse industries. Gem-quality zircons, known for their brilliant luster and dispersion, are sought after in the jewelry market, coming in various colors, including blue and red. In geology, zircon plays a crucial role as a valuable tool for radiometric dating, offering insights into Earth’s history. Additionally, zircon is employed in the manufacturing of refractory materials, ceramics, foundry casting, and nuclear technology, making it a key mineral in modern industrial processes.

What is Zircon? Zircon, scientifically known as zirconium silicate (ZrSiO4), is a naturally occurring mineral found in the Earth’s crust. It is a dense, hard, and durable mineral that typically appears as small, reddish-brown to grayish crystals. Zircon contains the elements zirconium and silicon, along with trace amounts of other elements such as hafnium, uranium, and thorium.

History and Discovery of Zircon: The history of zircon dates back thousands of years. Ancient civilizations used zircon in jewelry and decorative objects due to its brilliant luster and striking appearance. It was often mistaken for a diamond due to its sparkle.

In the 18th century, zircon was officially recognized as a distinct mineral, and its chemical composition was determined. Its name “zircon” is derived from the Persian word “zargun,” which means “gold-colored.”

In more recent history, zircon has gained importance in the field of geology and radiometric dating. Zircon crystals found in igneous rocks have been used to estimate the age of the Earth’s crust and the timing of geological events, making zircon an invaluable tool in understanding Earth’s history.

Importance and Uses of Zircon: Zircon has a wide range of uses across various industries, thanks to its unique properties:

1. Gemstone and Jewelry: Zircon crystals, when cut and polished, can be used as gemstones in jewelry. They come in a variety of colors, including blue, yellow, and brown, and are prized for their brilliance and fire.
2. Radiometric Dating: Zircon is crucial in the field of geology for radiometric dating. Zircon crystals often contain small amounts of uranium, which undergo radioactive decay into lead over time. By analyzing the ratio of uranium to lead in zircon crystals, scientists can estimate the age of rocks and minerals, providing insights into geological history and the timing of Earth’s events.
3. Ceramics and Refractory Materials: Zircon’s high melting point and resistance to corrosion make it a valuable component in ceramics, refractory materials, and crucibles used in high-temperature applications like foundry casting and glass manufacturing.
4. Zirconium Metal Production: Zirconium, derived from zircon, is used in various industrial applications, including nuclear reactors, chemical processing equipment, and aerospace components due to its excellent heat resistance and corrosion resistance.
5. Zirconia: Zirconia (zirconium dioxide) is a synthetic material derived from zircon. It is used in dental crowns, cutting tools, and as a high-performance ceramic material in various engineering and medical applications.
6. Catalysts: Zirconium compounds are used as catalysts in the petrochemical industry for the production of chemicals and plastics.

In summary, zircon is a versatile mineral with a rich history of use in jewelry and a critical role in geology, industrial applications, and advanced materials. Its unique properties and abundance in nature make it an essential resource in various fields.

Geology and Formation of Zircon

Zircon is a mineral with a fascinating geological history and formation process. Understanding its geology and formation provides valuable insights into its properties and significance. Here’s an overview of the geology and formation of zircon:

Formation:

1. Magmatic Origin: The primary source of zircon is igneous rocks, specifically granitic and syenitic rocks, where it crystallizes from molten magma during the cooling and solidification of these rocks. Zircon forms as tiny crystals within these igneous rocks, often alongside other minerals like quartz and feldspar.
2. Metamorphic Rocks: Zircon can also be found in metamorphic rocks, where it may have originally formed in igneous rocks and later recrystallized due to high temperature and pressure. This can occur during processes like regional metamorphism.

Geological Setting:

1. Granitic Pegmatites: Zircon is commonly found in granitic pegmatites, which are coarse-grained veins of granite that form as the final product of the crystallization of magma. Pegmatites often contain large zircon crystals and are famous for yielding gem-quality zircon specimens.
2. Sedimentary Deposits: Zircon can be transported by erosion and deposited in sedimentary rocks, such as sandstones and conglomerates. These sedimentary zircon grains often have rounded shapes and are used for detrital zircon geochronology to determine the age of sedimentary rocks.

Key Geological Processes:

1. Crystallization: Zircon crystallizes from magma or forms as small grains in the mineral matrix of igneous rocks. Its crystal structure consists of zirconium, silicon, and oxygen atoms arranged in a tetragonal lattice.
2. Radiogenic Isotopes: Zircon’s significance in geology stems from its ability to incorporate small amounts of radioactive elements, particularly uranium and thorium, into its crystal structure. Over geological time, these radioactive isotopes decay into stable lead isotopes. By measuring the ratios of uranium and lead isotopes in zircon crystals, scientists can determine the age of the zircon and, by extension, the age of the rock in which it formed.
3. High Thermal Stability: Zircon is highly resistant to weathering, chemical alteration, and high-temperature conditions. This property allows zircon grains to persist in the Earth’s crust for billions of years, making them valuable in radiometric dating and understanding geological processes.

In summary, zircon is primarily formed in igneous rocks through the crystallization of magma, but it can also occur in metamorphic rocks and sedimentary deposits. Its unique ability to incorporate radioactive elements and its resistance to geological processes make it a critical tool for geologists in dating rocks, reconstructing Earth’s history, and understanding geological phenomena.

Geological occurrence and distribution

Zircon is a mineral that occurs naturally in a wide range of geological settings and can be found in various types of rocks and deposits around the world. Its distribution is influenced by its formation processes and geological history. Here’s an overview of the geological occurrence and distribution of zircon:

1. Igneous Rocks:

• Granites: Zircon is commonly associated with granitic rocks and is often found as small crystals within these intrusive igneous rocks. Granite is one of the primary sources of zircon.
• Syenites: Similar to granites, zircon can also be found in syenitic rocks, which are igneous rocks with a different mineral composition.

2. Pegmatites:

• Granitic Pegmatites: Pegmatites are coarse-grained veins or pockets that form in the final stages of the crystallization of magma. Some pegmatites contain exceptionally large zircon crystals, and these are highly sought after by mineral collectors.

3. Metamorphic Rocks:

• Zircon can be found in some metamorphic rocks, especially those formed from the recrystallization of pre-existing zircon-bearing minerals or as a result of regional metamorphism.

4. Sedimentary Deposits:

• Sandstones: Zircon grains can be transported by erosion from their primary igneous or metamorphic sources and accumulate in sedimentary rocks like sandstones. Detrital zircons in sandstones can be used for dating the sedimentary rocks and understanding sedimentary basin histories.
• Conglomerates: Zircon grains are often found in conglomerate rocks, where they act as durable, rounded pebbles or grains.

5. Placer Deposits:

• In some regions, zircon can accumulate in placer deposits through weathering and erosion of primary sources. These deposits are often mined for their zircon content, along with other heavy minerals like garnet and ilmenite.

6. Beach Sands:

• Coastal areas may have zircon-rich beach sands. The heavy mineral content of these sands, including zircon, can be economically significant.

7. Volcanic Rocks:

• Zircon can also be found in certain volcanic rocks, where it may crystallize during the cooling of lava or volcanic ash.

Distribution: Zircon is distributed worldwide, but some regions are particularly well-known for their zircon deposits:

• Australia: Australia is a major producer of zircon, with significant deposits found in Western Australia and Queensland.
• Brazil: Brazil is known for its high-quality zircon gemstones, often found in pegmatites.
• Sri Lanka: Sri Lanka is famous for its blue and green zircon gemstones.
• Madagascar: Madagascar also produces gem-quality zircon, often found in alluvial deposits.
• South Africa: South Africa has notable zircon deposits associated with its heavy mineral sands.
• Norway: Norway is known for its zircon-bearing granitic rocks.
• India: India has zircon-bearing rocks in various states, including Odisha, Tamil Nadu, and Kerala.
• United States: Zircon can be found in various U.S. states, including North Carolina, Florida, and Colorado.

Zircon’s widespread distribution and occurrence in various geological settings make it an important mineral in both industrial applications and the study of Earth’s geological history through radiometric dating.

Physical and Chemical Properties of Zircon

Zircon, a naturally occurring mineral, possesses a variety of physical and chemical properties that contribute to its importance in various industrial and geological applications. Here are some of the key physical and chemical properties of zircon:

Physical Properties:

1. Crystal System: Zircon crystallizes in the tetragonal crystal system, which means its crystal structure has fourfold rotational symmetry.
2. Hardness: Zircon is relatively hard, typically ranking around 7.5 on the Mohs scale of mineral hardness. This hardness makes it durable and suitable for use as a gemstone and in industrial applications.
3. Density: Zircon has a relatively high density, with values ranging from approximately 4.6 to 4.7 grams per cubic centimeter (g/cm³). This density contributes to its use as a heavy mineral in placer deposits.
4. Color: Zircon can come in various colors, including brown, reddish-brown, yellow, green, blue, and colorless. Gem-quality zircons often exhibit vivid colors and high transparency.
5. Luster: Zircon typically has a high luster, giving it a shiny and reflective appearance when cut and polished. This luster enhances its use as a gemstone.
6. Cleavage: Zircon exhibits imperfect cleavage along its crystallographic planes, which means it can break along certain directions with distinct cleavage surfaces.
7. Transparency: Depending on impurities and crystal quality, zircon can range from transparent to translucent.
8. Dispersion: Gem-quality zircons often display strong dispersion, which is the ability to split white light into its spectral colors. This property gives zircon its “fire” or play of colors.

Chemical Properties:

1. Chemical Composition: Zircon is a zirconium silicate mineral with the chemical formula ZrSiO4. It consists primarily of zirconium (Zr), silicon (Si), and oxygen (O), with trace amounts of other elements like hafnium (Hf).
2. Stability: Zircon is highly resistant to chemical weathering and remains stable over geological time periods. It is not easily altered by common geological processes, which makes it a valuable mineral for radiometric dating.
3. Radiogenic Isotopes: Zircon can incorporate trace amounts of radioactive isotopes such as uranium (U) and thorium (Th) during its crystallization. Over time, these isotopes decay into stable lead (Pb) isotopes. This property is used for radiometric dating of zircon and the rocks in which it occurs.
4. Zirconia Formation: Zircon can be transformed into zirconia (zirconium dioxide, ZrO2) through high-temperature processes. Zirconia is a versatile ceramic material with various industrial applications.
5. Heat Resistance: Zircon is highly heat-resistant and can withstand extremely high temperatures without undergoing significant changes, making it suitable for use in refractory materials and high-temperature applications.
6. Chemical Inertness: Zircon is chemically inert under most conditions, which contributes to its durability and stability in various environments.

In summary, zircon’s physical properties include its crystal system, hardness, density, color, luster, cleavage, transparency, and dispersion. Its chemical properties involve its composition, stability, radiogenic isotopes, ability to form zirconia, heat resistance, and chemical inertness. These properties collectively make zircon valuable in industries such as jewelry, geology, ceramics, and high-temperature applications.

Zircon in Gemology

Zircon is a fascinating gemstone with a long history of use in the field of gemology. Its unique properties and characteristics make it a sought-after gemstone for collectors and jewelry enthusiasts. Here’s a closer look at zircon in gemology:

Physical Characteristics:

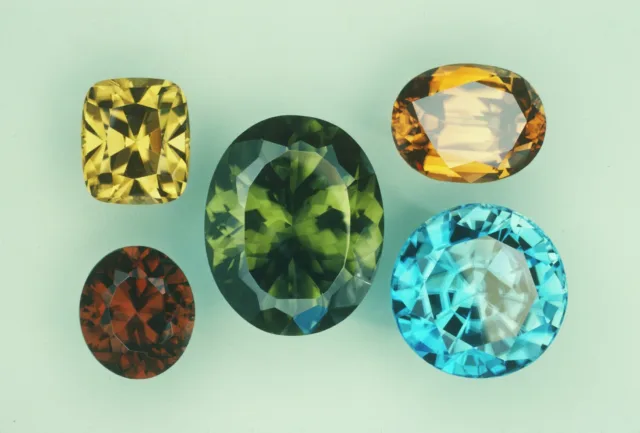

1. Color: Zircon occurs in a wide range of colors, including blue, yellow, green, brown, red, and colorless. Among these, blue and red zircons are particularly popular in gemstone jewelry. Blue zircon, in particular, can resemble blue topaz and is often used as a more affordable alternative.
2. Luster: Zircon exhibits a high refractive index and excellent luster when cut and polished. It has a brilliant and sparkling appearance when used in jewelry, making it highly desirable.
3. Dispersion: Zircon is known for its strong dispersion, which is the ability to split white light into its spectral colors. This property gives zircon a remarkable “fire” or play of colors, making it even more appealing in jewelry.
4. Hardness: With a hardness rating of approximately 7.5 on the Mohs scale, zircon is durable enough for use in jewelry but should be handled with care to avoid scratching.

Gemological Classification: Zircon is classified as a nesosilicate mineral and is composed of zirconium silicate (ZrSiO4). It is distinct from cubic zirconia (CZ), a synthetic material often used as a diamond simulant, as they have different chemical compositions and physical properties.

Gemstone Varieties:

1. Blue Zircon: Blue zircon is one of the most popular varieties. It can exhibit vivid and vibrant blue colors, often resembling aquamarine or blue topaz. Heat treatment is commonly used to enhance the blue color of zircon.
2. Red Zircon: Red zircon is prized for its rich, deep red hues. These red zircons are often marketed as “hyacinth” or “jacinth” and can resemble precious red gemstones like ruby or spinel.
3. Yellow and Golden Zircon: These varieties range from pale yellow to golden hues and are appreciated for their warm and inviting colors. They can resemble yellow sapphire or yellow diamond.

Treatments: Heat treatment is a common practice in the gemstone industry to improve the color of zircon. This treatment can intensify or alter the gem’s color, making it more attractive to consumers. While heat-treated zircon is widely accepted, disclosure of treatment is essential in gem sales to maintain transparency and consumer confidence.

Care and Handling: Zircon is a durable gemstone for everyday wear in jewelry but should be protected from harsh chemicals and abrasive materials. To maintain its brilliance, zircon jewelry should be cleaned with mild soap, water, and a soft brush, and it should be stored separately to prevent scratching.

In summary, zircon is a versatile and captivating gemstone valued for its wide range of colors, strong dispersion, and luster. Whether used as a centerpiece in a jewelry setting or as an accent stone, zircon has a unique charm that appeals to gem collectors and those seeking distinctive and vibrant gemstone jewelry.

Industrial Applications

Zircon, a versatile mineral, finds a wide range of industrial applications owing to its unique properties. Here are some of the key industrial uses of zircon:

1. Refractory Materials: Zircon’s high melting point and resistance to heat make it a valuable component in refractory materials, such as zirconia refractories. These materials are used in the lining of furnaces, kilns, and crucibles in industries like metallurgy, ceramics, and glass manufacturing, where high temperatures are involved.

2. Ceramic and Tile Production: Zircon is used in the production of ceramic and tile materials, where it acts as an opacifier. It enhances the whiteness, opacity, and brightness of ceramic glazes and tiles, making them more visually appealing.

3. Foundry Casting: Zircon is utilized in the foundry industry as a molding material. Zircon sand is used to create molds for casting metals and alloys because it can withstand the high temperatures and thermal shocks encountered during the casting process.

4. Investment Casting: In the aerospace and automotive industries, zircon-based investment casting materials are used to create intricate and precise metal parts. The high refractoriness of zircon helps maintain the shape and detail of castings.

5. Nuclear Industry: Zirconium, derived from zircon, is crucial in the nuclear industry. Zirconium alloys are used in nuclear reactor components, such as fuel rods and cladding, due to their excellent resistance to corrosion and thermal neutron absorption.

6. Electronics and Optics: Zirconia (zirconium dioxide) is used in electronics as a ceramic insulator and in optical components for its high refractive index and transparency in the infrared spectrum. It’s used in items like oxygen sensors, solid oxide fuel cells, and high-quality camera lenses.

7. Dental Ceramics: Zirconia ceramics are widely used in dentistry for dental crowns, bridges, and dental implants. These ceramics are biocompatible, durable, and aesthetically pleasing.

8. Aerospace Components: Zirconium alloys and zirconia are used in aerospace components due to their heat resistance, high strength-to-weight ratio, and ability to withstand extreme conditions.

9. Chemical Processing: Zirconium compounds are employed in chemical processing industries as catalysts and corrosion-resistant materials, especially in applications where strong acids or aggressive chemicals are involved.

10. Grinding and Polishing: Zirconium-based abrasives are used for grinding and polishing hard materials like metals and ceramics. Zirconium oxide abrasives are known for their toughness and long-lasting abrasive qualities.

11. Pigments and Paints: Zircon compounds are used as pigments in paints and coatings. Zirconium silicate pigments provide opacity and brightness to paints and are commonly used in white and colored paints.

12. Oil and Gas Industry: Zirconium alloys are utilized in equipment and tools used in the oil and gas industry, where resistance to corrosion and high temperatures is essential.

In summary, zircon’s unique combination of high melting point, heat resistance, chemical inertness, and durability makes it valuable in various industrial applications. It plays a vital role in sectors such as ceramics, foundry casting, aerospace, nuclear technology, and many more, contributing to the development of advanced materials and technologies across industries.

Analytical Techniques

Analyzing and characterizing zircon and zircon-containing materials require various analytical techniques to assess their physical, chemical, and structural properties. Here are some common analytical techniques used in the study of zircon:

1. X-ray Diffraction (XRD): XRD is used to determine the crystal structure of zircon and identify its mineral phases. It can provide information about the crystal lattice parameters, unit cell dimensions, and crystal symmetry. XRD is essential for mineral identification and quantifying zircon content in geological samples.

2. Scanning Electron Microscopy (SEM): SEM allows for high-resolution imaging of zircon grains and surfaces. It provides detailed information about the morphology, size, and surface features of zircon crystals. Energy-dispersive X-ray spectroscopy (EDS) can be coupled with SEM to determine the elemental composition of zircon.

3. Electron Probe Microanalysis (EPMA): EPMA is used to quantitatively analyze the chemical composition of zircon at the microscale. It provides precise data on the concentration of various elements within zircon crystals, including trace elements such as uranium and thorium, which are crucial for radiometric dating.

4. Laser Ablation-Inductively Coupled Plasma-Mass Spectrometry (LA-ICP-MS): LA-ICP-MS is a powerful technique for analyzing trace element concentrations within zircon crystals. It is commonly used for geochronology studies, as it can determine the age of zircon crystals by measuring the isotopic ratios of elements like uranium and lead.

5. Electron Backscatter Diffraction (EBSD): EBSD is used to study the crystallography and orientation of zircon grains. It provides information about grain boundaries, crystallographic defects, and the distribution of crystallographic orientations within a sample.

6. Transmission Electron Microscopy (TEM): TEM allows for the examination of the internal structure and defects within zircon crystals at the nanoscale. It can reveal information about dislocations, inclusions, and microtextures.

7. Raman Spectroscopy: Raman spectroscopy is used to identify and characterize the mineral phases and crystal structure of zircon by measuring the vibrations of its atomic bonds. It can also detect impurities and defects within zircon crystals.

8. Fourier-Transform Infrared Spectroscopy (FTIR): FTIR spectroscopy is used to analyze the chemical composition and structural properties of zircon by measuring its infrared absorption and vibrational modes. It is particularly useful for identifying specific mineral phases and defects in zircon.

9. X-ray Fluorescence (XRF): XRF is used for bulk chemical analysis of zircon-containing materials. It provides information about the elemental composition of zircon samples and can detect major and trace elements.

10. Thermochemical Analysis: Techniques like thermogravimetric analysis (TGA) and differential scanning calorimetry (DSC) can be used to study the thermal behavior of zircon, including its decomposition, phase transitions, and thermal stability.

11. Nuclear Magnetic Resonance (NMR): NMR spectroscopy can provide information about the local atomic structure and chemical bonding in zircon. It is particularly useful for understanding the coordination environment of elements within the crystal lattice.

These analytical techniques, either individually or in combination, play a crucial role in studying zircon in various scientific disciplines, including geology, materials science, mineralogy, and gemology, and are essential for understanding its physical, chemical, and structural properties.

Locations of major Zircon deposits worldwide

Major zircon deposits are found in various parts of the world, with notable concentrations in specific regions. Here are some of the locations of major zircon deposits worldwide:

1. Australia: Australia is one of the world’s largest producers of zircon. The significant zircon deposits are primarily located in Western Australia, particularly in the Eneabba and Mindarie regions. Other Australian states, such as New South Wales and Queensland, also have zircon deposits.

2. South Africa: South Africa is known for its rich heavy mineral sands, which contain significant zircon deposits. The Western Cape, KwaZulu-Natal, and Eastern Cape provinces are key zircon-producing areas.

3. United States: Zircon deposits can be found in several U.S. states. Notable locations include the states of North Carolina, Florida, and Colorado. These deposits are often associated with heavy mineral sands along coastal areas.

4. India: India has zircon-bearing sands along its eastern and southern coasts, particularly in the states of Odisha, Tamil Nadu, and Kerala. These deposits contribute to India’s zircon production.

5. Brazil: Brazil is known for producing gem-quality zircons, especially from pegmatite deposits in Minas Gerais and Bahia states. These zircons are sought after for use in jewelry.

6. Madagascar: Madagascar has rich alluvial deposits of gem-quality zircons. The Andilamena and Ilakaka regions are known for producing colorful zircon gemstones.

7. Sri Lanka: Sri Lanka has a history of producing blue and green zircon gemstones from gem-bearing gravel beds and alluvial deposits.

8. Russia: Russia has zircon deposits in various regions, including the Ural Mountains and the Kola Peninsula. These deposits are a source of zirconium minerals.

9. Mozambique: The coastal regions of Mozambique, particularly the Chibuto and Inhambane areas, have significant deposits of heavy minerals, including zircon.

10. China: China also produces zircon from various locations, including coastal areas with heavy mineral sands and inland regions with zircon-bearing rocks.

These are some of the major zircon-producing regions around the world. The presence and significance of zircon deposits can vary within each country and region, and they are often associated with other valuable heavy minerals like ilmenite, rutile, and garnet in placer deposits or in igneous and metamorphic rocks.
