Vanadinite

Vanadinite is a striking mineral known for its vibrant red to orange-red hexagonal crystals. Composed primarily of lead, vanadium, oxygen, and chlorine, it forms in the oxidation zones of lead and lead-zinc deposits, often in arid environments. Highly valued by mineral collectors for its aesthetic beauty and crystal formations, vanadinite’s distinctive appearance and crystal structure make it a sought-after addition to mineral collections worldwide. While some ascribe metaphysical properties to it, its primary significance lies in its geological and mineralogical importance.

Physical, Optical and Chemical Properties of Vanadinite

Physical Properties:

1. Color: Vanadinite is typically bright red, orange-red, or brownish-red. Its vivid red colors are one of its most distinctive features.
2. Luster: It has a resinous to sub-adamantine luster, giving it a shiny and sometimes slightly greasy appearance.
3. Transparency: Vanadinite crystals are usually transparent to translucent, allowing some light to pass through them.
4. Crystal System: Vanadinite crystallizes in the hexagonal crystal system, forming hexagonal prismatic or barrel-shaped crystals.
5. Hardness: It has a relatively high hardness of 3 to 4 on the Mohs scale, which means it can scratch glass but is softer than many common minerals like quartz.
6. Cleavage: Vanadinite does not exhibit cleavage, meaning it does not break along smooth, flat planes like some other minerals.
7. Fracture: Its fracture is typically uneven to conchoidal, meaning it breaks with irregular, rough surfaces.
8. Specific Gravity: The specific gravity of vanadinite typically ranges from 6.6 to 7.2, indicating that it is quite dense.

Optical Properties:

1. Refractive Index: The refractive index of vanadinite varies with crystal orientation but typically falls between 2.3 and 2.4.
2. Birefringence: Vanadinite is birefringent, meaning it can split light into two polarized rays when viewed under a polarizing microscope. This property is characteristic of minerals with hexagonal crystal structures.
3. Dispersion: Vanadinite has moderate to strong dispersion, which can create colorful spectral flashes when viewed under certain lighting conditions.

Chemical Properties:

1. Chemical Formula: The chemical formula of vanadinite is Pb5(VO4)3Cl, indicating its composition primarily consists of lead (Pb), vanadium (V), oxygen (O), and chlorine (Cl) atoms.
2. Streak: The streak of vanadinite is white to pale yellow, which is the color left when it is scratched on a porcelain streak plate.
3. Solubility: Vanadinite is slightly soluble in water, meaning it can dissolve to some extent when exposed to water, but it is relatively insoluble in most common solvents.
4. Flame Test: When heated strongly in a flame, vanadinite can produce a green flame due to the presence of vanadium.

These properties collectively contribute to the distinctive appearance and identification of vanadinite as a mineral specimen. Its bright red color, hexagonal crystals, and characteristic streak and luster make it easily recognizable to mineral enthusiasts and geologists.

Occurrence and Geological Formation

Vanadinite is primarily found as a secondary mineral in the oxidation zones of lead and lead-zinc deposits. Its occurrence and geological formation are closely tied to specific environmental conditions and geological processes. Here’s an overview of how vanadinite forms and where it is commonly found:

1. Geological Setting: Vanadinite typically forms in the weathered, near-surface zones of ore deposits that contain lead minerals. These lead deposits often include galena (lead sulfide) or other lead-bearing minerals. Vanadinite forms as a result of the alteration and oxidation of these primary lead ore minerals.

2. Formation Process:

• Primary Mineral Deposition: The process begins with the primary deposition of lead minerals within the Earth’s crust. These lead deposits can occur in a variety of geological settings, including sedimentary, hydrothermal, and volcanic environments.
• Alteration and Weathering: Over time, geological processes such as weathering, exposure to oxygen, and the circulation of groundwater can lead to the alteration of the primary lead minerals. During this alteration, vanadium-rich solutions, often derived from nearby volcanic activity, infiltrate the deposit.
• Reaction with Vanadium: When these vanadium-rich solutions interact with the primary lead minerals, chemical reactions occur. Vanadium from the solutions combines with oxygen and other elements, leading to the formation of vanadinite crystals. The presence of chlorine (from the Cl component in the chemical formula) is also essential for vanadinite formation.
• Crystal Growth: Vanadinite crystals grow over time as these chemical reactions continue. They often adopt hexagonal prismatic or barrel-shaped crystal habits, characteristic of the mineral.

3. Common Localities: Vanadinite is found in various parts of the world, but some regions are particularly well-known for its occurrence. Notable localities include:

• Morocco: Morocco is famous for its high-quality vanadinite specimens, particularly from the Mibladen and Touissit mining districts.
• United States: The southwestern United States, especially Arizona and New Mexico, is another prominent source of vanadinite specimens.
• Mexico: Several Mexican localities, such as the Sierra de Los Lamentos in Chihuahua, have also yielded fine vanadinite crystals.
• Other Countries: Vanadinite can also be found in various other countries, including Namibia, South Africa, Australia, and Scotland, though it is less common in these locations.

In summary, vanadinite forms as a secondary mineral through the alteration and oxidation of primary lead ore deposits in the presence of vanadium-rich solutions. Its occurrence is closely tied to specific geological conditions, including the presence of lead minerals, weathering processes, and the influx of vanadium-bearing fluids. The resulting vibrant red crystals of vanadinite make it a sought-after mineral specimen among collectors and a fascinating subject of study in geology and mineralogy.

Crystallography and Morphology

Vanadinite exhibits distinctive crystallography and morphology, which contribute to its unique appearance and make it easily recognizable among minerals. Here’s an overview of the crystallography and morphology of vanadinite:

Crystallography:

1. Crystal System: Vanadinite crystallizes in the hexagonal crystal system. This means it has three axes of equal length, with two of them forming a 60-degree angle to each other in the horizontal plane, while the third axis is perpendicular to the others.
2. Symmetry: Vanadinite displays hexagonal symmetry, which results in its characteristic sixfold rotational symmetry. This symmetry is reflected in its crystal habit and the arrangement of its crystal faces.

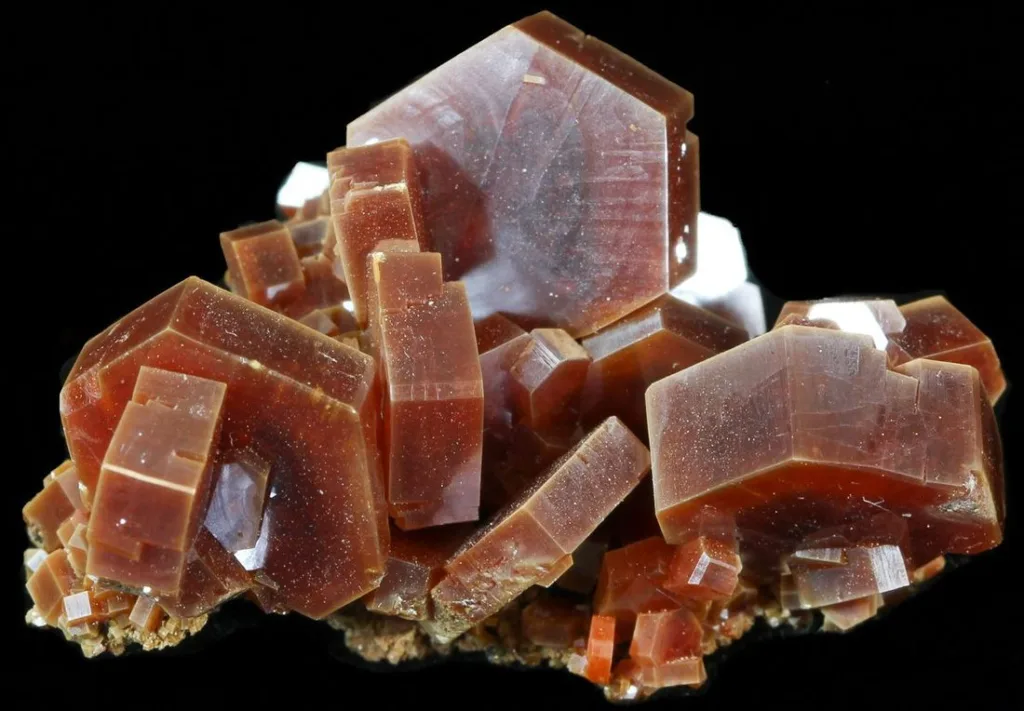

3. Crystal Habit: Vanadinite commonly forms hexagonal prismatic crystals with flat or beveled ends. These crystals are often elongated and resemble small barrels. The hexagonal shape is a product of its hexagonal crystal system.
4. Twinning: Vanadinite crystals can exhibit simple contact twinning, where two crystals grow together in such a way that they appear to share a common plane or face. This can give rise to twin boundaries and create interesting crystal forms.

Morphology:

1. Color: Vanadinite is renowned for its striking red to orange-red color. This vibrant hue is due to the presence of vanadium within its crystal structure.
2. Luster: The mineral has a resinous to sub-adamantine luster, which means it appears shiny and can sometimes have a slightly greasy or glassy sheen.
3. Transparency: Vanadinite crystals are typically transparent to translucent, allowing light to pass through to varying degrees.
4. Hardness: Vanadinite has a relatively high hardness of 3 to 4 on the Mohs scale. This means it is harder than most common minerals but can still be scratched by harder materials like quartz.
5. Cleavage and Fracture: Vanadinite does not exhibit cleavage, meaning it does not break along distinct planes. Instead, it typically breaks with an uneven to conchoidal fracture, creating irregular, rough surfaces.
6. Streak: When scratched on a porcelain streak plate, vanadinite leaves a white to pale yellow streak.
7. Specific Gravity: The specific gravity of vanadinite typically ranges from 6.6 to 7.2, indicating its high density.
8. Birefringence and Dispersion: Vanadinite is birefringent, meaning it can split light into two polarized rays when viewed under a polarizing microscope. It also exhibits moderate to strong dispersion, which can create colorful spectral flashes when viewed under certain lighting conditions.

In summary, vanadinite’s hexagonal crystal system, symmetry, and distinctive crystal habits contribute to its recognizable morphology. Its vivid red color and unique luster further enhance its visual appeal, making it a prized specimen for mineral collectors and a subject of interest in mineralogy and crystallography studies.

Natural sources and locations

Vanadinite is primarily found in specific geological settings as a secondary mineral, often associated with lead and lead-zinc ore deposits. It occurs in various parts of the world, with some regions known for producing high-quality specimens. Here are some natural sources and locations where vanadinite can be found:

1. Morocco: Morocco is renowned for its exceptional vanadinite specimens, particularly from the Mibladen and Touissit mining districts. These regions have produced some of the world’s most sought-after vanadinite crystals, known for their bright red to orange-red color and distinctive hexagonal prismatic shape.
2. United States: The southwestern United States, particularly the states of Arizona and New Mexico, is a significant source of vanadinite. Localities like the Apache Mine and the Pure Potential Mine in Arizona, as well as the Kelly Mine and the San Carlos Mine in New Mexico, have yielded notable vanadinite specimens.
3. Mexico: Mexico has several vanadinite-producing localities, including the Sierra de Los Lamentos in Chihuahua. Here, vanadinite crystals are often associated with lead-zinc ore deposits and can exhibit exceptional color and crystal quality.
4. Namibia: Vanadinite can be found in some regions of Namibia, including the Guchab and Grootfontein areas. While not as famous as some other localities, Namibian vanadinite specimens can still be of high quality.
5. South Africa: Some vanadinite occurrences have been reported in South Africa, particularly in the Northern Cape Province. These specimens are generally less common but can still be attractive to collectors.
6. Australia: Vanadinite has been found in several Australian localities, including the Red River Mines in Queensland and the Broken Hill region in New South Wales. These specimens may vary in color and crystal quality.
7. Scotland: In the United Kingdom, vanadinite has been discovered in the Leadhills-Wanlockhead ore field in Scotland. Specimens from this location are relatively rare.

It’s important to note that vanadinite’s occurrence is closely tied to specific geological conditions, including the presence of primary lead ore deposits, weathering processes, and the influx of vanadium-bearing fluids. As a result, it is relatively rare compared to more common minerals. Mineral collectors and enthusiasts often seek vanadinite specimens from these notable locations for their striking appearance and geological significance.

Application and Uses Areas

Vanadinite, while primarily valued for its aesthetic qualities and geological significance, does not have significant industrial or commercial applications due to its relative scarcity and the presence of lead and vanadium, which can be toxic. However, it does find some niche applications and uses in various areas:

1. Mineral Collecting: Vanadinite is highly sought after by mineral collectors and enthusiasts for its vibrant red to orange-red color, attractive crystal formations, and unique hexagonal prismatic crystals. It is often collected and displayed as a specimen in private collections, museums, and mineral shows.
2. Metaphysical and New Age Beliefs: Some individuals believe that vanadinite possesses metaphysical properties and healing energies. It is said to enhance focus, creativity, and determination, making it popular in crystal healing and meditation practices. However, these claims lack scientific support and should be viewed as part of alternative belief systems.
3. Education and Research: Vanadinite is valuable in the field of mineralogy and geology as a study specimen. It provides insights into geological processes, crystallography, and mineral formation. Geologists and researchers may use vanadinite as a reference material or for educational purposes.

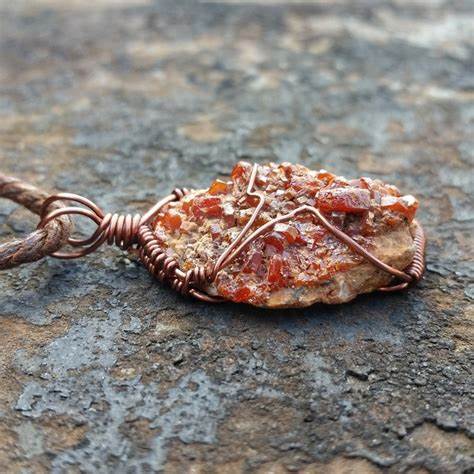

4. Art and Jewelry: While not as common as other gemstones and minerals, vanadinite’s striking color and unique appearance can occasionally be used in jewelry and lapidary art. However, its relatively low hardness and the presence of lead make it less suitable for everyday jewelry.
5. Scientific Investigations: In some scientific research, vanadinite has been used as a source of vanadium for laboratory experiments or studies related to the properties of vanadium compounds.

It’s important to note that due to the presence of lead, vanadinite should be handled with care, and precautions should be taken to avoid ingestion, inhalation, or contact with the skin. It is not suitable for uses that involve direct contact with the human body or food items.

Overall, while vanadinite does not have widespread commercial or industrial applications, its significance lies in its beauty, its role in the world of mineral collecting, and its contribution to geological and mineralogical studies.
