Diagenesis is the process by which sedimentary rocks are altered after they are deposited, but before they are buried and lithified (turned into rock). This process involves physical, chemical, and biological changes that can affect the mineralogy, texture, and other properties of the sedimentary rock. Diagenesis can occur at relatively low temperatures and pressures, usually within the upper few kilometers of the Earth’s crust. It can involve a variety of processes, such as compaction, cementation, dissolution, recrystallization, and the formation of new minerals. Overall, diagenesis plays a crucial role in shaping the properties and characteristics of sedimentary rocks.

Carbonate Diagenesis

Physical and chemical changes during diagenesis

During diagenesis, physical and chemical changes can occur in sedimentary rocks. Physical changes include compaction and cementation, while chemical changes include dissolution, precipitation, and replacement.

Compaction occurs as sedimentary layers are buried under additional layers, resulting in a decrease in the pore space between sediment grains. This reduction in pore space causes the sediment grains to pack more closely together, which leads to an increase in rock density and strength.

Cementation occurs when minerals, such as quartz or calcite, precipitate from fluids that percolate through the sediment, filling in the remaining pore space and binding the sediment grains together.

Dissolution occurs when minerals in the sediment are dissolved by fluids, leaving behind void space. Precipitation occurs when dissolved minerals in fluids are deposited in the sediment, filling in void space and potentially replacing existing minerals. Replacement occurs when minerals in the sediment are replaced by different minerals that are introduced by fluids during diagenesis.

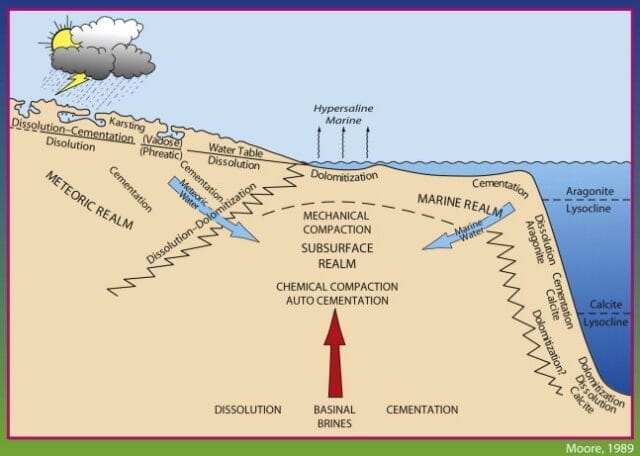

Factors affecting diagenesis

Several factors can affect the diagenesis of sedimentary rocks, including:

  1. Temperature: Diagenesis is affected by temperature, as higher temperatures can cause minerals to recrystallize and change in mineralogy.
  2. Pressure: Pressure can also play a role in diagenesis, as increased pressure can cause compaction and cementation of sedimentary particles.
  3. Fluids: The fluids present in sedimentary rocks can also influence diagenesis. Groundwater, for example, can alter the mineralogy of sedimentary rocks through dissolution and precipitation.
  4. Time: The longer sedimentary rocks are buried, the more time there is for diagenesis to occur.
  5. Composition of the sediment: The composition of the sedimentary rock can also affect diagenesis, as some minerals are more susceptible to alteration than others.
  6. Climate: The climate in which sedimentary rocks are deposited can also affect diagenesis. For example, arid climates can lead to the formation of evaporites, while humid climates can lead to the formation of kaolinite.

Types of diagenesis: compaction, cementation, recrystallization, replacement, and others

There are several types of diagenesis that can occur in sedimentary rocks:

  1. Compaction: As sediment is buried, the weight of overlying layers causes grains to become compressed and close together, reducing the volume of pore space between them.
  2. Cementation: As pore space is reduced, mineral-rich fluids may flow through the rock, depositing minerals that bind grains together. Common cements include calcite, quartz, and clay minerals.
  3. Recrystallization: Under conditions of elevated temperature and pressure, minerals in the rock may dissolve and re-precipitate as larger, more stable crystals.
  4. Replacement: In some cases, minerals in the original sediment are replaced by new minerals. For example, aragonite shells may dissolve and be replaced by calcite.
  5. Dissolution: Some minerals may dissolve during diagenesis, leaving behind pores or vugs.
  6. Organic processes: Bacterial activity can produce methane, which can cause carbonate minerals to precipitate.

The type and extent of diagenesis that occurs in a sedimentary rock depend on a variety of factors, including the composition and texture of the original sediment, burial depth and duration, temperature, pressure, and the chemistry of fluids flowing through the rock.

Diagenesis and porosity/permeability of sedimentary rocks

Diagenesis can have a significant impact on the porosity and permeability of sedimentary rocks. Compaction, cementation, and replacement can all lead to a reduction in porosity and permeability, while recrystallization and some forms of cementation can actually increase porosity and permeability.

Compaction occurs as sediment is buried and the weight of overlying sediment causes the sediment grains to pack more tightly together. This reduces the pore space within the rock, decreasing its porosity and permeability.

Cementation occurs when minerals precipitate from fluids filling the pore spaces between sediment grains. These cementing minerals can completely fill the pore spaces, further reducing the rock’s porosity and permeability.

Replacement occurs when minerals within the rock are replaced by other minerals. This process can also reduce porosity and permeability, as the new minerals may not have the same pore structure as the original minerals.

Recrystallization occurs when existing minerals within the rock are dissolved and reprecipitated as larger, more equidimensional crystals. This process can increase porosity and permeability if the new crystals do not fill in pore spaces or if new pore spaces are created during the process.

Overall, the impact of diagenesis on porosity and permeability is complex and depends on a variety of factors, including the original depositional environment, the nature of the sediment, the type of diagenesis occurring, and the timing and duration of the diagenetic processes.

Examples of diagenetic features and their significance in interpreting depositional and diagenetic histories of sedimentary rocks

There are several diagenetic features that can be used to interpret the depositional and diagenetic histories of sedimentary rocks. Here are a few examples:

  1. Cementation: Cementation occurs when minerals precipitate in the pore spaces between sediment grains, filling the spaces and binding the grains together. Different types of cement can form depending on the composition of the sediment and the fluids present during diagenesis. Cementation can reduce the porosity and increase the permeability of a rock, which can affect fluid flow through the rock.
  2. Recrystallization: Recrystallization occurs when minerals in a rock are replaced by new crystals of the same mineral. This can happen due to changes in temperature, pressure, or fluid chemistry during diagenesis. Recrystallization can change the texture and fabric of a rock, and can also cause mineralogical changes that affect the rock’s properties.
  3. Dolomitization: Dolomitization occurs when magnesium-rich fluids replace calcium carbonate in a sedimentary rock, forming the mineral dolomite. This process can occur during diagenesis or later in the rock’s history, and can result in significant changes to the rock’s porosity and permeability.
  4. Replacement: Replacement occurs when one mineral is replaced by another mineral, usually due to changes in fluid chemistry. For example, during burial diagenesis, feldspars in sandstones can be replaced by clay minerals, which can affect the rock’s mechanical properties.
  5. Concretions: Concretions are spherical or ovoid bodies that form within sedimentary rocks during diagenesis. They can form from the precipitation of minerals in pore spaces, or from the growth of crystals around a nucleus. Concretions can provide important clues about the conditions present during diagenesis, as well as the depositional environment of the rock.

By studying these diagenetic features, geologists can gain insight into the conditions present during diagenesis, as well as the depositional environment and history of the sedimentary rock. This information can be used to interpret the rock’s properties and its potential as a reservoir for oil, gas, or groundwater.
