Brine deposits refer to naturally occurring concentrations of saltwater, commonly known as brine, that accumulate in specific geological formations or reservoirs. These deposits are significant sources of various salts and minerals, and they play a crucial role in several industrial processes, including the production of salt, extraction of minerals, and even in certain energy-related activities.
Definition of Brine Deposits:
Brine deposits are essentially subsurface reservoirs or geological formations where brine, which is a concentrated solution of salt in water, accumulates over time. These deposits can vary in size, depth, and composition, and they often contain a mixture of different salts and minerals dissolved in water.
Composition of Brine:
The composition of brine in these deposits can vary widely depending on the geological and environmental factors. The primary component of brine is sodium chloride (table salt), but it can also contain other salts such as magnesium chloride, calcium chloride, potassium chloride, and various trace minerals. The specific composition depends on factors such as the source of the brine, the geological formations it has passed through, and the conditions under which it has been concentrated.
Natural Occurrence:
Brine deposits naturally occur in a variety of geological settings. Some common sources include:
- Salt Pans and Playas: These are flat, arid areas where water evaporates, leaving behind concentrated brine. As the water evaporates, salts become more concentrated, and eventually, brine deposits may form.
- Subsurface Aquifers: Brine can accumulate in underground aquifers, where groundwater becomes enriched with dissolved salts through interactions with geological formations.
- Salt Domes: In certain regions, salt deposits can form large underground domes. These domes can trap and concentrate brine, creating significant reservoirs of saltwater.
- Seawater Intrusion: In coastal areas, seawater may infiltrate underground aquifers, creating brine deposits as a result of the mixing of seawater with freshwater.
- Oil and Gas Reservoirs: Brine is often co-produced with oil and gas deposits. As oil and gas are extracted, brine that has been trapped in the reservoirs is brought to the surface.
The utilization of brine deposits is diverse, ranging from traditional salt production to the extraction of valuable minerals and metals. Additionally, brine is increasingly important in modern industries, such as energy production through geothermal and solar technologies, where brine is used as a heat transfer fluid.
Contents
Types of Brine Deposits
There are several types of brine deposits, each characterized by different geological formations, origins, and compositions. Here are some common types:

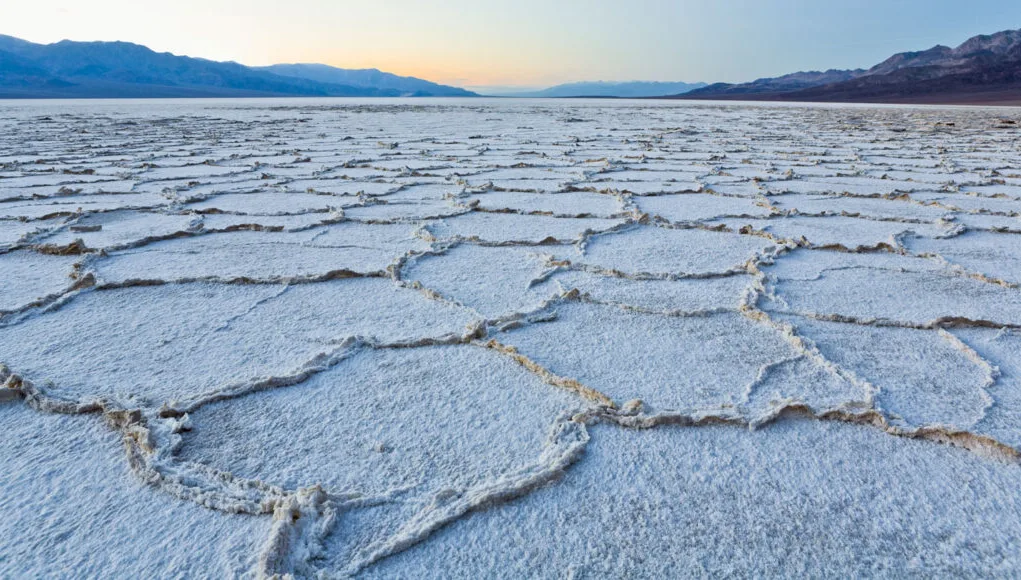

- Salt Pans and Playas:
- Formation: Salt pans and playas are flat, arid areas where water from rivers or other sources evaporates, leaving behind concentrated brine.
- Composition: The brine in these deposits is often dominated by sodium chloride (table salt), but it may also contain other salts and minerals.
- Subsurface Aquifers:
- Formation: Brine can accumulate in underground aquifers when groundwater interacts with geological formations rich in salts.
- Composition: The composition varies based on the specific minerals and salts present in the geological formations through which the water passes.
- Salt Domes:
- Formation: Salt domes are large underground structures formed by the upward movement of salt. Brine can be trapped and concentrated within these domes.
- Composition: Brine in salt domes can contain a mixture of salts, including sodium chloride, potassium chloride, magnesium chloride, and others.
- Seawater Intrusion:
- Formation: In coastal areas, seawater may infiltrate underground aquifers, leading to the formation of brine deposits.
- Composition: The brine in these deposits is typically a mix of seawater and freshwater, with a composition reflecting the salts found in seawater.
- Oil and Gas Reservoirs:
- Formation: Brine is often co-produced with oil and gas. As oil and gas are extracted, brine that has been trapped in the reservoirs is brought to the surface.
- Composition: The composition of brine in oil and gas reservoirs can vary but often includes salts and minerals dissolved during the geological formation of the deposits.
- Geothermal Brine Deposits:
- Formation: In geothermal areas, subsurface water is heated by the Earth’s internal heat, forming brine deposits that can be used for geothermal energy production.
- Composition: Geothermal brine may contain a variety of dissolved minerals, depending on the geological characteristics of the region.
- Salt Flats:
- Formation: Similar to salt pans, salt flats are expansive, flat areas where water evaporates, leaving behind concentrated brine.
- Composition: The brine in salt flats can be rich in various salts, including sodium chloride and others.
These types of brine deposits have different implications for various industries, such as salt production, mineral extraction, and energy generation. The specific composition and characteristics of each type of deposit influence its economic and industrial significance.
Formation and Geological Processes
The formation of brine deposits involves complex geological processes that occur over extended periods. Different types of brine deposits can form through various geological mechanisms. Here’s an overview of the formation and geological processes associated with brine deposits:
- Salt Pans and Playas:
- Formation: In arid regions, salt pans and playas form when water from rivers or other sources accumulates in low-lying areas and then evaporates, leaving behind concentrated brine.
- Geological Processes: Evaporation is the key process. As water evaporates, salts and minerals become more concentrated, eventually leading to the formation of brine deposits.
- Subsurface Aquifers:
- Formation: Brine accumulates in underground aquifers when groundwater interacts with geological formations containing soluble salts. This interaction can occur over long periods as water percolates through the Earth’s crust.
- Geological Processes: Dissolution of salts from surrounding rocks into groundwater, followed by the migration and concentration of this brine in aquifers.
- Salt Domes:
- Formation: Salt domes are large underground structures formed by the upward movement of salt due to tectonic and geological forces. Brine can be trapped within these structures.
- Geological Processes: Diapirism, a process where buoyant salt moves upward through overlying rocks, creates salt domes. Over time, brine may accumulate within the dome through interactions with surrounding rocks.
- Seawater Intrusion:
- Formation: Seawater intrusion occurs when saline water from the ocean infiltrates coastal aquifers. This can happen due to excessive groundwater extraction or changes in sea levels.
- Geological Processes: The movement of seawater into coastal aquifers is influenced by factors such as hydraulic gradients, permeability of rocks, and human activities affecting groundwater levels.
- Oil and Gas Reservoirs:
- Formation: Brine is often co-produced with oil and gas deposits. These deposits form over millions of years through the accumulation of organic matter and subsequent transformation into hydrocarbons.
- Geological Processes: The deposition of organic material, sedimentation, burial, and the transformation of organic matter into hydrocarbons create oil and gas reservoirs. Brine may be present in these reservoirs due to the dissolution of salts in the geological formations.
- Geothermal Brine Deposits:
- Formation: In geothermal areas, subsurface water is heated by the Earth’s internal heat, forming brine deposits that can be used for geothermal energy production.
- Geological Processes: The heating of groundwater by the Earth’s mantle generates geothermal brine. This can occur through conduction of heat from deeper layers, or through the circulation of water in fault zones and fractures.
- Salt Flats:
- Formation: Salt flats form in a manner similar to salt pans, with water accumulating and evaporating in flat areas.
- Geological Processes: The primary process is evaporation, which leads to the concentration of salts in the remaining water, forming brine deposits.
These geological processes are dynamic and interconnected, influenced by factors such as climate, tectonics, and hydrology. The resulting brine deposits have economic significance for various industries and provide insights into Earth’s geological history.
Uses of Brine Deposits
Brine deposits have a wide range of uses across various industries due to the diverse composition of salts and minerals they contain. Here are some common uses of brine deposits:

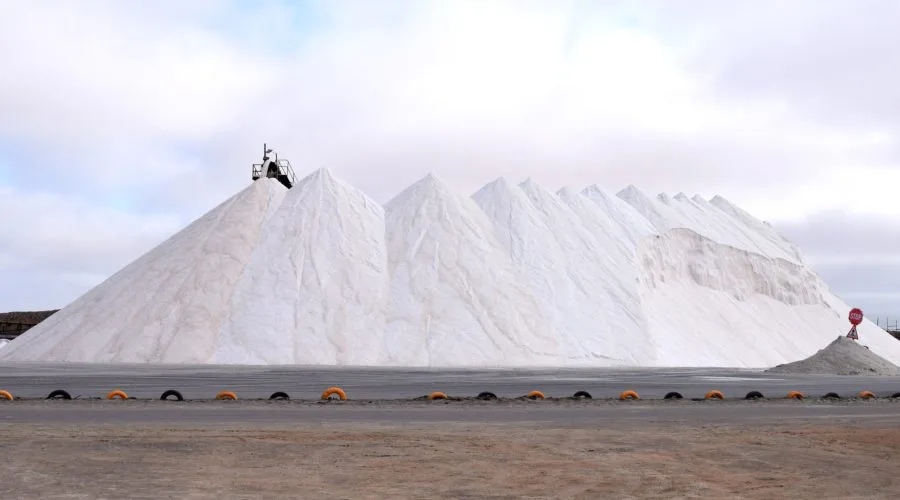

- Salt Production:
- Primary Use: Brine deposits are a significant source of sodium chloride (table salt). The brine is extracted, and through evaporation, the salt is produced for various industrial and culinary applications.
- Chemical Industry:
- Use: Brine deposits provide a source of raw materials for the chemical industry. The salts and minerals extracted from brine can be used in the production of chemicals such as chlorine, sodium hydroxide, and other industrial chemicals.
- Mineral Extraction:
- Use: Brine deposits often contain valuable minerals beyond sodium chloride, such as potassium, magnesium, and lithium. These minerals are extracted for use in fertilizers, industrial processes, and the production of batteries.
- Geothermal Energy Production:
- Use: Brine from geothermal brine deposits is utilized in geothermal power plants. The high temperatures of the brine are harnessed to generate electricity through steam turbines or to provide direct heating.
- Desalination:
- Use: Seawater, which can infiltrate coastal aquifers and create brine deposits, is a target for desalination processes. Brine is a byproduct of desalination plants that extract freshwater from seawater.
- Oil and Gas Industry:
- Use: Brine co-produced with oil and gas is often used in enhanced oil recovery (EOR) processes. Injecting brine into oil reservoirs can help maintain pressure and improve the recovery of oil.
- Food Preservation:
- Use: Brine is used in food preservation processes such as pickling. Vegetables, fruits, and meats are preserved in brine to extend their shelf life.
- Thermal Energy Storage:
- Use: Brine is used as a heat transfer fluid in some solar thermal energy systems. It absorbs and transfers heat in concentrated solar power plants.
- De-icing and Snow Removal:
- Use: Salt obtained from brine deposits is widely used for de-icing roads and sidewalks in winter. The salt helps melt ice and snow, improving safety and transportation.
- Health and Wellness:
- Use: Brine baths and saltwater therapies are known for their potential health benefits. Some spas and wellness centers use brine derived from natural sources for therapeutic purposes.
- Industrial Cooling:
- Use: Brine is used as a cooling medium in various industrial processes, particularly in refrigeration systems and some chemical manufacturing processes.
The utilization of brine deposits contributes significantly to the global economy and various sectors. The specific applications depend on the composition of the brine and the minerals it contains, highlighting the importance of understanding the geological and chemical characteristics of each deposit.
Notable Brine Deposits Worldwide
There are several notable brine deposits around the world, each with its own unique characteristics and economic significance. Here are a few examples:

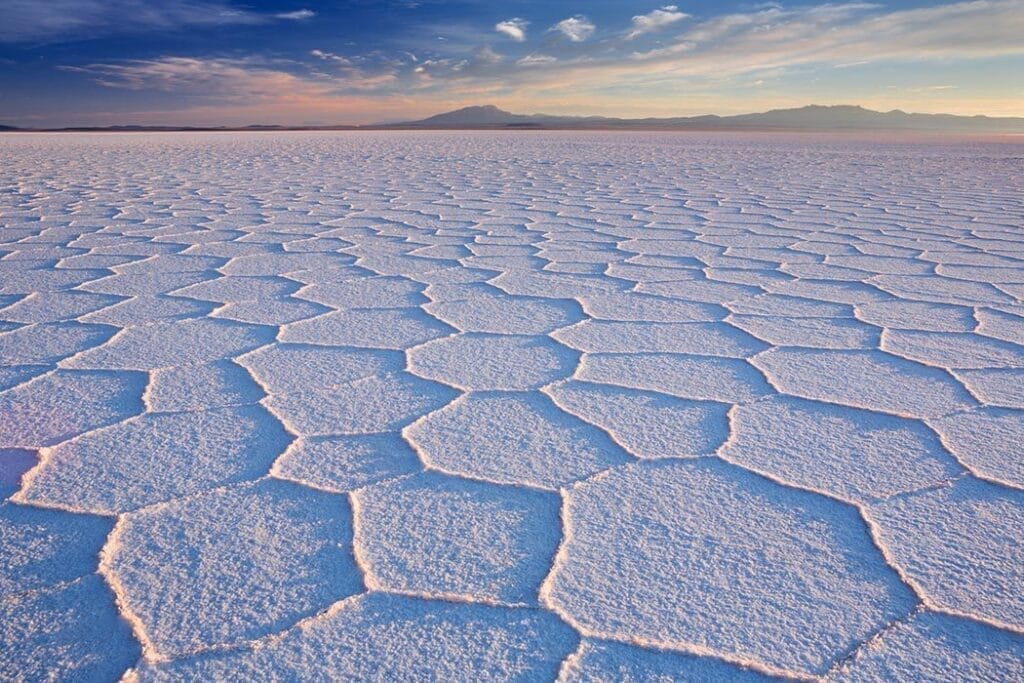

- Salar de Uyuni, Bolivia:
- Type: Salt Flat
- Significance: Salar de Uyuni is the world’s largest salt flat, located in southwest Bolivia. It is a major source of lithium, containing a significant portion of the world’s known lithium reserves. Lithium is a key component in batteries used in electric vehicles and various electronic devices.
- Dead Sea, Jordan and Israel:
- Type: Saltwater lake
- Significance: The Dead Sea, bordered by Jordan to the east and Israel to the west, is one of the saltiest bodies of water in the world. It contains a high concentration of minerals, including potassium, magnesium, and bromine. The extraction of minerals from the Dead Sea is an important industry in the region.
- Great Salt Lake, USA:
- Type: Saltwater lake
- Significance: The Great Salt Lake, located in the U.S. state of Utah, is the largest saltwater lake in the Western Hemisphere. It is a source of various minerals, including salt, potassium, and magnesium. The lake plays a role in industries such as mineral extraction, brine shrimp harvesting, and recreation.
- Atacama Salt Flat, Chile:
- Type: Salt Flat
- Significance: The Atacama Salt Flat in Chile is another major source of lithium, along with other minerals such as potassium and sodium. Chile is a key player in the global lithium market, and the Atacama Salt Flat is a critical area for lithium production.
- Qaidam Basin, China:
- Type: Salt Flat
- Significance: The Qaidam Basin in China is known for its extensive salt flats and is a significant source of potassium, magnesium, and other minerals. It is also a region where lithium extraction is being explored.
- Salar del Hombre Muerto, Argentina:
- Type: Salt Flat
- Significance: Salar del Hombre Muerto in Argentina is a major lithium-producing area. Argentina, along with Chile, is a key player in the global lithium market, and this salt flat contributes to the country’s lithium production.
- Danakil Depression, Ethiopia:
- Type: Salt Flat
- Significance: The Danakil Depression is known for its extreme conditions and is one of the hottest and lowest places on Earth. It contains salt flats and is a potential source of minerals such as potash and other salts.
- Caribbean Salt Pans, Various Countries:
- Type: Salt Pans
- Significance: Several countries in the Caribbean, such as the Bahamas and Turks and Caicos Islands, have extensive salt pans. These pans are important for salt production, providing a local source of sodium chloride.
These examples showcase the diversity of brine deposits globally and their significance in the extraction of various minerals, especially lithium, potassium, and magnesium. The economic importance of these deposits extends to multiple industries, including energy, technology, and agriculture.
