Tunnel Construction

Introduction to tunnel construction involves understanding the purpose, history, and basics of tunnel construction.

A tunnel is an underground passageway that is excavated through soil, rock or both. Tunnels are used for transportation, water conveyance, sewage, and utility conduits. They have a long history of use, dating back to ancient civilizations, and have become increasingly important in modern society for transportation and infrastructure development.

The basics of tunnel construction involve a series of steps that include surveying and site investigation, tunnel design, excavation and construction, and final finishing work. These steps must be carefully planned and executed to ensure the safety and durability of the tunnel, as well as to minimize the impact on the surrounding environment.

Tunnel construction also involves the use of specialized equipment and techniques, such as tunnel boring machines, explosives, and support systems, which require skilled workers and engineers. The construction process must also take into account potential hazards such as groundwater, soil instability, and the risk of collapse.

Overall, tunnel construction is a complex and demanding process that requires careful planning, execution, and monitoring to ensure the successful completion of the project.

Purpose and types of tunnels

Tunnels are underground passageways constructed through a variety of rock or soil materials. The purpose of tunnels varies, and they can be used for transportation, water supply, sewage, hydroelectric power, mining, and other purposes.

Tunnels can be broadly classified into the following categories based on their purpose:

1. Transportation tunnels: These tunnels are constructed for vehicular traffic, rail transport, and pedestrian use. Examples include road tunnels, railway tunnels, and pedestrian walkways.
2. Utility tunnels: These tunnels are used to carry pipes, cables, and other utility services, such as water, gas, electricity, and telecommunications.
3. Mining tunnels: These tunnels are constructed in mining operations for the extraction of minerals and ores.
4. Hydroelectric power tunnels: These tunnels are used to convey water to hydroelectric power plants, where the force of the water is used to generate electricity.
5. Sewage tunnels: These tunnels are used to transport sewage from one location to another, usually from a treatment plant to a discharge point.

The type of tunnel chosen for a specific project will depend on its intended purpose, as well as the geological and environmental conditions of the site.

Historical background of tunnel construction

The history of tunnel construction dates back thousands of years, with early examples of tunnels used for irrigation, mining, and transportation purposes. The ancient Greeks and Romans were known for their tunnel engineering, with tunnels used for aqueducts, sewage systems, and transportation. In the Middle Ages, tunnels were built for defensive purposes, such as secret escape routes or to conduct surprise attacks on enemy fortresses.

In the modern era, tunnel construction advanced significantly with the introduction of drilling and blasting techniques in the 1800s. The development of the tunnel boring machine (TBM) in the mid-1900s further revolutionized tunnel construction by allowing for faster and more efficient excavation. Today, tunnels are built for a wide range of purposes, including transportation (such as roads, railways, and subways), water conveyance, mining, and storage.

Site investigation and geological considerations

Site investigation and geological considerations are critical aspects of tunnel construction projects. A thorough site investigation is necessary to determine the geological and geotechnical conditions at the proposed tunnel location, as well as to identify any potential geological hazards that may affect the construction and operation of the tunnel. The geological conditions at the site can have a significant impact on the tunnel design, construction methods, and overall project cost.

Site investigation typically involves a combination of geological mapping, geophysical surveys, and drilling to obtain soil and rock samples for laboratory testing. Geological mapping involves the study of surface rock formations and their characteristics, including their orientation, strength, and permeability. Geophysical surveys use non-invasive techniques to investigate subsurface rock formations and detect any anomalies that may indicate the presence of geological hazards such as faults, fractures, and groundwater. Drilling provides a more detailed understanding of the subsurface conditions by obtaining soil and rock samples for laboratory testing.

Geological considerations during tunnel construction include the type and strength of the rock or soil through which the tunnel is being excavated, the presence of groundwater and its flow characteristics, the possibility of seismic activity, and the potential for geological hazards such as landslides and rockfalls. The geological conditions may also impact the choice of tunneling method, such as the use of a tunnel boring machine versus drill and blast methods.

Overall, a thorough site investigation and understanding of the geological conditions at the tunnel location are critical for the safe and successful construction of a tunnel.

Importance of site investigation

Site investigation is an important aspect of tunnel construction as it helps to identify potential geological hazards and other factors that could affect the construction process. A thorough site investigation can help to determine the characteristics of the soil and rock, the presence of groundwater, and the potential for seismic activity. This information can be used to develop an appropriate design for the tunnel, as well as to identify any potential risks or challenges that may need to be addressed during the construction process. Additionally, a site investigation can help to identify any potential environmental or social impacts of the project, which can be addressed through appropriate mitigation measures. Overall, a site investigation is a critical step in the tunnel construction process, as it provides important information for the design and construction of a safe and effective tunnel.

Methods of site investigation

There are several methods that can be used for site investigation for tunnel construction. Some of the common methods are:

1. Desk study: A desk study involves a review of existing literature, geological maps, and reports, and any other relevant information about the site.
2. Geophysical survey: This involves the use of various geophysical techniques to obtain information about the subsurface, such as seismic surveys, ground penetrating radar, resistivity surveys, and electromagnetic surveys.
3. Boreholes: Boreholes are drilled into the ground to obtain samples of soil and rock for laboratory testing. They can also be used to obtain in-situ measurements of groundwater pressure and permeability.
4. Trial pits: Trial pits are excavations made to provide a visual inspection of the subsurface, and can be used to obtain soil samples for laboratory testing.
5. Field mapping: Field mapping involves the mapping of the surface geology, geological structures, and any surface features that could affect the tunnel construction.
6. Instrumentation: Various instruments can be installed to measure the performance of the ground during the construction of the tunnel. These instruments can include inclinometers, piezometers, and strain gauges.

The methods used for site investigation will depend on the specific site conditions and the requirements of the project.

Geological factors affecting tunnel construction

Geological factors play a significant role in the feasibility and design of a tunnel construction project. Some of the important geological factors that affect tunnel construction include:

1. Rock or soil type: The type of rock or soil through which a tunnel is constructed will significantly impact its design, stability, and construction method.
2. Rock mass quality: The quality of the rock mass, including its strength, stability, and deformation characteristics, can affect tunnel design, excavation method, and support requirements.
3. Geological structures: Geological structures such as faults, joints, bedding planes, and folds can significantly affect tunnel design, excavation method, and support requirements.
4. Groundwater: The presence and flow of groundwater can affect tunnel construction by increasing the risk of water ingress and causing instability of the surrounding rock or soil.
5. Seismicity: Tunnels constructed in seismically active regions must be designed to withstand the stresses and strains caused by earthquakes.
6. Slope stability: The stability of the surrounding slopes and hillsides can impact tunnel construction and safety.
7. Environmental considerations: Tunnels constructed in environmentally sensitive areas must be designed to minimize their impact on the surrounding ecosystem.

Overall, a detailed site investigation is crucial for understanding the geological factors that may impact tunnel construction and developing an appropriate tunnel design and construction plan.

Rock mass classification systems

Rock mass classification systems are used to evaluate the quality of rock masses and assess their suitability for tunnel construction. These systems take into account a variety of factors, including rock strength, discontinuities, joint spacing, weathering, and groundwater conditions.

One commonly used rock mass classification system is the Rock Mass Rating (RMR) system, which was developed by Bieniawski in 1973. RMR assigns numerical values to different parameters such as uniaxial compressive strength, spacing of discontinuities, and groundwater conditions. The values are then combined to give an overall rating for the rock mass, which can be used to predict the difficulty of tunneling through the rock.

Another commonly used rock mass classification system is the Q system, which was developed by Barton et al. in 1974. The Q system uses similar parameters to the RMR system, but places more emphasis on the orientation and persistence of discontinuities.

Other rock mass classification systems include the Geological Strength Index (GSI) system, which was developed by Hoek in 1994, and the Tunneling Quality Index (TQI) system, which was developed by Grimstad and Barton in 1993.

Tunnel design

Tunnel design is the process of determining the most effective and efficient means of excavating a tunnel based on the geologic conditions and intended use of the tunnel. The design process generally involves the following steps:

1. Establish the purpose of the tunnel: The purpose of the tunnel should be clearly defined in order to determine the appropriate size, shape, and alignment of the tunnel.
2. Geologic and geotechnical investigation: This step involves collecting data on the geologic and geotechnical characteristics of the site, such as rock type, strength, and stability, groundwater conditions, and the presence of any faults or other geologic features that could impact the design and construction of the tunnel.
3. Tunnel alignment: The tunnel alignment is based on factors such as the intended use of the tunnel, the geologic and topographic conditions of the site, and any environmental considerations. Factors that influence the alignment of a tunnel include the presence of faults or other geologic features, the location of surface structures, and the need to minimize environmental impacts.
4. Tunnel cross-section: The tunnel cross-section is determined by the purpose of the tunnel, the anticipated traffic or other loads, and the geologic conditions. The cross-section can be circular, elliptical, horseshoe-shaped, or other shapes depending on the site conditions.
5. Support system: The support system is designed to stabilize the tunnel during and after excavation. The support system can include rock bolts, shotcrete, steel ribs, and/or concrete lining.
6. Ventilation and drainage: Ventilation and drainage systems are designed to ensure safe and efficient operation of the tunnel. Ventilation systems are used to remove exhaust gases and provide fresh air for workers and passengers, while drainage systems are used to remove water from the tunnel and prevent flooding.
7. Construction methods: Various construction methods can be used for tunnel excavation, including drill and blast, tunnel boring machines (TBMs), and sequential excavation methods (SEM). The selection of the appropriate construction method depends on the geologic conditions, the intended use of the tunnel, and the available equipment and resources.
8. Cost estimation: The final step in the tunnel design process is to estimate the cost of construction based on the design specifications, the selected construction method, and the anticipated site conditions.

Overall, tunnel design is a complex process that requires the expertise of geologists, engineers, and other specialists to ensure safe and efficient construction of tunnels that meet the intended purpose.

Design parameters and considerations

The design of a tunnel depends on a number of factors, including:

1. Purpose of the tunnel: The design of the tunnel will depend on its intended use. For example, a highway tunnel will have different design requirements than a tunnel used for water transport.
2. Site conditions: The geology and topography of the site will influence the design of the tunnel. Factors such as rock strength, water inflow, and ground support requirements will all need to be considered.
3. Tunnel dimensions: The diameter of the tunnel, its length, and its alignment will all need to be determined based on the site conditions and the purpose of the tunnel.
4. Excavation method: The method used to excavate the tunnel will also influence the design. Methods such as drill and blast, tunnel boring machines (TBM), and cut-and-cover will have different requirements.
5. Ventilation: The design of the tunnel will need to include provisions for ventilation to ensure the safety of workers and users of the tunnel.
6. Drainage: The tunnel design will also need to include provisions for drainage to manage groundwater inflow and prevent flooding.
7. Fire protection: Fire protection measures will need to be incorporated into the design of the tunnel to ensure the safety of users.
8. Traffic and safety systems: Traffic and safety systems such as lighting, signage, and emergency phones will also need to be included in the design.
9. Environmental considerations: The design of the tunnel will need to consider the potential impact of construction and operation on the environment and take steps to minimize these impacts.

Types of tunnel linings and support systems

There are several types of tunnel linings and support systems used in tunnel construction, and the choice of which one to use depends on a variety of factors including the geological conditions, the purpose of the tunnel, the method of construction, and the budget. Some of the most common types of tunnel linings and support systems include:

1. Shotcrete lining: This is a concrete layer sprayed onto the rock or soil to provide support and prevent collapse. It is often used in soft ground tunnels and can be applied quickly.
2. Steel rib support: Steel ribs are used to support the tunnel walls and roof. The steel ribs can be pre-fabricated and quickly installed, making them a popular choice in hard rock tunnels.
3. Cast-in-place concrete lining: This involves pouring concrete into the tunnel cavity to form a permanent lining. It is often used in larger tunnels with high traffic volumes.
4. Tunnel boring machines (TBMs): TBMs can be used to excavate tunnels and provide support at the same time. As the TBM advances, concrete segments are installed behind it to form a lining.
5. Ground freezing: This method involves freezing the surrounding ground to form a temporary support system. It is often used in tunnels that pass through water-bearing soil or rock.
6. Rock bolts and mesh: This method involves drilling holes into the rock and installing steel bolts to provide support. Wire mesh is also used to help stabilize the rock and prevent debris from falling into the tunnel.
7. Fiber-reinforced shotcrete: This is similar to shotcrete lining but with the addition of fiber reinforcement to increase strength and durability.

The choice of lining and support system is often a trade-off between cost, speed of construction, and the specific geological conditions encountered during excavation.

Tunnel drainage systems

Tunnel drainage systems are essential for removing water that may enter the tunnel during construction and operation. There are various types of tunnel drainage systems, including:

1. Dewatering wells: These are installed near the tunnel to intercept and collect groundwater before it enters the tunnel. Dewatering wells can be either permanent or temporary.
2. Drainage galleries: These are drainage systems built into the tunnel lining that collect water and channel it to a sump or pump station.
3. Sumps: These are chambers built at low points in the tunnel where water can collect and be pumped out.
4. Pumps: Pumps are used to remove water from the tunnel sumps and drainage galleries and discharge it to the surface or to a water treatment facility.

The type of drainage system used depends on the geology and hydrology of the area, as well as the construction method and tunnel alignment. Proper design and installation of tunnel drainage systems are important to ensure the safety and long-term durability of the tunnel.

Ventilation and lighting

Ventilation and lighting are important aspects of tunnel construction to ensure safety, maintain proper air quality, and provide visibility for workers and users. Ventilation systems are designed to provide a steady flow of fresh air into the tunnel while removing stale air, dust, and harmful gases. The ventilation system is usually composed of a network of ventilation ducts, fans, and air quality monitoring systems.

Lighting is also an essential aspect of tunnel construction, particularly for safety and visibility. Lighting systems are usually designed to provide adequate illumination for drivers, pedestrians, and workers in the tunnel. The lighting system can be composed of various types of lights, such as fluorescent, LED, and incandescent lights, depending on the specific requirements and conditions of the tunnel. The design of the lighting system should also consider energy efficiency and environmental impact.

Tunnel excavation and construction methods

Tunnel excavation and construction methods vary depending on the geological conditions, tunnel length and diameter, and other factors. Here are some of the most common tunnel excavation and construction methods:

1. Drill and blast method: This method involves drilling boreholes into the rock face, then blasting the rock using explosives. The resulting debris is removed by loading and hauling equipment.
2. Tunnel boring machine (TBM) method: This method uses a machine that excavates the tunnel while simultaneously installing the tunnel lining. TBMs can be used for both hard rock and soft ground tunnels.
3. New Austrian Tunnelling Method (NATM): This method involves excavating the tunnel in small sections, then supporting the excavated section with a temporary lining, such as sprayed concrete or rock bolts, before moving on to the next section.
4. Cut and cover method: This method is used for shallow tunnels and involves excavating a trench, constructing the tunnel, and then backfilling the trench.
5. Sequential excavation method (SEM): This method involves excavating the tunnel in small sections, using ground support and reinforcement measures to control deformation and stabilize the tunnel.
6. Shield tunneling: This method uses a shield or a similar specialized piece of equipment to excavate and support the tunnel at the same time.

The choice of the excavation method depends on various factors such as tunnel length, diameter, geology, groundwater conditions, available resources, and environmental considerations.

Drill and blast method

The drill and blast method is a traditional technique used for the excavation of tunnels and involves drilling holes into the rock or soil, filling the holes with explosives, and then detonating the explosives to fragment the rock or soil. The fragmented rock or soil is then removed using machinery or manual labor.

In the drill and blast method, a series of holes are drilled into the rock or soil face using specialized equipment such as rock drills or tunnel boring machines. The holes are typically spaced at regular intervals and arranged in a pattern designed to achieve the desired excavation profile. Once the holes are drilled, they are loaded with explosives, which are then detonated using a remote trigger.

After the explosion, the fragmented rock or soil is removed using excavators or loaders, and the tunnel is stabilized using a support system. The support system may include rock bolts, steel arches, or concrete linings, depending on the nature of the rock or soil and the requirements of the project.

The drill and blast method can be highly effective for excavating tunnels in hard rock, but it can also be time-consuming and expensive, particularly in densely populated areas where noise and vibration from blasting may be a concern.

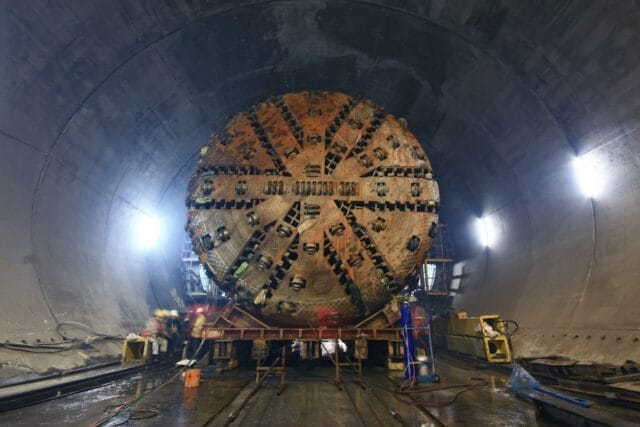

Tunnel boring machine (TBM) method

The Tunnel Boring Machine (TBM) method is a popular technique used for excavating tunnels in a variety of geological conditions. A TBM is a large cylindrical machine that can excavate through various types of soil and rock by using a rotating cutterhead with disc cutters, which can excavate the tunnel face while simultaneously installing the tunnel lining.

The TBM method is generally preferred for tunnels that are long and straight, as it is less labor-intensive and can work at a much faster rate than other tunneling methods. The TBM method is also preferred in urban areas where there is a need to minimize the impact on the surrounding community, as it produces less noise, vibration, and dust than other methods.

The TBM method typically involves the following steps:

1. Excavation of the launch shaft: A large pit is excavated at the starting point of the tunnel where the TBM will be assembled.
2. TBM assembly and launch: The TBM is assembled at the bottom of the launch shaft and then launched into the tunnel alignment.
3. TBM excavation: The TBM excavates the soil or rock in front of it while simultaneously installing precast concrete segments or other tunnel lining materials.
4. Muck removal: The excavated material, or “muck,” is transported out of the tunnel using a conveyor belt or a slurry pipeline.
5. Tunnel lining installation: Once the TBM has excavated a certain length of the tunnel, the precast concrete segments or other tunnel lining materials are installed behind the TBM.
6. TBM retrieval: When the TBM reaches the end of the tunnel, it is disassembled and retrieved from the tunnel using the same launch shaft.

Cut-and-cover method

The cut-and-cover method is a technique used for the construction of shallow tunnels or underground structures. In this method, a trench is excavated in the ground and the structure is built inside it. The trench is then covered back with the excavated material or a precast concrete slab.

This method is suitable for constructing tunnels in urban areas or areas where surface traffic is a concern. It is also an effective technique for constructing underground railway stations, pedestrian walkways, and stormwater drainage tunnels. However, the method has some limitations, such as the high cost of construction, disruption to surface traffic during excavation, and limitations on the depth of excavation.

New Austrian Tunneling Method (NATM)

The New Austrian Tunneling Method (NATM) is a method of tunnel construction that was developed in the 1960s in Austria. It is also known as the sequential excavation method (SEM). NATM involves excavating the tunnel in small sections or “drifts,” usually around 3-4 meters in length, and then immediately reinforcing the excavated section with a layer of shotcrete and rock bolts or steel ribs. The surrounding rock or soil provides additional support. This method allows for flexibility in adapting to the geological conditions encountered during excavation and is particularly suitable for soft or unstable ground. NATM also has the advantage of being relatively fast and economical, since it does not require the extensive use of heavy machinery. However, it requires a high level of skill and expertise from the construction team to be effective.

Tunnel support systems

Tunnel support systems are used to stabilize the ground and prevent collapse during tunnel excavation. The choice of support system depends on a variety of factors, including the geology of the ground, the type of tunnel being constructed, and the excavation method being used. Some common types of tunnel support systems include:

1. Rock bolts: These are long, steel rods that are inserted into boreholes and grouted into place. They provide reinforcement and stabilization of the rock mass by transferring the loads between the rock blocks.
2. Shotcrete: This is a spray-on concrete mixture that is applied to the exposed rock surface to form a thin shell, which acts as a temporary support until the final lining is constructed.
3. Steel arches: These are pre-fabricated or custom-fabricated steel arches that are used to support the roof and walls of the tunnel.
4. Reinforced concrete: This is a common lining material for tunnels. Reinforced concrete is cast in place or prefabricated off-site and then installed in the tunnel.
5. Steel ribs and lagging: This is a method of tunnel support in which steel ribs are installed and then wooden lagging is placed between them. The lagging helps to hold the ground in place until the final lining is constructed.
6. Ground freezing: This is a method of support used in soft ground conditions where the soil is frozen using liquid nitrogen or other refrigerants. This creates an ice wall around the tunnel, which provides temporary support until the final lining is installed.

The choice of support system depends on the geological conditions, excavation method, and the design of the tunnel. The support system must provide temporary support during excavation and construction, and also long-term support to maintain the stability of the tunnel throughout its life.

Rock bolting and shotcreting

Rock bolting and shotcreting are two common techniques used for tunnel support in underground construction.

Rock bolting involves drilling holes into the rock face and inserting steel bolts into the holes, which are then grouted in place. The bolts help to support the rock and prevent it from collapsing.

Shotcreting, on the other hand, involves spraying a layer of concrete onto the rock face using a high-pressure hose. The concrete provides additional support and helps to prevent rock falls.

Both techniques can be used in conjunction with other support systems, such as steel ribs or mesh, to provide additional reinforcement to the tunnel walls and roof. The specific support system used will depend on the geology of the tunnel and the design requirements.

Steel arches and ribs

Steel arches and ribs are commonly used in tunnel construction to provide additional support to the tunnel lining. They are usually made of steel or a combination of steel and concrete and are installed along the tunnel walls to provide additional strength and stability to the rock mass.

Steel arches are generally used for shallow tunnels with a span of less than 10 meters, whereas steel ribs are used for larger tunnels with a span of more than 10 meters. The steel arches or ribs are typically installed in a pre-determined pattern and are held in place using rock bolts, which are long, steel rods that are anchored into the rock surrounding the tunnel.

The use of steel arches and ribs is particularly useful in unstable rock formations, where the rock mass has a tendency to deform or collapse. The arches or ribs can help to redistribute the load and provide additional support to the tunnel lining, which helps to ensure the stability and safety of the tunnel.

Reinforced concrete linings

Reinforced concrete linings are commonly used for tunnel construction as they provide a durable and strong structural support. Reinforced concrete linings are typically used in tunnels with large diameter and higher stability requirements. The lining provides resistance to external loads, supports the load of the overlying ground, and protects the tunnel from water ingress and corrosion.

The process of constructing a reinforced concrete lining involves the following steps:

1. Erecting formwork: The formwork, which is a temporary structure, is erected to the shape and size of the tunnel cross-section.
2. Placing reinforcing steel: Reinforcing steel is placed inside the formwork according to the design requirements.
3. Pouring concrete: Once the reinforcing steel is in place, concrete is poured into the formwork. The concrete mix design is typically designed to achieve high strength and durability.
4. Curing: After the concrete is poured, it needs to be cured for a specific period of time to achieve its design strength. Curing can be done through wet curing or by applying curing compounds to the concrete surface.
5. Stripping the formwork: Once the concrete has achieved sufficient strength, the formwork is removed, revealing the hardened concrete lining.

Reinforced concrete linings can be designed in various shapes and sizes depending on the tunnel alignment and geological conditions. In some cases, precast concrete segments are used, which are manufactured offsite and assembled inside the tunnel using specialized equipment.

Tunnel construction challenges and solutions

Tunnel construction can present many challenges that need to be addressed to ensure successful completion of the project. Some of the common challenges in tunnel construction include:

1. Geotechnical conditions: The geological conditions of the site can greatly affect the construction process, making it more challenging to excavate the tunnel. For example, tunnels constructed through hard rock formations are easier to excavate than those constructed through soft soil.
2. Groundwater: Groundwater can pose a challenge during tunnel construction, as it can weaken the tunnel support systems and cause instability. Adequate drainage and dewatering systems must be installed to prevent flooding and damage to the tunnel.
3. Ventilation: Ventilation is crucial in tunnel construction to provide fresh air and remove dust, fumes, and gases that can accumulate in the tunnel. Proper ventilation is necessary for the safety of workers and the efficient operation of equipment.
4. Limited space: The limited space in the tunnel can make it difficult to maneuver heavy equipment and materials, which can slow down the construction process. Innovative solutions, such as remote-controlled equipment and robotic systems, can help mitigate this challenge.
5. Safety: Tunnel construction can be dangerous due to the risks of collapse, rock falls, flooding, fires, and explosions. Stringent safety measures must be implemented to protect workers and the public.

To address these challenges, tunnel construction projects require careful planning and execution. Modern technologies such as computer-aided design, simulation models, and real-time monitoring can aid in the planning and execution of tunnel construction projects. Additionally, experienced tunneling professionals who understand the geology and engineering of tunnels can help to identify potential challenges and develop effective solutions.

Water inflows and dewatering

During tunnel construction, one of the main challenges is dealing with water inflows. Water can seep into the tunnel from surrounding rock formations or from groundwater. This can lead to issues such as flooding, instability of the excavation, and erosion of the tunnel lining.

To manage water inflows, a dewatering system is often put in place. This involves installing pumps and drainage systems to remove water from the tunnel as it is being excavated. The dewatering system can be designed to manage both groundwater and surface water inflows.

In some cases, grouting may also be used to reduce water inflows by filling voids and fractures in the surrounding rock mass. Additionally, a waterproof membrane or lining can be installed to prevent water from entering the tunnel in the first place.

Other challenges during tunnel construction can include dealing with difficult geological conditions, such as fault zones or highly fractured rock. These challenges can be addressed through careful site investigation, appropriate excavation methods, and effective support systems.

It’s important to note that each tunnel construction project is unique and may present its own set of challenges, requiring tailored solutions to overcome them.

Geological and geotechnical hazards

Geological and geotechnical hazards are common challenges encountered during tunnel construction. These hazards can include rock bursts, squeezing ground, fault zones, high water inflows, gas emissions, and other adverse geological and geotechnical conditions.

Rock bursts occur when stresses in the rock mass exceed the strength of the rock, causing sudden and violent failure. Squeezing ground occurs when the rock mass deforms under high confining pressures, leading to convergence of the tunnel walls. Fault zones can be problematic because they can contain loose and weak materials, which may require additional support measures.

High water inflows can also pose challenges during tunnel construction. Dewatering methods may be necessary to control water ingress into the tunnel. Gas emissions, such as methane, can also be hazardous and require careful monitoring.

Solutions to these challenges include careful site investigation and planning to identify potential hazards, the use of appropriate tunnel support systems, and the implementation of effective dewatering and ventilation systems. Additionally, the use of advanced technologies such as 3D modeling and computer simulations can help identify potential hazards and optimize the design of the tunnel support system. Regular monitoring during construction can also help to detect and address potential hazards before they become a serious problem.

Environmental impacts and mitigation measures

Tunnel construction can have a range of environmental impacts, including:

1. Habitat destruction and fragmentation: Tunnel construction can cause the fragmentation and loss of habitat for a variety of flora and fauna.
2. Soil erosion and sedimentation: The excavation and construction activities can lead to soil erosion and sedimentation, which can harm aquatic ecosystems.
3. Water pollution: Tunnel construction can lead to the release of pollutants into nearby water sources, which can harm aquatic organisms.
4. Air pollution: Tunnel construction can release dust, exhaust fumes, and other pollutants into the air, which can harm human health and the environment.
5. Noise pollution: Tunnel construction can generate high levels of noise, which can disturb nearby residents and wildlife.

To mitigate these impacts, a range of measures can be taken, including:

1. Habitat restoration: Efforts can be made to restore habitat in areas that have been affected by tunnel construction.
2. Erosion and sediment control: Measures such as silt fences and sediment ponds can be used to prevent soil erosion and sedimentation.
3. Water treatment: Water can be treated before it is discharged to remove pollutants.
4. Air pollution control: Measures such as dust suppression and the use of low-emission vehicles and equipment can be employed to reduce air pollution.
5. Noise barriers and insulation: Barriers and insulation can be used to reduce the amount of noise that reaches nearby residents and wildlife.
6. Monitoring and compliance: Regular monitoring can be carried out to ensure that environmental standards are being met, and any issues that arise can be addressed promptly.

Tunnel maintenance and rehabilitation

Tunnel maintenance and rehabilitation are important aspects of tunnel management to ensure their safe and efficient operation over their design life. Some of the key activities involved in tunnel maintenance and rehabilitation are:

1. Routine inspection and monitoring: Regular inspection and monitoring of tunnel structures, linings, and support systems are necessary to detect any signs of deterioration or damage.
2. Cleaning and debris removal: Regular cleaning of the tunnel and removal of debris, sediment, and other obstructions from drainage systems, access tunnels, and ventilation systems is important to ensure smooth and safe operation.
3. Repairs and maintenance: Repairs and maintenance activities such as grouting, crack filling, and replacement of damaged or corroded components are essential to maintain the integrity of the tunnel structure.
4. Upgrades and modernization: Upgrades and modernization of tunnel systems such as lighting, ventilation, and communication systems may be required to improve safety and efficiency.
5. Rehabilitation and strengthening: Rehabilitation and strengthening of tunnel structures may be necessary due to deterioration or changes in the tunnel’s usage.
6. Risk management and emergency preparedness: Risk management and emergency preparedness plans are important to ensure the safety of tunnel users and to minimize the impact of any incidents or accidents.

Overall, tunnel maintenance and rehabilitation activities require careful planning and execution to ensure their effectiveness and to minimize disruption to tunnel users.

Monitoring and maintenance of tunnels

Monitoring and maintenance of tunnels are critical to ensure the safety and longevity of the tunnel structure. Regular monitoring can help identify signs of deterioration or damage, which can be addressed before they become major problems. Some common methods of monitoring tunnels include visual inspections, instrumentation, and non-destructive testing.

Visual inspections involve physically inspecting the tunnel for signs of wear and tear, such as cracks, leaks, and damage to the lining or support systems. Instrumentation involves installing sensors to measure various parameters such as temperature, humidity, water pressure, and ground movement. Non-destructive testing techniques such as ground penetrating radar, ultrasonic testing, and magnetic particle inspection can also be used to assess the integrity of the tunnel structure.

Maintenance activities can include cleaning the tunnel, repairing damage or leaks, and replacing worn-out or damaged components such as lighting, ventilation systems, and support systems. Rehabilitation may be necessary to address more significant damage or deterioration, and can involve techniques such as grouting, shotcreting, or applying a new lining.

Overall, regular monitoring and maintenance are critical to ensure the long-term safety and functionality of tunnels, and can help prevent costly repairs or even catastrophic failures.

Case studies of tunnel construction projects

There are many examples of significant tunnel construction projects around the world. Here are a few notable ones:

1. Channel Tunnel: Also known as the “Chunnel,” this tunnel connects the United Kingdom and France beneath the English Channel. It is 31.4 miles long, making it the longest underwater tunnel in the world. The tunnel consists of two parallel rail tunnels and a service tunnel.
2. Gotthard Base Tunnel: This tunnel, located in Switzerland, is currently the longest railway tunnel in the world, measuring 35.5 miles in length. It is a key part of the New Rail Link through the Alps, which connects Zurich and Milan.
3. Alaskan Way Viaduct Replacement Tunnel: This tunnel, located in Seattle, Washington, replaced an aging elevated freeway that was vulnerable to earthquakes. The tunnel is two miles long and carries State Route 99 beneath downtown Seattle.
4. Crossrail: This is a major new railway line currently under construction in London, England. It includes a 13-mile twin-bore tunnel that will run beneath the city and connect 40 stations.
5. Hong Kong-Zhuhai-Macau Bridge: This bridge-tunnel project connects the cities of Hong Kong, Zhuhai, and Macau in China. It includes a 4.2-mile tunnel section that runs beneath the South China Sea.

These projects all presented unique challenges in terms of geology, site conditions, and construction methods. They are good examples of the importance of careful planning, site investigation, and design in the successful construction of tunnels.

Lessons learned from failed tunnel construction projects

Lessons learned from failed tunnel construction projects can help engineers and construction professionals avoid similar mistakes in the future. Some common reasons for tunnel construction failures include poor site investigation, inadequate design and planning, insufficient support systems, and unforeseen geological or geotechnical conditions.

For example, the collapse of the tunnel being constructed for the Big Dig highway project in Boston, Massachusetts, in 2006 was due to a combination of factors, including inadequate site investigation, faulty design, and poor construction practices. As a result, the construction team had to undertake extensive remediation work to address the issues, leading to significant delays and cost overruns.

Similarly, the construction of the Crossrail project in London was delayed and faced cost overruns due to unexpected geological and geotechnical conditions. The project encountered challenging ground conditions, including sand, gravel, and clay layers, which required additional support and reinforcement measures.

Lessons learned from such incidents can include the need for rigorous site investigation and testing, better communication between designers and construction teams, the implementation of more robust safety protocols, and the use of advanced technologies and equipment to monitor and manage construction activities.

References

1. Bell, F. G. (2007). Engineering geology and construction. Spon Press.
2. Hoek, E., & Bray, J. (2014). Rock slope engineering: civil and mining. CRC Press.
3. Krampe, J., Müller, J., & Neumann, F. (2017). Underground Engineering: Planning, Design, Construction, and Operation of the Underground Space. Springer.
4. National Ground Water Association. (2019). Groundwater and Wells. CRC Press.
5. Novakowski, K. S., & Wilkin, R. T. (2011). Groundwater and soil remediation: process design and cost estimating of proven technologies. John Wiley & Sons.
6. Robery, P. C. (2013). Introduction to tunnelling. CRC Press.
7. Rojek, J. (2015). Tunnelling and tunnel mechanics: a rational approach to tunnelling. CRC Press.
8. Terzaghi, K., Peck, R. B., & Mesri, G. (1996). Soil mechanics in engineering practice. John Wiley & Sons.
9. Williams, D. J. (2013). Geotechnical engineering of embankment dams. CRC Press.
10. Yilmaz, I. (2010). Seismic data analysis: processing, inversion, and interpretation of seismic data. Society of Exploration Geophysicists.
