Vermiculite

Vermiculite is a naturally occurring mineral that has gained significant attention due to its unique properties and various applications. It is a hydrated, laminar, and micaceous mineral belonging to the phyllosilicate group. Vermiculite has a layered structure, similar to mica, and it can expand or exfoliate when heated, making it a valuable material in a range of industries.

Vermiculite is defined as a group of minerals characterized by their ability to expand and separate into long, thin, worm-like strands when heated. The name “vermiculite” is derived from the Latin word “vermiculus,” meaning “little worm,” which describes the worm-like appearance of the exfoliated particles when heated.

Historical Background:

Vermiculite’s use dates back to ancient civilizations, with early records of its use in pottery and construction materials. However, it wasn’t until the early 20th century that its unique properties were recognized and commercialized. The first vermiculite mine in the United States was established in the 1920s in Libby, Montana, which marked the beginning of vermiculite production on a larger scale. Vermiculite gained popularity during World War II as a heat-resistant material for ship and aircraft construction. It became more widely known in the post-war era as a component of lightweight concrete and insulation.

Formation and Mining

Formation of Vermiculite:

Vermiculite is a mineral that forms as a result of the weathering of certain types of mica minerals, such as biotite and phlogopite, under specific geological conditions. It is primarily composed of hydrated phyllosilicate minerals belonging to the mica group. The exact formation process involves several stages:

1. Parent Rock: Vermiculite originates from parent rocks, usually biotite or phlogopite mica, which are rich in iron, magnesium, and aluminum silicate minerals. These rocks often contain interlayer water molecules.
2. Weathering: Over time, geological processes, such as weathering, pressure, and heat, cause the breakdown of the mica minerals into smaller particles. During this process, the interlayer water molecules trapped within the mica layers cause expansion and the formation of vermiculite.
3. Exfoliation: The key characteristic of vermiculite is its ability to exfoliate or expand when heated. This exfoliation is a result of the release of the interlayer water molecules in the mineral’s structure when subjected to high temperatures.

Mining of Vermiculite:

Vermiculite is mined from deposits that contain the expanded, exfoliated form of the mineral. The mining process involves several steps:

1. Prospecting: Geologists and mining experts identify potential vermiculite deposits through geological surveys and exploration. These surveys help locate areas where vermiculite may be present based on the geological history and the presence of precursor minerals.
2. Drilling and Excavation: Once a deposit is identified, drilling and excavation operations are carried out to access the vermiculite-rich layers beneath the surface. Drilling and blasting may be required to remove overburden and access the vermiculite-bearing strata.
3. Extraction: After reaching the vermiculite-bearing stratum, mining operations extract the raw vermiculite ore using heavy machinery and mining equipment. The ore is typically crushed and transported to a processing plant for further treatment.
4. Crushing and Screening: At the processing plant, the raw vermiculite ore is crushed into smaller pieces and screened to separate the vermiculite from other impurities and waste materials.
5. Heat Exfoliation: The screened vermiculite is then subjected to a controlled heating process, often using industrial furnaces. The heat causes the vermiculite to expand and exfoliate, resulting in the characteristic worm-like, lightweight, and insulating particles. This expanded vermiculite is the final product ready for various applications.
6. Grading and Packaging: The expanded vermiculite is typically graded into different sizes and then packaged for distribution to industries and consumers.

It’s important to note that not all vermiculite deposits are suitable for commercial use, as their quality and properties can vary significantly. Additionally, some vermiculite deposits, particularly those associated with asbestos-containing minerals, may pose health risks, and careful handling and sourcing are essential to ensure safety in its use. Due to the potential health hazards, it is crucial to use vermiculite from known, safe sources and adhere to safety guidelines when handling the material.

Physical and Chemical Properties

Vermiculite is a unique mineral with distinct physical and chemical properties that make it valuable for a wide range of applications. Here are some of its key physical and chemical properties:

Physical Properties:

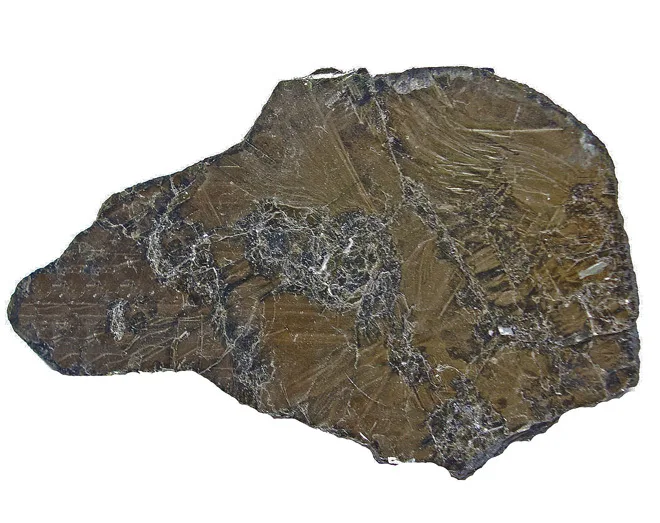

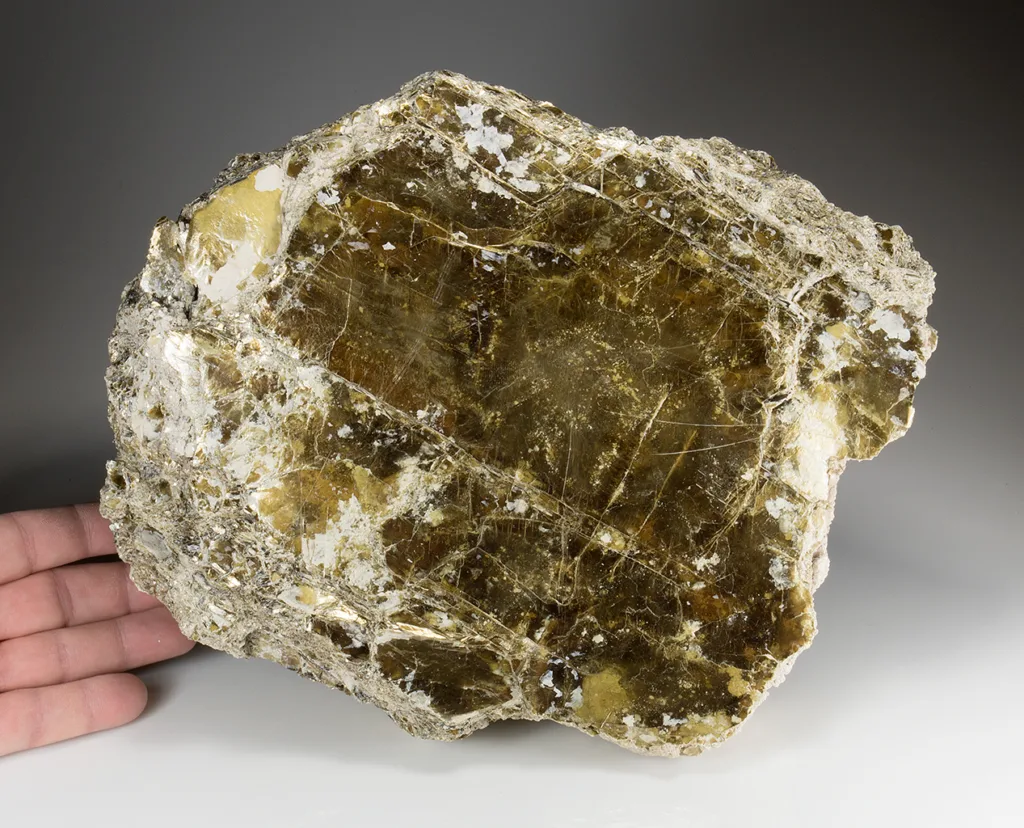

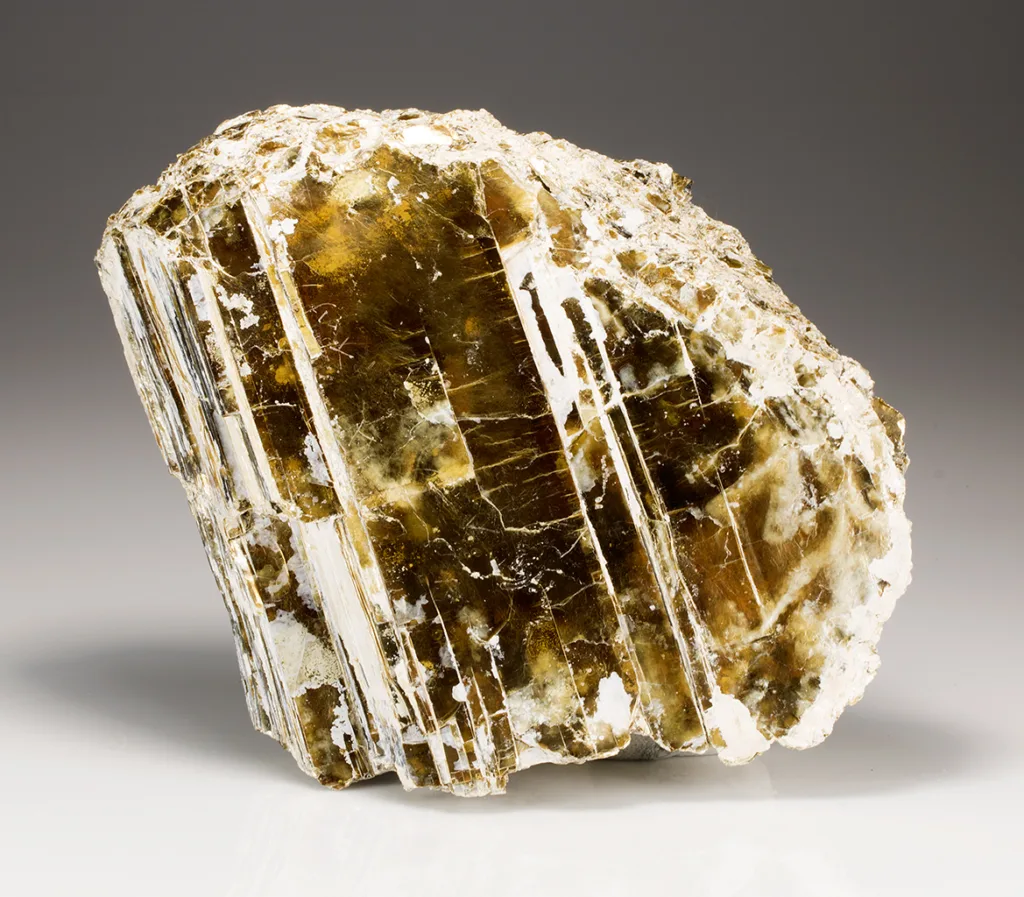

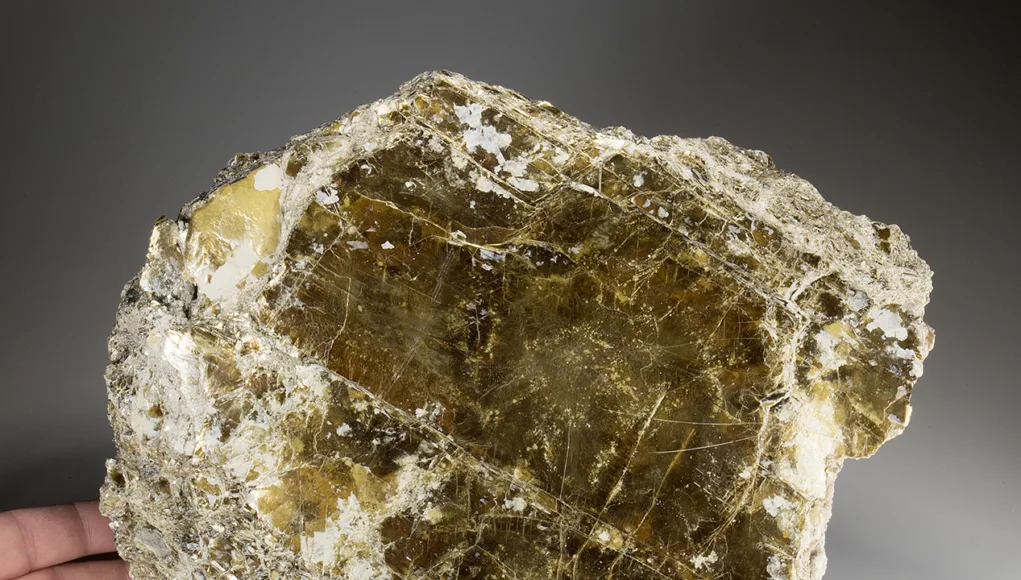

1. Appearance: Natural vermiculite is typically shiny, silvery-gold to brownish-yellow or greenish in color. When expanded, it turns into lightweight, golden to grayish-white flakes or particles with a worm-like appearance.
2. Texture: In its natural state, vermiculite has a platy or micaceous texture. When expanded, it becomes soft, lightweight, and friable.
3. Density: The density of vermiculite depends on its form. Natural vermiculite is relatively dense, while expanded vermiculite is exceptionally lightweight.
4. Expansion: One of vermiculite’s most distinctive properties is its ability to exfoliate or expand when exposed to heat. It can expand up to 30 times its original volume. This property is used in various applications, such as insulation and horticulture.
5. Insulating Properties: Expanded vermiculite is an excellent insulator due to its low thermal conductivity. It can withstand high temperatures without catching fire, making it useful for fireproofing.
6. Water Absorption: Vermiculite is highly absorbent and can retain water and nutrients, which makes it valuable in horticultural and gardening applications.
7. pH Level: Vermiculite is typically neutral or slightly alkaline, which makes it suitable for use as a soil amendment.

Chemical Properties:

1. Composition: Vermiculite is composed of hydrated phyllosilicate minerals, primarily from the mica group. Its chemical formula is (Mg,Fe)3(Al,Si)4O10(OH)2·4H2O.
2. Cation Exchange Capacity (CEC): Vermiculite has a relatively high cation exchange capacity, which means it can hold and release cations (positively charged ions) like calcium, magnesium, and potassium. This property is valuable in agriculture for retaining and slowly releasing nutrients to plants.
3. Thermal Stability: Vermiculite is stable at high temperatures and does not burn or release harmful gases. It is often used in fireproofing materials and as a component in high-temperature insulation.
4. Chemical Inertness: Vermiculite is chemically inert and does not react with most chemicals, making it a suitable carrier for pesticides and herbicides.
5. Expansion Mechanism: The expansion of vermiculite occurs due to the release of interlayer water molecules trapped between its mineral layers when heated. This results in the separation of the layers, causing the material to expand.
6. Asbestos Concerns: It’s important to note that some vermiculite deposits, especially those from specific sources, may contain asbestos minerals, primarily amphibole asbestos. Asbestos-containing vermiculite poses health risks, and it is crucial to determine the safety of the vermiculite source and handle it appropriately.

The physical and chemical properties of vermiculite have led to its widespread use in various industries, including construction, horticulture, agriculture, and more. However, due to the potential health hazards associated with asbestos-contaminated vermiculite, it is essential to ensure safe sourcing and handling practices when using vermiculite in any application.

Importance of Vermiculite

Vermiculite is considered important due to its unique combination of properties, which makes it valuable for various applications in different industries. These properties include:

1. Expansion: Vermiculite can expand or exfoliate when heated, increasing its volume by several times. This property is important for its use as an insulating material and lightweight aggregate in construction, as well as in horticulture and gardening where it improves soil structure.
2. Insulation: Vermiculite has low thermal conductivity, making it an effective insulating material. Its use in construction and fireproofing is essential for improving energy efficiency and fire safety.
3. Moisture Retention: Vermiculite has the ability to absorb and retain moisture. This makes it valuable in horticulture and agriculture by promoting water retention in soils and potting mixes, supporting healthy plant growth.
4. Cation Exchange Capacity (CEC): Vermiculite has a high CEC, allowing it to retain and slowly release essential nutrients to plants in agriculture. This property contributes to improved soil quality and nutrient-rich soils.
5. Fire Resistance: The fire resistance of vermiculite is crucial for applications in fireproof coatings, fire-resistant materials, and in the foundry industry, where it withstands high temperatures.
6. Lightweight: Expanded vermiculite is lightweight, reducing the overall weight of materials, such as concrete products in construction. This is important for constructing lightweight structures.
7. High-Temperature Resistance: Vermiculite is stable at high temperatures and does not burn or release harmful gases. This property is essential in various high-temperature applications and industries.
8. Absorbency: Vermiculite’s high absorbency is vital for applications in spill cleanup, as it can contain and control hazardous chemical spills and oil spills effectively.
9. Non-Toxic: Vermiculite is generally considered non-toxic, making it suitable for use in personal care products like cosmetics and in agriculture without posing health risks.

These properties collectively contribute to vermiculite’s importance in different industries, addressing specific needs for insulation, moisture management, fire resistance, and lightweight construction. However, the presence of asbestos contamination in some vermiculite sources underscores the importance of responsible sourcing and handling to ensure safety in its applications.

Uses of Vermiculite

Vermiculite is a versatile mineral with a wide range of uses in various industries due to its unique physical and chemical properties. Some of the primary uses of vermiculite include:

1. Insulation: Vermiculite is used as an insulating material in construction, providing thermal insulation in walls, ceilings, and roofs. Its lightweight and fire-resistant properties make it a valuable component in insulating materials.
2. Horticulture and Gardening: Vermiculite is a popular component in potting soils and seed-starting mixes. Its ability to retain moisture, improve aeration, and provide a neutral pH makes it ideal for nurturing plant growth.
3. Agriculture: In agriculture, vermiculite is used to improve soil structure and water retention. It also enhances the cation exchange capacity (CEC) of the soil, helping to retain and slowly release essential nutrients to plants.
4. Fireproofing: Due to its excellent fire-resistant properties, vermiculite is employed in fireproof coatings, fire-resistant panels, and fire-resistant doors and windows.
5. Lightweight Concrete: Vermiculite is mixed with concrete to create lightweight and thermally insulating concrete products for construction applications, especially where reduced structural weight is desired.
6. Filtration: Expanded vermiculite is utilized in various filtration applications, such as in swimming pool filters and industrial filtration systems to remove impurities and particles from liquids.
7. Absorbent and Spill Cleanup: Vermiculite’s high absorbency makes it suitable for use as an absorbent material in the cleanup of hazardous chemical spills and oil spills. It helps contain and control the spread of spilled substances.
8. Foundry Industry: Vermiculite is used in the foundry industry for mold and core production due to its heat resistance and ability to provide a smooth surface finish in castings.
9. Asbestos Removal and Encapsulation: In some cases, vermiculite is used for asbestos removal or encapsulation due to its ability to encapsulate and seal asbestos-containing materials.
10. Coatings and Paints: Vermiculite can be included in coatings and paints to enhance fire resistance and insulation properties.
11. Soilless Plant Growth: It is used as a medium for soilless plant growth, particularly in hydroponics and soilless cultivation systems.
12. Seed Coating: Vermiculite can be used as a carrier for seeds and fertilizers, providing a medium that aids in seed germination and nutrient release.
13. Vermiculite Boards: Vermiculite is compressed into boards for use as fireproof panels, wall partitions, and ceiling tiles in building applications.
14. Industrial Applications: Vermiculite has various industrial applications, including as a filler in plastics and as a component in refractory materials.
15. Personal Care Products: In the cosmetics industry, vermiculite is used in personal care products such as makeup and skincare items for its texture and absorbent properties.

It’s important to note that the safety and quality of vermiculite can vary depending on its source and whether it is contaminated with asbestos. Asbestos-containing vermiculite poses health risks, and careful sourcing and handling are essential to ensure safety in its applications. Users should always verify the source and quality of vermiculite to mitigate potential health hazards.

Commercial Grades and Types Horticultural Vermiculite

Vermiculite is available in various commercial grades and types, each tailored to specific applications and industry needs. Here are some common commercial grades and types of vermiculite:

1. Horticultural Vermiculite:
   • This grade of vermiculite is specifically designed for horticultural and gardening applications.
   • It is often used as a component in potting mixes and soilless growing media to improve soil structure and water retention.
   • Horticultural vermiculite helps to retain moisture, promote aeration, and provide a neutral pH for healthy plant growth.
   • It is available in various particle sizes to meet the needs of different plants and gardening practices.
2. Construction-Grade Vermiculite:
   • Construction-grade vermiculite is used in various construction applications where insulation and fire resistance are required.
   • It is commonly used as an insulating material in walls, ceilings, and roofs to improve energy efficiency and fire safety.
   • This type of vermiculite is mixed with concrete to create lightweight, thermally insulating concrete products, reducing the weight of structures.
   • It is also used in fireproof coatings, fire-resistant panels, and other construction materials.
3. Industrial and High-Temperature Grades:
   • Industrial-grade vermiculite is designed for applications that require high-temperature resistance and stability.
   • This type of vermiculite is utilized in industries such as foundries, where it is used for mold and core production due to its ability to withstand extreme heat.
   • It is also used in refractory materials, where high-temperature resistance is critical.
   • Industrial-grade vermiculite can be employed in the production of specialized products that must maintain their integrity in extreme conditions.

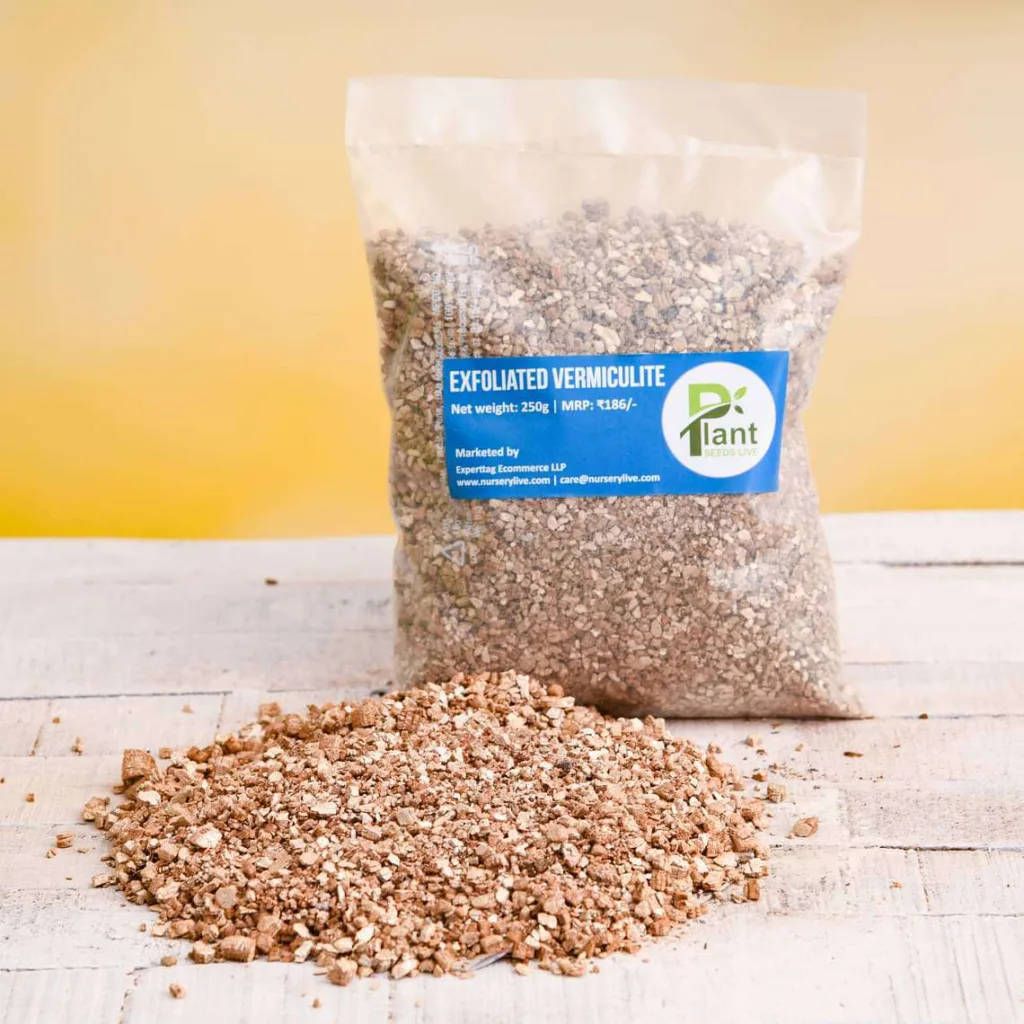

4. Exfoliated Vermiculite:
   • Exfoliated vermiculite is the most common commercial form of vermiculite and is used in a wide range of applications.
   • It is the expanded form of vermiculite obtained by heating raw vermiculite to cause expansion, resulting in lightweight and insulating particles.
   • Exfoliated vermiculite is versatile and can be adapted for use in horticulture, construction, insulation, and many other industries.
5. Micronized Vermiculite:
   • Micronized vermiculite is a finely ground and processed form of vermiculite that has various uses.
   • It is often used as a component in coatings, paints, and other products to enhance their fire resistance and insulation properties.
   • Micronized vermiculite can be integrated into a range of industrial and consumer products for improved performance.

It’s important to select the appropriate grade and type of vermiculite based on the specific requirements of your intended application. Additionally, when working with vermiculite, especially for industrial or construction purposes, safety guidelines should be followed, and the quality and source of vermiculite should be verified to ensure it does not contain asbestos or other contaminants that could pose health risks.

Safety and Health Considerations

Safety and health considerations are crucial when working with vermiculite, as some vermiculite deposits, particularly from specific sources, may contain asbestos minerals, which can pose serious health risks. Here are important safety and health considerations when using vermiculite:

1. Asbestos Contamination:
   • Some vermiculite deposits, notably those from Libby, Montana, have been found to contain asbestos, specifically amphibole asbestos, which is associated with serious health risks when inhaled.
   • Before using vermiculite, especially in construction, horticulture, or any other application, it is essential to determine the source and asbestos content of the vermiculite. Only use vermiculite from known, safe sources that have been tested for asbestos contamination.
2. Handling Precautions:
   • When handling vermiculite, especially if there is any doubt about its asbestos content, take appropriate precautions to minimize the risk of inhaling airborne asbestos fibers.
   • Wear protective clothing, including disposable coveralls, gloves, and a dust mask with a high-efficiency particulate air (HEPA) filter when working with vermiculite.
3. Dust Control:
   • Minimize dust generation during vermiculite handling and processing. Avoid activities that could release airborne particles, such as vigorous mixing or aggressive agitation.
   • Use wetting agents or water misting to control dust when handling vermiculite. This helps to keep particles from becoming airborne.
4. Respiratory Protection:
   • In situations where there is a risk of asbestos exposure, respiratory protection is critical. Use properly fitted and certified respirators with HEPA filters to prevent inhalation of asbestos fibers.
5. Ventilation:
   • Maintain good ventilation in areas where vermiculite is being processed or handled to help disperse airborne particles and reduce the risk of asbestos exposure.
6. Personal Hygiene:
   • After working with vermiculite, practice good personal hygiene. Remove and dispose of contaminated clothing, wash exposed skin, and shower to minimize the risk of asbestos fibers spreading.
7. Avoid Dry Sweeping:
   • Never use dry sweeping or compressed air for cleaning up spilled vermiculite or dust. Instead, use wet cleaning methods to capture and contain dust.
8. Asbestos Abatement:
   • If you suspect that vermiculite or materials containing vermiculite may be contaminated with asbestos, consult with professionals experienced in asbestos abatement and removal.
9. Regulatory Compliance:
   • Be aware of and comply with local, national, and international regulations and guidelines related to asbestos handling, depending on your location and industry.
10. Training and Awareness:

• Ensure that all individuals working with vermiculite are trained and aware of the potential risks associated with asbestos-contaminated vermiculite and are equipped with the knowledge to handle it safely.

It is essential to exercise caution and follow safety protocols when working with vermiculite, particularly if there is any uncertainty about its asbestos content. Verifying the safety of the source and handling vermiculite with care can help mitigate health risks associated with asbestos exposure.

In conclusion, vermiculite is a versatile mineral with unique properties that find applications in various industries. Here are the key points to summarize:

• Vermiculite is a naturally occurring mineral that expands when heated, forming lightweight, insulating, and fire-resistant particles.
• It is composed of hydrated phyllosilicate minerals and belongs to the mica group.
• Vermiculite is used in horticulture to improve soil structure, water retention, and aeration. It is also a key component in potting soils and seed-starting mixes.
• In construction, vermiculite serves as an insulating material for walls, ceilings, and roofs. It is also used in lightweight and thermally insulating concrete products and fireproofing materials.
• In agriculture, vermiculite enhances soil structure and retains water and nutrients. It has a high cation exchange capacity, making it valuable for slowly releasing nutrients to plants.
• Vermiculite is employed in industrial applications, such as foundry molds and refractory materials, due to its high-temperature resistance.
• It is used in fireproof coatings, fire-resistant panels, and doors and windows to enhance fire safety.
• Vermiculite also has uses in filtration, spill cleanup, asbestos removal, and personal care products like cosmetics.
• Safety considerations are critical when working with vermiculite, as some deposits may contain asbestos, which poses health risks. Verify the source and handle vermiculite appropriately to minimize exposure to asbestos fibers.

Vermiculite’s importance in various industries is evident through its contributions to insulation, fireproofing, horticulture, agriculture, construction, and more. Its versatility and unique properties make it a valuable material with a wide range of applications, while responsible sourcing and safe handling practices are essential to ensure the health and safety of those who work with it.

Locations of Vermiculite Deposits

Vermiculite deposits are found in various locations around the world, with some regions having more significant and well-known deposits. The distribution of vermiculite deposits is primarily determined by the geological processes and conditions that led to its formation. Some of the notable locations with vermiculite deposits include:

1. United States:
   • The United States, particularly Libby, Montana, is historically one of the most renowned sources of vermiculite. However, the vermiculite from Libby is known to be contaminated with asbestos, primarily amphibole asbestos, which poses serious health risks. As a result, it is no longer mined for commercial use.
   • Other vermiculite deposits in the United States, such as those in Virginia and South Carolina, are used for various applications, including horticulture and construction.
2. South Africa:
   • South Africa is a significant producer of vermiculite, and it has extensive deposits located in various regions, including the Palabora Mining Company in Limpopo Province.
3. China:
   • China has vermiculite deposits in several provinces, including Hebei, Liaoning, and Shandong. Chinese vermiculite is used in both domestic and international markets.
4. Brazil:
   • Brazil also has vermiculite deposits, with mining operations located in states like Goiás and Minas Gerais.
5. Australia:
   • Australia has vermiculite deposits in regions like Western Australia, which are used for various applications.
6. Russia:
   • Russia has vermiculite deposits in several locations, including the Perm Krai region and the Urals.
7. Japan:
   • Japan has vermiculite deposits in places like Tochigi Prefecture, which are used for horticultural and industrial applications.
8. Other Countries:
   • Vermiculite deposits are found in various other countries, such as Canada, Zimbabwe, Kenya, India, and Turkey. These deposits serve local and international markets in different industries.

It’s important to note that the quality and characteristics of vermiculite can vary from one deposit to another, and not all deposits are suitable for all applications. The presence of asbestos contamination in certain vermiculite deposits, particularly those in Libby, Montana, has raised concerns and necessitates careful sourcing and safety measures when using vermiculite in any application. Always verify the safety and quality of vermiculite from the source before use.
