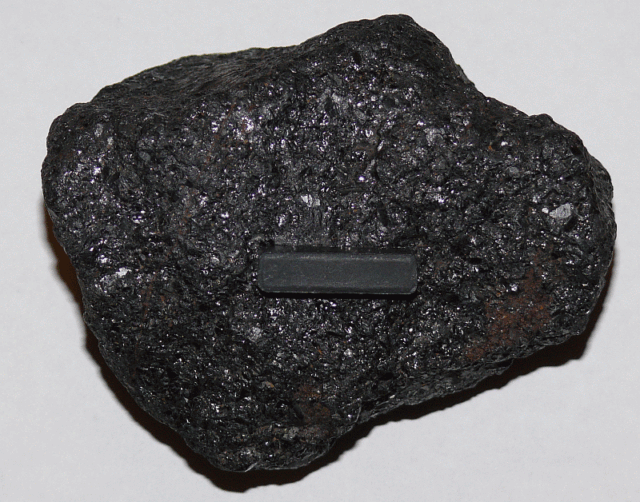

Magnetite

Magnetite is rock mineral and one of the most important iron ore minerals with chemical formula is iron(II,III) oxide, Fe2+Fe3+2O4 .It also as the name magnetic minerals to attracted to a magnet. It is the most magnetic natural occuring minerals in the World. Small grains of magnetite occur in almost all igneous and metamorphic rocks.

Name: An ancient term, possibly an allusion to the locality, Magnesia, Greece.

Cell Data: Space Group: Fd3m (synthetic). a == 8.3970(1) Z == 8

Polymorphism & Series: Forms two series, with jacobsite, and with magnesioferrite.

Mineral Group: Spinel group.

Association: Chromite, ilmenite, ulvospinel, rutile, apatite, silicates (igneous); pyrrhotite, pyrite, chalcopyrite, pentlandite, sphalerite, hematite, silicates (hydrothermal, metamorphic); hematite, quartz (sedimentary).

Crystallography. Isometric; hexoctahcdral. Frequently in crystals of octahedral habit, occasionally twinned. More rarely in dodecahedrons. Dodecahedrons may be striated parallel to the intersection with the octahedrons. Other forms rare. Usually granular massive, coarse or fine grained.

Composition: Fe3 0 4 or FeFe20 4. Fe = 72.4 percent, 0 = 27.6 percent

Diagnostic Features: Characterized chiefly by its strong magnetism, its black color, and its hardness (6). Can be distinguished from magnetic franklinite by streak.

Chemical Properties of Magnetite

Chemical Classification Oxide minerals
Chemical Composition iron(II,III) oxide, Fe2+Fe3+2O4

Physical Properties of Magnetite

Color Black, gray with brownish tint in reflected sun
Streak Black
Luster Metallic
Diaphaneity Opaque
Mohs Hardness 5.5–6.5
Specific Gravity 5.17–5.18
Diagnostic Properties Dissolves slowly in hydrochloric acid
Crystal System Isometric

Optical Properties of Magnetite

Type Isotropic
RI values n = 2.42
Twinning as both twin and composition plane, the spinel law, as contact twins
Birefringence Isotropic minerals have no birefringence
Relief Very High
Colour in reflected light Grey with brownish tint

Magnetite Occurrence and Formation

Magnetite is a naturally occurring mineral that is one of the most common iron ores and is widely distributed throughout the world. It is a black, metallic-looking mineral with a distinctive magnetic property, hence its name. Magnetite has the chemical formula Fe3O4, which means it is composed of two iron (Fe) ions combined with three oxygen (O) ions.

Here is some information on the occurrence and formation of magnetite:

  1. Occurrence:
  2. Igneous Rocks:
    • Magnetite is commonly found in igneous rocks, particularly in mafic and ultramafic rocks. It can be a primary mineral crystallized from molten magma during the cooling and solidification of these rocks. Some examples of igneous rocks that contain magnetite include basalt, gabbro, and diorite.
  3. Hydrothermal Veins:
    • Hydrothermal processes can also lead to the formation of magnetite. Hot fluids rich in iron can deposit magnetite in fractures and fissures within rocks. This often occurs in association with other ore minerals, such as sulfides.
  4. Sedimentary Rocks:
    • Magnetite can be a significant component of certain sedimentary rocks, including iron formations. Iron formations are sedimentary rocks that contain a high concentration of iron minerals. These rocks are typically found in ancient marine environments and can be a valuable source of iron ore.
  5. Detrital Grains:
    • Magnetite grains can also be found as detrital particles in sedimentary rocks, such as sandstones and conglomerates. These grains are often rounded and weathered due to their transportation by water or wind.
  6. Biological Processes:
    • Magnetite can also be produced biogenically by some organisms, such as magnetotactic bacteria, which use magnetite crystals to navigate in magnetic fields. These biogenic magnetite crystals are often found in sedimentary environments, including lake and marine sediments.

In summary, magnetite is a versatile mineral that can form in a wide range of geological settings, including igneous rocks, hydrothermal veins, sedimentary rocks, and through biological processes. Its magnetic properties make it a valuable mineral in various industrial applications, including as a source of iron ore and in the production of magnetic materials.

Magnetite Application and Uses

Magnetite has a wide range of applications and uses in various industries due to its unique magnetic properties and high iron content. Here are some of the most common applications and uses of magnetite:

  1. Iron Ore Production: Magnetite is a significant source of iron ore. It is mined and processed to extract iron for the production of steel. The high iron content (approximately 72%) makes it a valuable resource for the steel industry. Magnetite-rich iron ore deposits are often found in countries like Australia, Brazil, and Russia.
  2. Magnetic Recording Media: In the past, magnetite was used in magnetic recording media, such as audio and video tapes. While modern technology has largely replaced these applications with other materials, magnetite played a crucial role in early magnetic storage devices.
  3. Heavy Media Separation: Magnetite is used in dense medium separation processes in the mining and mineral processing industries. It is mixed with water to form a dense medium, and its magnetic properties are employed to separate valuable minerals (e.g., coal, copper, gold) from waste rock in ore beneficiation.
  4. Water Treatment: In water treatment and purification, magnetite can be used as a filtration medium. It helps remove impurities, such as arsenic, lead, and other heavy metals, from water due to its magnetic properties.
  5. Catalysis: Magnetite nanoparticles have shown promise in catalytic applications. They can be used as catalysts in chemical reactions, particularly in the field of environmental remediation for the removal of pollutants from wastewater and gases.
  6. Magnetic Nanoparticles: Magnetite nanoparticles are used in various biomedical applications, including magnetic resonance imaging (MRI), drug delivery systems, and hyperthermia therapy for cancer treatment. Their magnetic properties enable them to be directed to specific targets within the body.
  7. Electromagnetic Shielding: Magnetite-containing materials can be used for electromagnetic interference (EMI) shielding, which is important in the electronics industry to protect sensitive equipment from external electromagnetic radiation.
  8. Concrete Additive: In the construction industry, finely ground magnetite can be added to concrete to improve its density and radiation shielding properties. This is especially useful in applications where radiation protection is required, such as nuclear power plants and medical facilities.
  9. Ferrofluids: Ferrofluids are colloidal suspensions of tiny magnetic particles, often made with magnetite. They have a wide range of applications, including in seals, bearings, and as a cooling medium in electronic devices.
  10. Geological Studies: Magnetite is used in geophysical surveys and geological studies to detect variations in the Earth’s magnetic field. It can help identify subsurface structures, mineral deposits, and geological anomalies.
  11. Art and Pigments: Magnetite has been used historically as a black pigment in art and paint. It is also used in the manufacture of magnetic inks and toners.

These are just some of the many applications and uses of magnetite across various industries. Its magnetic properties, along with its abunda

Notable Magnetite Deposits Worldwide

Magnetite deposits are found in various parts of the world, and some of these deposits are especially noteworthy due to their size, quality, or economic significance. Here are some notable magnetite deposits worldwide:

  1. Kiruna, Sweden:
    • The Kiruna mine in northern Sweden is one of the largest and most famous magnetite deposits in the world.
    • It is part of the Kiruna-Loke ore province and contains vast amounts of magnetite and hematite.
    • The ore from this mine is a major source of high-quality iron ore for the steel industry.
  2. Kursk Magnetic Anomaly, Russia:
    • Located in western Russia, the Kursk Magnetic Anomaly is one of the largest iron ore regions globally.
    • It contains extensive magnetite deposits and is a significant source of iron ore for Russia and export markets.
  3. Hamersley Basin, Australia:
    • The Hamersley Basin in Western Australia is known for its rich iron ore deposits, including substantial magnetite reserves.
    • Major mining operations, such as those by Rio Tinto and BHP Billiton, extract magnetite and hematite ores from this region.
  4. Quadrilátero Ferrífero, Brazil:
    • In Brazil’s Minas Gerais state, the Quadrilátero Ferrífero (Iron Quadrangle) is a historic region for iron ore mining.
    • It contains numerous magnetite and hematite deposits and has been a significant source of iron ore for many decades.
  5. Chilean Iron Belt, Chile:
    • Northern Chile is home to the Chilean Iron Belt, which hosts substantial magnetite and hematite deposits.
    • These deposits are a key source of iron ore for Chile’s domestic and international markets.
  6. Adirondack Mountains, USA:
    • The Adirondack Mountains in New York State, USA, contain magnetite-rich iron ore deposits.
    • These deposits have historical significance and were mined extensively during the 19th and early 20th centuries.
  7. South African Iron Ore Fields, South Africa:
    • South Africa has several iron ore fields, including the Sishen mine, which is known for its magnetite-rich ores.
    • These deposits contribute significantly to South Africa’s iron ore production.
  8. Malmberget, Sweden:
    • Malmberget, located in northern Sweden, is another important magnetite mining area.
    • It supplies high-quality iron ore to the steel industry and is an integral part of Sweden’s mining sector.
  9. Peru’s Iron Ore Deposits, Peru:
    • Peru has magnetite and hematite deposits, particularly in the south-central region.
    • These deposits contribute to Peru’s iron ore production and export activities.
  10. Lodestone Deposits, Various Locations:
    • Lodestone is a naturally occurring magnetite with natural magnetic properties.
    • Lodestone deposits can be found in different parts of the world and have historical significance as natural magnets.

These notable magnetite deposits play a vital role in meeting global demand for iron ore, which is a crucial raw material in the production of steel and various industrial applications. Mining and processing operations in these regions contribute significantly to their respective economies and the global steel industry.

Economic and Geopolitical Significance

The economic and geopolitical significance of magnetite and its associated mining activities are substantial, primarily due to its role as a key source of iron ore and its importance in the steel industry. Here are some key points highlighting its economic and geopolitical significance:

Economic Significance:

  1. Steel Production: Magnetite is a major source of iron ore, and iron ore is a primary raw material for the production of steel. Steel is a critical material used in various industries, including construction, automotive, machinery, and infrastructure development.
  2. Employment and Economic Growth: Magnetite mining and the iron and steel industry create significant employment opportunities. These sectors provide jobs for miners, steelworkers, engineers, and support staff, contributing to local and national economies.
  3. Export Revenue: Countries with large magnetite deposits often export iron ore to international markets, generating substantial export revenue. This revenue can be a crucial source of foreign exchange earnings for nations with significant mining operations.
  4. Investment and Infrastructure: Magnetite mining requires significant investments in infrastructure, including railways, ports, and processing facilities. These investments stimulate economic development and support related industries and services.
  5. Global Commodity Trade: Iron ore is one of the most traded commodities globally. The international trade in iron ore involves a complex network of buyers, sellers, and transportation logistics, contributing to the global economy.

Geopolitical Significance:

  1. Resource Security: Countries with abundant magnetite deposits have a strategic advantage in terms of resource security. They can ensure a stable supply of iron ore for domestic consumption and export, reducing dependence on imports.
  2. Trade and Diplomacy: The global iron ore trade can influence diplomatic relations and trade negotiations between nations. Exporting countries have bargaining power, and importing countries seek to secure stable and affordable iron ore supplies.
  3. Infrastructure Development: The development of infrastructure for magnetite mining, such as ports and railways, can enhance a nation’s geopolitical influence and connectivity, making it an attractive partner in trade and investment.
  4. Resource Exploration and Geopolitical Rivalries: The quest for new magnetite deposits can lead to territorial disputes and geopolitical rivalries. Competing claims over mining rights and resource-rich regions have the potential to escalate international tensions.
  5. Market Dynamics: Changes in the supply and demand of iron ore can impact global steel prices and trade balances, influencing economic stability and geopolitical relationships among nations.
  6. Environmental and Sustainability Considerations: Geopolitical discussions may also revolve around environmental regulations and sustainability practices related to magnetite mining, as nations seek to balance economic interests with environmental concerns.
  7. Infrastructure Investments: Countries that invest in the infrastructure required for magnetite mining and steel production can exert influence over supply chains and pricing, affecting the global steel market and trade dynamics.

In summary, magnetite’s economic and geopolitical significance is closely tied to its role as a primary source of iron ore, which is integral to steel production and industrial development. The competition for access to magnetite deposits, trade negotiations, and infrastructure investments related to mining can shape international relations and have far-reaching economic and geopolitical implications.

References

  • Dana, J. D. (1864). Manual of Mineralogy… Wiley.
  • Handbookofmineralogy.org. (2019). Handbook of Mineralogy. [online] Available at: http://www.handbookofmineralogy.org [Accessed 4 Mar. 2019].
  • Mindat.org. (2019): Mineral information, data and localities.. [online] Available at: https://www.mindat.org/ [Accessed. 2019].
