Sedimentary Structures and Textures

Sedimentary structures and textures refer to the physical features and arrangements of sedimentary rocks that provide information about the conditions in which they were deposited. These structures and textures can provide important clues about the nature of the depositional environment, the nature of the sediment transport process, and the history of the sedimentary basin. They are used by geologists to interpret the history and evolution of sedimentary deposits. Sedimentary structures can range in scale from millimeters to meters or more, and include features such as bedding planes, cross bedding, ripple marks, mud cracks, and fossils, among others. Sedimentary textures refer to the size, shape, sorting, and arrangement of sediment grains, and can include features such as grain size, shape, and orientation, as well as sorting and packing of the grains within the sedimentary rock.

Importance of Sedimentary Structures and Textures in Sedimentology

Sedimentary structures and textures are important in sedimentology because they provide information about the processes and conditions that were present during sediment deposition and subsequent diagenesis. By analyzing sedimentary structures and textures, sedimentologists can reconstruct the environment of deposition and infer the transport mechanisms, sediment sources, and depositional energy. This information is critical for interpreting the geological history of sedimentary basins and understanding the evolution of Earth’s surface through time. Additionally, sedimentary structures and textures can be used to identify and correlate sedimentary units, which can aid in the exploration and exploitation of natural resources such as oil, gas, and groundwater. Overall, the study of sedimentary structures and textures is essential for advancing our knowledge of Earth’s history and natural resources.

Classification of Sedimentary Structures and Textures

Sedimentary structures and textures can be classified into different types based on their origin, characteristics, and geological setting. Here are some of the common classifications:

1. Primary structures: These are formed during sediment deposition and include bedding, lamination, cross-bedding, graded bedding, ripple marks, mud cracks, and fossils.
2. Secondary structures: These are formed after deposition and include deformation structures such as folds and faults, as well as diagenetic structures such as concretions, nodules, and stylolites.
3. Physical structures: These are formed by physical processes and include erosional structures such as channels, scour marks, and flutes, as well as depositional structures such as dunes, bars, and deltas.
4. Chemical structures: These are formed by chemical processes and include precipitates, evaporites, and replacement textures.
5. Biological structures: These are formed by the activity of living organisms and include bioturbation, stromatolites, and trace fossils.

These classifications can be further refined and modified based on specific sedimentary environments, depositional settings, and depositional processes.

Bedding Structures and Textures

Bedding structures and textures refer to the various features found within sedimentary beds. These features can provide valuable information about the depositional environment and history of the sedimentary rock. Some common bedding structures and textures include:

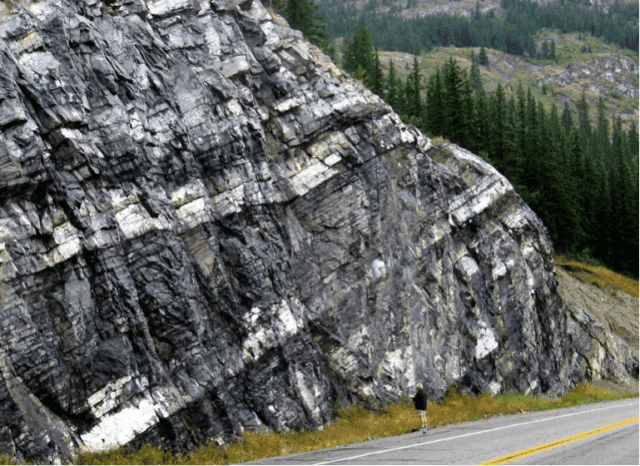

Bedding planes: Bedding planes refer to the planes or surfaces of separation between layers of sedimentary rocks. These layers are called beds or strata, and they are defined by variations in sedimentary characteristics such as grain size, sorting, composition, and color.

The interpretation of bedding planes can provide important information about the depositional environment, such as the direction of water flow, the energy of the transporting medium (such as water or wind), and the duration and frequency of deposition events. For example, cross-bedding within the bedding planes can indicate the direction of flow of a river or the direction of prevailing winds in a desert environment.

Bedding planes can also provide information about the tectonic history of the area. For example, folding and tilting of bedding planes can indicate the occurrence of deformation and metamorphism of the sedimentary rock layers due to tectonic activity.

Graded bedding: This is a type of bedding where the grain size of sediment within a bed gradually changes from coarse at the bottom to fine at the top. Graded bedding can be caused by changes in the energy of the depositional environment over time.

Cross-bedding: This refers to sets of inclined beds within a larger sedimentary bed. Cross-beds are formed when sediment is transported by a current of water or wind, and can be used to determine the direction and strength of the current.

Ripple marks: These are small, wavy ridges found on bedding surfaces that are caused by the action of water or wind.

Mud cracks: These are polygonal cracks that form when mud dries out and contracts. Mud cracks can be used to determine whether a sedimentary rock was deposited in a wet or dry environment.u

Biogenic structures: These are structures formed by living organisms, such as burrows, tracks, and trails. Biogenic structures can provide information about the types of organisms that were present in the depositional environment.

Interpretation of Bedding Structures and Textures in Depositional Environments

Bedding structures and textures can provide important clues about the depositional environment in which sediments were deposited. For example:

• Regular, parallel bedding can indicate deposition in a relatively calm, low-energy environment such as a lake or deep ocean basin.
• Cross-bedding (inclined layers within a larger bed) can indicate deposition in environments such as sand dunes or rivers with flowing water.
• Ripple marks can indicate the direction and strength of water flow in ancient rivers, lakes, and oceans.
• Mud cracks can indicate alternating wet and dry conditions in a depositional environment such as a tidal flat or lake shore.

By examining bedding structures and textures, sedimentologists can infer the paleoenvironmental conditions that existed during the deposition of sedimentary rocks. This information can help in reconstructing the geologic history of an area, and can also be used to locate and characterize potential petroleum reservoirs

Interpretation of Sedimentary Structures and Textures in Alluvial Systems

Alluvial systems are depositional environments that are dominated by fluvial processes, such as river channels, floodplains, and deltas. Understanding the sedimentary structures and textures in alluvial systems can provide important information about the flow dynamics, sediment transport mechanisms, and depositional environments of the sediments.

Some common sedimentary structures and textures found in alluvial systems include:

1. Bedding: The most common sedimentary structure found in alluvial systems is bedding or stratification. Bedding can be used to determine the orientation, thickness, and lateral extent of sedimentary layers, as well as the depositional history of the sediment.
2. Cross-bedding: Cross-bedding is formed when sediment is deposited at an angle to the underlying bedding plane, resulting in inclined layers within the sediment. Cross-beds can provide information about the direction and intensity of sediment transport, as well as the shape and size of the sediment particles.
3. Ripple marks: Ripple marks are small-scale sedimentary structures that are formed by the action of water or wind. They can provide information about the direction and intensity of sediment transport, as well as the flow conditions of the water or wind.
4. Mud cracks: Mud cracks are formed when fine-grained sediments, such as mud or silt, dry out and contract. They can provide information about the duration and frequency of dry periods in the depositional environment.
5. Channel structures: Channel structures, such as channels, levees, and point bars, are formed by the action of rivers and streams. They can provide information about the size and shape of the channel, as well as the flow dynamics and sediment transport mechanisms of the water.

By analyzing the sedimentary structures and textures in alluvial systems, sedimentologists can reconstruct the depositional history of the sediments, including the source, transport, and depositional mechanisms of the sediment, as well as the environmental conditions in which they were deposited. This information can be used to understand the evolution of the landscape over time, as well as to identify potential natural resources, such as oil and gas reservoirs.
