Aquifers and Aquitards

Aquifers and aquitards are geological formations that play a crucial role in the hydrological cycle and the availability of groundwater.

Aquifers are porous and permeable geological formations that can hold and transmit significant amounts of water. They can be made up of a variety of materials, including sand, gravel, and fractured rock, and can occur at different depths below the ground surface. Aquifers are important sources of water for many communities, and their characteristics can influence the quality and quantity of water available.

Aquitards, on the other hand, are geological formations that have low permeability and restrict the flow of water. They are often made up of clay, shale, or other fine-grained materials, and can act as barriers that prevent the movement of water between aquifers or between groundwater and surface water.

Understanding the properties and behavior of aquifers and aquitards is essential for effective management of water resources and the protection of groundwater quality.

Types of Aquifers and Aquitards

Aquifers and aquitards are subsurface geological formations that are important for water supply and management.

An aquifer is a porous, water-bearing rock formation, while an aquitard is a non-porous or low-permeability rock or sediment layer that restricts or prevents water movement.

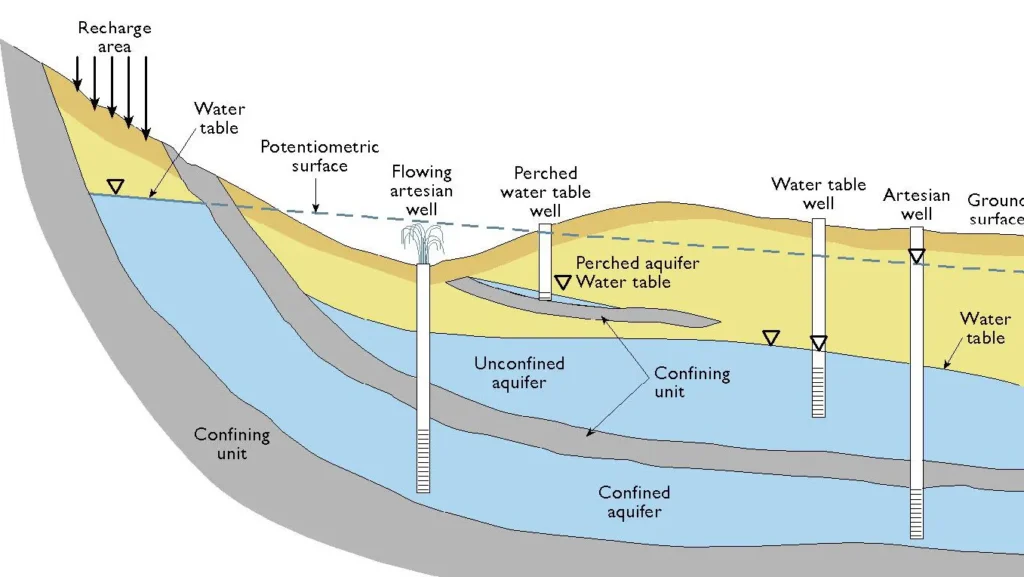

There are several types of aquifers based on the source and movement of water, such as unconfined aquifers, confined aquifers, and artesian aquifers. Similarly, aquitards can also be classified into different types based on their permeability and thickness, such as clay layers, shale, and silt.

Aquifers and aquitards can occur in a variety of geological settings, including sedimentary basins, volcanic rocks, and fractured crystalline rocks. The type and characteristics of an aquifer or aquitard depend on various factors such as lithology, structural setting, and climatic conditions.

Aquifer Properties

Aquifer properties refer to the characteristics of subsurface geological formations that control the movement and storage of groundwater. Some important aquifer properties are:

1. Porosity: It is the volume of the void space in the soil or rock material. Porosity is expressed as a percentage of the total volume of the material. In general, the higher the porosity, the more groundwater the aquifer can hold.
2. Permeability: It is the ability of a soil or rock to transmit water. It is often measured in terms of hydraulic conductivity, which is a measure of the ease with which water can flow through the material.
3. Transmissivity: It is the product of hydraulic conductivity and the thickness of the aquifer. Transmissivity represents the rate at which water can be transmitted through the entire thickness of the aquifer.
4. Storage coefficient: It is the volume of water that an aquifer releases from storage per unit decline in hydraulic head. The storage coefficient represents the amount of water that can be stored in the aquifer.
5. Specific yield: It is the ratio of the volume of water that can be drained from an aquifer by gravity to the total volume of the aquifer. Specific yield represents the amount of water that can be drained by gravity from the pores of the rock or soil.
6. Aquitard properties: Aquitards are low-permeability layers that impede the flow of water between aquifers. Their properties, such as thickness and permeability, are important in determining the extent to which they can impede groundwater movement.

Understanding these aquifer properties is important in the assessment and management of groundwater resources.

Aquifer Testing

Aquifer testing, also known as pumping tests, are methods of evaluating the hydraulic properties of an aquifer. The purpose of an aquifer test is to obtain data on the ability of an aquifer to store and transmit water, which is essential for the management of groundwater resources.

Aquifer testing typically involves pumping water from a well at a constant rate and measuring the response of the water level in the well and the surrounding aquifer. By analyzing the changes in water levels over time, hydrogeologists can calculate various hydraulic parameters of the aquifer, such as hydraulic conductivity, transmissivity, storativity, and specific yield.

The results of aquifer testing can be used to estimate the sustainable yield of a well or a groundwater system, determine the hydraulic connection between different aquifers, assess the potential for groundwater contamination, and design and optimize groundwater remediation systems. Aquifer testing is an important tool in the management of groundwater resources and the protection of the environment.

Groundwater Flow Equations

Groundwater flow equations are mathematical models that describe the movement of groundwater in aquifers. These equations are based on principles of fluid mechanics and mass conservation, and are used to simulate and predict groundwater flow patterns in the subsurface.

The most commonly used groundwater flow equation is known as Darcy’s law, which states that the rate of groundwater flow is proportional to the hydraulic gradient, or the difference in water pressure over a given distance, and the hydraulic conductivity of the aquifer. This equation can be used to estimate the rate of groundwater flow through a porous medium such as an aquifer.

Another important groundwater flow equation is the continuity equation, which expresses the principle of mass conservation for groundwater. This equation states that the rate of change of groundwater storage in an aquifer is equal to the difference between the rate of groundwater recharge and the rate of groundwater discharge.

Numerical methods such as finite difference, finite element, and boundary element methods are commonly used to solve the groundwater flow equations and predict groundwater flow patterns in the subsurface. These methods involve dividing the aquifer into a grid of cells or elements and solving the flow equations for each cell or element. The resulting flow patterns can be used to guide groundwater management and remediation efforts, as well as to evaluate the potential impacts of human activities on groundwater resources.

Flow Nets

A flow net is a graphical representation of two-dimensional, steady-state groundwater flow through a saturated, isotropic porous medium. It is a valuable tool for visualizing and analyzing groundwater flow patterns and can be used to determine the hydraulic gradient and flux at any point in the subsurface.

A flow net consists of a series of flow lines and equipotential lines that intersect at right angles, with flow lines showing the direction of groundwater flow and equipotential lines representing lines of equal hydraulic head. The density of flow lines is proportional to the magnitude of groundwater flow, and the spacing of equipotential lines is proportional to the hydraulic gradient.

The construction of a flow net involves dividing the groundwater flow domain into a series of squares or rectangles and then determining the location of the flow lines and equipotential lines within each cell using boundary conditions and continuity equations. Flow nets can be constructed manually or using computer software, and their use can greatly enhance our understanding of groundwater flow behavior in both saturated and unsaturated porous media.

Well Hydraulics

Well hydraulics is the study of groundwater flow around wells and pumping from wells. It involves the use of mathematical equations to describe and predict the behavior of groundwater near wells, and to optimize the pumping rate and design of wells for various applications.

The hydraulic behavior of a well depends on a variety of factors, including the properties of the aquifer, the pumping rate, the geometry of the well and the surrounding aquifer, and the nature of the boundary conditions. In general, the hydraulic properties of the aquifer can be estimated using pumping tests, which involve pumping water from the well at a known rate and measuring changes in water levels in the well and surrounding monitoring wells.

The results of pumping tests can be used to estimate important well parameters, such as the transmissivity and storativity of the aquifer, as well as the hydraulic conductivity and specific storage of the aquifer material. This information can be used to optimize the design and operation of the well, to prevent problems such as well interference, drawdown, and contamination.

Well hydraulics is important for a wide range of applications, including water supply, groundwater recharge, environmental remediation, and geothermal energy extraction. The principles of well hydraulics are also important for understanding and managing the sustainable use of groundwater resources.

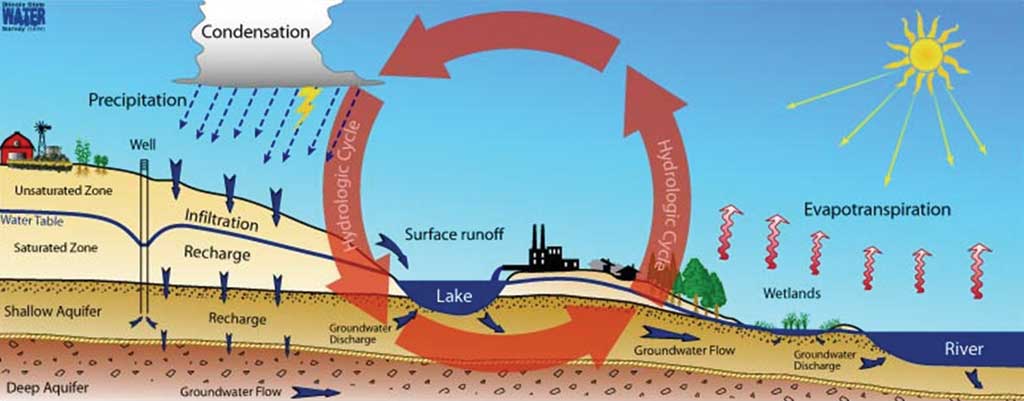

Groundwater Recharge and Discharge

Groundwater recharge and discharge are important processes that regulate the movement of water in the subsurface. Groundwater recharge refers to the process by which water enters the ground and becomes part of the groundwater system. Groundwater discharge, on the other hand, refers to the process by which water flows out of the ground and into surface water bodies such as streams, rivers, lakes, and wetlands.

Groundwater recharge can occur in several ways. In some areas, precipitation that falls on the ground infiltrates into the soil and percolates downward to the water table. In other areas, surface water such as rivers or lakes can recharge groundwater when it seeps into the ground. Groundwater recharge can also occur through artificial methods, such as recharge wells or infiltration basins.

Groundwater discharge can occur through a variety of mechanisms, such as springs, seeps, or wells. It is an important component of many surface water systems and helps to maintain the flow of streams and rivers during dry periods. In some areas, groundwater discharge is a major source of water for wetlands, which provide important habitats for wildlife.

The balance between groundwater recharge and discharge is critical for maintaining the health and sustainability of groundwater resources. Excessive pumping of groundwater can reduce the amount of recharge and cause groundwater levels to decline, leading to problems such as land subsidence, saltwater intrusion, and reduced streamflow. On the other hand, excessive groundwater recharge can cause flooding and may lead to the contamination of groundwater resources. Therefore, it is important to carefully manage both groundwater recharge and discharge to ensure the sustainable use of groundwater resources.

Groundwater Contamination

Groundwater contamination occurs when harmful substances, such as chemicals or microorganisms, enter the groundwater system and render it unfit for human use. The sources of groundwater contamination can be both natural and man-made. Natural sources of groundwater contamination include mineral deposits and microbial activity, while man-made sources include leaking underground storage tanks, industrial waste disposal, and agricultural practices.

The severity of groundwater contamination depends on the type and quantity of the contaminant, the characteristics of the aquifer, and the surrounding geology. The movement and fate of contaminants in the groundwater system can be modeled using computer simulations, which can help in the design of effective remediation strategies.

The cleanup of contaminated groundwater can be challenging and expensive. Remediation technologies can range from pump-and-treat systems, where the contaminated water is pumped to the surface and treated, to in situ treatments, where the treatment is conducted underground without removing the water. The most effective remediation strategy depends on the nature and extent of the contamination and the site-specific conditions.

Groundwater Management

Groundwater management is the process of developing and implementing strategies to optimize the use of groundwater resources while protecting them from depletion and degradation. Groundwater management typically involves a combination of techniques to manage the extraction of water, to improve recharge, and to reduce or prevent contamination. It is an important field of study for ensuring the long-term sustainability of water resources, particularly in arid and semi-arid regions where groundwater can be a critical source of water supply.

The main objectives of groundwater management include:

1. Identifying and quantifying groundwater resources: This involves mapping the distribution and characteristics of aquifers, assessing the quantity and quality of water resources, and estimating the recharge rates and the flow of groundwater.
2. Managing groundwater use: This involves managing the extraction of groundwater, allocating water resources to different users, and setting limits on the amount of water that can be pumped from an aquifer to prevent over-extraction.
3. Protecting groundwater quality: This involves monitoring and controlling sources of contamination, implementing measures to prevent contamination, and ensuring that water quality meets regulatory standards.
4. Restoring degraded aquifers: This involves restoring degraded groundwater resources, such as contaminated or over-pumped aquifers, to a sustainable condition through remediation and other management practices.

Groundwater management requires a multidisciplinary approach that involves the integration of hydrogeological, engineering, environmental, social, and economic factors. It also requires the cooperation and participation of stakeholders, including water users, regulators, and the public.

Aquifer and Aquitard Mapping and Modeling.

Aquifer and aquitard mapping and modeling involve creating a spatial representation of the distribution and properties of aquifers and aquitards in the subsurface. This can be done using various techniques, including geological mapping, geophysical surveys, and hydrogeological testing.

One common approach is to use geophysical methods to image the subsurface and identify the location and characteristics of different geological units, including aquifers and aquitards. For example, electrical resistivity surveys can help distinguish between porous and less porous formations, while seismic surveys can help identify the depth and thickness of different geological layers.

Once the subsurface is mapped, hydrogeological testing can be used to estimate aquifer properties such as permeability, storativity, and transmissivity, as well as groundwater flow rates and directions. This information can be combined with data on groundwater withdrawals and recharge rates to create a numerical model of the groundwater system, which can be used to simulate and predict the impacts of different management strategies.

Aquifer and aquitard mapping and modeling are important tools for groundwater management, as they can help identify potential sources of contamination, assess the impacts of land-use changes on groundwater resources, and optimize groundwater withdrawal rates to avoid overuse or depletion. They are also used in the design and siting of wells, as well as in the evaluation of potential sites for groundwater recharge or storage projects.
