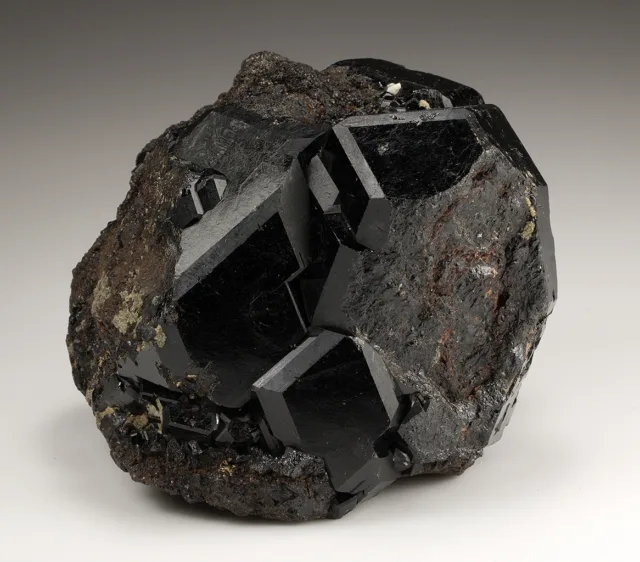

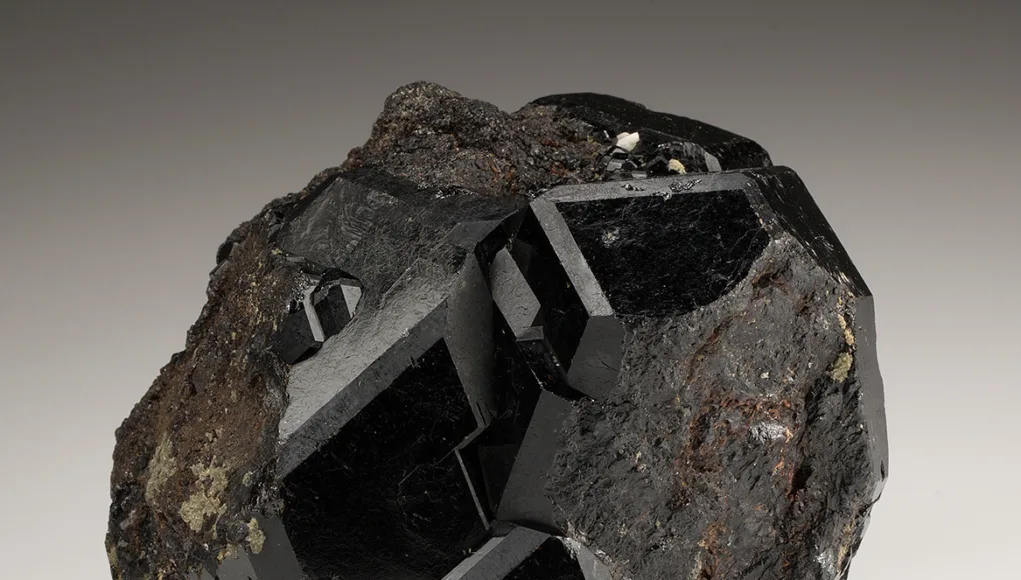

Andradite

Andradite is a mineral that belongs to the garnet group, which is a diverse family of silicate minerals. Garnets are well-known for their beautiful and varied colors, making them popular gemstones, but they are also found in various geological environments as common rock-forming minerals. Andradite, specifically, is one of the garnet species and has its own distinct characteristics.

Definition and Overview: Andradite is a calcium iron silicate mineral with the chemical formula Ca3Fe2(SiO4)3. It is named after the Brazilian mineralogist José Bonifácio de Andrade e Silva and is known for its typically deep green to black coloration, although it can also be brown, yellow, or even red in certain varieties. Andradite is often found in metamorphic rocks and skarn deposits, and it is valued not only for its aesthetic appeal but also for its industrial uses, particularly in the abrasive industry.

Chemical Composition: The chemical composition of andradite is characterized by its combination of calcium (Ca), iron (Fe), and silicon (Si) with oxygen (O). The chemical formula, Ca3Fe2(SiO4)3, can be broken down as follows:

• Ca: Calcium is the most abundant element in andradite, contributing to its structure and overall composition. Calcium ions occupy specific crystallographic sites within the mineral’s lattice.
• Fe: Iron is another essential component of andradite, and it plays a significant role in determining the mineral’s color. The presence of iron in varying concentrations gives rise to the different color varieties of andradite.
• SiO4: This represents the silicate group, which is a fundamental building block of most minerals in the Earth’s crust. Andradite contains silicon-oxygen tetrahedra (SiO4) that are interconnected to form its crystal structure.

Crystal Structure: Andradite has a complex crystal structure, like other garnet minerals. It crystallizes in the cubic system, which means that its crystals have a symmetrical, three-dimensional arrangement of atoms. The crystal structure of andradite can be described as follows:

• Andradite has a unit cell, which is the smallest repeating structural unit within its crystal lattice. The unit cell of andradite contains 24 formula units and has a cubic shape.
• Within the crystal structure, silicon-oxygen tetrahedra are interconnected, forming a three-dimensional framework.
• Calcium ions (Ca2+) and iron ions (Fe2+ and Fe3+) are located within the voids or interstitial spaces of the tetrahedral framework, bonding with the oxygen atoms.
• The arrangement of these ions and tetrahedra results in the formation of a dense, tightly packed crystal lattice.
• Andradite exhibits isotropic properties, meaning that its physical properties (such as hardness and density) are the same in all directions within the crystal.

Overall, the combination of calcium, iron, silicon, and oxygen within the unique crystal structure of andradite results in its distinctive properties and appearance, making it a fascinating mineral both for its geological significance and its use in jewelry and industry.

Types of Andradite

Andradite is a garnet mineral species that encompasses several distinct varieties, each with its own unique characteristics. The most well-known types of andradite include:

1. Demantoid: Demantoid is one of the most famous and valuable varieties of andradite due to its brilliant green color and high dispersion, which gives it a fiery appearance. It is often used as a gemstone and is highly prized by collectors. Demantoid garnets are typically green, but they can range from light green to dark green, and occasionally, they may exhibit yellowish or brownish tints. Demantoid garnets are known for their “horsetail” inclusions, which are fine, thread-like inclusions that enhance their appeal.
2. Melanite: Melanite is the black variety of andradite, characterized by its deep black color. It is often used in jewelry, especially when set against lighter gemstones or metals to create a striking contrast. Melanite garnets can also have a sub-metallic luster, adding to their aesthetic appeal.
3. Topazolite: Topazolite is a yellow to yellow-green variety of andradite garnet. It is valued for its vivid yellow color and is sometimes used as a gemstone. The name “topazolite” is derived from its resemblance to the yellow mineral topaz, but they are chemically distinct.
4. Grossular-Andradite Series: In some cases, garnets can have mixed compositions between andradite and grossular, another garnet species. These are referred to as members of the Grossular-Andradite series. The most well-known example is the variety called “Hydrogrossular,” which can range in color from green to pink depending on its chemical composition and is often used as a gemstone.
5. Rosolite: Rosolite is a pink to pinkish-red variety of andradite garnet. It is relatively rare but can be quite attractive as a gemstone due to its vibrant color.
6. Topazolite-Andradite Series: This series includes garnets with compositions intermediate between topazolite and andradite. These garnets can exhibit various shades of green and yellow, often with a combination of both colors.
7. Mandarin Garnet: Mandarin garnet is a variety of spessartine garnet but is sometimes referred to as “orange andradite” due to its vibrant orange color. While it is not a true andradite, the name association is due to its similar appearance.

It’s important to note that the color and appearance of andradite varieties can vary depending on their chemical composition, trace element impurities, and geological conditions of formation. These varieties are sought after not only for their beauty but also for their rarity and unique characteristics in the world of gemstones and mineral collecting.

Physical Properties

Andradite, like all minerals, possesses a set of physical properties that help distinguish it from other substances. Here are the key physical properties of andradite:

1. Color: Andradite occurs in a variety of colors, including green (demantoid), black (melanite), yellow to yellow-green (topazolite), pink to pinkish-red (rosolite), and more. The specific color is influenced by the presence of various trace elements, especially iron and chromium.
2. Luster: Andradite typically exhibits a vitreous to resinous luster. Demantoid garnets, in particular, are known for their high luster, which gives them a brilliant and fiery appearance.
3. Transparency: Andradite garnets can range from transparent to translucent, with some varieties being more transparent than others. Demantoid garnets, for example, are often highly transparent.
4. Hardness: Andradite has a hardness of approximately 6.5 to 7 on the Mohs scale, making it relatively durable. This property makes it suitable for use in jewelry, although it is not as hard as some other gemstones like diamonds or sapphires.
5. Cleavage: Andradite does not exhibit cleavage, meaning it lacks planes of weakness along which it can be easily split or broken. Instead, it typically shows a conchoidal fracture, which results in curved, smooth surfaces when broken.
6. Specific Gravity: The specific gravity of andradite ranges from about 3.8 to 4.2, which is relatively high. This property can help distinguish it from other minerals with similar appearances.
7. Crystal System: Andradite crystallizes in the cubic crystal system, resulting in well-formed, symmetrical crystals with a three-dimensional arrangement of atoms.
8. Dispersion: Demantoid garnets, a variety of andradite, are known for their high dispersion, which means they can break light into its spectral colors more effectively than many other gemstones. This dispersion gives them a fiery and colorful appearance when properly cut.
9. Inclusions: Inclusions, such as “horsetail” inclusions in demantoid garnets, can be characteristic features of andradite varieties and may enhance their visual appeal and value.
10. Streak: The streak of andradite is usually white to grayish-white, which can be observed by rubbing the mineral across an unglazed porcelain plate.
11. Magnetism: Andradite garnets are not typically magnetic, as they do not contain magnetic elements in significant quantities.
12. Fluorescence: Some andradite garnets can exhibit fluorescence when exposed to ultraviolet (UV) light. The specific fluorescence characteristics can vary depending on the variety and impurities present.

These physical properties, along with chemical composition and crystal structure, are important for identifying and evaluating andradite and its various varieties, especially in the context of gemology and mineralogy.

Geological Formation and Occurrence

Andradite garnets, like other garnet species, form under specific geological conditions and can be found in various geological settings. Their formation and occurrence are influenced by a combination of factors, including temperature, pressure, chemical composition of the host rocks, and the presence of certain elements. Here’s an overview of the geological formation and occurrence of andradite:

Formation: Andradite garnets primarily form in metamorphic and metasomatic environments, where rocks undergo significant changes in temperature and pressure. The key processes involved in their formation include:

1. Contact Metamorphism: Andradite garnets can form when pre-existing rocks are subjected to high-temperature conditions due to the intrusion of molten magma. During contact metamorphism, the host rocks, often limestone or dolomite, react with the hot magma, leading to the formation of andradite garnets along with other minerals. This is particularly true for the formation of demantoid garnets.
2. Regional Metamorphism: In regions where there is widespread geological activity, such as mountain-building events, regional metamorphism can occur. This process involves the transformation of rocks over large areas due to increased pressure and temperature. Andradite garnets can crystallize in these metamorphic rocks, especially in schists and gneisses.
3. Hydrothermal Processes: Some andradite garnets may form through hydrothermal activity, where hot water rich in dissolved minerals moves through rock fractures and cavities. This process can result in the formation of andradite-rich veins or deposits.
4. Skarn Deposits: Andradite garnets are commonly associated with skarn deposits. Skarns are contact metamorphic zones where hydrothermal fluids interact with carbonate-rich rocks (limestone or dolomite) or silicate-rich rocks. Andradite garnets, along with other minerals like pyroxenes and vesuvianite, can crystallize in these settings.

Occurrence: Andradite garnets can be found in various geological locations worldwide. Some of the notable occurrences include:

1. Russia: Russia, particularly the Ural Mountains region, is known for producing high-quality demantoid garnets, which are prized for their vibrant green color and brilliance. Other andradite varieties like topazolite can also be found in Russian deposits.
2. Italy: Italy, specifically the Val Malenco region in Lombardy, is famous for its green demantoid garnets. These Italian demantoids are renowned for their unique inclusions, including the distinctive “horsetail” inclusions.
3. Madagascar: Madagascar is a significant source of various andradite garnets, including demantoid and topazolite. These garnets are known for their rich green and yellow-green colors.
4. Namibia: Namibia has also produced notable demantoid garnets in recent years, and they are highly regarded in the gemstone market.
5. Mexico: Mexican andradite garnets, often referred to as “Mexican demantoid,” are known for their vibrant green hues.
6. Various Skarn Deposits: Andradite garnets are commonly associated with skarn deposits in regions with suitable geological conditions, such as parts of the United States, China, and Greece.

Andradite garnets can also be found in smaller quantities in other locations worldwide. Their occurrence is closely linked to the geological history and mineralogical characteristics of the host rocks and the specific geological processes that have shaped these environments over time.

Notable Andradite Deposits

Andradite garnets are found in several notable deposits around the world, and they vary in terms of the quality and quantity of gem-quality material produced. Here are some of the notable andradite garnet deposits:

1. Ural Mountains, Russia: The Ural Mountains in Russia are renowned for producing some of the finest and most coveted demantoid garnets. The Russian demantoids are known for their intense green color and high dispersion, giving them a fiery appearance. The mining district of the Ural Mountains, particularly the Ekaterinburg region, has been a historic source of demantoid garnets. These gems are often characterized by their “horsetail” inclusions, which are highly sought after by collectors.
2. Val Malenco, Italy: Val Malenco, located in the Lombardy region of Italy, is famous for its green demantoid garnets. Italian demantoids are highly regarded for their color and are known for their unique inclusions, including “horsetail” inclusions. The deposits in Val Malenco have been known since the late 19th century and continue to produce high-quality demantoids.
3. Madagascar: Madagascar is a significant source of various andradite garnets, including demantoid and topazolite. These garnets are known for their rich green and yellow-green colors. Madagascar’s gem deposits have gained prominence in recent years, and they contribute to the availability of andradite garnets in the market.
4. Namibia: Namibia has become known for producing fine-quality demantoid garnets. Namibian demantoids often have a vivid green color and can rival Russian demantoids in terms of quality. These garnets are primarily sourced from the Erongo and Kunene regions of Namibia.
5. Mexico: Mexican andradite garnets, often referred to as “Mexican demantoid,” are notable for their bright green color. Deposits in the Mexican states of Durango and Chihuahua have yielded these garnets. While they may not have the same historic significance as Russian or Italian demantoids, Mexican demantoids are valued for their color.
6. Various Skarn Deposits: Andradite garnets are commonly associated with skarn deposits, which occur in various parts of the world. Skarn deposits with andradite garnets can be found in regions like the United States (e.g., California), China, Greece, and other locations with suitable geological conditions.
7. United States: California has been a notable source of andradite garnets, particularly in Riverside County and the Sierra Nevada Mountains. These garnets are often found in skarn deposits associated with the contact metamorphism of limestone and other rocks.
8. China: China has various andradite deposits, and it is known for producing andradite garnets in different colors, including green and yellow. The province of Inner Mongolia has been a notable source of andradite garnets.

These are just a few of the notable andradite garnet deposits worldwide. The quality and availability of andradite garnets can vary from one deposit to another, making each source unique in terms of the gemstones it produces.

Gemstone Value Factors

The value of a gemstone is determined by a combination of factors, including its rarity, quality, and desirability in the market. Gemologists and jewelers consider several key factors when assessing the value of a gemstone:

1. Color: Color is often the most important factor influencing a gemstone’s value. The hue, tone, and saturation of a gem’s color are carefully evaluated. For some gemstones like sapphires and rubies, certain colors are more desirable, such as a deep and vivid blue for sapphires or a pure red for rubies. For others like diamonds, colorlessness is preferred.
2. Clarity: Clarity refers to the absence of internal or external flaws, known as inclusions and blemishes, respectively. Gemstones with fewer and less visible inclusions are generally more valuable. However, some gemstones, like emeralds, are often accepted with some visible inclusions if they do not significantly affect the overall appearance.
3. Carat Weight: Carat weight measures the size of the gemstone. In general, larger gemstones are rarer and therefore more valuable per carat. However, the increase in value is not always linear, as larger gemstones can also be more susceptible to inclusions and other quality issues.
4. Cut: The cut of a gemstone refers to how well it has been faceted and shaped. A well-cut gemstone will exhibit brilliance, sparkle, and overall beauty. The cut also influences the gem’s proportions, symmetry, and overall finish. The quality of the cut significantly affects a gemstone’s value.
5. Origin: The geographical origin of a gemstone can play a crucial role in determining its value. Certain regions are known for producing gemstones with unique qualities and characteristics. For example, Burmese rubies and Kashmir sapphires are highly regarded for their origins and associated qualities.
6. Treatment: Gemstones may undergo treatments to enhance their color and clarity. While some treatments are widely accepted and expected, others can significantly affect a gem’s value. Full disclosure of any treatments is essential for ethical gem trade practices.
7. Rarity: The overall rarity of a gemstone in the market can strongly influence its value. Gems that are scarce and difficult to obtain due to limited production or natural factors command higher prices. This factor is closely tied to a gem’s desirability.
8. Demand and Market Trends: The demand for a particular gemstone at a given time can greatly impact its value. Trends in the jewelry and fashion industries, as well as shifts in consumer preferences, can cause fluctuations in gemstone values.
9. Branding and Reputation: The reputation of a particular gemstone or the brand associated with it can also affect its value. Well-known and respected gemstone brands often command higher prices.
10. Certification: Independent gemological laboratories issue certifications for gemstones, providing information about their characteristics. A certified gemstone, especially one with a reputable grading report, may be more valuable because it offers assurance of quality and authenticity.
11. Setting and Design: The way a gemstone is set in jewelry and the overall design of the piece can influence its value. Fine craftsmanship and unique designs may add value beyond the intrinsic worth of the gemstone.
12. Historical and Cultural Significance: Some gemstones have historical or cultural significance, which can enhance their value. Famous gemstones with a storied past or those associated with historical figures often command high prices at auctions.

When assessing the value of a gemstone, it is essential to consider these factors in combination rather than in isolation, as they can interact and influence each other. Ultimately, a gemstone’s value is determined by a combination of objective criteria, market dynamics, and subjective factors related to individual preferences.
