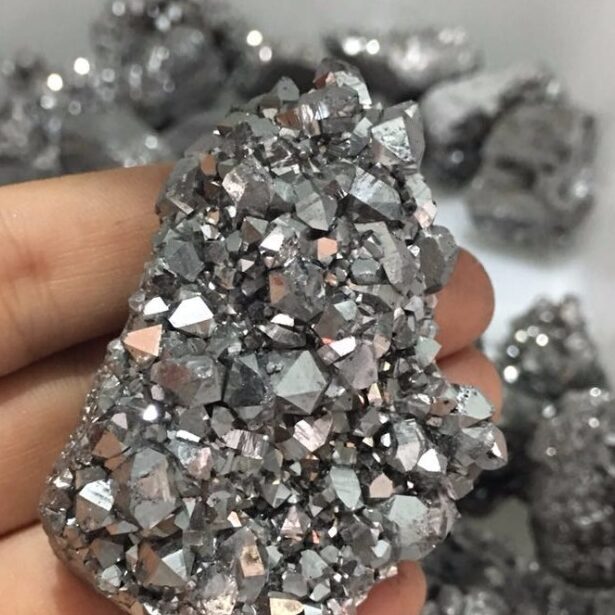

Titanium is a chemical element with the symbol Ti and atomic number 22. It is a lustrous, silver-grey transition metal known for its high strength, low density, and excellent corrosion resistance. Titanium is widely used in various industrial applications due to its unique properties. Some of the basic properties of titanium include:
- Physical Properties:
- Density: Titanium has a relatively low density of 4.5 g/cm³, which makes it lightweight compared to many other metals.
- Melting Point: Titanium has a high melting point of 1668°C (3034°F), which allows it to retain its structural integrity at high temperatures.
- Boiling Point: Titanium has a boiling point of 3287°C (5949°F), which is relatively high compared to many other elements.
- Chemical Properties:
- Corrosion Resistance: Titanium is highly resistant to corrosion in various environments, including seawater, acidic and alkaline solutions, and chlorine, which makes it suitable for applications in marine, aerospace, and chemical industries.
- Oxidation Resistance: Titanium forms a protective oxide layer on its surface, which gives it excellent resistance to oxidation and prevents further corrosion.
- Reactivity: Titanium is a relatively reactive metal and readily forms compounds with oxygen, nitrogen, and other elements.
- Mechanical Properties:
- Strength: Titanium has a high strength-to-weight ratio, which makes it stronger than many other metals while being lightweight. It has excellent tensile strength, fatigue strength, and toughness.
- Ductility: Titanium is moderately ductile, meaning it can be drawn into wires or hammered into thin sheets without breaking.
- Hardness: Titanium is a relatively hard metal with a Mohs hardness of 6, which makes it resistant to wear and abrasion.
- Other Properties:
- Biocompatibility: Titanium is biocompatible, meaning it is not toxic to living tissues and is widely used in medical and dental implants.
- Thermal Conductivity: Titanium has a low thermal conductivity, which means it is a poor conductor of heat compared to many other metals.
In summary, titanium is a lightweight, strong, corrosion-resistant, and biocompatible metal with a wide range of industrial applications due to its unique properties.
Occurrence and distribution of titanium ore in nature
Titanium is the 9th most abundant element in the Earth’s crust, occurring primarily in the form of minerals known as titanium ores. The most common titanium minerals are ilmenite (FeTiO3), rutile (TiO2), and leucoxene (a weathered form of ilmenite). These minerals are widely distributed in nature, with varying concentrations in different types of rocks and geological formations.
The occurrence and distribution of titanium ores in nature can vary depending on factors such as geological processes, weathering, and geological history. Here are some general patterns of titanium ore occurrence:
- Igneous Rocks: Titanium is commonly found in igneous rocks such as anorthosite, gabbro, and peridotite. Ilmenite and rutile are often associated with magnetite and occur as heavy mineral accumulations in placer deposits, which are concentrations of minerals formed by the natural process of erosion and sedimentation.
- Beach Sands: Titanium-bearing minerals like ilmenite and rutile are often found in beach sands, particularly in areas with high-energy coastal environments. These minerals are resistant to weathering and are often concentrated in heavy mineral sands, which can be extracted through dredging or mining.
- Metamorphic Rocks: Titanium minerals can also be found in metamorphic rocks such as schist and gneiss. In some cases, ilmenite may be formed as a result of the metamorphism of iron-rich sediments.
- Sedimentary Rocks: Although relatively rare, titanium minerals can also occur in sedimentary rocks such as sandstone, shale, and limestone. These occurrences are usually associated with other minerals and are not as economically significant as igneous or beach sand deposits.
- Secondary Deposits: Titanium minerals can also be found in secondary deposits, which are formed by weathering and erosion of primary deposits. For example, ilmenite can be weathered into leucoxene, a secondary titanium mineral that is often found in residual soils and sediments.
Titanium ores are mined and processed to extract titanium metal, titanium dioxide (TiO2) pigment, and other titanium compounds, which are used in a wide range of industrial applications, including aerospace, automotive, medical, and consumer products. The distribution of titanium ore deposits around the world is not uniform, with major producing countries including Australia, South Africa, Canada, China, India, and Norway. However, smaller deposits are also found in many other countries, contributing to the global supply of titanium resources.
Historical and industrial significance of titanium
Titanium has significant historical and industrial significance due to its unique properties and diverse range of applications. Here are some key highlights:
- Discovery: Titanium was first discovered in 1791 by British clergyman and amateur chemist William Gregor. It was later independently rediscovered and named by German chemist Martin Heinrich Klaproth in 1795.
- Rarity and early use: Titanium was initially considered a rare and exotic element, and its use was limited to small-scale applications. It was primarily used as a curiosity in early 19th-century chemistry experiments and was not widely used in industry until the mid-20th century.
- Aerospace and Defense: Titanium’s high strength, low density, and excellent corrosion resistance make it ideal for aerospace and defense applications. It is used in aircraft components, such as engines, airframes, landing gear, and missiles, due to its ability to withstand extreme temperatures, resist fatigue and wear, and reduce weight in critical structures.
- Chemical and Petrochemical Industry: Titanium is used in the chemical and petrochemical industry due to its outstanding resistance to corrosion, making it suitable for equipment used in harsh environments involving strong acids, alkalis, and chlorides. It is used in heat exchangers, reactors, valves, and piping systems.
- Medical and Dental Implants: Titanium’s biocompatibility and ability to fuse with bone (osseointegration) make it widely used in medical and dental implants, such as joint replacements, dental implants, and prosthetic devices. It has revolutionized the field of orthopedic and dental surgery, providing improved quality of life for millions of people.
- Consumer Goods: Titanium is used in consumer goods such as sports equipment, eyeglass frames, watches, and jewelry due to its durability, corrosion resistance, and attractive appearance. It is also used in automotive components, marine equipment, and other industrial applications where its unique properties offer advantages.
- Energy and Desalination: Titanium is used in energy production and desalination due to its high corrosion resistance and ability to withstand high temperatures. It is used in power plants, offshore oil and gas platforms, and desalination plants for its durability and performance in harsh environments.
- Pigments and Paints: Titanium dioxide (TiO2), a common compound derived from titanium, is a widely used white pigment in paints, coatings, plastics, and other applications due to its high opacity, brightness, and UV resistance.
Overall, titanium’s unique properties and versatility have made it a highly valuable and widely used material in various industrial applications, contributing to technological advancements and improving many aspects of modern life.
Types of titanium ore minerals
There are several types of titanium ores that are commonly found in nature. The most important and commonly occurring titanium ores are:

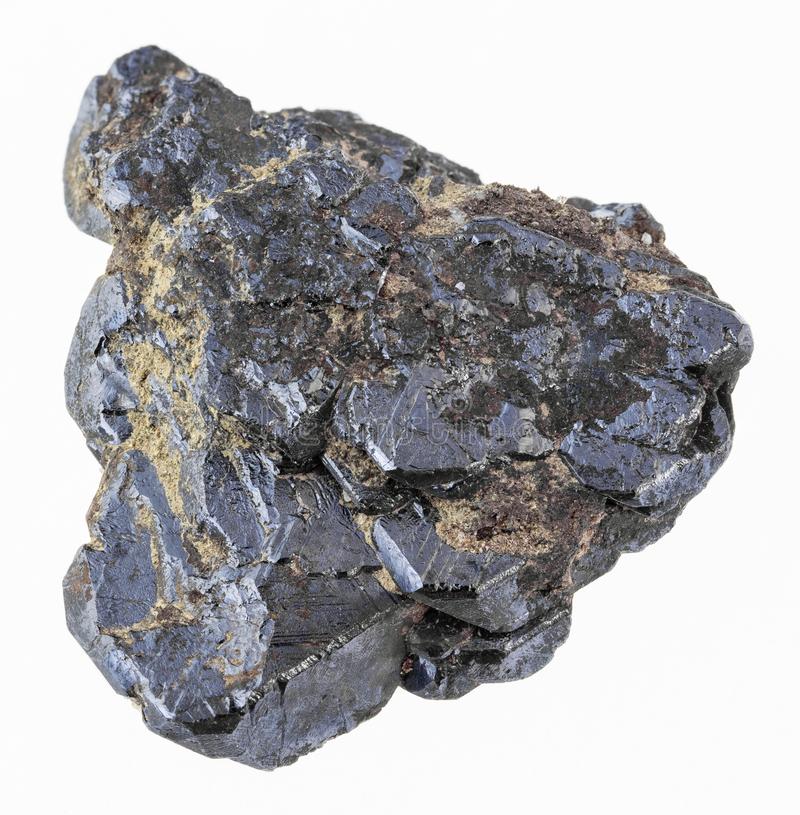

- Ilmenite (FeTiO3): Ilmenite is the most abundant titanium ore and is often found in igneous rocks and beach sands. It contains varying amounts of iron and titanium, and is typically black or dark brown in color. Ilmenite is the main source of titanium used for industrial purposes, including the production of titanium metal, titanium dioxide pigment, and other titanium compounds.
- Rutile (TiO2): Rutile is another important titanium ore that is commonly found in igneous rocks and beach sands. It is a hard, reddish-brown to black mineral with a high titanium content. Rutile is an important source of titanium for the production of titanium metal, titanium dioxide pigment, and other titanium compounds. Rutile is also used as a gemstone in jewelry.
- Leucoxene: Leucoxene is a weathered form of ilmenite and is often found as a secondary titanium ore. It is a grayish-white to brown mineral that is typically softer than ilmenite and rutile. Leucoxene is used as a source of titanium for the production of titanium dioxide pigment and other titanium compounds.
- Anorthosite: Anorthosite is a type of igneous rock that is rich in calcium and aluminum, and can contain significant amounts of titanium. Anorthosite deposits can be a potential source of titanium, although the titanium content can vary widely depending on the specific geological formation.
- Perovskite: Perovskite is a rare titanium ore that is found in some igneous rocks and has the chemical formula CaTiO3. It is typically black or brown in color and can contain significant amounts of titanium. Perovskite is not a major source of titanium compared to ilmenite and rutile, but it has potential as a future source of titanium due to its high titanium content.
These are some of the main types of titanium ores that are commonly found in nature. The specific composition, abundance, and distribution of titanium ores can vary depending on geological factors, and different types of titanium ores may be processed differently to extract titanium and produce various titanium products for industrial applications.
Geological occurrences and distribution of different types of titanium ores
Titanium ores are typically found in a variety of geological settings around the world. Here are some general occurrences and distribution of different types of titanium ores:
- Ilmenite (FeTiO3): Ilmenite is commonly found in igneous rocks such as gabbro, norite, and anorthosite, as well as in beach sands and sedimentary deposits. Major ilmenite deposits are found in countries such as Australia, South Africa, Canada, China, India, Norway, and the United States. Australia and South Africa are among the largest producers of ilmenite.
- Rutile (TiO2): Rutile is also commonly found in igneous rocks, particularly in eclogites and granulites. It can also be found in beach sands and sedimentary deposits. Major rutile deposits are found in countries such as Australia, South Africa, India, Ukraine, and Sierra Leone. Australia and South Africa are major producers of rutile.
- Leucoxene: Leucoxene is typically found as a secondary titanium mineral formed from the weathering of ilmenite or other titanium minerals. It is often found in beach sands and sedimentary deposits. Leucoxene deposits can be found in countries such as Australia, South Africa, India, and the United States.
- Anorthosite: Anorthosite is a type of igneous rock that can contain significant amounts of titanium, typically in the form of ilmenite. Anorthosite deposits can be found in various parts of the world, including countries such as Norway, Canada, Greenland, and the United States.
- Perovskite: Perovskite is a relatively rare titanium ore that is typically found in alkaline igneous rocks and carbonatites. Major perovskite deposits are found in countries such as Russia, Canada, and Norway.
It’s important to note that the occurrence and distribution of titanium ores can vary depending on various geological factors such as rock types, mineral associations, and tectonic settings. Additionally, new deposits may be discovered, and the production of titanium ores may change over time due to economic, technological, and environmental factors.
Mineralogical characteristics and identification methods
Mineralogical characteristics and identification methods are important for determining the type and quality of titanium ores. Here are some key mineralogical characteristics and identification methods for titanium ores:
- Mineralogical characteristics of titanium ores: Titanium ores, such as ilmenite, rutile, leucoxene, anorthosite, and perovskite, typically exhibit specific mineralogical characteristics that can be used for identification. These can include color, luster, hardness, crystal form, cleavage, and streak. For example, ilmenite is typically black or dark brown in color, has a metallic luster, and exhibits a submetallic to metallic streak. Rutile, on the other hand, is typically reddish-brown to black in color, has a metallic to adamantine luster, and exhibits a reddish-brown streak.
- Optical microscopy: Optical microscopy is a common method used for identifying and characterizing titanium ores. Thin sections of rock or mineral samples can be prepared and examined under a petrographic microscope to observe the mineralogical characteristics, such as crystal form, cleavage, and optical properties, of titanium ores. Polarized light microscopy can also be used to determine the birefringence and extinction angles of minerals, which can aid in identification.
- X-ray diffraction (XRD): X-ray diffraction is a technique used to determine the crystal structure and mineral composition of titanium ores. By subjecting a powdered sample of a titanium ore to X-ray radiation, the diffraction pattern obtained can be compared to reference patterns of known minerals to identify the presence of specific minerals, such as ilmenite, rutile, and perovskite.
- Electron microscopy: Electron microscopy, including scanning electron microscopy (SEM) and transmission electron microscopy (TEM), can provide detailed information about the morphology, mineralogy, and microstructure of titanium ores at the microscopic scale. This can be useful for identifying and characterizing the mineralogical features of titanium ores, such as crystal morphology, grain boundaries, and mineral associations.
- Chemical analysis: Chemical analysis methods, such as X-ray fluorescence (XRF) and inductively coupled plasma mass spectrometry (ICP-MS), can be used to determine the elemental composition of titanium ores. This can help identify the presence and relative abundance of specific elements, such as titanium, iron, and other trace elements, which can aid in identifying different types of titanium ores.
- Spectroscopic methods: Spectroscopic methods, such as infrared spectroscopy (IR) and Raman spectroscopy, can be used to analyze the molecular and structural characteristics of titanium ores. These methods can provide information about the chemical bonds, functional groups, and mineralogical composition of titanium ores, which can aid in identification.
These are some common mineralogical characteristics and identification methods used for titanium ores. It’s important to note that a combination of different methods is often used to accurately identify and characterize titanium ores, and the expertise of a trained mineralogist or geologist may be required for accurate identification.
Extraction and processing of titanium ore
The extraction and processing of titanium ore involves several steps, which may vary depending on the type of titanium ore being processed, the location of the ore deposit, and the desired end products. Here is a general overview of the extraction and processing of titanium ore:
- Mining: Titanium ore is typically mined using open-pit or underground mining methods, depending on the location and characteristics of the ore deposit. The ore is extracted using heavy machinery and transported to the surface for further processing.
- Beneficiation: The mined titanium ore may contain impurities and must undergo beneficiation to remove these impurities and upgrade the ore to a higher grade. Beneficiation techniques can include crushing, grinding, screening, magnetic separation, and flotation, depending on the mineralogy and characteristics of the ore. The goal of beneficiation is to increase the titanium content and reduce impurities to achieve a suitable feedstock for further processing.
- Roasting and reduction: After beneficiation, the titanium ore may undergo roasting and reduction processes to convert the titanium minerals into a more suitable form for further processing. Roasting involves heating the ore to high temperatures in the presence of oxygen or air to remove volatile impurities, while reduction involves treating the roasted ore with reducing agents, such as coal or natural gas, to convert the titanium minerals into metallic titanium or titanium dioxide (TiO2).
- Chlorination or carbochlorination: The titanium minerals can be further processed using chlorination or carbochlorination methods to produce titanium tetrachloride (TiCl4), which is a key intermediate in the production of titanium metal and other titanium compounds. Chlorination involves reacting the titanium ore with chlorine gas, while carbochlorination involves reacting the titanium ore with chlorine gas and carbon or carbon-containing materials.
- Purification: Titanium tetrachloride produced from chlorination or carbochlorination methods may undergo additional purification steps to remove impurities, such as iron, magnesium, and other trace elements, to obtain high-purity titanium tetrachloride for further processing.
- Reduction to metallic titanium: Titanium tetrachloride can be reduced to metallic titanium using various methods, such as magnesium reduction, sodium reduction, or electrolysis. These methods involve reacting titanium tetrachloride with a reducing agent, such as magnesium or sodium, at high temperatures to produce metallic titanium.
- Further processing: Metallic titanium can be further processed into various forms, such as ingots, sheets, powder, or alloys, depending on the desired end applications. Additional processing steps may include melting, casting, forging, rolling, and machining to produce titanium products with specific properties and shapes for various industrial applications.
It’s important to note that the extraction and processing of titanium ore can be complex and may require specialized equipment, technologies, and expertise. The specific processes and techniques used can vary depending on the type of titanium ore being processed, the location of the ore deposit, and the desired end products. Additionally, environmental and sustainability considerations, such as waste management, energy consumption, and emissions, are important factors in modern titanium ore extraction and processing operations.
Chemical composition and properties of titanium ore
The chemical composition and properties of titanium ore can vary depending on the type of titanium ore, as there are different minerals that can contain titanium. However, some common chemical composition and properties of titanium ore are as follows:
- Chemical Composition:
- Titanium (Ti): Titanium is the main element in titanium ore and is typically present as titanium dioxide (TiO2) in various mineral forms, such as ilmenite, rutile, and leucoxene. The titanium content in titanium ore can range from less than 30% to over 60%, depending on the type of ore.
- Impurities: Titanium ore may contain impurities, such as iron, magnesium, silica, alumina, and other elements, depending on the specific mineralogy and characteristics of the ore deposit.
- Physical Properties:
- Color: Titanium ore minerals can have various colors, ranging from black to brown, red, yellow, or even colorless, depending on the type of mineral.
- Hardness: The hardness of titanium ore minerals can vary depending on the type of mineral, but generally ranges from 5 to 6.5 on the Mohs scale of mineral hardness.
- Density: The density of titanium ore minerals can range from about 3.5 to 5 g/cm^3, depending on the type of mineral.
- Melting Point: The melting point of titanium ore minerals can vary depending on the type of mineral, but generally ranges from about 1,100 to 1,800 degrees Celsius.
- Chemical Properties:
- Reactivity: Titanium ore minerals are generally stable and unreactive under normal atmospheric conditions. However, they can be chemically processed to extract titanium using various methods, such as chlorination, carbochlorination, or reduction, as described in the previous answer.
- Oxidation: Titanium ore minerals are typically oxide minerals, with titanium existing in the form of TiO2. Titanium dioxide is a stable compound that is resistant to oxidation under normal atmospheric conditions.
- Chemical Reactivity: Titanium dioxide can react with certain chemicals under specific conditions to produce various titanium compounds, such as titanium tetrachloride (TiCl4), which is an important intermediate in the production of titanium metal and other titanium compounds.
It’s important to note that the specific chemical composition and properties of titanium ore can vary depending on the type of ore deposit, mineralogy, and processing methods used. Additionally, different types of titanium ores may have varying economic value and suitability for different end applications, which can impact their significance in the titanium industry.
Uses and applications of titanium
Titanium has a wide range of uses and applications due to its unique properties, which include its high strength-to-weight ratio, excellent corrosion resistance, and biocompatibility. Some of the main uses and applications of titanium are:
- Aerospace and Aviation: Titanium is widely used in aerospace and aviation industries due to its high strength-to-weight ratio. It is used in aircraft components such as airframes, engine components, landing gears, and fasteners. Titanium’s lightweight nature helps to reduce fuel consumption and increase efficiency in aerospace applications.
- Industrial: Titanium is used in a variety of industrial applications due to its excellent corrosion resistance. It is used in chemical processing equipment, desalination plants, power generation equipment, and offshore oil and gas platforms. Titanium’s corrosion resistance allows it to withstand harsh environments and corrosive chemicals, making it highly suitable for such applications.
- Medical and Dental: Titanium is widely used in medical and dental applications due to its biocompatibility, meaning it is well tolerated by the human body. It is used in surgical implants, such as joint replacements, dental implants, and pacemaker cases, due to its ability to integrate with human bone and tissue without causing adverse reactions.
- Sports and Recreation: Titanium is used in sports and recreational equipment due to its high strength-to-weight ratio and durability. It is used in sports equipment such as golf clubs, tennis rackets, bicycle frames, and diving knives, where lightweight and strong materials are desired.
- Consumer Goods: Titanium is used in consumer goods such as watches, jewelry, eyeglass frames, and mobile phones due to its attractive appearance, durability, and resistance to corrosion and tarnish.
- Military and Defense: Titanium is used in military and defense applications due to its high strength-to-weight ratio, corrosion resistance, and ability to withstand extreme conditions. It is used in armor plating, military aircraft components, naval vessels, and missile parts.
- Automotive: Titanium is used in high-performance automotive applications, such as exhaust systems, suspension components, and engine valves, due to its lightweight and high-temperature resistance properties, which can improve fuel efficiency and performance.
- Sports Medicine: Titanium is used in sports medicine for implants, prosthetics, and orthopedic devices due to its biocompatibility, strength, and durability.
- Electronics: Titanium is used in electronics, particularly in the aerospace and defense industries, due to its high strength, lightweight nature, and resistance to extreme temperatures.
- Other Applications: Titanium is also used in various other applications, such as in the production of pigments for paints, coatings, and plastics, as a catalyst in chemical reactions, in the aerospace industry for rocket components, and in the production of high-performance sports equipment.
The unique combination of properties possessed by titanium makes it a valuable material in a wide range of applications across various industries. Its high strength, low density, excellent corrosion resistance, biocompatibility, and other properties make it a preferred choice in many demanding and specialized applications.
Summary of key points
- Titanium is a transition metal with the atomic number 22 and chemical symbol Ti.
- Titanium occurs naturally in the Earth’s crust as titanium ores, with the most common ores being ilmenite and rutile.
- Titanium has a high strength-to-weight ratio, excellent corrosion resistance, and biocompatibility, making it suitable for a wide range of applications.
- Titanium has historical and industrial significance, with major advancements in extraction and processing techniques leading to increased availability and use of titanium in various industries.
- Titanium ores are typically found in igneous rocks, sediments, and metamorphic rocks, and their distribution varies globally.
- Titanium ores are identified and characterized based on their mineralogical characteristics, such as mineral composition, crystal structure, and physical properties, which can be determined using various analytical methods.
- Extraction and processing of titanium ore involve several steps, including mining, beneficiation, smelting, and refining, to obtain titanium metal or titanium dioxide.
- Titanium finds applications in aerospace and aviation, industrial, medical and dental, sports and recreation, consumer goods, military and defense, automotive, sports medicine, electronics, and other industries.
- Titanium is used in a wide range of products, including aircraft components, chemical processing equipment, surgical implants, sports equipment, jewelry, military applications, automotive parts, electronics, and more.
- The unique properties of titanium make it a valuable and versatile material with diverse applications across various industries.
- ASTM International. (2018). Standard Specification for Titanium and Titanium Alloy Strip, Sheet, and Plate. ASTM B265-18.
- Heinrichs, J. (2012). Titanium: Industrial Base, Price Trends, and Technology Initiatives. U.S. Geological Survey, Open-File Report 2012-1121.
- Khan, M. I., & Hashmi, M. S. J. (Eds.). (2019). Titanium and Titanium Alloys: Fundamentals and Applications. Wiley.
- Wang, S., & Li, Z. (2018). Titanium Extraction and Refining: A Review. Mineral Processing and Extractive Metallurgy Review, 39(6), 365-393.
- Lutjering, G., & Williams, J. C. (2007). Titanium: A Technical Guide. Springer.
