Tungsten (W) Ore

Tungsten, abbreviated as W on the periodic table, is a rare and valuable metal known for its exceptional physical and chemical properties. Tungsten ore refers to the natural rock or mineral containing tungsten in its compound form. Tungsten is commonly found in nature in the form of tungstates, such as scheelite (CaWO4) and wolframite [(Fe,Mn)WO4]. It is an important industrial metal widely used in various applications due to its high melting point, excellent thermal and electrical conductivity, and remarkable strength and hardness.

Tungsten has a long history of usage, dating back to the 18th century. It was initially used in the production of steel alloys, but its usage has expanded over time to include a wide range of applications. Tungsten is commonly used in the manufacturing of electrical wires, light bulbs, and electrical contacts due to its high melting point and electrical conductivity. It is also extensively used in the aerospace and defense industries for making high-speed steel tools, missile components, and armor-piercing projectiles due to its exceptional strength and durability.

Tungsten ore is typically extracted through underground or open-pit mining methods, depending on the location and quality of the deposit. After extraction, the ore is processed through various techniques, including crushing, grinding, and flotation, to separate the tungsten mineral from other impurities. The extracted tungsten concentrate is then further processed into tungsten oxide, which is a primary intermediate product used in the production of tungsten metal and its alloys.

Tungsten is considered a critical and strategic metal due to its limited availability and its importance in many modern technologies. As such, tungsten mining and processing are subject to strict environmental regulations and sustainability practices to ensure responsible extraction and usage. The global production of tungsten ore is relatively small compared to other metals, with China being the largest producer followed by Russia, Canada, and Bolivia.

In conclusion, tungsten ore is a valuable resource that is mined and processed to extract tungsten, a metal with exceptional physical and chemical properties. Tungsten has a wide range of industrial applications and is critical to many modern technologies. Responsible mining and processing practices are important to ensure the sustainability and availability of this valuable metal in the future.

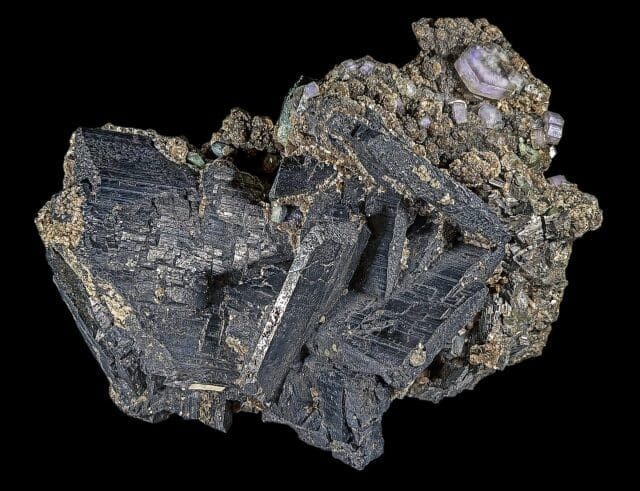

Wolframite

Geology and Mineralogy

Tungsten ore is typically found in association with other minerals and rocks in various geological settings. The geology and mineralogy of tungsten ore deposits can vary depending on the type of deposit, which can be classified into three main types: skarn, vein/stockwork, and porphyry.

  1. Skarn deposits: Skarn deposits are formed when hydrothermal fluids rich in tungsten, among other minerals, interact with carbonate-rich rocks, such as limestone or marble. Tungsten-bearing minerals, such as scheelite or wolframite, can precipitate in the skarn rocks, forming ore bodies. Skarn deposits are typically characterized by contact metamorphism zones, where the hydrothermal fluids have altered the surrounding rocks and formed distinct mineral assemblages.
  2. Vein/stockwork deposits: Vein/stockwork deposits are formed by the intrusion of tungsten-rich fluids into fractures or faults in the Earth’s crust. These fluids can deposit tungsten-bearing minerals, forming vein-like structures or a network of mineralized fractures known as stockwork. Vein/stockwork deposits are typically found in granite or other intrusive rocks, and can also contain other minerals, such as quartz, molybdenite, and fluorite, in addition to tungsten minerals.
  3. Porphyry deposits: Porphyry deposits are formed by the intrusion of tungsten-rich fluids into large igneous bodies, known as porphyry, which are typically associated with magmatic arcs or subduction zones. These fluids can deposit tungsten-bearing minerals, along with other minerals, such as copper, gold, and molybdenum, in the porphyry rocks. Porphyry deposits are characterized by a disseminated mineralization pattern, where the ore minerals are spread throughout the rock rather than concentrated in veins.

The most common tungsten minerals found in tungsten ore deposits are scheelite (CaWO4) and wolframite [(Fe,Mn)WO4]. Scheelite is a calcium tungstate mineral and is usually found in skarn and vein/stockwork deposits, while wolframite is an iron-manganese tungstate mineral and is commonly found in vein/stockwork and porphyry deposits. Other tungsten minerals that may occur in smaller quantities include ferberite, huebnerite, and tungstite.

The mineralogy of tungsten ore deposits is an important factor in determining the processing methods used to extract tungsten from the ore. Different minerals may require different beneficiation techniques, such as gravity separation, flotation, and magnetic separation, to concentrate the tungsten minerals and remove impurities.

Overall, the geology and mineralogy of tungsten ore deposits can vary widely depending on the deposit type and location, and understanding these factors is crucial for the exploration, extraction, and processing of tungsten ores.

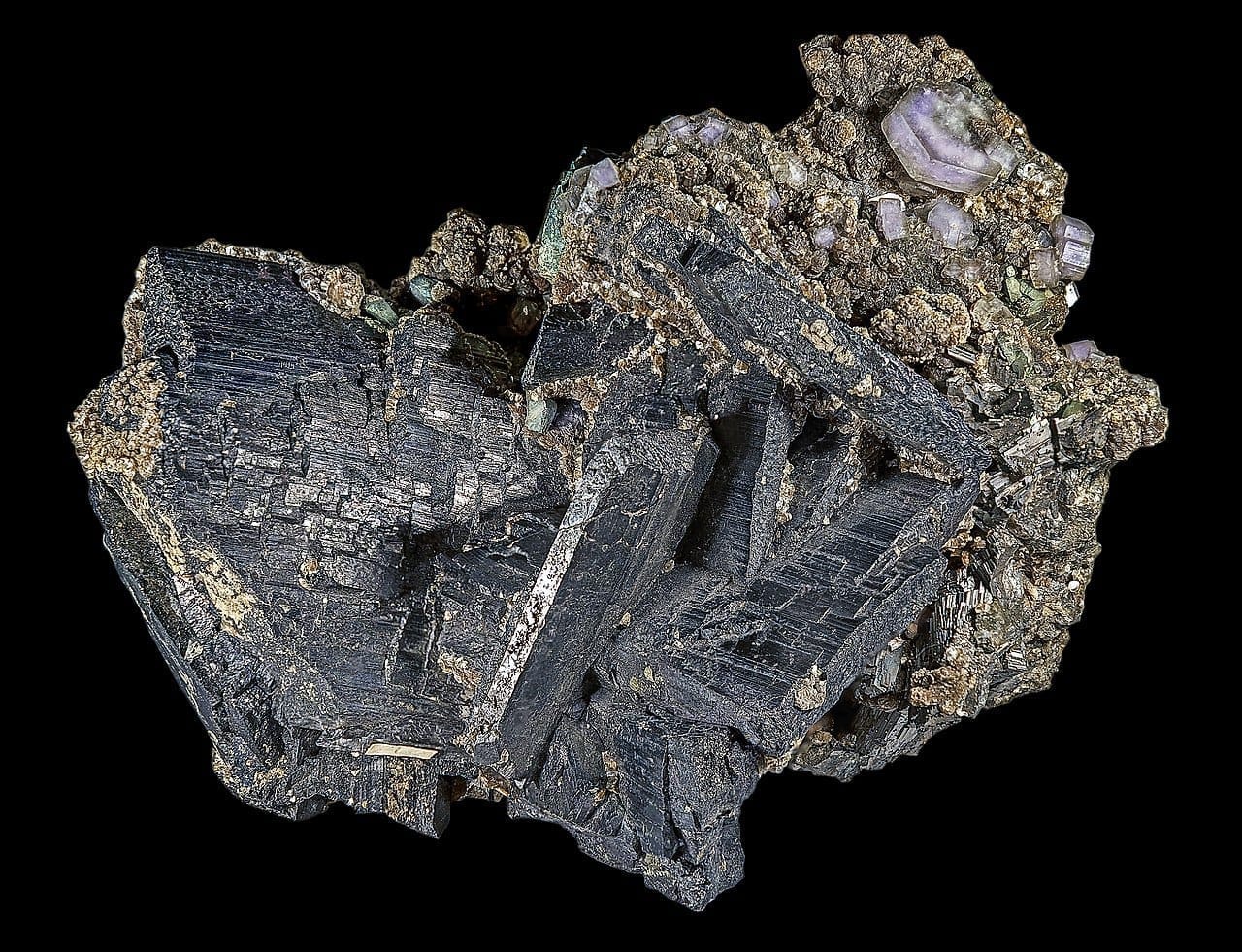

Wolframite

Common Tungsten (W) Ore Minerals

Tungsten (W) ore deposits can contain a variety of tungsten-bearing minerals, but the most common ones are scheelite (CaWO4) and wolframite [(Fe,Mn)WO4]. These minerals are the primary sources of tungsten production and are typically found in different types of deposits and geological settings.

  1. Scheelite (CaWO4): Scheelite is a calcium tungstate mineral and is the most common tungsten mineral. It typically forms in hydrothermal deposits, such as skarns and vein/stockwork deposits. Scheelite is usually colorless to light yellow, but can also be found in shades of brown, orange, or green. It has a relatively high specific gravity, ranging from 5.9 to 6.1, and is relatively easy to separate from other minerals using gravity separation techniques.
  2. Wolframite [(Fe,Mn)WO4]: Wolframite is an iron-manganese tungstate mineral and is another important source of tungsten. It typically forms in hydrothermal vein/stockwork deposits and can also occur in porphyry deposits. Wolframite is usually dark brown to black in color and has a higher specific gravity, ranging from 7.1 to 7.5, making it relatively heavy. Wolframite can have different chemical compositions, with varying ratios of iron (Fe) and manganese (Mn), and is classified into two main types based on their Fe:Mn ratio: ferberite, which has a higher Fe content, and huebnerite, which has a higher Mn content.
  3. Ferberite [FeWO4]: Ferberite is an iron tungstate mineral and is a type of wolframite with a higher Fe content. It typically occurs in vein/stockwork deposits and is dark brown to black in color. Ferberite has a high specific gravity, ranging from 7.4 to 7.6, and is often associated with other minerals, such as quartz, mica, and fluorite.
  4. Huebnerite [MnWO4]: Huebnerite is a manganese tungstate mineral and is another type of wolframite with a higher Mn content. It typically occurs in vein/stockwork deposits and is dark brown to black in color. Huebnerite has a high specific gravity, ranging from 7.1 to 7.3, and is often associated with other minerals, such as quartz, mica, and fluorite.

These are the most common tungsten minerals found in tungsten ore deposits, but other tungsten minerals, such as tungstite (WO3•H2O) and stolzite (PbWO4), may also occur in smaller quantities. The specific mineralogy of a tungsten deposit can vary depending on the geological setting, and understanding the composition and characteristics of these minerals is important for the extraction and processing of tungsten ores.

Scheelite

Occurrence and Distribution

Tungsten (W) ore deposits are found in various regions around the world, with some countries being major producers of tungsten. The occurrence and distribution of tungsten deposits are closely related to the geology and tectonic history of a region. Tungsten deposits are typically associated with specific types of rocks and geological settings, and the primary ore-forming processes include magmatic, hydrothermal, and metamorphic processes.

  1. Magmatic deposits: Tungsten can be concentrated in magmatic intrusions, such as granites and pegmatites, which are formed from the cooling and crystallization of molten rock. Tungsten-rich magmas can crystallize to form tungsten-bearing minerals, such as scheelite and wolframite, which can accumulate in specific zones within the intrusions. Magmatic tungsten deposits are relatively rare, but can be high-grade and economically significant.
  2. Hydrothermal deposits: Hydrothermal processes involving hot water and fluids can result in the deposition of tungsten minerals in veins and stockwork systems. These hydrothermal deposits can occur in various rock types, including sedimentary rocks, metamorphic rocks, and igneous rocks. Hydrothermal tungsten deposits are typically associated with specific types of mineralizing systems, such as skarns, greisens, and quartz veins, and are often formed in conjunction with other metal ores, such as tin, copper, and molybdenum.
  3. Metamorphic deposits: Tungsten can also be concentrated during metamorphic processes, which involve the alteration of existing rocks due to heat, pressure, and chemical reactions. Metamorphic tungsten deposits can form in regions with high-grade metamorphism, such as in the cores of mountain ranges or in contact zones between different rock types. Metamorphic tungsten deposits are typically associated with specific types of metamorphic rocks, such as schists and gneisses, and can be found in both high-grade and low-grade metamorphic terrains.

The distribution of tungsten deposits is widespread, with major producing countries including China, Russia, Canada, Bolivia, and Portugal. China is the largest producer of tungsten, accounting for a significant portion of global tungsten production. Other countries, such as Russia and Canada, also have significant tungsten resources and production. Tungsten deposits can also be found in smaller quantities in other regions around the world.

It’s important to note that tungsten deposits can vary greatly in terms of their grade, mineralogy, and economic viability. Some deposits may have high-grade ore that can be easily extracted and processed, while others may have lower-grade ore that requires more complex and costly extraction methods. The occurrence and distribution of tungsten deposits are constantly evolving as new deposits are discovered and technologies for extraction and processing continue to advance.

Ferberite

Extraction and Processing

The extraction and processing of tungsten ore involve several stages, including mining, ore beneficiation, and metallurgical processing. The specific methods used can vary depending on the type and grade of the tungsten ore, as well as the economic and environmental considerations of the deposit.

  1. Mining: Tungsten ore is typically extracted through underground mining methods, as tungsten deposits are often found at considerable depths below the surface. This involves the excavation of tunnels and shafts to access the ore body. Depending on the deposit characteristics, mining methods may include open stope mining, cut-and-fill mining, or block caving. Ore is typically transported to the surface for further processing.
  2. Ore beneficiation: Once the ore is brought to the surface, it is usually subjected to beneficiation, which involves removing impurities and upgrading the ore to a higher grade. Common beneficiation methods for tungsten ore include gravity separation, magnetic separation, and flotation. Gravity separation methods, such as jigging and shaking tables, are commonly used for coarse-grained tungsten ore, while magnetic separation can be used to remove magnetic minerals from the ore. Flotation is often employed to separate fine-grained tungsten ore from gangue minerals.
  3. Metallurgical processing: After beneficiation, the tungsten ore is further processed through metallurgical methods to obtain tungsten concentrate, which is the final product used for further downstream processing. The most common method for producing tungsten concentrate is roasting and leaching. Roasting involves heating the concentrate to high temperatures to convert tungsten minerals into tungstic acid, which can be leached with water or other chemicals to dissolve the soluble tungstic acid. The resulting solution can be further processed to produce ammonium paratungstate (APT) or tungsten trioxide (WO3), which are the main commercial products of tungsten.
  4. Other processing methods: Depending on the specific requirements and applications, additional processing methods may be employed to further refine tungsten products. For example, APT can be converted into tungsten metal through a process called reduction, where hydrogen or carbon is used to reduce the APT to tungsten powder. Tungsten powder can be further processed through powder metallurgy techniques to produce various tungsten products, such as tungsten alloys, tungsten carbide, and tungsten filaments.

It’s important to note that the extraction and processing of tungsten ore can have environmental and social impacts, such as land disturbance, water pollution, and occupational health and safety issues. Proper environmental and social management practices, including compliance with regulations, reclamation and rehabilitation of mined areas, and responsible waste disposal, should be implemented to minimize these impacts and ensure sustainable extraction and processing of tungsten ore.

Huebnerite with quartz

Properties and Characteristics

Tungsten (W) is a rare and dense metallic element known for its exceptional properties and characteristics. Some of the key properties of tungsten include:

  1. High melting point: Tungsten has the highest melting point of all known elements, with a melting point of 3,422 degrees Celsius (6,192 degrees Fahrenheit). This makes it ideal for high-temperature applications, such as in the aerospace and defense industries, where materials need to withstand extreme heat.
  2. High density: Tungsten is one of the densest elements, with a density of 19.3 grams per cubic centimeter. Its high density gives it excellent mechanical strength and toughness, making it suitable for use in heavy machinery and equipment.
  3. Hardness and wear resistance: Tungsten is a very hard and wear-resistant material, with a hardness of 7.5 to 9.5 on the Mohs scale, depending on the form and composition. Tungsten is commonly used in cutting tools, abrasives, and wear-resistant coatings due to its high hardness and wear resistance.
  4. Excellent electrical conductivity: Tungsten has a high electrical conductivity, making it suitable for electrical and electronic applications. Tungsten is often used in electrical wires, filaments for incandescent lamps, and in the production of electrical contacts and electrodes.
  5. Good thermal conductivity: Tungsten has a high thermal conductivity, making it an excellent material for conducting heat. Tungsten is used in high-temperature applications, such as in the production of heat sinks for electronic devices and in the aerospace industry.
  6. Chemical resistance: Tungsten is highly resistant to chemical corrosion, making it suitable for use in corrosive environments. Tungsten is often used in chemical and petrochemical industries, as well as in the production of electrical wires and components that need to withstand harsh chemical environments.
  7. Low coefficient of thermal expansion: Tungsten has a low coefficient of thermal expansion, meaning it expands very little when heated. This property makes tungsten suitable for use in applications where dimensional stability is critical, such as in precision instruments and tooling.
  8. Radiation shielding properties: Tungsten has excellent radiation shielding properties due to its high density and high atomic number. Tungsten is used in applications where radiation shielding is required, such as in medical and nuclear industries.

Overall, the unique combination of high melting point, high density, hardness, excellent electrical and thermal conductivity, chemical resistance, and radiation shielding properties make tungsten a highly valuable and versatile material in various industrial and technological applications.

Uses and Applications

Tungsten (W) has a wide range of uses and applications across various industries due to its exceptional properties and characteristics. Some of the common uses and applications of tungsten include:

  1. Electrical and electronic applications: Tungsten is used in electrical wires, filaments for incandescent lamps, and in the production of electrical contacts and electrodes due to its high electrical conductivity and resistance to high temperatures.
  2. Cutting tools and abrasives: Tungsten is used in the production of cutting tools, such as drills, saws, and grinding wheels, due to its high hardness and wear resistance. Tungsten carbide, a compound of tungsten, is also widely used in cutting tools and abrasives.
  3. Aerospace and defense applications: Tungsten is used in the aerospace and defense industries for various applications, such as in the production of high-temperature materials, rocket nozzles, and armor-piercing projectiles, due to its high melting point, density, and hardness.
  4. Filament in lighting applications: Tungsten is used as a filament in incandescent lamps and halogen lamps due to its high melting point and ability to withstand high temperatures without melting or evaporation.
  5. Heat sinks and high-temperature applications: Tungsten is used in the production of heat sinks for electronic devices, as well as in high-temperature applications, such as in furnaces, heating elements, and thermocouples, due to its high melting point, thermal conductivity, and stability at high temperatures.
  6. Automotive and aerospace components: Tungsten is used in the production of various automotive and aerospace components, such as crankshafts, ballast weights, and balancing weights, due to its high density and mechanical properties.
  7. Medical applications: Tungsten is used in medical applications, such as in radiation shielding for X-ray and CT scan equipment, as well as in the production of implants and prosthetics, due to its high density, radiation shielding properties, and biocompatibility.
  8. Chemical and petrochemical industries: Tungsten is used in the chemical and petrochemical industries for applications such as catalysts, electrodes, and high-temperature materials, due to its chemical resistance, high melting point, and thermal stability.
  9. Sports equipment: Tungsten is used in the production of darts, golf club weights, and fishing weights due to its high density and small size, which allows for precise weight distribution in these applications.
  10. Military applications: Tungsten is used in military applications, such as in armor-piercing projectiles and kinetic energy penetrators, due to its high density and hardness.

These are just some of the many uses and applications of tungsten in various industries. Tungsten’s unique combination of properties, including its high melting point, density, hardness, electrical and thermal conductivity, chemical resistance, and radiation shielding properties, make it a critical and versatile material in many technological and industrial applications.

Summarize the key points

  • Tungsten (W) is used in various industries due to its exceptional properties, including high melting point, density, hardness, electrical and thermal conductivity, and chemical resistance.
  • Common uses of tungsten include electrical and electronic applications, cutting tools and abrasives, aerospace and defense applications, filament in lighting, heat sinks and high-temperature applications, automotive and aerospace components, medical applications, chemical and petrochemical industries, sports equipment, and military applications.
  • Tungsten is used in electrical wires, filaments for incandescent lamps, and production of electrical contacts and electrodes.
  • Tungsten is used in cutting tools, such as drills and grinding wheels, due to its high hardness and wear resistance.
  • Tungsten is used in aerospace and defense industries for high-temperature materials, rocket nozzles, and armor-piercing projectiles.
  • Tungsten is used as a filament in incandescent lamps and halogen lamps due to its high melting point and ability to withstand high temperatures.
  • Tungsten is used in heat sinks for electronic devices and high-temperature applications, such as furnaces and heating elements.
  • Tungsten is used in automotive and aerospace components, medical applications, chemical and petrochemical industries, sports equipment, and military applications.
  • Tungsten’s unique properties make it a critical and versatile material in many technological and industrial applications.
