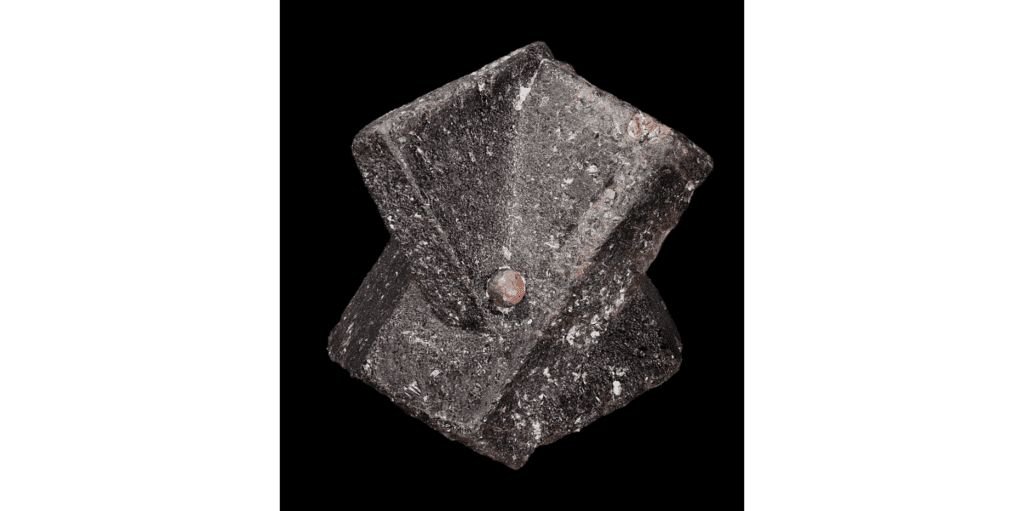

Staurolite

Staurolite is a mineral that is known for its unique crystal shape and its association with metamorphic rocks. The name “staurolite” comes from the Greek words “stauros” meaning “cross” and “lithos” meaning “stone,” referring to the characteristic cruciform or cross-shaped crystals that can be found in some specimens. These distinctive crystals have made staurolite a popular mineral among collectors and gem enthusiasts.

Staurolite is typically found in metamorphic environments, where it forms as a result of high temperatures and pressures acting on pre-existing rocks. It commonly occurs in schists, gneisses, and other metamorphic rocks, often alongside minerals such as garnet, mica, and quartz. Staurolite is particularly associated with medium to high-grade metamorphic rocks, indicating significant geological processes and the conditions under which these rocks formed.

Staurolite

One of the remarkable features of staurolite is its twinning behavior, which gives rise to its characteristic cross-shaped crystals. These twins occur when two staurolite crystals intersect at a specific angle, forming a right-angle cross. This unique feature has led to staurolite being regarded as a symbol of good luck and protection in folklore and mythology.

Staurolite exhibits a range of colors, including brown, reddish-brown, black, and occasionally green. It has a resinous to vitreous luster and a Mohs hardness of 7 to 7.5, making it a relatively durable mineral. Its specific gravity typically falls between 3.6 and 3.8, and it is generally opaque to translucent.

Beyond its aesthetic appeal, staurolite also has practical applications. Due to its hardness and durability, it is used as an abrasive material in sandblasting and grinding applications. Staurolite’s gem-quality specimens are also used in jewelry, although they are relatively rare compared to other gemstones.

The scientific study of staurolite has contributed to our understanding of metamorphic processes and petrology. Its presence and distribution can provide valuable insights into the conditions and history of the rocks in which it is found. Researchers also examine staurolite’s crystallography and physical properties to better comprehend its formation and behavior under different geological conditions.

As with many minerals, there are concerns about the conservation and preservation of staurolite. Sustainable practices and regulations are necessary to ensure responsible mining and minimize environmental impacts associated with its extraction.

In summary, staurolite is a fascinating mineral with its distinctive cross-shaped crystals and association with metamorphic rocks. Its aesthetic appeal, cultural significance, and scientific importance make it an intriguing subject of study and interest for both enthusiasts and researchers.

Formation and occurrence

Staurolite typically forms in metamorphic environments as a result of the transformation of pre-existing rocks under high temperatures and pressures. It is commonly found in regions where regional metamorphism has occurred, such as mountain ranges or areas affected by tectonic activity.

The formation of staurolite is closely linked to the metamorphic grade, which refers to the intensity of the metamorphic process. It is most commonly associated with medium to high-grade metamorphism, where temperatures and pressures are relatively high. Staurolite’s occurrence is often an indicator of the degree of metamorphism that has taken place in a particular area.

Staurolite is commonly found in a variety of metamorphic rocks, including schists, gneisses, and mica schists. It can also occur in quartzite and other rock types that have undergone significant metamorphic alteration. The presence of staurolite alongside other minerals such as garnet, mica, and quartz is not uncommon.

Geographically, staurolite is distributed worldwide, although certain regions are known for their notable staurolite occurrences. Some prominent locations include:

  1. United States: Staurolite is found in various states, including Georgia, Virginia, North Carolina, and New Mexico. The Blue Ridge Mountains and the Appalachian Mountains are well-known for their staurolite deposits.
  2. Europe: Staurolite can be found in several European countries, including France, Spain, Switzerland, Norway, and the Czech Republic.
  3. Brazil: Brazil is known for its staurolite occurrences, particularly in the Minas Gerais region.
  4. Russia: Staurolite is found in the Ural Mountains of Russia, where it is associated with other metamorphic minerals.
  5. Australia: Staurolite can be found in certain regions of Australia, including New South Wales and Victoria.

It’s important to note that staurolite’s occurrence and abundance can vary within these regions, and not all locations may have significant deposits of this mineral. Geological surveys and exploration efforts are often conducted to identify and assess staurolite occurrences for potential mining or scientific purposes.

Overall, staurolite’s formation and occurrence are closely tied to metamorphic processes, and its distribution can provide valuable insights into the geological history and conditions of the rocks in which it is found.

Physical Properties of Staurolite

Staurolite exhibits several physical properties that help characterize and identify the mineral. These properties include its crystal structure, color, luster, hardness, cleavage, specific gravity, and transparency. Let’s explore each of these properties:

Crystal Structure and Symmetry: Staurolite has a complex crystal structure classified as monoclinic. It crystallizes in the space group C2/m, meaning it has a twofold rotation axis perpendicular to a mirror plane. The crystal structure of staurolite consists of interconnected chains of aluminum and iron-oxygen polyhedra.

Color: Staurolite commonly exhibits a brown to reddish-brown color. It can also occur in black, yellow, or green varieties, although these are relatively rare. The specific color of staurolite can vary depending on impurities and the local mineral composition.

Luster: Staurolite has a resinous to vitreous luster, meaning it has a somewhat glossy or glassy appearance when polished or observed under proper lighting conditions.

Hardness: Staurolite has a hardness of 7 to 7.5 on the Mohs scale. This places it relatively high on the scale, indicating that it is resistant to scratching. It can scratch glass and is harder than many common minerals.

Cleavage: Staurolite exhibits poor to indistinct cleavage. Its cleavage surfaces are usually not well-developed, and the mineral tends to fracture irregularly instead of breaking along distinct planes.

Specific Gravity: The specific gravity of staurolite typically ranges between 3.6 and 3.8. This means that it is denser than many common minerals and has a noticeable weight in comparison.

Transparency: Staurolite is generally opaque to translucent, meaning that light does not pass through it easily. In thin sections, under transmitted light, staurolite may exhibit some degree of translucency.

Other properties: Staurolite has a distinctive cruciform or cross-shaped habit due to its twinning behavior, where two crystals intersect at a specific angle. This feature is one of the most recognizable aspects of staurolite and makes it easily distinguishable from other minerals.

It is important to note that the physical properties of staurolite can vary slightly depending on the specific locality and the presence of impurities or associated minerals. Therefore, it is essential to consider a combination of properties when identifying and characterizing staurolite specimens.

Chemical Properties and Composition

Chemically, staurolite is a complex mineral belonging to the silicate group. Its chemical formula is often written as (Fe,Mg,Zn)_2Al_9Si_4O_23(O,OH), indicating the combination of various elements within its structure. The specific composition of staurolite can vary depending on the presence of impurities and substitutions within its crystal lattice.

The primary elements in staurolite are aluminum (Al), silicon (Si), and oxygen (O). Aluminum occupies the central position in the staurolite structure, surrounded by oxygen and silicon tetrahedra. Iron (Fe), magnesium (Mg), and zinc (Zn) are the most common elements that substitute for some of the aluminum in staurolite, giving rise to variations in its chemical composition.

Staurolite can also contain trace amounts of other elements, including calcium (Ca), manganese (Mn), titanium (Ti), and potassium (K), among others. The presence of these elements in staurolite can affect its physical and optical properties, as well as its coloration.

The ratio of aluminum to iron/magnesium/zinc substitution in staurolite can impact its stability and properties. The relative abundance of these elements can vary, leading to variations in staurolite’s characteristics, such as color and hardness. The exact chemical composition of staurolite can be determined through chemical analysis methods, such as X-ray fluorescence (XRF) or electron microprobe analysis (EMPA).

It is worth noting that staurolite’s chemical properties and composition contribute to its formation and stability under specific metamorphic conditions. The interplay between different elements and their substitutions within the crystal lattice influences staurolite’s physical and chemical behavior within the metamorphic rock environment.

Optical Properties

Staurolite exhibits several optical properties that can help in its identification and characterization. These properties include its refractive index, birefringence, pleochroism, and optic sign.

Refractive Index: The refractive index of staurolite ranges from 1.734 to 1.757, depending on the wavelength of light used for measurement. This value indicates how much light bends as it enters and exits the staurolite crystal. The refractive index of staurolite is relatively high compared to most other minerals.

Birefringence: Staurolite is strongly birefringent, which means it can split a light beam into two separate rays with different refractive indices. The amount of birefringence is dependent on the orientation of the crystal and the wavelength of light. The birefringence of staurolite ranges from 0.023 to 0.035, which is relatively high compared to most other minerals.

Pleochroism: Staurolite is typically strongly pleochroic, meaning that it can show different colors when viewed from different directions. In thin sections, staurolite can exhibit varying shades of yellow, brown, and reddish-brown depending on the polarization direction of light. This property is dependent on the orientation of the crystal and the presence of impurities.

Optic Sign: Staurolite is optically positive, meaning that the higher refractive index is associated with the ordinary ray, and the lower refractive index is associated with the extraordinary ray. This property can be determined using a polarizing microscope and helps to differentiate staurolite from other minerals.

Other optical properties of staurolite include its high relief, meaning that it appears raised above the surrounding material when viewed under a microscope. It also exhibits a characteristic cross-shaped extinction pattern under polarized light due to its twinning behavior.

Overall, the optical properties of staurolite are critical in identifying and characterizing the mineral in thin sections under a polarizing microscope. The combination of its physical and optical properties can provide important information about the staurolite’s origin and metamorphic history.

Geological Significance of Staurolite

Staurolite holds significant geological importance, primarily in the field of metamorphic petrology. Its presence and distribution provide valuable insights into the conditions and processes that occurred during the formation of metamorphic rocks. Here are some key aspects of the geological significance of staurolite:

Metamorphic Grade Indicator: Staurolite is often used as an indicator mineral for metamorphic grade. The presence of staurolite in a metamorphic rock can provide information about the temperature and pressure conditions under which the rock formed. Staurolite is typically associated with medium to high-grade metamorphism, indicating significant geological processes and the intensity of metamorphic conditions.

Metamorphic Zones: The occurrence and distribution of staurolite within a region can help define metamorphic zones or belts. By studying the distribution patterns of staurolite and its relationship with other minerals, geologists can delineate different metamorphic zones and understand the progressive changes in temperature and pressure during metamorphism.

Metamorphic Facies: Staurolite is associated with specific metamorphic facies, which represent characteristic mineral assemblages formed under specific temperature and pressure conditions. Its presence or absence, along with other minerals, can be used to identify and characterize different metamorphic facies and infer the geological history of the rocks.

Tectonic Processes: The presence of staurolite in certain rock formations can provide insights into the tectonic processes that affected the region. Staurolite-bearing rocks are often associated with regional metamorphism, which can be related to mountain-building events, subduction zones, or other tectonic activities. By studying staurolite and its associated minerals, geologists can unravel the tectonic history of a particular area.

Metamorphic Reactions: Staurolite is involved in several metamorphic reactions, contributing to the transformation of minerals and the development of new mineral assemblages during metamorphism. By understanding the reactions in which staurolite participates, geologists can reconstruct the chemical changes and conditions that occurred during the rock’s metamorphic evolution.

Geochronology: Staurolite can be used for geochronological studies to determine the age of metamorphic events. By analyzing the isotopic composition of minerals associated with staurolite or using dating techniques such as radiometric dating, geologists can establish the timing of metamorphic processes and better understand the geological history of the rocks.

Overall, staurolite’s presence, distribution, and association with specific metamorphic conditions provide important information for reconstructing the geological evolution of a region. It aids in understanding the processes that have shaped the Earth’s crust and the dynamic interactions between heat, pressure, and tectonic forces that lead to the formation of metamorphic rocks.

Identification and Classification of Staurolite

Identification and classification of staurolite involve examining its physical and optical properties, as well as its crystal structure. Here are the key steps and criteria used in the identification and classification of staurolite:

  1. Crystal Habit: Staurolite is characterized by its distinctive cruciform or cross-shaped crystal habit. The presence of twinned crystals forming a right-angle cross is a primary feature used to identify staurolite specimens.
  2. Color: Staurolite commonly exhibits a brown to reddish-brown color. However, it can also occur in black, yellow, or green varieties. The color can vary due to impurities and the presence of other associated minerals.
  3. Luster: Staurolite typically has a resinous to vitreous luster. When polished or observed under appropriate lighting conditions, it exhibits a glossy or glassy appearance.
  4. Hardness: Staurolite has a hardness of 7 to 7.5 on the Mohs scale. It can scratch glass and is harder than many common minerals. Testing its hardness against known reference minerals can help confirm its identity.
  5. Cleavage: Staurolite exhibits poor to indistinct cleavage. Its cleavage surfaces are usually not well-developed, and the mineral tends to fracture irregularly instead of breaking along distinct planes.
  6. Refractive Index: The refractive index of staurolite, measured using a refractometer, ranges from 1.734 to 1.757. This property helps differentiate staurolite from other minerals.
  7. Birefringence and Polarization: Staurolite is strongly birefringent, splitting light into two rays with different refractive indices. This property can be observed under a polarizing microscope, where staurolite exhibits interference colors due to its optical properties.
  8. Pleochroism: Staurolite typically shows strong pleochroism, displaying different colors when viewed from different crystallographic directions. The presence of pleochroism can aid in the identification of staurolite.
  9. Optic Sign: Staurolite is optically positive, meaning that the higher refractive index is associated with the ordinary ray, and the lower refractive index is associated with the extraordinary ray. Determining the optic sign using a polarizing microscope can help distinguish staurolite from minerals with different optic signs.
  10. Chemical Composition: Chemical analysis techniques such as X-ray fluorescence (XRF) or electron microprobe analysis (EMPA) can provide detailed information about the chemical composition of staurolite, confirming its identity and revealing the presence of impurities and element substitutions.

By considering these characteristics and comparing them to known properties of staurolite, geologists and mineralogists can confidently identify and classify staurolite specimens. Additionally, staurolite is classified within the silicate mineral group and falls under the category of aluminosilicates. Its unique crystal structure and physical properties distinguish it from other minerals and contribute to its classification.

Distribution and Localities

Staurolite is distributed worldwide, although its occurrence can vary in terms of abundance and quality. Here are some notable localities and regions where staurolite is known to occur:

  1. United States: Staurolite is found in various states across the United States. Notable occurrences include the Blue Ridge Mountains and the Appalachian Mountains, particularly in Georgia, Virginia, North Carolina, and New Mexico.
  2. Europe: Staurolite can be found in several European countries. In France, it occurs in the Central Massif and the Pyrenees. Spain has staurolite occurrences in Galicia and the Pyrenees. Switzerland is known for staurolite in the Gotthard Massif. Other European countries with staurolite deposits include Norway, Sweden, Austria, and the Czech Republic.
  3. Brazil: Brazil is renowned for its staurolite occurrences, particularly in the state of Minas Gerais. The region of Capelinha is especially famous for its high-quality staurolite crystals.
  4. Russia: Staurolite is found in the Ural Mountains of Russia, particularly in the Ilmen Mountains. The Ural region is known for its staurolite crystals associated with other metamorphic minerals.
  5. Australia: Staurolite occurs in various regions of Australia, including New South Wales and Victoria. It is found in association with other metamorphic minerals in the metamorphic terranes of the region.
  6. Other Localities: Staurolite can also be found in other countries and regions around the world. These include Canada (particularly in Quebec), South Africa, China, India, Sri Lanka, Madagascar, and New Zealand.

It’s important to note that staurolite occurrences can vary within these regions, with some locations having more abundant and higher-quality specimens compared to others. Geological surveys, mineral exploration efforts, and local knowledge play crucial roles in identifying and documenting staurolite localities.

Staurolite is often sought after by mineral collectors and lapidaries due to its unique crystal shape and aesthetic appeal. It is also of scientific interest to geologists studying metamorphic processes and regional geological history.

Industrial and Practical Uses of Staurolite

Staurolite has several industrial and practical uses due to its unique properties. Here are some of its notable applications:

  1. Abrasives: Staurolite is utilized as an abrasive material in various applications. Its hardness and durability make it suitable for use in sandpaper, grinding wheels, and abrasive blasting. Staurolite abrasives are particularly effective for removing rust, paint, and scale from surfaces.
  2. Foundry Sands: Staurolite, with its high melting point and thermal stability, is used as a component in foundry sands. It helps improve the refractory properties and thermal resistance of molds and cores in metal casting processes. Staurolite foundry sands offer good dimensional stability and resistance to thermal shock.
  3. Mineral Specimens: Staurolite’s distinctive crystal habit and aesthetic appeal make it a sought-after mineral specimen among collectors and enthusiasts. High-quality staurolite crystals are valued for their unique cross-shaped twinning and can be used for display, decoration, or jewelry purposes.
  4. Geological and Metamorphic Studies: Staurolite’s presence and distribution within metamorphic rocks provide valuable information for geological studies and understanding the processes of regional metamorphism. Analyzing staurolite and its associated minerals helps reconstruct the geological history of a region and provides insights into the conditions under which rocks were formed.
  5. Spiritual and New Age Practices: Staurolite is sometimes associated with spiritual and healing practices. Its cross-shaped twinning is believed to symbolize balance, harmony, and protection. Staurolite crystals are used by some individuals for meditation, energy healing, and spiritual grounding.

It’s important to note that while staurolite has practical applications, its availability and suitability for specific uses can vary. The commercial use of staurolite is primarily focused on abrasives and foundry sands due to its durability and thermal properties. The use of staurolite in spiritual or metaphysical practices is subjective and based on personal beliefs.

As with any industrial or practical application, proper handling, safety precautions, and adherence to relevant regulations and guidelines are essential when working with staurolite or its derived products.

Staurolite in Gemology

Staurolite, with its unique crystal habit and attractive colors, has gained some recognition in the field of gemology. However, it is important to note that staurolite is not widely used as a gemstone due to its relatively low hardness and lack of widespread availability in gem-quality specimens. Here are some aspects of staurolite in gemology:

  1. Rarity and Availability: Gem-quality staurolite is considered rare, and large, clean, facetable crystals are not commonly found. This limited availability contributes to its relative obscurity in the gemstone market.
  2. Hardness and Durability: Staurolite has a hardness of 7 to 7.5 on the Mohs scale, which makes it moderately durable for everyday wear. However, its relatively low hardness compared to popular gemstones like diamonds, sapphires, and rubies makes it more prone to scratches and abrasions.
  3. Color and Optical Properties: Staurolite commonly exhibits brown to reddish-brown colors, although other hues such as black, yellow, or green may also occur. Its pleochroism, which causes different colors to be seen from different crystallographic directions, adds to its visual appeal. Staurolite also has a moderate to high refractive index, contributing to its brilliance when properly cut and polished.
  4. Cutting and Jewelry Use: Gem-quality staurolite, when available, is usually faceted to enhance its beauty and show off its unique crystal shape. It is occasionally used in pendants, earrings, and other jewelry pieces. However, due to its rarity and the challenges associated with finding suitable gem-quality crystals, staurolite is not commonly seen in commercial jewelry.
  5. Collectibility: Staurolite’s distinctive crystal habit and natural twinning make it appealing to gem and mineral collectors. High-quality staurolite specimens with well-formed crystals and good transparency can be sought after by collectors who appreciate its unique aesthetic value.

While staurolite may not be widely recognized as a mainstream gemstone, its unique appearance and occasional availability in gem-quality crystals can make it an intriguing choice for collectors and individuals looking for something different in their gemstone collections. However, it is important to evaluate individual staurolite specimens carefully for their suitability as gemstones and consider their durability and wearability before incorporating them into jewelry.

Summary of key points

  • Staurolite is a metamorphic mineral that forms under high temperatures and pressures. It is commonly associated with medium to high-grade metamorphic rocks.
  • It is characterized by its distinct cruciform or cross-shaped crystal habit, which is a result of twinning.
  • Staurolite is typically brown to reddish-brown in color, but it can also occur in black, yellow, or green varieties.
  • The mineral has a hardness of 7 to 7.5 on the Mohs scale and exhibits poor to indistinct cleavage.
  • Staurolite is strongly birefringent and displays pleochroism, showing different colors when viewed from different directions.
  • Its refractive index ranges from 1.734 to 1.757, and it is optically positive.
  • Staurolite is of geological significance as it provides insights into metamorphic processes, metamorphic grade, metamorphic zones, and tectonic processes. It is also used in geochronological studies.
  • In terms of practical uses, staurolite is utilized as an abrasive material, particularly in sandpaper, grinding wheels, and abrasive blasting. It is also used in foundry sands for its refractory properties.
  • Staurolite has value as a mineral specimen due to its unique crystal habit and aesthetic appeal. It is occasionally used in jewelry, but its availability as gem-quality material is limited.
  • Staurolite is found in various locations worldwide, including the United States, Europe, Brazil, Russia, Australia, and other countries.
  • Proper identification and classification of staurolite involve considering its physical and optical properties, crystal habit, and chemical composition.

Overall, staurolite is an interesting and visually appealing mineral that holds geological significance and has practical applications in certain industries. Its rarity and unique characteristics make it desirable among collectors and enthusiasts in the field of mineralogy and gemology.

FAQ

What is staurolite?

Staurolite is a metamorphic mineral that forms under high temperatures and pressures. It is known for its distinct cruciform or cross-shaped crystal habit.

How does staurolite form?

Staurolite forms during regional metamorphism, which occurs when rocks are subjected to high pressures and temperatures deep within the Earth’s crust. It typically occurs in medium to high-grade metamorphic rocks.

What is the chemical composition of staurolite?

Staurolite has a chemical formula of (Fe,Mg,Zn)_2Al_9Si_4O_23(O,OH).

What is the hardness of staurolite?

Staurolite has a hardness of 7 to 7.5 on the Mohs scale.

Where is staurolite found?

Staurolite is found worldwide. Notable occurrences include the United States (such as the Blue Ridge Mountains and the Appalachian Mountains), Europe (France, Spain, Switzerland, etc.), Brazil, Russia, Australia, and other countries.

What is the geological significance of staurolite?

Staurolite is important in metamorphic petrology as it provides insights into metamorphic processes, metamorphic grade, metamorphic zones, and tectonic processes. Its presence and distribution help geologists understand the geological history of a region.

Can staurolite be used as a gemstone?

Staurolite is not widely used as a gemstone due to its relatively low hardness and limited availability in gem-quality specimens. However, it may be used in jewelry for its unique crystal shape and aesthetic appeal.

What are the industrial uses of staurolite?

Staurolite is used as an abrasive material in sandpaper, grinding wheels, and abrasive blasting. It is also utilized in foundry sands for its refractory properties.

How is staurolite identified?

Staurolite is identified by its cruciform crystal habit, color (typically brown to reddish-brown), hardness, luster, and optical properties such as birefringence and pleochroism.

Is staurolite radioactive?

No, staurolite is not radioactive. It does not contain any radioactive elements and poses no health risks associated with radioactivity.
