Bentonite

Bentonite is a type of clay that is composed primarily of the mineral montmorillonite. It is a highly absorbent clay that has many uses in various industries, including cosmetics, pharmaceuticals, and construction.

One of the most common uses of bentonite is as a drilling fluid in the oil and gas industry. When mixed with water, bentonite forms a slurry that helps to lubricate and cool the drill bit, as well as remove debris from the borehole.

Bentonite is also used as a binding agent in the production of iron ore pellets, as well as in the production of cement and concrete. It can improve the strength and durability of these materials.

In the cosmetic industry, bentonite is often used in face masks and other skincare products due to its ability to absorb oils and impurities from the skin. It is also used in toothpaste as a natural polishing agent.

Bentonite has many other applications as well, such as in the treatment of wastewater, the purification of vegetable oils, and the production of cat litter. It is a versatile and useful material that has many important industrial and commercial uses.

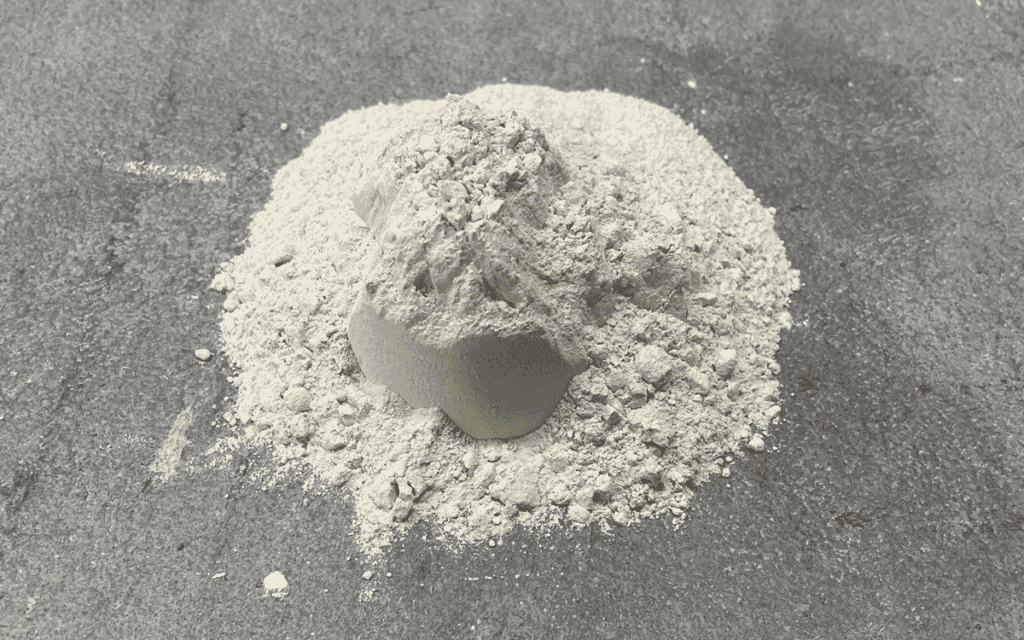

Bentonite

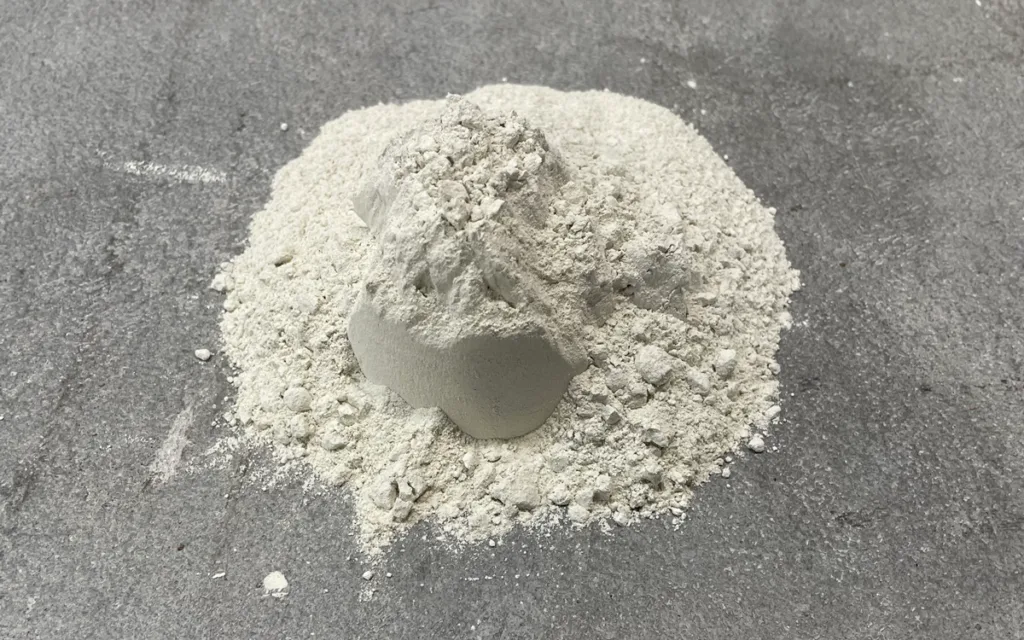

Bentonite

Importance of bentonite in various fields

Bentonite is an important material in various fields due to its unique properties and characteristics. Here are some of the key uses and benefits of bentonite:

  1. Drilling industry: Bentonite is widely used as a drilling mud in the oil and gas industry. It helps to lubricate and cool the drill bit, as well as remove debris from the borehole. It also provides stability to the borehole walls, preventing them from collapsing.
  2. Construction industry: Bentonite is used as a waterproofing material in the construction industry. It can be used to seal and waterproof foundations, basements, and other structures.
  3. Agriculture industry: Bentonite is used as an animal feed supplement to bind mycotoxins in feed and as a soil amendment to improve soil structure, water holding capacity, and nutrient retention.
  4. Cosmetic industry: Bentonite is a common ingredient in facial masks and other skincare products due to its ability to absorb oils and impurities from the skin.
  5. Pharmaceutical industry: Bentonite is used as a binding agent in tablets and capsules, as well as in the production of suspensions and emulsions.
  6. Environmental industry: Bentonite is used to treat wastewater and contaminated soil. It can help to remove heavy metals and other pollutants from water and soil.
  7. Food industry: Bentonite is used as a clarifying agent in the production of wine, beer, and fruit juice. It can also be used to remove impurities from vegetable oils.

Overall, bentonite has a wide range of uses and is an important material in various industries. Its ability to absorb water and impurities, as well as its binding and stabilizing properties, make it a versatile and valuable material.

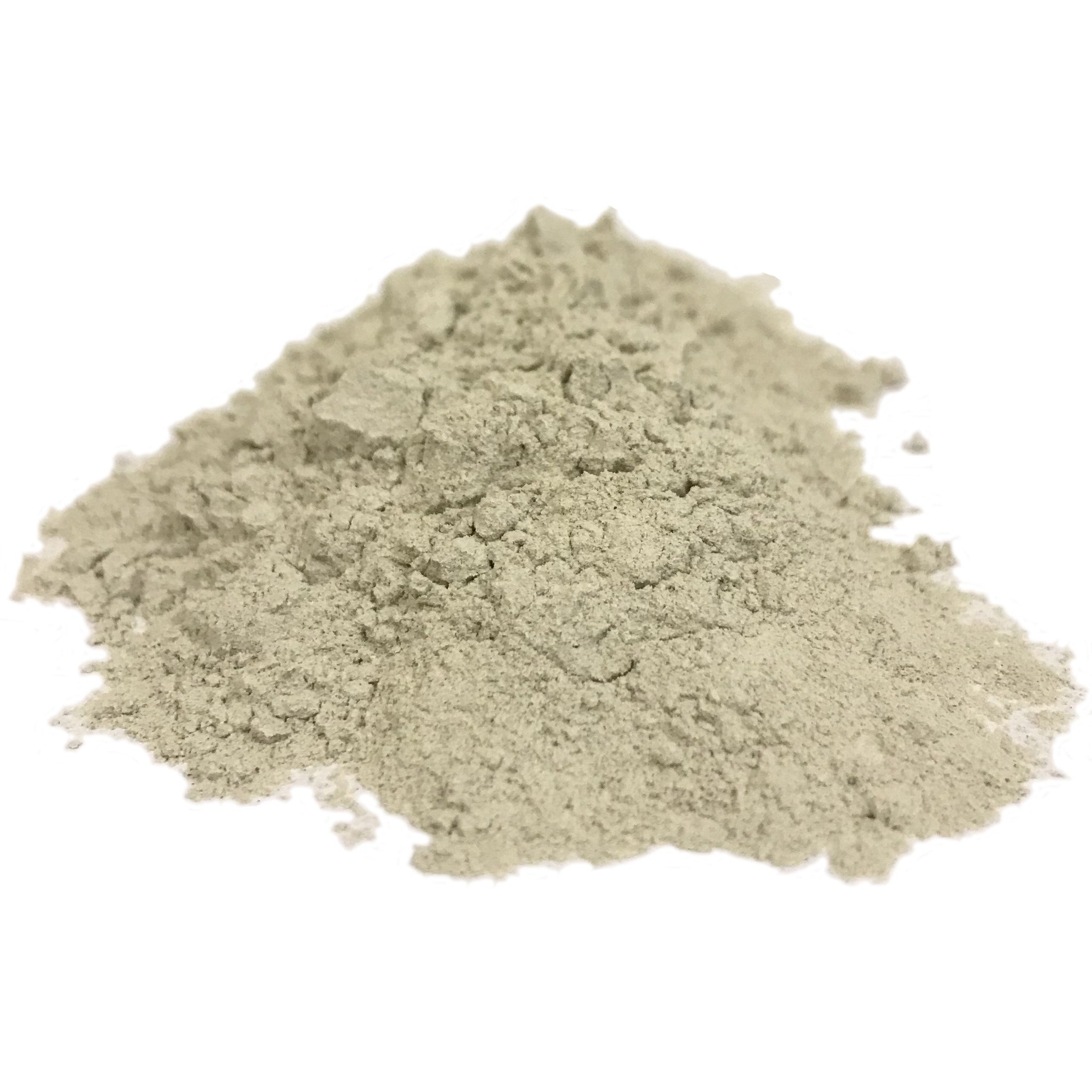

Bentonite Clay

Physical and chemical properties of bentonite

Bentonite is a type of clay that is composed primarily of the mineral montmorillonite. It has several physical and chemical properties that make it useful in various industries. Here are some of the key properties of bentonite:

Physical properties:

  • Color: Bentonite is usually light gray or beige, but can also be green or reddish in color.
  • Texture: Bentonite has a soft, fine texture and is easily crumbled.
  • Density: The density of bentonite varies depending on the type and grade, but is generally between 2.0 and 2.7 g/cm³.
  • Swelling: Bentonite can absorb several times its weight in water, causing it to swell and become gel-like.

Chemical properties:

  • Composition: Bentonite is primarily composed of the mineral montmorillonite, along with other minerals such as feldspar, calcite, and quartz.
  • Cation exchange capacity (CEC): Bentonite has a high CEC, which allows it to attract and exchange cations, such as calcium, magnesium, and potassium.
  • pH: Bentonite has a pH between 8 and 10, making it alkaline.
  • Chemical formula: The chemical formula for montmorillonite, the primary mineral in bentonite, is (Na,Ca)0.33(Al,Mg)2Si4O10(OH)2•nH2O.

Overall, the physical and chemical properties of bentonite make it a highly absorbent and reactive material, with the ability to exchange cations and stabilize structures. These properties make it useful in a wide range of industries, including drilling, construction, agriculture, cosmetics, and environmental remediation.

Cation exchange capacity and its significance

Cation exchange capacity (CEC) is a measure of the ability of a soil or other material, such as bentonite, to retain positively charged ions, or cations. The CEC is expressed as the number of milliequivalents of cations that can be adsorbed per unit weight of soil or material.

The significance of CEC lies in its importance for soil fertility, plant growth, and nutrient retention. Soils with high CEC are able to retain more cations, such as calcium, magnesium, and potassium, which are essential nutrients for plant growth. This allows plants to access these nutrients over a longer period of time, which can improve crop yields.

In addition to nutrient retention, CEC can also impact soil pH and soil structure. Soils with high CEC tend to have a more stable pH, as the retained cations can help to buffer the soil against changes in acidity. This can be important for the growth of certain crops that require a specific pH range.

In materials such as bentonite, high CEC can make them useful as adsorbents or as a binding agent. In drilling muds, for example, bentonite is used as a binding agent due to its high CEC, which allows it to stabilize the borehole walls and prevent them from collapsing.

Overall, CEC is an important property of soils and other materials, as it can impact soil fertility, plant growth, nutrient retention, and other factors that are important for agricultural productivity and environmental health.

Ability to swell and form gels when hydrated

Bentonite is a type of clay that has the unique ability to swell and form gels when hydrated. This property is due to the structure of the clay particles and their interaction with water molecules.

When dry, the clay particles in bentonite are tightly packed together and have a small surface area exposed to the surrounding environment. However, when hydrated, water molecules are able to enter the spaces between the clay particles, causing them to expand and create a larger surface area. This expansion causes the bentonite to swell and become gel-like in consistency.

The ability of bentonite to swell and form gels when hydrated has several important applications in various industries. In the drilling industry, for example, bentonite is used as a drilling mud, where its ability to swell and form a gel-like substance helps to lubricate and cool the drill bit, as well as remove debris from the borehole. In the construction industry, bentonite is used as a waterproofing material, where its ability to swell and form a tight seal helps to prevent water from penetrating structures such as foundations and basements.

In the cosmetic industry, bentonite is used in facial masks and other skincare products, where its ability to absorb impurities and excess oil from the skin, as well as form a gel-like substance, makes it an effective ingredient for deep-cleaning and purifying the skin.

Overall, the ability of bentonite to swell and form gels when hydrated is a unique and valuable property that makes it useful in a wide range of applications.

Formation of bentonite

Bentonite is formed from the weathering of volcanic ash deposits over a long period of time. When a volcano erupts, it spews out ash and other volcanic materials, which can travel long distances before settling on the ground. Over time, these deposits can be buried and subjected to various physical and chemical processes, such as compaction, cementation, and alteration, that transform them into clay minerals, including bentonite.

The process of bentonite formation begins with the deposition of volcanic ash, which is composed primarily of glass shards and other volcanic particles. The glass shards are typically rich in silica, aluminum, and other minerals, which are dissolved in water over time as rain and other forms of water percolate through the ash deposit. As the water dissolves these minerals, they can react with other minerals in the ash, such as feldspars, to form clay minerals, including montmorillonite, which is the primary mineral in bentonite.

As the clay minerals form, they begin to bind together and form aggregates, which can grow and develop into larger clay particles over time. These clay particles can then become buried and subjected to various physical and chemical processes that further alter their structure and properties, such as the addition of other minerals, the loss of water, and the transformation of the clay minerals to other minerals.

Overall, the formation of bentonite is a complex process that involves the weathering and alteration of volcanic ash deposits over a long period of time. The resulting clay minerals have unique properties, such as the ability to swell and form gels when hydrated, that make them useful in a wide range of applications in industries such as drilling, construction, agriculture, and cosmetics.

Factors influencing bentonite formation

The formation of bentonite is influenced by a number of factors, including the composition of the volcanic ash, the environment in which it is deposited, and the processes that occur during and after deposition. Some of the key factors that can affect the formation of bentonite include:

  1. Volcanic activity: The type and intensity of volcanic activity can affect the composition of the ash deposit, which in turn can influence the formation of bentonite. For example, ash from explosive eruptions is typically composed of smaller particles and can be more prone to weathering and alteration than ash from effusive eruptions.
  2. Climate: The climate at the time of deposition can also play a role in bentonite formation, as it can affect the amount and type of water that percolates through the ash deposit. Wetter climates may result in more extensive alteration and the formation of more highly weathered clay minerals.
  3. Time: The amount of time that the ash deposit is exposed to weathering and alteration can also influence the formation of bentonite. Longer periods of exposure can lead to more extensive alteration and the formation of larger, more well-developed clay minerals.
  4. pH: The pH of the environment can also affect the formation of bentonite, as it can influence the solubility of minerals and the chemical reactions that occur during alteration. For example, more acidic environments may be more conducive to the formation of certain clay minerals.
  5. Source material: The composition of the source material, such as the type of rock that was erupted, can also affect the formation of bentonite. For example, volcanic ash deposits that contain more silicate minerals may be more prone to the formation of bentonite than those that contain more basic minerals.

Overall, the formation of bentonite is a complex process that is influenced by a range of factors. Understanding these factors is important for predicting the occurrence and quality of bentonite deposits and for optimizing their use in various industrial applications.

Types of bentonite

There are several types of bentonite, which differ in their mineral composition, physical properties, and industrial applications. Some of the most common types of bentonite include:

  1. Sodium bentonite: This type of bentonite is also known as Wyoming bentonite and is the most commonly used type in drilling applications. It has a high swelling capacity and forms a thixotropic gel when hydrated, which makes it an effective sealing material in construction applications.
  2. Calcium bentonite: This type of bentonite is also known as Southern bentonite and has a lower swelling capacity than sodium bentonite. It is often used in foundry applications, where it is mixed with sand to create molds for metal casting.
  3. Potassium bentonite: This type of bentonite has a higher cation exchange capacity than sodium bentonite and is often used in agricultural applications as a soil amendment to improve soil fertility and water retention.
  4. Polymer-enhanced bentonite: This type of bentonite has been treated with polymers to improve its properties, such as its ability to form a gel-like substance and its resistance to high temperatures. It is often used in drilling and construction applications.
  5. Activated bentonite: This type of bentonite has been treated with acids or other chemicals to increase its surface area and cation exchange capacity. It is often used in industrial applications, such as water treatment and catalysis.
  6. White bentonite: This type of bentonite has a high aluminum content and is often used in cosmetic applications, such as facial masks and body powders, due to its ability to absorb impurities and excess oil from the skin.

Overall, the different types of bentonite have unique properties and are used in a wide range of industrial applications. The choice of bentonite type depends on the specific application and the desired properties of the material.

Distribution

Bentonite is widely distributed around the world and can be found in many countries. Some of the largest bentonite deposits are located in the United States, China, Russia, India, and Greece. Other countries with significant bentonite deposits include Brazil, Turkey, Germany, Italy, Mexico, and Japan.

In the United States, Wyoming is the leading producer of bentonite, with large deposits located in the Powder River Basin. Other states with significant bentonite deposits include Montana, South Dakota, and Texas. In China, major deposits are located in the provinces of Inner Mongolia, Gansu, and Xinjiang. In Russia, large deposits are located in the Kurgan and Novosibirsk regions.

The distribution of bentonite is often related to the location of volcanic activity and the geological history of the region. Bentonite is typically found in deposits that were formed from volcanic ash and other volcanic materials, which have undergone weathering and alteration over time. The composition and properties of the bentonite can vary depending on the specific deposit and the geological processes that were involved in its formation.

Overall, bentonite is a widely distributed mineral that can be found in many countries around the world. The availability and quality of bentonite deposits can vary, depending on factors such as geological history, climate, and environmental conditions.

Major deposits of bentonite around the world

Bentonite is a widely distributed mineral, and significant deposits can be found in many countries around the world. Some of the major bentonite deposits are:

  1. United States: Wyoming is the leading producer of bentonite in the United States, with large deposits located in the Powder River Basin. Other states with significant deposits include Montana, South Dakota, and Texas.
  2. China: China is the world’s largest producer of bentonite, with major deposits located in the provinces of Inner Mongolia, Gansu, and Xinjiang.
  3. Russia: Russia has significant bentonite deposits, with large reserves located in the Kurgan and Novosibirsk regions.
  4. India: India is a major producer of bentonite, with deposits located in the states of Rajasthan, Gujarat, and Jharkhand.
  5. Greece: Greece has large bentonite deposits, with major reserves located in the islands of Milos and Kimolos.
  6. Turkey: Turkey has significant bentonite deposits, with major reserves located in the provinces of Ankara, Kütahya, and Nevşehir.
  7. Mexico: Mexico has significant bentonite deposits, with major reserves located in the states of Baja California, Sonora, and Chihuahua.
  8. Brazil: Brazil has large bentonite deposits, with major reserves located in the states of Bahia, São Paulo, and Mato Grosso do Sul.

Other countries with significant bentonite deposits include Italy, Germany, Japan, South Africa, Australia, and Canada.

Overall, bentonite is a widely distributed mineral, and the availability and quality of deposits can vary depending on factors such as geological history, climate, and environmental conditions.

Applications of bentonite

Bentonite has a wide range of applications in various industries and fields, thanks to its unique properties such as high water absorption capacity, swelling ability, and cation exchange capacity. Some of the major applications of bentonite include:

  1. Foundry: Bentonite is used as a bonding agent in foundries to bind and mold sand in the production of metal castings.
  2. Drilling: Bentonite is used as a drilling fluid to lubricate and cool drill bits, and to remove cuttings from the well.
  3. Civil engineering and construction: Bentonite is used in the construction of foundations, tunneling, and excavation to provide stability and prevent water infiltration.
  4. Environmental remediation: Bentonite is used to seal and contain contaminated soils and waste materials, preventing them from contaminating the surrounding environment.
  5. Agriculture and animal feed: Bentonite is used as a feed supplement for livestock to improve their health and digestion, and as a soil amendment to improve soil quality and water retention.
  6. Cosmetics and personal care: Bentonite is used in the formulation of cosmetics and personal care products, such as facial masks and body scrubs, for its ability to absorb oils and impurities from the skin.
  7. Pharmaceuticals: Bentonite is used as an excipient in the production of pharmaceuticals, as a binder and disintegrant in tablets, and as a suspending agent in liquid formulations.
  8. Papermaking: Bentonite is used as a filler and coating in the production of paper, improving its strength and printability.

Overall, bentonite has a wide range of applications across various industries and fields, making it a versatile and valuable mineral.

Bentonite slurry

Bentonite in environmental and geological studies

Bentonite has many applications in environmental and geological studies due to its unique properties, including its high cation exchange capacity, high water absorption capacity, and ability to swell and form gels when hydrated. Some of the applications of bentonite in environmental and geological studies include:

  1. Landfill liners: Bentonite can be used as a liner material to prevent the leakage of hazardous waste from landfills.
  2. Soil amendments: Bentonite can be used as a soil amendment to improve soil quality and water retention, particularly in arid and semi-arid regions.
  3. Contaminant remediation: Bentonite can be used to remediate contaminated soils and groundwater by adsorbing and immobilizing contaminants, such as heavy metals and organic compounds.
  4. Groundwater barriers: Bentonite can be used as a barrier material to prevent the migration of contaminants from groundwater into surface water and other sensitive areas.
  5. Geotechnical engineering: Bentonite can be used as a grout material for stabilizing soils and rock formations during geotechnical engineering projects.
  6. Oil and gas drilling: Bentonite is commonly used as a drilling fluid in oil and gas drilling operations due to its ability to lubricate and cool the drill bit and to remove cuttings from the well.
  7. Sealing boreholes: Bentonite can be used to seal boreholes in geothermal and other energy projects to prevent the loss of fluids and to maintain pressure.

Overall, bentonite is a versatile and valuable material in environmental and geological studies, and its unique properties make it useful for a wide range of applications in these fields.

Summary of key points

Bentonite is a clay mineral with unique properties that make it useful for a variety of applications. Some key points about bentonite include:

  • Bentonite is composed primarily of montmorillonite, a type of clay mineral that has a layered structure and a high cation exchange capacity.
  • Bentonite can absorb large amounts of water and swell to several times its original volume, which makes it useful for a variety of applications, including drilling fluids, soil amendments, and environmental remediation.
  • Bentonite is found in many locations around the world, with major deposits in the United States, Russia, and China.
  • Bentonite has many applications in various industries, including oil and gas drilling, construction, agriculture, and environmental remediation.
  • Some of the unique properties of bentonite that make it useful for these applications include its high cation exchange capacity, ability to form gels when hydrated, and its ability to adsorb and immobilize contaminants.

Overall, bentonite is a versatile material with many useful properties, and its applications in various industries make it an important mineral resource.

FAQ of Bentonite

What is bentonite?

Bentonite is a clay mineral composed mainly of montmorillonite. It is formed from volcanic ash that has been weathered over time and has a layered structure with a high cation exchange capacity.

What are the uses of bentonite?

Bentonite has many uses, including drilling fluids, soil amendments, environmental remediation, geotechnical engineering, and as a binder in pelletizing iron ore.

How does bentonite work in drilling fluids?

Bentonite is added to drilling fluids to increase the viscosity and gel strength of the fluid, which helps to keep the drill bit cool and lubricated and to remove cuttings from the well.

How does bentonite work in soil amendments?

Bentonite can be added to soil as an amendment to improve soil quality and water retention. It helps to hold moisture in the soil, which is particularly useful in arid and semi-arid regions.

What is the difference between sodium bentonite and calcium bentonite?

Sodium bentonite swells more than calcium bentonite when exposed to water, which makes it more useful in applications where a high degree of swelling is required. Calcium bentonite is more commonly used as a binder in pelletizing iron ore.

Is bentonite environmentally friendly?

Bentonite is generally considered to be environmentally friendly because it is a natural material and is non-toxic. However, its environmental impact depends on the specific application and how it is used.

What are the major deposits of bentonite around the world?

The major deposits of bentonite are found in the United States, Russia, and China, although it is also found in other locations around the world.

Is bentonite safe for humans?

Bentonite is generally safe for humans, and it is commonly used in a variety of consumer products, including cosmetics and pharmaceuticals. However, as with any material, exposure to large amounts of bentonite dust can cause respiratory issues.

What is the cation exchange capacity of bentonite?

The cation exchange capacity (CEC) of bentonite can vary, but it is generally high, ranging from 50 to 100 meq/100g or higher. This high CEC is due to the presence of negative charges on the surface of the montmorillonite clay mineral, which can attract and hold positively charged ions such as calcium, magnesium, and potassium.

How does bentonite work in environmental remediation?

Bentonite can be used in environmental remediation to absorb and immobilize contaminants in soil and groundwater. When bentonite is added to contaminated soil or groundwater, it can adsorb contaminants onto its surface, which prevents them from spreading further. In addition, the swelling properties of bentonite can help to prevent contaminated groundwater from moving through porous soils.

What are the risks associated with bentonite mining?

Like any mining activity, bentonite mining can have negative impacts on the environment if not properly managed. These impacts can include soil erosion, habitat destruction, and water pollution. However, modern mining practices are designed to minimize these impacts, and many mining companies take steps to restore mined lands after the mining activity is completed.

How is bentonite typically transported and stored?

Bentonite is often transported in bulk form, either in trucks or rail cars. It is typically stored in large silos or storage facilities, where it can be easily accessed for use in various applications.

Can bentonite be recycled?

Bentonite can be recycled and reused in certain applications, such as in drilling fluids. Used drilling fluids can be processed to remove the bentonite and other additives, and the clean fluid can be reused in future drilling operations. In addition, some industrial processes generate waste streams that contain bentonite, which can be processed and reused.

How is the quality of bentonite measured?

The quality of bentonite is typically measured based on its physical and chemical properties, including its cation exchange capacity, swelling properties, particle size distribution, and mineral composition. These properties can be analyzed through laboratory testing and analysis, and can be used to determine the suitability of bentonite for various applications.

References

  1. Murray, H. H. (2006). Applied clay mineralogy: occurrences, processing and applications of kaolins, bentonites, palygorskite-sepiolite, and common clays. Elsevier.
  2. Christidis, G. E. (2015). Bentonites: Geology, mineralogy, properties and uses. Elsevier.
  3. Hassanpour, M., Fazaeli, M., & Emadi, M. A. (2014). Bentonite application in oil and gas industry: production and utilization review. Applied Clay Science, 90, 1-11.
  4. Sengupta, S., & Bhattacharya, P. (2011). Environmental applications of bentonite: A review. Applied Clay Science, 43(3-4), 94-103.
  5. Brindley, G. W. (1980). Bentonite. In Minerals in soil environments (pp. 729-788). Soil Science Society of America.
  6. Hritcu, D., & Ciopec, M. (2015). Bentonite as a versatile industrial mineral for different markets. Minerals, 5(4), 580-592.
  7. Weaver, C. E. (1989). Bentonite and fuller’s earth resources of the United States. US Geological Survey.
  8. Weaver, C. E. (1990). Bentonite, kaolin, and selected clay minerals. Environmental health criteria, 231.
  9. Jackson, M. L. (1979). Soil chemical analysis: Advanced course. University of Wisconsin-Madison.
