Galena

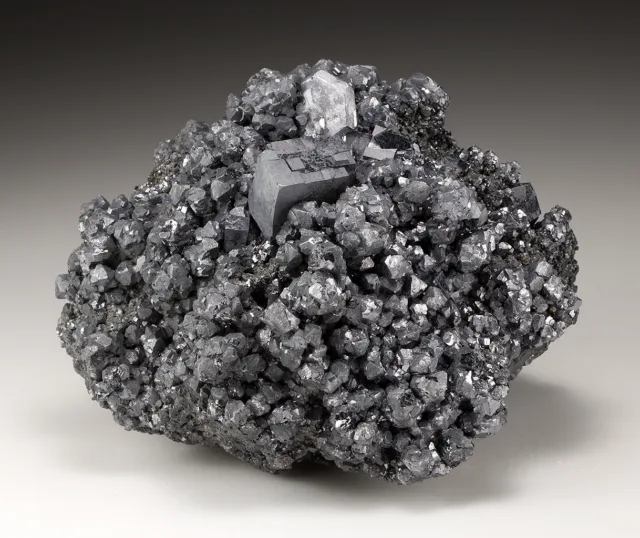

Galena, a mineral of both historical and geological significance, is a lead sulfide mineral with the chemical formula PbS. It stands out with its distinctive metallic luster and cubic crystal structure, often appearing as shiny, cubic or octahedral crystals. Galena has played a crucial role in human history as a primary source of lead, which was employed in various applications ranging from pipes and bullets to pigments and lead-acid batteries. While its applications have evolved over time, galena remains a fascinating mineral, admired for its crystalline beauty and contributions to our understanding of mineralogy and geology.

Name: The name is derived from the Latin galena, a name originally given to lead ore.

Crystallography. Isometric; hexoctahedral. The most common form is the cube. The octahedron sometimes is present as truncations to the cube.. Dodecahedron and trisoctahedron rare.

Composition. Lead sulfide, PbS. Pb = 8 6 . 6 per cent, S = 13.4 per cent. Analyses almost always show the presence of silver. It may also contain small amounts of selenium, zinc , cadmium, antimony, bismuth , and copper.

Diagnostic Features: It can be easily recognized b y its good cleavage, high specific gravity , softness, and black streak

Alteration: By oxidation galena is converted into the sulfate anglesite, and the carbo nate cerussite

Galena Chemical, Physical and Optical Properties

Galena is a mineral composed primarily of lead(II) sulfide (PbS). It has been used for thousands of years as a source of lead, silver, and sometimes as a semiprecious stone. Here are some of the chemical, physical, and optical properties of galena:

Chemical Properties:

1. Chemical Formula: PbS (Lead Sulfide)
2. Molecular Weight: 239.27 g/mol
3. Crystal System: Cubic
4. Hardness: 2.5 on the Mohs scale, which means it is relatively soft and can be easily scratched.
5. Color: Galena is typically bluish-gray to silver in color but can tarnish to a dull gray.
6. Streak: The streak of galena is gray-black.
7. Cleavage: Galena exhibits perfect cubic cleavage in three directions, which means it breaks along smooth, flat surfaces that are perpendicular to each other.
8. Luster: The mineral has a metallic luster, which means it appears shiny and reflective like metal.
9. Transparency: It is opaque, meaning light does not pass through it.

Physical Properties:

1. Density: The density of galena is approximately 7.4 to 7.6 g/cm³, making it notably dense.
2. Specific Gravity: Galena has a specific gravity (relative density) of around 7.2 to 7.6, depending on impurities.
3. Melting Point: Galena has a relatively low melting point of around 1,114°C (2,037°F).
4. Boiling Point: It does not have a distinct boiling point, as it decomposes before reaching the boiling point of lead.
5. Solubility: Galena is insoluble in water, but it can be dissolved by nitric acid (HNO3) to form lead(II) nitrate and sulfur dioxide.

Optical Properties:

1. Refractive Index: Galena is opaque, so it does not have a refractive index.
2. Birefringence: It does not exhibit birefringence because it is isotropic (meaning it has the same properties in all directions).
3. Dispersion: Galena does not show dispersion, which is the separation of light into its constituent colors as seen in some gemstones.
4. Pleochroism: It is not pleochroic because it does not show different colors when viewed from different angles.

Galena is primarily known for its historical significance as a source of lead and silver. It has been used in various applications, including as a source of pigments, as a material for making lead shot and bullets, and as a semiprecious stone in jewelry. However, due to the toxic nature of lead, its use has declined in modern times, and it is no longer widely used in these applications.

Occurrence and Formation of Galena

Galena (PbS) is a common mineral that forms in a variety of geological environments. Its occurrence and formation are influenced by specific conditions and processes. Here’s an overview of how and where galena is commonly found:

Occurrence:

1. Hydrothermal Deposits: The most common and significant source of galena is hydrothermal deposits. These deposits form when hot, mineral-rich fluids, often associated with volcanic or magmatic activity, circulate through rocks and deposit minerals as they cool. Galena can precipitate from these hydrothermal fluids when they come into contact with rocks containing sulfur.
2. Sedimentary Rocks: Galena can also be found in sedimentary rocks, often as a result of the weathering and erosion of primary hydrothermal deposits. Over time, galena-bearing minerals can be transported by water and deposited in sedimentary basins.
3. Metamorphic Rocks: In some cases, galena can form during the metamorphism of lead-rich rocks or minerals. High temperatures and pressure can cause chemical reactions that result in the formation of galena.
4. Secondary Enrichment: Secondary enrichment processes can concentrate galena in certain areas. This occurs when water leaches lead from primary ore bodies and then transports and deposits it in secondary locations under different chemical conditions.

Formation:

The formation of galena involves a combination of factors, including the presence of lead, sulfur, and suitable geological conditions. Here’s a simplified overview of how galena forms:

1. Presence of Lead: Galena formation requires a source of lead. This can come from various sources, including magmatic intrusions that bring lead-bearing minerals into the Earth’s crust or the presence of lead-rich rocks.
2. Sulfur: Sulfur is another critical component. Sulfur can be sourced from various geological processes, such as volcanic activity, which releases sulfur dioxide (SO2) into the atmosphere. This sulfur can then combine with lead to form galena under specific conditions.
3. Hydrothermal Activity: The circulation of hot, hydrothermal fluids is a common mechanism for galena formation. These fluids often originate from deep within the Earth and carry dissolved minerals, including lead and sulfur. When these fluids encounter suitable host rocks, they cool and deposit galena and other minerals.
4. Chemical Reactions: Within the hydrothermal system, chemical reactions occur between the lead, sulfur, and other elements present in the surrounding rocks. These reactions lead to the precipitation of galena as the fluid cools and conditions change.
5. Crystallization: As galena precipitates from the hydrothermal fluid, it forms distinct crystals. Galena crystals typically exhibit cubic cleavage and are often found as distinct, shiny cubes.

The specific geological setting and conditions greatly influence the size and quality of galena deposits. Galena can occur as the primary ore in lead mines or as a byproduct in the mining of other minerals. Additionally, it is associated with various other minerals, including sphalerite (zinc sulfide) and chalcopyrite (copper iron sulfide), in polymetallic ore deposits.

Mining Sources

Mining sources for galena primarily involve locations where lead ores are found. Galena is the most common and important lead ore, and it often serves as the primary source of lead production. These mining sources can be categorized into the following types:

1. Primary Lead Mines: These mines are dedicated to the extraction of lead ore, with galena as the primary target. They are often located in regions where geological conditions are conducive to the formation of lead deposits, such as hydrothermal or sedimentary environments. Some well-known primary lead mines include:
   • Lucky Friday Mine, USA: Located in Idaho, this mine has been a significant producer of lead and silver, with galena as the primary ore mineral.
   • Broken Hill Mine, Australia: Historically one of the world’s largest lead-zinc mines, it is known for its high-grade galena deposits.
   • Laisvall Mine, Sweden: This mine has been a source of lead and silver from galena-rich ores.
2. Polymetallic Mines: Galena is often found alongside other valuable minerals like zinc (sphalerite), copper, and silver in polymetallic ore deposits. These mines target multiple metals, with galena as one of the ore minerals. Some notable polymetallic mines where galena is extracted include:
   • Sullivan Mine, Canada: This mine in British Columbia is renowned for its rich polymetallic deposits, including galena (lead), sphalerite (zinc), and other minerals.
   • Kidd Creek Mine, Canada: Another Canadian mine that produces a variety of metals, including lead (from galena) and zinc.
3. Historical Mining Districts: Many regions around the world have a history of lead mining, with galena being the primary source. While some of these mines have ceased operations, they remain important historical sources of lead. Examples include:
   • Peak District, United Kingdom: This region has a long history of lead mining dating back to Roman times, with galena being the primary ore.
   • Missouri, USA: The state of Missouri, particularly the Viburnum Trend, has been a significant historical source of lead ore, predominantly galena.
4. Secondary Sources: In some cases, galena is recovered as a byproduct of mining operations targeting other minerals. For example, when mining for zinc, copper, or silver, galena may be present as a secondary ore mineral, and it can be extracted along with the primary target minerals.

It’s important to note that mining activities and locations can change over time due to market demand, economic factors, and technological advancements. Additionally, environmental regulations and sustainability concerns have influenced the mining industry, leading to changes in mining practices and the exploration of new sources of lead and other metals. Therefore, the specific mining sources for galena can vary by region and time period.

Application and Uses Area

The applications and uses of galena (lead sulfide, PbS) have evolved over time, and they can be categorized into historical and modern applications. It’s essential to note that due to health and environmental concerns related to lead, many traditional uses of galena have diminished, and its applications are now limited. Here are some of the historical and modern application areas of galena:

Historical Applications:

1. Metal Smelting: Galena has been a crucial source of lead since ancient times. It was primarily used to extract lead through the process of smelting. Lead was essential for making pipes, coins, and various other metal products.
2. Lead-Acid Batteries: Historically, galena was used in the production of lead-acid batteries, commonly found in vehicles and industrial applications. However, modern lead-acid batteries are typically produced using lead dioxide and sponge lead instead of galena due to improved technology.
3. Pigments: Lead-based pigments, such as lead white (basic lead carbonate) and lead-tin yellow, were made from lead derived from galena. These pigments were used in paintings, ceramics, and cosmetics. However, their use has declined due to lead toxicity concerns.
4. Ammunition: In the past, lead obtained from galena was used to make bullets and shot for firearms and ammunition.

Modern Applications:

1. Semiconductor Material: Galena is a naturally occurring semiconductor material, although it has limited use in modern electronics due to the development of more efficient synthetic semiconductor materials. Historically, it was used in early crystal radio receivers.
2. Mineral Specimens: Galena’s distinctive cubic crystals and metallic luster make it a popular mineral specimen for collectors and educational purposes.
3. Radiation Shielding: Lead, including lead derived from galena, is still used in the construction of shielding materials for protection against ionizing radiation in applications such as medical facilities, nuclear reactors, and industrial radiography.
4. Historical Artifacts: Galena may still be found in historical artifacts and objects like antique jewelry, lead figurines, and decorative items. However, these artifacts are usually considered collectibles or historical curiosities rather than everyday items.

It’s important to highlight that the use of galena in many traditional applications has declined significantly due to the well-documented health risks associated with lead exposure. Lead is toxic to humans and the environment, and its use in products like paints, gasoline, and water pipes has been heavily regulated or phased out in many parts of the world.

While galena itself has limited modern industrial applications, it remains a subject of scientific interest and mineralogical study. Researchers study galena for its crystallographic properties, which have significance in materials science and mineralogy. Additionally, some regions with historical lead mining activities may still have galena as a part of their geological and cultural heritage.

References

• Bonewitz, R. (2012). Rocks and minerals. 2nd ed. London: DK Publishing.
• Dana, J. D. (1864). Manual of Mineralogy… Wiley.
• Handbookofmineralogy.org. (2019). Handbook of Mineralogy. [online] Available at: http://www.handbookofmineralogy.org [Accessed 4 Mar. 2019].
• Mindat.org. (2019): Mineral information, data and localities.. [online] Available at: https://www.mindat.org/ [Accessed. 2019].
