Fire Agate

Formation, Colors, Structure, Localities & Geological Story

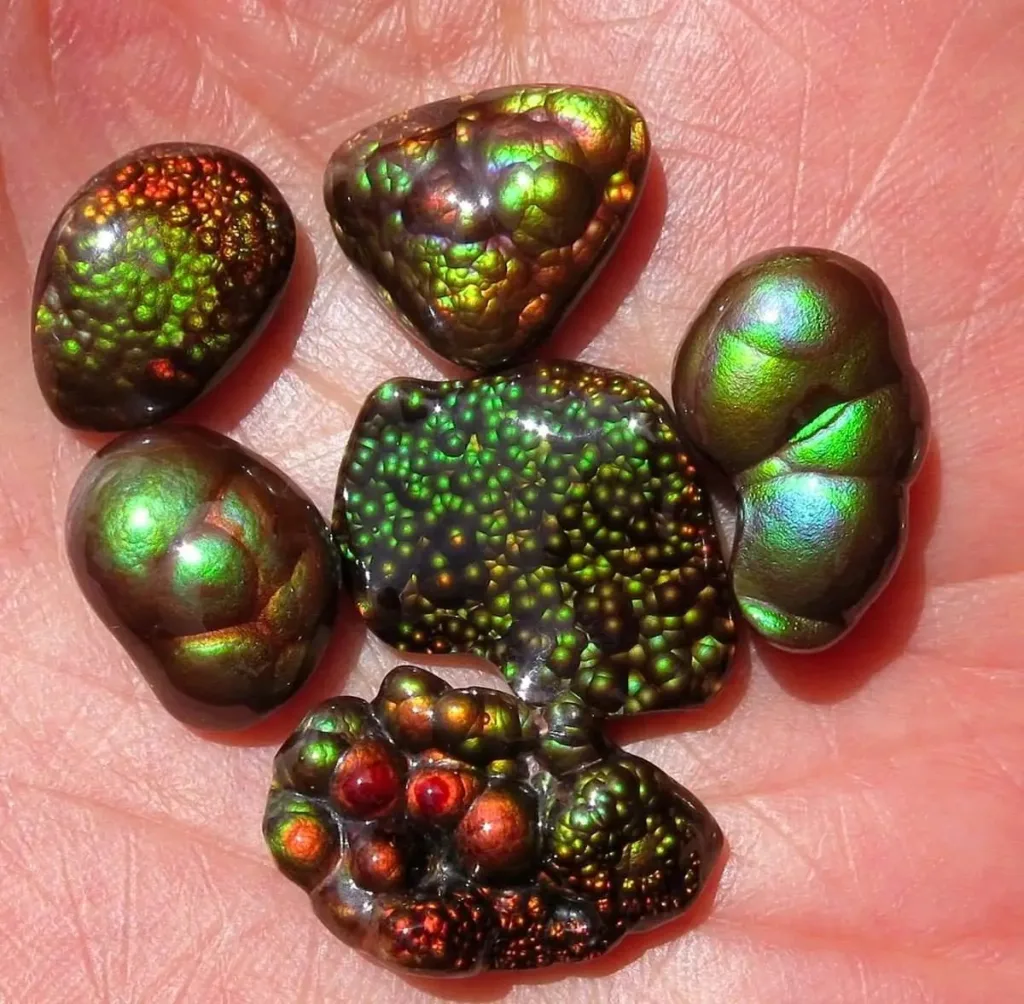

If you pick up an ordinary agate, you expect soft bands, swirling colors, maybe a little translucency. Fire agate is different. When you tilt it under a strong light, it doesn’t simply show color — it flashes. The surface explodes into metallic greens, golds, reds, even deep purples, as if it hid a layer of hot coals under the chalcedony skin. That shimmering iridescence is why collectors treat fire agate almost like a natural hologram.

Fire agate is a unique variety of chalcedony that formed under very specific volcanic and hydrothermal conditions in southwestern North America. What makes it special is the presence of microscopic layers of iron oxide and silica arranged in complex, thin, wave-like films. These layers bend and interfere with light, producing the “fire” effect. Unlike opal, which shows play-of-color from silica spheres, fire agate’s color is structural and metallic — more like a mineralized, geological version of a scarab shell.

Today, fire agate remains relatively rare, highly localized, difficult to cut, and nearly impossible to fake convincingly. And that geological scarcity is a big part of its value.

What Exactly Is Fire Agate? (Mineralogy & Composition)

Mineralogically, fire agate is chalcedony: a microcrystalline variety of quartz made of tightly intergrown quartz and moganite crystals. What transforms it from ordinary chalcedony into something spectacular is the inclusion of extremely thin layers of iron oxides — mainly goethite, limonite, and sometimes hematite.

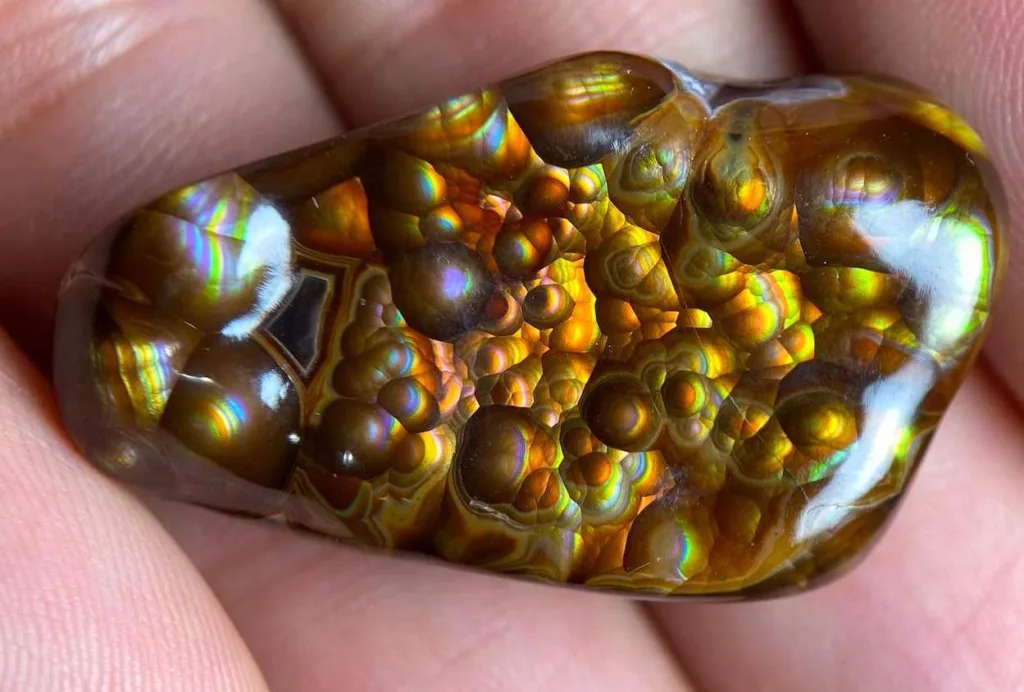

These layers form delicate, bubble-like, botryoidal surfaces inside the agate. As chalcedony grows over these iron-rich films, it creates stacked transparent shells. When white light hits the surface, it penetrates the chalcedony and reflects off the iron oxide layers at slightly different depths. The wavelengths interfere, producing intense iridescence.

Chemically, fire agate is mostly:

• SiO₂ (Silicon dioxide)
• With thin films of FeO(OH) (Goethite), FeO(OH)·nH₂O (Limonite), and occasional Fe₂O₃ (Hematite)

The combination of micro-layering, silica transparency, and iron oxide reflectivity is what makes the stone look like burning embers trapped in quartz.

Fire Agate is a unique variety of chalcedony, a microcrystalline form of quartz (SiO₂).
It owes its vivid play of color to thin, alternating layers of limonite, goethite, and silica, deposited by hydrothermal fluids in ancient volcanic regions.

These metallic films, measured in nanometers, act like natural mirrors that scatter light into iridescent flashes — a phenomenon known as thin-film interference.
Each Fire Agate is therefore one of a kind; no two stones ever display the same pattern or color spectrum.

Formation — The Volcanic-Hydrothermal Origin of Fire Agate

Fire agate formed in a very specific geological context: hot, mineral-rich hydrothermal fluids circulating through volcanic terrains, especially during the Tertiary period.

1. Volcanic activity provides heat and fractures

In southwestern North America, Tertiary volcanic fields produced large networks of fractures and cavities in andesitic and basaltic rocks. These spaces allowed hot, silica-rich water to circulate.

2. Hydrothermal fluids deposit silica and iron oxides

As the fluids cooled, they began depositing:

• Silica gel → future chalcedony
• Iron hydroxides and oxides → goethite/limonite layers

These materials coated cavity walls and created botryoidal, lumpy textures.

3. Repeated pulses of mineralizing fluids create micro-layered bands

Different episodes of geothermal activity laid down:

• One thin layer of iron oxide
• Then a layer of silica
• Then another iron oxide film
• Then a thicker chalcedony shell
• And so on…

Over thousands of cycles, this built complex microstructures only visible under a microscope — but the effect on light is dramatic.

4. Chalcedony “caps” seal the fire structure

Eventually, thick chalcedony covered everything, protecting the delicate iron oxide layers from oxidation or weathering. This outer chalcedony skin is why fire agate can keep its glowing colors even after 20 million years.

The entire process is slow, irregular, and highly localized. That’s why fire agate deposits are extremely limited in size and number.

Why Fire Agate Shows Iridescent Color (Light Interference Explained)

The famous fire effect is caused by thin-film interference, the same optical phenomenon that creates:

• Colorful oil slicks
• Metallic beetle wings
• Peacock feathers
• Some types of obsidian sheen

When light enters the chalcedony, part of it reflects off the top iron oxide film, while another part penetrates deeper and reflects off lower layers. As the returning waves overlap, certain wavelengths amplify and others cancel out.

Color depends on:

• Thickness of the chalcedony layers
• Spacing of iron oxide films
• Angle of viewing
• Angle of light
• Orientation of the botryoidal surface

This is why fire agate looks alive — the colors move as you move.

Typical fire colors:

• Green – produced by very thin films
• Golden-yellow – medium thickness
• Red and orange – thicker layers
• Purple and blue – rare, extremely thin layers

Reds and purples are the rarest and most valuable, while greens and golds are most common.

Geological Setting & Major Deposits Worldwide

Fire agate is not global. It forms only where the right volcanic-hydrothermal conditions existed. Nearly all gem-quality fire agate comes from three regions:

1. Southwestern United States

• Arizona (Deer Creek, Slaughter Mountain) – world’s most famous locality
• New Mexico (Black Range, Mule Creek)
• California (Riverside County volcanic fields)

These areas host Tertiary volcanic rocks and strong hydrothermal alteration zones.

2. Northern Mexico

• Chihuahua
• San Luis Potosí

Mexican fire agate tends to have deeper brown body color and more botryoidal textures.

3. Isolated localities in Central America

Very small occurrences exist but rarely produce gem-quality material.

Because deposits are so restricted — often just a few square kilometers each — fire agate remains rare compared to quartz, amethyst, or common agates.

Physical and Optical Properties

Despite its fragile beauty, Fire Agate is a durable stone suitable for jewelry. Its hardness protects it from scratching, while its layered structure gives it a unique depth and glow.

How Fire Agate Differs from Other Gemstones

Many gemstones show color play, but Fire Agate’s optical mechanism is distinctive:

• Versus Opal: Fire Agate’s color comes from metallic oxide layers, not silica spheres like opal. It is harder, more stable, and not prone to cracking.
• Versus Regular Agate: Ordinary agate forms in bands; Fire Agate forms in bubbles and botryoidal surfaces with metallic reflections rather than banding.
• Versus Labradorite or Ammolite: While those stones display labradorescence or iridescence on a flat plane, Fire Agate’s colors appear within the stone, giving it a three-dimensional “living flame” effect.

Lapidary Art and Cutting Challenges

Cutting Fire Agate is as much art as science.
Because its color layers lie irregularly inside the stone, lapidaries must carefully grind and polish along those layers to reveal the best fire without grinding it away.

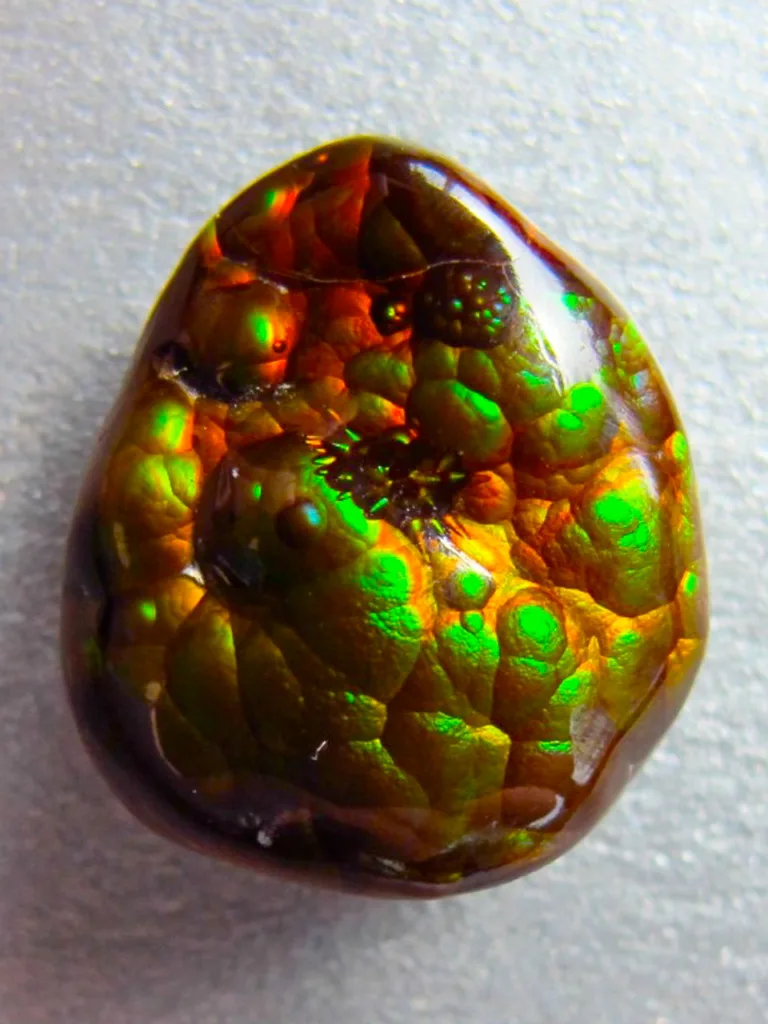

• Dome cabochons are the most common cut, enhancing color play.
• High polish (50,000 grit or more) brings out mirror-like brilliance.
• Back-lighting or slight undercutting can accentuate depth and shifting hues.

Each finished gem becomes a miniature landscape of glowing embers frozen in quartz — a result of patience, intuition, and technical skill.

Uses and Symbolism

Throughout history, agates were considered stones of strength and grounding, and Fire Agate carries that reputation with extra intensity.

In Metaphysical Belief

• Said to ignite creativity, vitality, and passion.
• Believed to shield against negativity and boost confidence.
• Associated with the Root and Sacral Chakras, channeling physical energy and motivation.

While such properties are symbolic rather than scientific, they remain part of Fire Agate’s cultural allure and help sustain its popularity in spiritual jewelry and meditation tools.

Value and Market Trends

Fire Agate remains relatively affordable compared to opal or precious topaz, but prices have steadily risen due to scarcity and collector interest.
Value depends on:

• Color quality: Multicolored flashes (red, green, gold, blue) are the most desirable.
• Pattern: Bubble-like or flame-shaped patterns fetch premium prices.
• Transparency and depth: Stones showing “floating fire” within the matrix are highly prized.
• Size and craftsmanship: Well-cut cabochons larger than 5 ct can command significant value.

? Market Range: From $5 – $50 per carat for commercial pieces to $500 + per carat for exceptional gem-grade specimens.

Collecting and Care Tips

Because Fire Agate is rare and often mined by hand, ethical sourcing is important. Look for dealers who specify origin and support small-scale miners in Arizona and Mexico.

Care recommendations:

• Avoid ultrasonic cleaners and harsh chemicals.
• Clean gently with warm water, mild soap, and a soft brush.
• Store separately to prevent scratching other gems (it’s hard but has uneven surfaces).

Proper care preserves the mirror-like polish and fiery color for generations.

Scientific and Cultural Curiosities

• Geologic age: Most deposits formed 24 – 36 million years ago during late Tertiary volcanic activity.
• Scientific interest: Thin-film interference in Fire Agate provides a natural analogue for nanotechnology coatings.
• Cultural influence: Native tribes of the Southwest used agates for amulets and trade; Fire Agate symbolized “the spirit of flame within Earth.”

Conclusion

Fire Agate is proof that even the most arid deserts can hide treasures of extraordinary beauty.
Each stone holds a fragment of Earth’s volcanic past, a story written in silica and flame.
It is both durable and delicate — a paradox of fire frozen in time.

To hold a Fire Agate is to hold the memory of molten rock cooled into art.
No laboratory can replicate its natural iridescence, no two stones are ever alike — and that singularity is what makes Fire Agate one of nature’s most poetic gems.

Short FAQ

Is fire agate natural or treated?
High-quality fire agate is 100% natural; treatment is extremely rare and usually unnecessary.

Can fire agate lose its color?
No. The colors come from stable iron oxides sealed under quartz, so they do not fade like dyed stones.

Is fire agate rare?
Yes — it forms only in a few volcanic hydrothermal systems, and production is limited.

Is fire agate the same as iridescent agate?
No. Many agates show color banding; fire agate is specifically the variety with interference-based “fire”.
