Iolite, also known as cordierite, is a mineral that belongs to the silicate mineral group. Its name is derived from the Greek word “ios,” which means violet, due to its characteristic violet-blue color when properly oriented and cut. Iolite has a unique property known as pleochroism, which means it displays different colors when viewed from different angles. This property makes it a popular gemstone, often used in jewelry.

Iolite is a complex silicate mineral with the chemical formula (Mg,Fe)_2Al_3(AlSi_5O_18), where magnesium and iron ions can substitute for each other. It crystallizes in the orthorhombic crystal system and has a relatively moderate hardness of 7 to 7.5 on the Mohs scale. This makes it suitable for various jewelry applications, although it requires careful handling and setting due to its cleavage and sensitivity to heat and sudden temperature changes.

Historical Significance:

Iolite has a historical significance that dates back to ancient times. Vikings are known to have used iolite as a navigational aid, as it has a unique property called “pleochroism.” This means that iolite exhibits different colors when viewed from different angles. Vikings used thin slices of iolite as a polarizing filter to determine the exact position of the sun on overcast days or when the sun was hidden by the horizon. This allowed them to navigate more accurately and safely across the open seas.

Iolite’s role as a Viking compass stone earned it the nickname “Viking’s Compass” or “Viking’s Stone.” This historical use of iolite showcases its importance in navigation and exploration during a time when traditional navigation tools were limited.

Today, iolite continues to be appreciated for its unique beauty and historical significance. It is often used in jewelry pieces, including rings, necklaces, and earrings. The distinctive pleochroic quality that once aided the Vikings’ navigation now adds to the gemstone’s allure, as it can display shades of blue, violet, and sometimes even grayish or yellowish tones when viewed from different angles.

In addition to its use in jewelry, iolite also holds value for mineral collectors and enthusiasts due to its geological and mineralogical properties. Its occurrence in various geological settings contributes to its desirability among collectors who appreciate its diversity and unique characteristics.

Mineralogy and Properties

Composition and Chemical Structure:

Iolite is a complex silicate mineral with the chemical formula (Mg,Fe)_2Al_3(AlSi_5O_18). This formula reflects its composition, which includes aluminum (Al), silicon (Si), magnesium (Mg), and iron (Fe) ions. The presence of magnesium and iron ions in the mineral’s structure gives rise to its distinctive coloration and pleochroism. The relative amounts of these ions determine the intensity of the violet-blue color observed in iolite.

Crystal System and Habit:

Iolite crystallizes in the orthorhombic crystal system. This means that its crystal lattice has three mutually perpendicular axes of different lengths. The crystal habit of iolite can vary, but it typically forms as prismatic crystals with a rectangular cross-section. The crystals can be elongated and exhibit well-defined faces and edges. Iolite’s crystal structure can sometimes display a strong trichroic pleochroism, showing distinct blue, violet, and pale yellow or gray colors when viewed from different angles.

Physical and Optical Properties:

  1. Color: Iolite’s most famous characteristic is its pleochroism, which causes it to exhibit varying colors depending on the angle of observation. These colors typically include violet-blue, blue, and sometimes even yellow or gray. The exact color observed depends on the orientation of the crystal and the direction from which light enters.
  2. Hardness: Iolite has a hardness of 7 to 7.5 on the Mohs scale, making it moderately hard. This makes it suitable for various jewelry applications but also means it can be scratched by harder materials.
  3. Luster: Iolite exhibits a vitreous to subvitreous (glassy) luster when polished.
  4. Transparency: The mineral can range from transparent to translucent, allowing light to pass through its crystal structure.
  5. Cleavage: Iolite has distinct cleavage in two directions, which means it can be easily split along certain planes to form smooth surfaces.
  6. Density: The density of iolite ranges from about 2.53 to 2.66 g/cm³, with variations based on the specific composition of the mineral.
  7. Refractive Index: The refractive index of iolite varies depending on the angle of observation due to its pleochroism. Typically, the refractive index ranges between approximately 1.522 and 1.578.
  8. Birefringence: Iolite exhibits strong birefringence due to its orthorhombic crystal structure. This means that light passing through the crystal is split into two rays, resulting in a doubling of images when viewed through a polarizing microscope.
  9. Optical Character: Iolite is biaxial negative, meaning it has two optic axes and the acute angle between them is greater than 90 degrees.

Overall, iolite’s unique optical properties, including its pleochroism, make it a visually captivating gemstone and a fascinating mineral for both collectors and researchers in the field of mineralogy.

Gemstone Uses and Varieties

Iolite as a Gemstone:

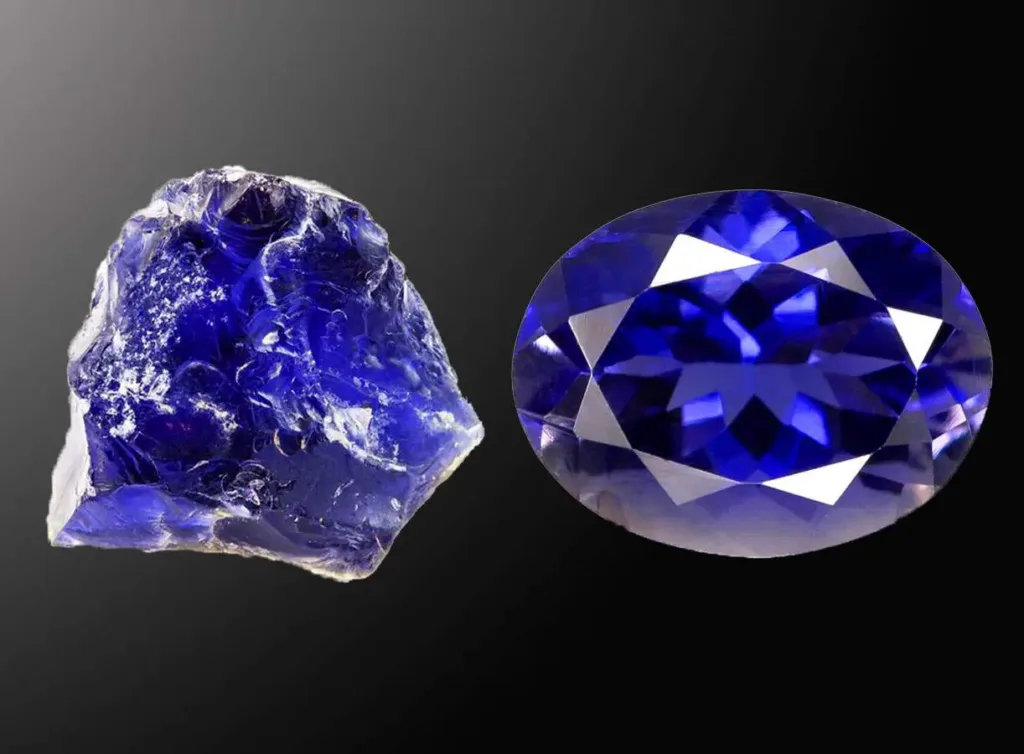

Iolite is a popular gemstone choice for jewelry due to its intriguing pleochroism, which gives it a unique and captivating appearance. When properly cut and oriented, iolite can exhibit shades of violet-blue, blue, and sometimes even gray or yellow. This property makes each iolite gemstone somewhat individual in appearance, adding to its appeal.

Color Variations and Factors:

Iolite’s color variations are primarily influenced by its pleochroism and the angle at which it is observed. The stone can show different colors depending on whether it is viewed along its crystallographic axes. Factors that influence the color of iolite include:

  1. Angle of Observation: The most significant factor affecting iolite’s color is the angle at which it is viewed. Depending on the angle of light entering the stone and the direction from which it is observed, iolite can display a range of colors, including violet-blue, blue, gray, and sometimes even yellow.
  2. Iron and Magnesium Content: The presence of iron and magnesium ions in the mineral’s crystal structure contributes to the intensity and saturation of its color. Higher iron content tends to enhance the violet-blue hues.

Common Cuts and Settings:

Iolite is often cut in a variety of shapes to maximize its pleochroic color display and to showcase its natural beauty. Some common cuts and settings for iolite gemstones include:

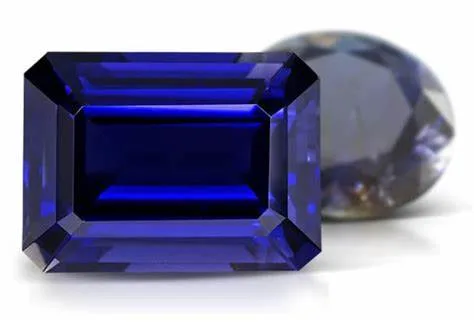

  1. Faceted Cuts: Iolite is frequently cut in traditional faceted shapes, such as rounds, ovals, cushions, and emerald cuts. Faceted cuts help to highlight the stone’s brilliance and its varying colors when viewed from different angles.
  2. Cabochons: Iolite can also be cut into smooth, rounded, and polished cabochons. Cabochon cuts emphasize the stone’s surface and can display its unique color play effectively.
  3. Mixed Cuts: Some gem cutters create mixed cuts that combine facets and curved surfaces, allowing for a balance between brilliance and the display of pleochroism.
  4. Beads: Iolite beads are popular for use in necklaces, bracelets, and earrings. The beads showcase the stone’s unique colors and can be incorporated into various jewelry designs.
  5. Settings: Iolite is often set in jewelry designs that complement its colors and pleochroism. It can be used as the focal point in rings, necklaces, earrings, and pendants. Iolite is often set in sterling silver, white gold, or platinum settings to enhance its cool blue and violet tones.

When designing jewelry with iolite, jewelers take into account the stone’s pleochroism and unique colors to create pieces that highlight its visual appeal. As with any gemstone, the choice of cut and setting depends on the desired aesthetic and the overall design concept of the jewelry piece.

Geographical Sources Locations

Locations of Iolite Deposits:

Iolite can be found in various locations around the world, although significant deposits are relatively limited compared to more common gemstones. Some of the notable sources of iolite include:

  1. India: India is a prominent source of iolite. The state of Orissa (now Odisha) is known for producing high-quality iolite gemstones.
  2. Sri Lanka: Sri Lanka, known for its rich gemstone deposits, also produces iolite. The gem is often found alongside other valuable gems like sapphires and spinels.
  3. Madagascar: Madagascar is another important source of iolite. The country’s gem mining areas, such as the Ilakaka region, yield a variety of gemstones, including iolite.
  4. Myanmar (Burma): Myanmar has been known to produce iolite, though the quantity and quality can vary.
  5. Tanzania: Some iolite is found in Tanzania, particularly in areas known for gemstone mining like the Umba Valley.
  6. Brazil: Brazil has also produced iolite, with some deposits found in Minas Gerais and Bahia.
  7. United States: Iolite can be found in the United States as well, including states like Connecticut, Wyoming, and Montana.

Mining and Extraction Processes:

The extraction of iolite involves mining and subsequent processing to extract gem-quality material. The process can vary depending on the specific geological conditions of the deposit:

  1. Exploration and Mining: Geologists and prospectors identify potential iolite-bearing areas based on geological indicators. Once a suitable deposit is located, mining operations can begin. This can involve open-pit mining, underground mining, or alluvial mining, depending on the deposit’s characteristics.
  2. Extraction: After the ore is extracted from the ground, it is typically transported to a processing facility. The ore is then sorted, and the iolite-bearing material is separated from the waste rock.
  3. Sorting and Grading: The extracted material is sorted based on quality and size. Gem-quality iolite pieces are selected for further processing, while lower-grade material might be used for industrial purposes.
  4. Cutting and Polishing: Gem-quality iolite is then cut and shaped into various gemstone cuts, as mentioned earlier. Skilled gem cutters work to maximize the stone’s beauty and pleochroic properties while minimizing wastage.
  5. Quality Control: After cutting, the iolite gemstones are subjected to quality control to ensure they meet the desired standards of color, clarity, and cut.
  6. Market Distribution: Once cut and polished, iolite gemstones are distributed to jewelry manufacturers, wholesalers, and retailers who incorporate them into jewelry pieces for the consumer market.

It’s important to note that the mining and extraction process can vary from one location to another, and adherence to ethical and environmentally responsible mining practices is becoming increasingly important in the gemstone industry. Sustainable mining practices aim to minimize the environmental impact and ensure fair labor practices throughout the supply chain.

Iolite in Science and Technology

Industrial Applications (e.g., Thin-Film Coatings):

Iolite and similar minerals have found application in various industrial fields, particularly due to their unique optical properties. One notable application is in thin-film coatings and optical devices. Thin films of iolite can be used as coatings on glass or other transparent materials to enhance their optical properties. The pleochroism of iolite can be exploited to create optical filters and devices that manipulate light in specific ways. These coatings can be used in industries such as optics, telecommunications, and electronics.

Iolite’s birefringence and pleochroism make it valuable for applications where light needs to be manipulated or filtered based on its polarization and wavelength. By controlling the orientation and thickness of iolite thin films, manufacturers can tailor the optical properties of devices like polarizing filters, waveplates, and beamsplitters.

Scientific Use in Mineralogical Studies:

Iolite, as a mineral, holds significance beyond its gemstone and industrial applications. It is used in mineralogical studies and research to understand the behavior of minerals under varying geological conditions. Researchers study iolite’s crystal structure, physical properties, and chemical composition to gain insights into the processes that lead to its formation.

In addition, iolite is sometimes used as an indicator mineral in geology and petrology studies. Its presence and characteristics in rock formations can provide clues about the pressure, temperature, and chemical conditions under which those rocks formed or underwent metamorphism. This information aids geologists in reconstructing the Earth’s geological history and understanding the evolution of various rock formations.

Iolite’s pleochroic properties can also be used in polarized light microscopy, allowing geologists and mineralogists to identify and differentiate minerals based on their optical characteristics. This aids in the identification and classification of rock and mineral specimens.

Furthermore, iolite’s use in geochronology and isotopic studies is emerging. Certain isotopic ratios within iolite can provide insights into the timing of geological events, such as the cooling of rocks after metamorphism. This can contribute to a better understanding of geological processes and the tectonic history of regions.

Overall, iolite’s scientific applications extend its significance beyond its visual allure and contribute to the advancement of various fields of study, including geology, mineralogy, and materials science.

Iolite Imitations and Treatments

Common Treatments and Enhancements:

Iolite, like many gemstones, can undergo treatments and enhancements to improve its appearance or marketability. Some common treatments and enhancements for iolite include:

  1. Heat Treatment: Heat treatment is commonly applied to iolite to improve its color and remove or reduce brownish or yellowish tones. Heating the gemstone can enhance its pleochroic properties and shift its color towards a more desirable violet-blue hue.
  2. Surface Coating: Surface coatings may be applied to iolite to enhance its color or optical properties temporarily. However, these coatings can wear off over time and may affect the stone’s appearance and durability.
  3. Dyeing: Dyeing involves introducing color-enhancing agents into fractures or pores in the stone to improve its color. This treatment is generally considered unstable and can result in the color fading or changing over time.
  4. Lattice Diffusion: Lattice diffusion involves introducing elements into the gem’s crystal structure to alter its color. This treatment is not commonly applied to iolite but has been used with other gemstones.
  5. Oil or Resin Infusion: Oil or resin may be used to improve the clarity of iolite by filling surface-reaching fractures. This treatment can enhance transparency but may not be permanent.

How to Identify Natural vs. Treated Iolite:

Identifying natural iolite from treated iolite requires a trained eye and sometimes specialized equipment. Here are some methods that can help distinguish between the two:

  1. Color: Natural iolite’s pleochroism can be a helpful indicator. Examine the stone from different angles to observe any color variations. Treated iolite may exhibit a more consistent color.
  2. Microscope Examination: A gemologist can examine the stone under a microscope to identify signs of treatments, such as surface coatings, dye residues, or fractures filled with substances.
  3. Loupe Examination: Examine the gemstone under a jeweler’s loupe to look for any visible surface coatings, residues, or irregularities that might suggest treatment.
  4. UV Fluorescence: Some treatments may cause iolite to exhibit unusual fluorescence under ultraviolet (UV) light. Comparing the stone’s fluorescence to known natural samples can help identify treatments.
  5. Inclusion Patterns: Natural gemstones often have unique inclusion patterns that can serve as “fingerprints” for their origin. Experienced gemologists may recognize these patterns to determine if a stone has undergone treatments.
  6. Certification: When purchasing iolite, especially high-value pieces, consider obtaining a certificate of authenticity from reputable gemological laboratories. These certificates can provide information about the gemstone’s origin, treatments, and authenticity.
  7. Expert Opinion: If you’re unsure about the authenticity or treatment status of an iolite, seek the opinion of a qualified gemologist or jewelry appraiser. Their expertise can help you make an informed decision.

It’s important to note that treated gemstones are not necessarily of lower quality, but transparency about treatments and their potential impact on a gemstone’s appearance and durability is essential for both consumers and the gemstone trade.


In conclusion, iolite is a captivating and unique mineral with a rich history, distinct properties, and various applications across different fields. Its name, derived from the Greek word for violet, aptly describes its characteristic violet-blue color when properly oriented and cut. Iolite’s pleochroism, displaying different colors from different angles, has not only made it a sought-after gemstone for jewelry but also played a crucial role in Viking navigation centuries ago.

From a mineralogical standpoint, iolite’s composition, crystal structure, and physical properties make it a subject of interest for researchers studying geological processes, crystallography, and mineral identification. Its use as an indicator mineral in petrological studies provides insights into the Earth’s history and geological evolution.

In the world of industry and technology, iolite’s optical properties have led to its application in thin-film coatings and optical devices, contributing to advancements in telecommunications, electronics, and optics. The mineral’s natural birefringence and pleochroism also aid in the identification and classification of minerals using polarized light microscopy.

While iolite is valued for its natural beauty, it’s important for consumers to be aware of potential treatments and enhancements that can alter its appearance. The distinction between natural and treated iolite can be made through careful examination, expert assessment, and certification from reputable gemological laboratories.

Whether admired for its role in history, its scientific significance, or its allure as a gemstone, iolite continues to captivate and intrigue those who appreciate the wonders of the natural world and the many ways it enriches our lives.
